TRH200V-RKPDK (2004)
Toyota Hiace/Regiusace

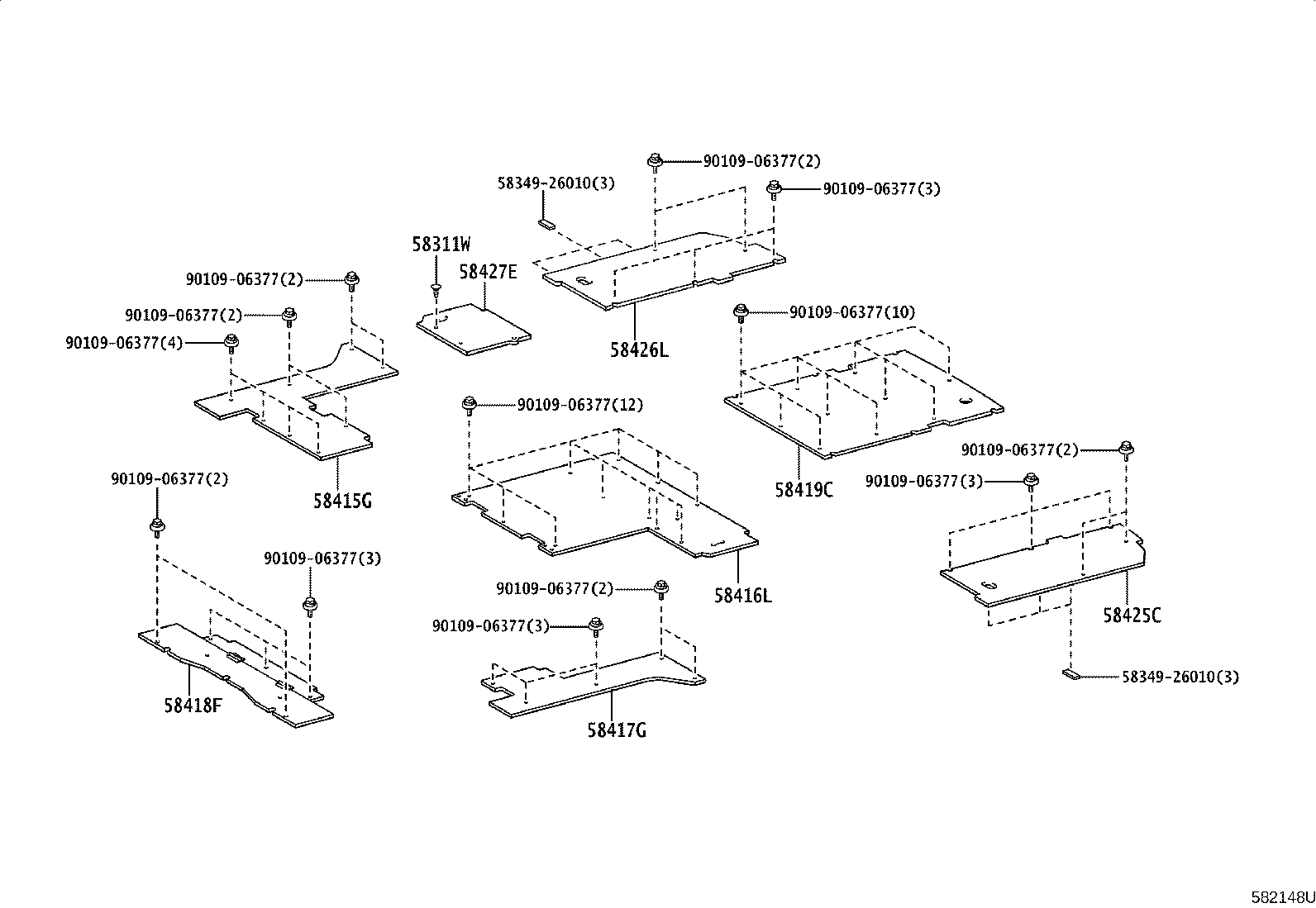

ILLUST NO. 1 OF 3(0408-1205)V2..03S
ﾌﾛｱﾎﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58311W - CLIP(FOR REAR FLOOR) | ||||
| 90467-06089B8 |
KDH201,TRH200..V2 DK.GRAY,TRIM1# |
3 | ||
| 90467-06089B8 |
KDH201,TRH200..V2 DK.GRAY,TRIM1# |
6 | ||
| 90467-06089B7 |
KDH200,201,TRH200..V2 GRAY,TRIM1# |
3 | ||
| 58415G - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-26050 |
KDH200,201,TRH200..V2 |
1 | ||
| 58416L - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-26060 |
KDH200,201,TRH200..V2 |
1 | ||
| 58416-26090 |
KDH201,TRH200..V2 |
1 | ||
| 58417G - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-26040 |
KDH200,201,TRH200..V2 |
1 | ||
| 58418F - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-26070 |
KDH200,201,TRH200..V2 |
1 | ||
| 58419C - BOARD, REAR FLOOR, NO.5 | ||||
| 58419-26020 |
KDH200,201,TRH200..V2 |
1 | ||
| 58425C - BOARD, REAR FLOOR, NO.6 | ||||
| 58425-26020 |
KDH200,201,TRH200..V2 |
1 | ||
| 58426L - BOARD, REAR FLOOR, NO.7 | ||||
| 58426-26010 |
KDH200,201,TRH200..V2 |
1 | ||
| 58427E - BOARD, REAR FLOOR, NO.8 | ||||
| 58427-26030 |
KDH200,201,TRH200..V2 |
1 | ||
| Common parts | ||||
| 58349-26010 | ||||
| 90109-06377 | ||||

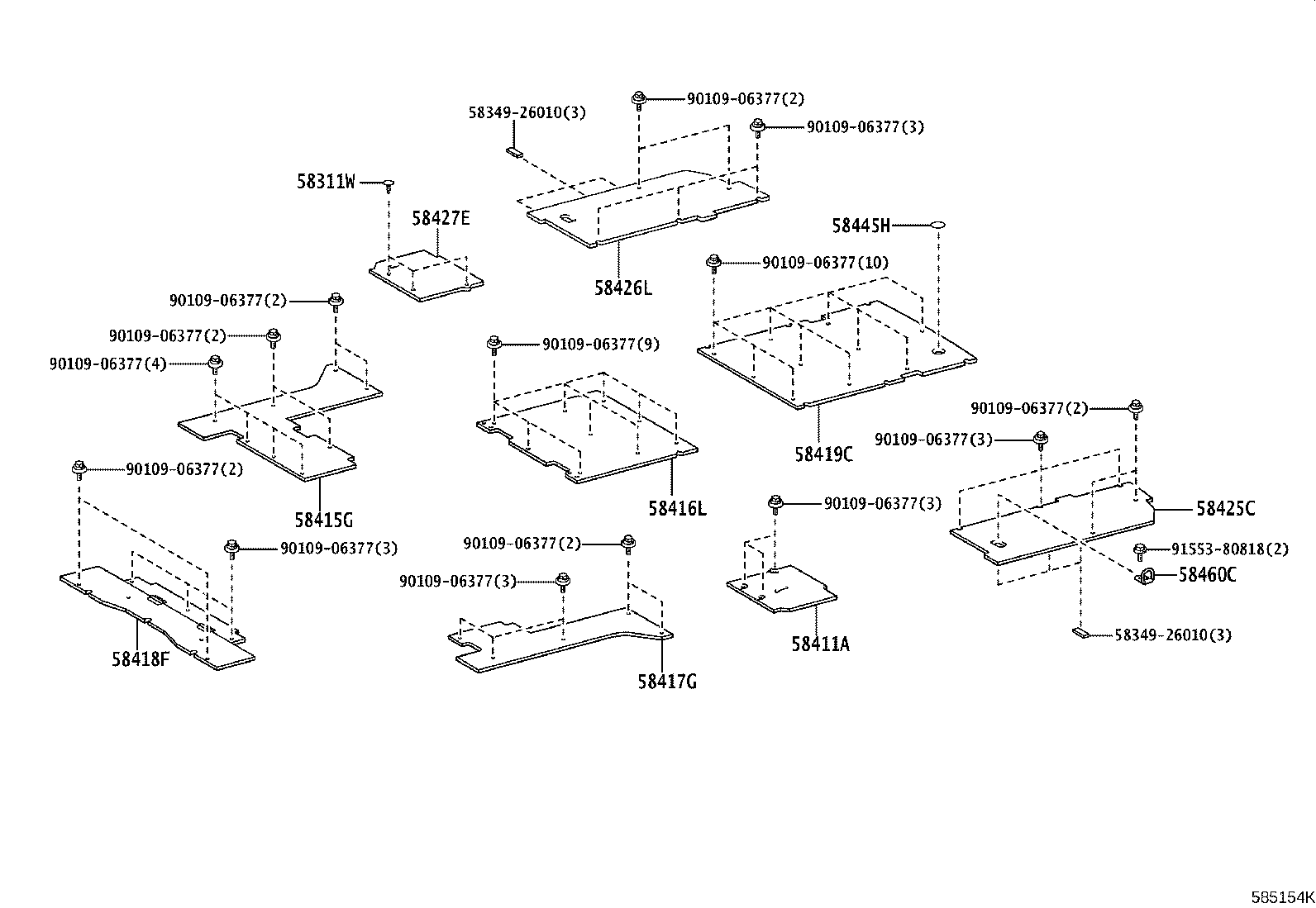

ILLUST NO. 1 OF 3(1205- )V2..03S
ﾌﾛｱﾎﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58311W - CLIP(FOR REAR FLOOR) | ||||
| 90467-06089B8 |
KDH201,TRH200..V2 DK.GRAY,TRIM1# |
3 | ||
| 90467-06089B8 |
KDH201,TRH200..V2 DK.GRAY,TRIM1# |
6 | ||
| 90467-06089B7 |
KDH200,201,TRH200..V2 GRAY,TRIM1# |
3 | ||
| 58411A - BOARD, DECK, NO.1 | ||||
| 58411-26010 |
KDH201,TRH200..V2 |
1 | ||
| 58415G - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-26050 |
KDH200,201,TRH200..V2 |
1 | ||
| 58416L - BOARD, REAR FLOOR, NO.2 | ||||
| 58416-26060 |
KDH200,201,TRH200..V2 |
1 | ||
| 58416-26090 |
KDH201,TRH200..V2 |
1 | ||
| 58417G - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-26040 |
KDH200,201,TRH200..V2 |
1 | ||
| 58418F - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-26070 |
KDH200,201,TRH200..V2 |
1 | ||
| 58419C - BOARD, REAR FLOOR, NO.5 | ||||
| 58419-26020 |
KDH200,201,TRH200..V2 |
1 | ||
| 58425C - BOARD, REAR FLOOR, NO.6 | ||||
| 58425-26020 |
KDH200,201,TRH200..V2 |
1 | ||
| 58426L - BOARD, REAR FLOOR, NO.7 | ||||
| 58426-26010 |
KDH200,201,TRH200..V2 |
1 | ||
| 58427E - BOARD, REAR FLOOR, NO.8 | ||||
| 58427-26030 |
KDH200,201,TRH200..V2 |
1 | ||
| Common parts | ||||
| 58349-26010 | ||||
| 90109-06377 | ||||
| 91553-80818 | ||||

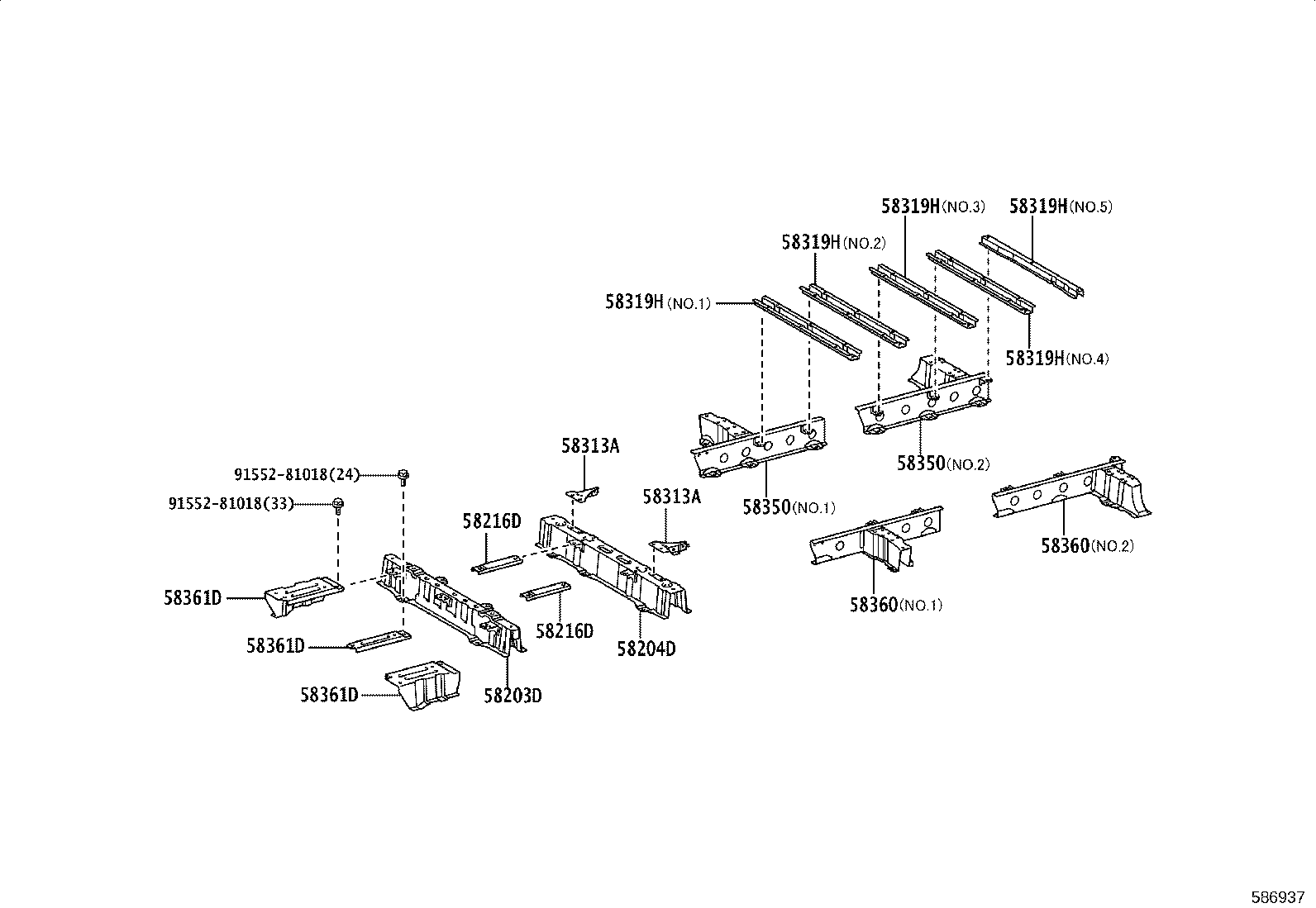

ILLUST NO. 2 OF 3(0408-1205)V2..03S
ﾘｲﾝﾎｰｽﾒﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH | ||||
| 58203-26010 |
KDH201,TRH200..V2 |
1 | ||
| 58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH | ||||
| 58204-26010 |
KDH201,TRH200..V2 |
1 | ||
| 58216D - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-26020 |
KDH201,TRH200..V2 |
2 | ||
| 58205-26010 |
KDH201,TRH200..V2 |
2 | ||
| 58216D - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-26020 |
KDH201,TRH200..V2 |
2 | ||
| 58205-26010 |
KDH201,TRH200..V2 |
2 | ||
| 58313A - EXTENSION, REAR FLOOR FRONT PANEL | ||||
| 58313-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58313-26030 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58313A - EXTENSION, REAR FLOOR FRONT PANEL | ||||
| 58313-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58313-26030 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH | ||||
| 58350-26040 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58350-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH | ||||
| 58350-26040 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58350-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH | ||||
| 58360-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58360-26020 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH | ||||
| 58360-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58360-26020 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58362-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58361-26010 |
KDH201,TRH200..V2 ｾﾝﾀ |
1 | ||
| 58361-26020 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58362-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58361-26010 |
KDH201,TRH200..V2 ｾﾝﾀ |
1 | ||
| 58361-26020 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58362-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58361-26010 |
KDH201,TRH200..V2 ｾﾝﾀ |
1 | ||
| 58361-26020 |
KDH201,TRH200..V2 右側 |
1 | ||
| Common parts | ||||
| 91552-81018 | ||||

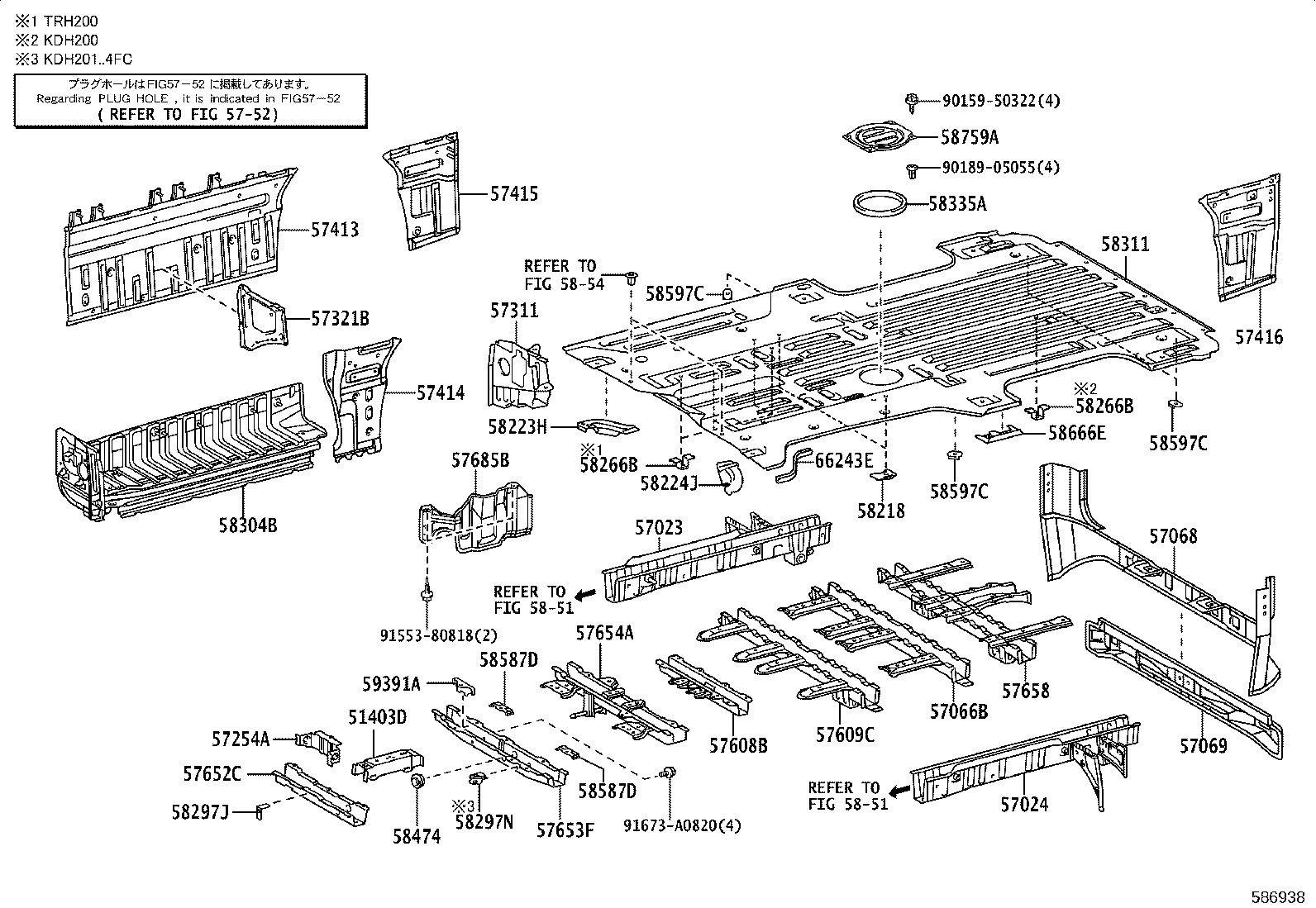

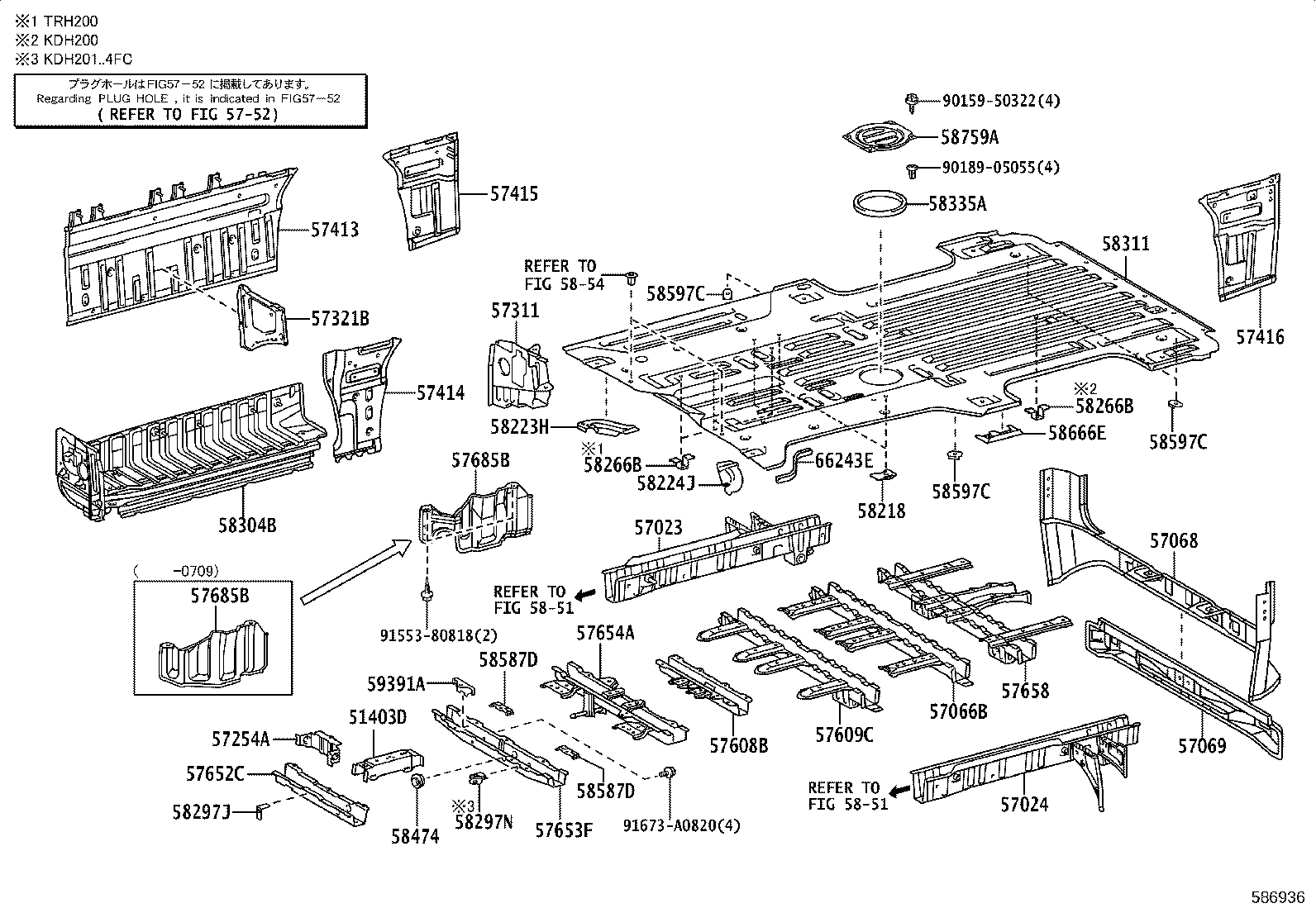

ILLUST NO. 3 OF 3(0408-1205)V2..03S
ﾌﾛｱﾊﾟﾈﾙ&ﾌﾛｱﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-26230 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 51403-26231 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 51403-26232 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26640 |
TRH221,226..HRF..02S;KDH200,TRH200..V2..03S;KDH201,TRH214,219,224,229..(V2,WG)..(DX,GC)..CBU |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26640 |
TRH221,226..HRF..02S;KDH200,TRH200..V2..03S;KDH201,TRH214,219,224,229..(V2,WG)..(DX,GC)..CBU |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26150 |
KDH200,201,TRH200..V2 |
1 | ||
| 57066-26151 |
KDH201,TRH200..V2 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26340 |
KDH200,201,TRH200..V2 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26140 |
KDH20#,TRH200 |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57254-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-26050 |
KDH200,TRH200..V2..03S;KDH200,TRH200,214..(SMRF,SRF)..4D..(06S,09S,10S) |
1 | ||
| 57301-26070 |
KDH200,201,TRH200..V2..03S;KDH200,201,TRH200,214..(SMRF,SRF)..4D..(06S,09S,10S) |
1 | ||
| 57321B - OUTRIGGER, NO.5, RH | ||||
| 57321-26010 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26A00 |
KDH20#,TRH200..4D..03S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-26510 |
KDH20#,TRH200..03S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26280 |
KDH200,201,TRH200..V2 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-26260 |
KDH200,201,TRH200..V2 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26300 |
KDH20#,TRH200..CBU |
1 | ||
| 57608-26301 |
KDH20#,TRH200..CBU |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26220 |
KDH200,201,TRH200..V2 |
1 | ||
| 57609-26222 |
KDH201,TRH200..V2 |
1 | ||
| 57609-26221 |
KDH201,TRH200..V2 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26070 |
KDH20#,TRH200 |
1 | ||
| 57652-26071 |
KDH20#,TRH200 |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26130 |
KDH200,205,TRH200 |
1 | ||
| 57653-26131 |
TRH200 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26600 |
KDH200,201,TRH200..V2..03S;KDH20#,TRH200..(05S,06S)..CBU |
1 | ||
| 57607-26601 |
KDH201,TRH200..V2..03S;KDH20#,TRH200..(05S,06S)..CBU |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26150 |
KDH20#,TRH200..IV5;KDH200,201,TRH200..V2 |
1 | ||
| 57067-26151 |
KDH201,TRH200..V2;KDH20#,TRH200..IV5 |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26010 |
KDH20#,TRH200 寒冷地仕様 |
1 | ||
| 57685-26040 |
KDH20#,211,TRH200 寒冷地仕様 |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26010 |
KDH20#,TRH200 寒冷地仕様 |
1 | ||
| 57685-26040 |
KDH20#,211,TRH200 寒冷地仕様 |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58223-26070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
TRH200..CBU;KDH222,227..IV5;KDH211,221,223,TRH21#,22# |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
TRH200..CBU;KDH222,227..IV5;KDH211,221,223,TRH21#,22# |
4 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,221,223,TRH200,21#,22# |
1 | ||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,22#,TRH200,21#,22#..HRF,SMRF,SRF |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26330 |
TRH200..V2..03S |
1 | ||
| 58304-26A20 |
TRH200..V2..03S |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-26B10 |
KDH200,201,TRH200..V2..03S |
1 | ||
| 58311-26E50 |
KDH201,TRH200..V2..03S |
1 | ||
| 58311-26E00 |
KDH201,TRH200..V2..03S |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 |
1 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26060 |
KDH200,201,TRH200..V2 |
4 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26060 |
KDH200,201,TRH200..V2 |
4 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26060 |
KDH200,201,TRH200..V2 |
4 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 59391A - RETAINER, REAR FLOOR, NO.1 | ||||
| 59391-26010 |
KDH200,201,TRH200..V2 |
1 | ||
| 66243E - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-26010 |
KDH201,TRH200..V2 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
ILLUST NO. 2 OF 3(1205- )V2..03S
ﾘｲﾝﾎｰｽﾒﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58203D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH | ||||
| 58203-26010 |
KDH201,TRH200..V2 |
1 | ||
| 58204D - BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH | ||||
| 58204-26010 |
KDH201,TRH200..V2 |
1 | ||
| 58216D - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-26020 |
KDH201,TRH200..V2 |
2 | ||
| 58205-26010 |
KDH201,TRH200..V2 |
2 | ||
| 58216D - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-26020 |
KDH201,TRH200..V2 |
2 | ||
| 58205-26010 |
KDH201,TRH200..V2 |
2 | ||
| 58313A - EXTENSION, REAR FLOOR FRONT PANEL | ||||
| 58313-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58313-26030 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58313A - EXTENSION, REAR FLOOR FRONT PANEL | ||||
| 58313-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58313-26030 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58319H - PLATE, SUB FLOOR | ||||
| 58203-26020 |
KDH201,TRH200..V2 NO.1,2,3,4 |
4 | ||
| 58319-26070 |
KDH201,TRH200..V2 NO.5 |
1 | ||
| 58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH | ||||
| 58350-26040 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58350-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH | ||||
| 58350-26040 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58350-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH | ||||
| 58360-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58360-26020 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH | ||||
| 58360-26010 |
KDH201,TRH200..V2 NO.1 |
1 | ||
| 58360-26020 |
KDH201,TRH200..V2 NO.2 |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58362-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58361-26010 |
KDH201,TRH200..V2 ｾﾝﾀ |
1 | ||
| 58361-26020 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58362-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58361-26010 |
KDH201,TRH200..V2 ｾﾝﾀ |
1 | ||
| 58361-26020 |
KDH201,TRH200..V2 右側 |
1 | ||
| 58361D - REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH | ||||
| 58362-26040 |
KDH201,TRH200..V2 左側 |
1 | ||
| 58361-26010 |
KDH201,TRH200..V2 ｾﾝﾀ |
1 | ||
| 58361-26020 |
KDH201,TRH200..V2 右側 |
1 | ||
| Common parts | ||||
| 91552-81018 | ||||
ILLUST NO. 3 OF 3(1205- )V2..03S
ﾌﾛｱﾊﾟﾈﾙ&ﾌﾛｱﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-26230 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 51403-26231 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 51403-26232 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26640 |
TRH221,226..HRF..02S;KDH200,TRH200..V2..03S;KDH201,TRH214,219,224,229..(V2,WG)..(DX,GC)..CBU |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26640 |
TRH221,226..HRF..02S;KDH200,TRH200..V2..03S;KDH201,TRH214,219,224,229..(V2,WG)..(DX,GC)..CBU |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26150 |
KDH200,201,TRH200..V2 |
1 | ||
| 57066-26151 |
KDH201,TRH200..V2 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26340 |
KDH200,201,TRH200..V2 |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26140 |
KDH20#,TRH200 |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57254-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-26050 |
KDH200,TRH200..V2..03S;KDH200,TRH200,214..(SMRF,SRF)..4D..(06S,09S,10S) |
1 | ||
| 57301-26070 |
KDH200,201,TRH200..V2..03S;KDH200,201,TRH200,214..(SMRF,SRF)..4D..(06S,09S,10S) |
1 | ||
| 57321B - OUTRIGGER, NO.5, RH | ||||
| 57321-26010 |
KDH20#,22#,TRH200,214,219,22#..4D |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26A00 |
KDH20#,TRH200..4D..03S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-26510 |
KDH20#,TRH200..03S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-26280 |
KDH200,201,TRH200..V2 |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-26260 |
KDH200,201,TRH200..V2 |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26301 |
KDH20#,TRH200..CBU |
1 | ||
| 57608-26300 |
KDH20#,TRH200..CBU |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26220 |
KDH200,201,TRH200..V2 |
1 | ||
| 57609-26222 |
KDH201,TRH200..V2 |
1 | ||
| 57609-26221 |
KDH201,TRH200..V2 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26070 |
KDH20#,TRH200 |
1 | ||
| 57652-26071 |
KDH20#,TRH200 |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26130 |
KDH200,205,TRH200 |
1 | ||
| 57653-26131 |
TRH200 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26600 |
KDH200,201,TRH200..V2..03S;KDH20#,TRH200..(05S,06S)..CBU |
1 | ||
| 57607-26601 |
KDH201,TRH200..V2..03S;KDH20#,TRH200..(05S,06S)..CBU |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26150 |
KDH20#,TRH200..IV5;KDH200,201,TRH200..V2 |
1 | ||
| 57067-26151 |
KDH201,TRH200..V2;KDH20#,TRH200..IV5 |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26010 |
KDH20#,TRH200 寒冷地仕様 |
1 | ||
| 57685-26040 |
KDH20#,211,TRH200 寒冷地仕様 |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58223-26070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
TRH200..CBU;KDH222,227..IV5;KDH211,221,223,TRH21#,22# |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
TRH200..CBU;KDH222,227..IV5;KDH211,221,223,TRH21#,22# |
4 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,221,223,TRH200,21#,22# |
1 | ||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,22#,TRH200,21#,22#..HRF,SMRF,SRF |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26330 |
TRH200..V2..03S |
1 | ||
| 58304-26A20 |
TRH200..V2..03S |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-26B10 |
KDH200,201,TRH200..V2..03S |
1 | ||
| 58311-26E50 |
KDH201,TRH200..V2..03S |
1 | ||
| 58311-26E00 |
KDH201,TRH200..V2..03S |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 |
1 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26060 |
KDH200,201,TRH200..V2 |
4 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26060 |
KDH200,201,TRH200..V2 |
4 | ||
| 58597C - PLATE, SEAT TRACK SET | ||||
| 58597-26060 |
KDH200,201,TRH200..V2 |
4 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 59391A - RETAINER, REAR FLOOR, NO.1 | ||||
| 59391-26010 |
KDH200,201,TRH200..V2 |
1 | ||
| 66243E - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-26010 |
KDH201,TRH200..V2 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
