TRH200V-RHPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

Click highlighted areas on diagram

diagram 7114930050 7129226010 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
71292-26010
90468-16019
90468-18008

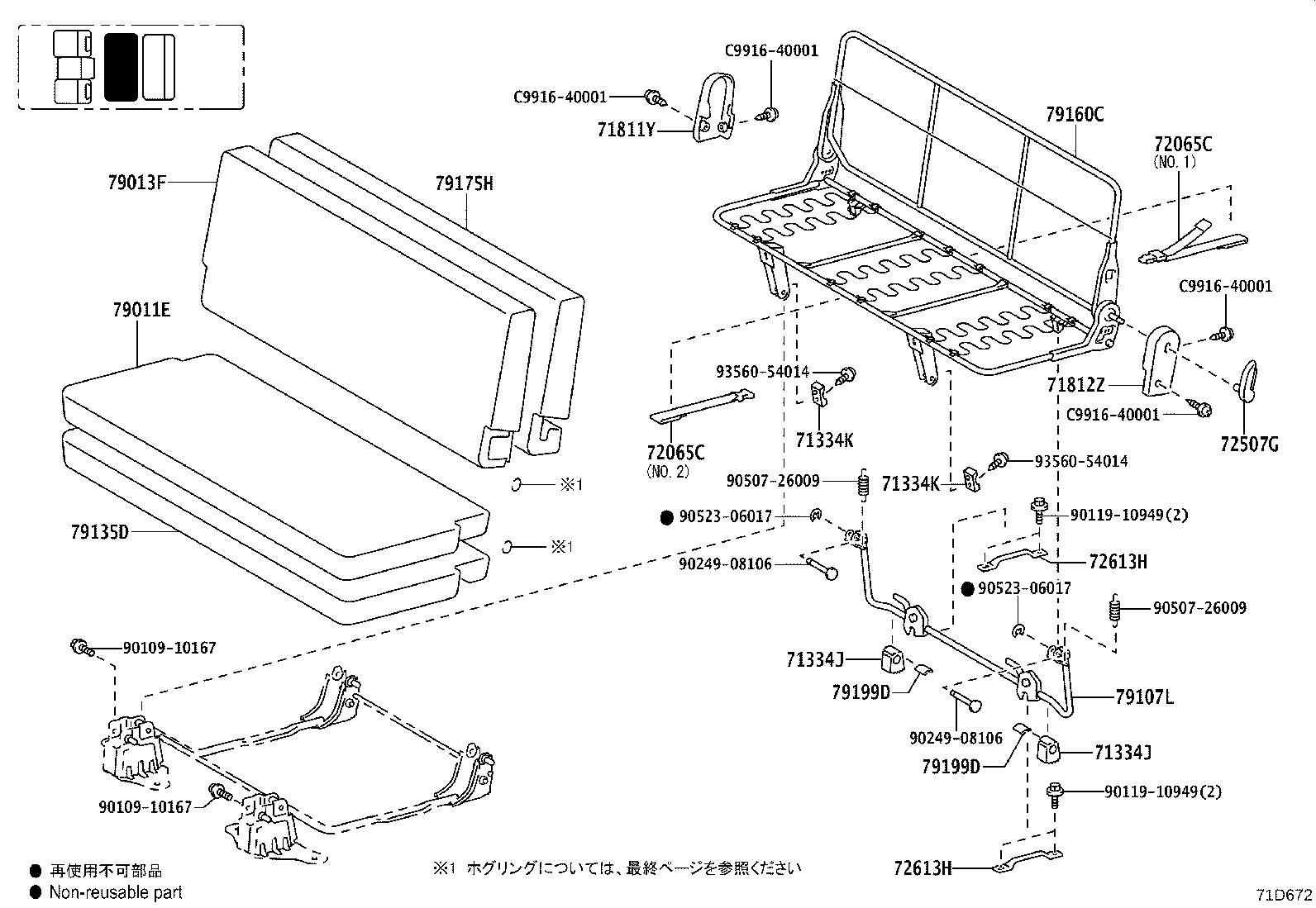

(1312-1501)09S

Click highlighted areas on diagram

ﾘﾔ NO.1 ｼｰﾄ

diagram 71334J 71334J 71334K 71334K 71811Y 71812Z 72065C 72065C 72507G 72613H 72613H 79011E 79013F 79107L 79135D 79160C 79175H 79199D 79199D 9010910167 9010910167 9011910949 9011910949 9024908106 9024908106 9050726009 9050726009 9052306017 9052306017 9356054014 9356054014 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71334J - STOPPER, REAR SEAT LEG
71334-26100

KDH20#,TRH200..06S,09S

 2
71334J - STOPPER, REAR SEAT LEG
71334-26100

KDH20#,TRH200..06S,09S

 2
71334K - STOPPER, REAR SEAT LEG, NO.2
71334-26090

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
71334K - STOPPER, REAR SEAT LEG, NO.2
71334-26090

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
71811Y - COVER, RECLINING ADJUSTER, RH
71811-26160B1

KDH20#,221,TRH200,221,226..06S,09S

DK.GRAY,TRIM1#

 1
71812Z - COVER, RECLINING ADJUSTER, LH
71812-26320B1

KDH20#,TRH200..09S

DK.GRAY,TRIM1#

 1
72065C - BELT SUB-ASSY, REAR SEAT HOOK
72065-26050

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.1

 1
72065-26060

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.2

 1
72065C - BELT SUB-ASSY, REAR SEAT HOOK
72065-26050

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.1

 1
72065-26060

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.2

 1
72507G - HANDLE SUB-ASSY, RECLINING RELEASE, LH
72507-58020B0

TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX

DK.GRAY,TRIM1#

 1
72613H - STRIKER, REAR SEAT LOCK
72613-26090

TRH200..V2..06S..4FC;TRH200..V1..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..V1..(05S,06S,09S)..DX

 2
72613H - STRIKER, REAR SEAT LOCK
72613-26090

TRH200..V2..06S..4FC;TRH200..V1..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..V1..(05S,06S,09S)..DX

 2
79011E - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26A43B2

KDH20#,TRH200..09S

BLUISH GRAY,TRIM1#

 1
79013F - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26A02B7

KDH20#,221,TRH200,221,226..06S,09S

BLUISH GRAY,TRIM1#

 1
79107L - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26141

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 1
79107-26210

KDH20#,TRH200..09S

 1
79135D - PAD, NO.1 SEAT CUSHION
79135-26352

KDH20#,TRH200..09S

 1
79160C - SPRING ASSY, NO.1 SEAT CUSHION
79160-26220

KDH20#,TRH200..09S

 1
79175H - PAD, NO.1 SEAT BACK
79175-26261

KDH20#,221,TRH200,221,226..06S,09S

 1
79199D - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

TRH200..6FC..SGL;KDH201..V1..HRF..5F;TRH200..(05S,06S,09S)..4FC;GDH20#,211,KDH20#,211,TRH211,216..SGL

 2
79199D - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

TRH200..6FC..SGL;KDH201..V1..HRF..5F;TRH200..(05S,06S,09S)..4FC;GDH20#,211,KDH20#,211,TRH211,216..SGL

 2
Common parts
90109-10167
90119-10949
90249-08106
90507-26009
90523-06017
93560-54014
C9916-40001

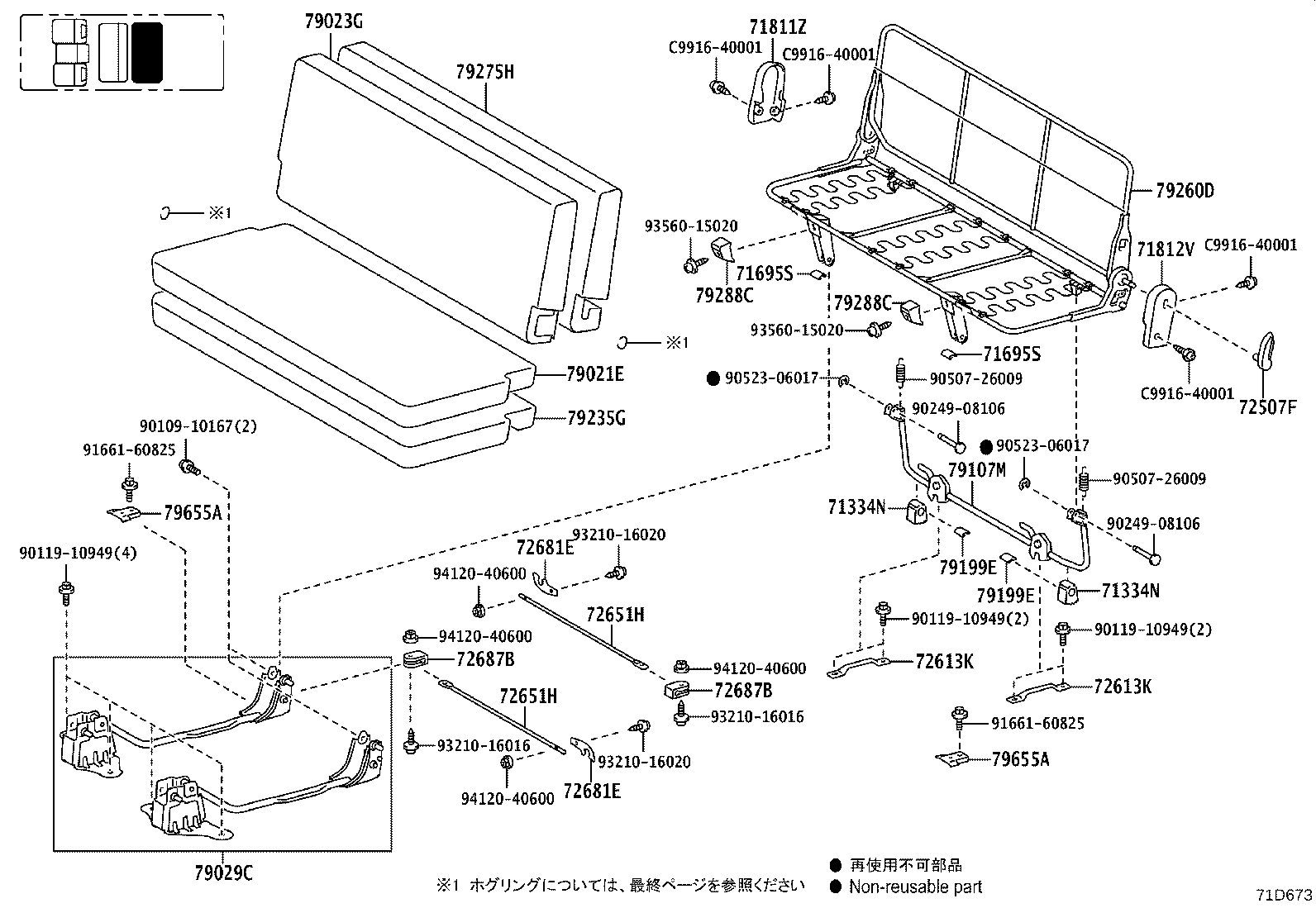

(1312-1501)09S

Click highlighted areas on diagram

ﾘﾔ NO.2 ｼｰﾄ

diagram 71334N 71334N 71695S 71695S 71811Z 71812V 72507F 72613K 72613K 72651H 72651H 72681E 72681E 72687B 72687B 79021E 79023G 79029C 79107M 79199E 79199E 79235G 79260D 79275H 79288C 79288C 79655A 79655A 9010910167 9011910949 9011910949 9011910949 9024908106 9024908106 9050726009 9050726009 9052306017 9052306017 9166160825 9166160825 9321016016 9321016016 9321016020 9321016020 9356015020 9356015020 9412040600 9412040600 9412040600 9412040600 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71334N - STOPPER, REAR SEAT LEG, NO.2
71334-26070

KDH20#,TRH200..09S

 2
71334N - STOPPER, REAR SEAT LEG, NO.2
71334-26070

KDH20#,TRH200..09S

 2
71695S - PROTECTOR, REAR SEAT, NO.1
71695-26090

KDH20#,TRH200..09S

 2
71695S - PROTECTOR, REAR SEAT, NO.1
71695-26090

KDH20#,TRH200..09S

 2
71811Z - SHIELD, REAR SEAT CUSHION, RH
71811-26160B1

KDH20#,TRH200..09S

DK.GRAY,TRIM1#

 1
71812V - SHIELD, REAR SEAT CUSHION, LH
71812-26150B1

KDH20#,TRH200..09S

DK.GRAY,TRIM1#

 1
72507F - HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE
72507-58020B0

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 1
72613K - STRIKER, REAR SEAT LOCK, NO.2
72613-26090

KDH20#,TRH200..09S

 2
72613K - STRIKER, REAR SEAT LOCK, NO.2
72613-26090

KDH20#,TRH200..09S

 2
72651H - ROD, REAR SEAT LOCK, NO.2
72651-26110

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
72651H - ROD, REAR SEAT LOCK, NO.2
72651-26110

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
79021E - COVER SUB-ASSY, NO.2 SEAT CUSHION
79011-26A53B2

KDH20#,TRH200..09S

BLUISH GRAY,TRIM1#

 1
79023G - COVER SUB-ASSY, NO.2 SEAT BACK
79013-26A02B7

KDH20#,TRH200..09S

BLUISH GRAY,TRIM1#

 1
79029C - STAY SUB-ASSY, NO.2 SEAT
79029-26050

KDH20#,TRH200..09S

 1
79107M - LEG SUB-ASSY, NO.2 SEAT, REAR
79107-26151

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 1
79107-26220

KDH20#,TRH200..09S

 1
79199E - HOLDER, NO.2 SEAT LEG STOPPER
79199-26010

KDH20#,TRH200..09S

 2
79199E - HOLDER, NO.2 SEAT LEG STOPPER
79199-26010

KDH20#,TRH200..09S

 2
79235G - PAD, NO.2 SEAT CUSHION
79135-26352

KDH20#,TRH200..09S

 1
79260D - SPRING ASSY, NO.2 SEAT
79160-26230

KDH20#,TRH200..09S

 1
79275H - PAD, NO.2 SEAT BACK
79175-26261

KDH20#,TRH200..09S

 1
79288C - STOPPER, NO.2 SEAT CUSHION
79288-26010

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
79288C - STOPPER, NO.2 SEAT CUSHION
79288-26010

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
79655A - STRIKER, NO.2 SEAT LEG
79239-26010

KDH20#,TRH200..09S

 2
79655A - STRIKER, NO.2 SEAT LEG
79239-26010

KDH20#,TRH200..09S

 2
Common parts
90109-10167
90119-10949
90249-08106
90507-26009
90523-06017
91661-60825
93210-16016
93210-16020
93560-15020
94120-40600
C9916-40001

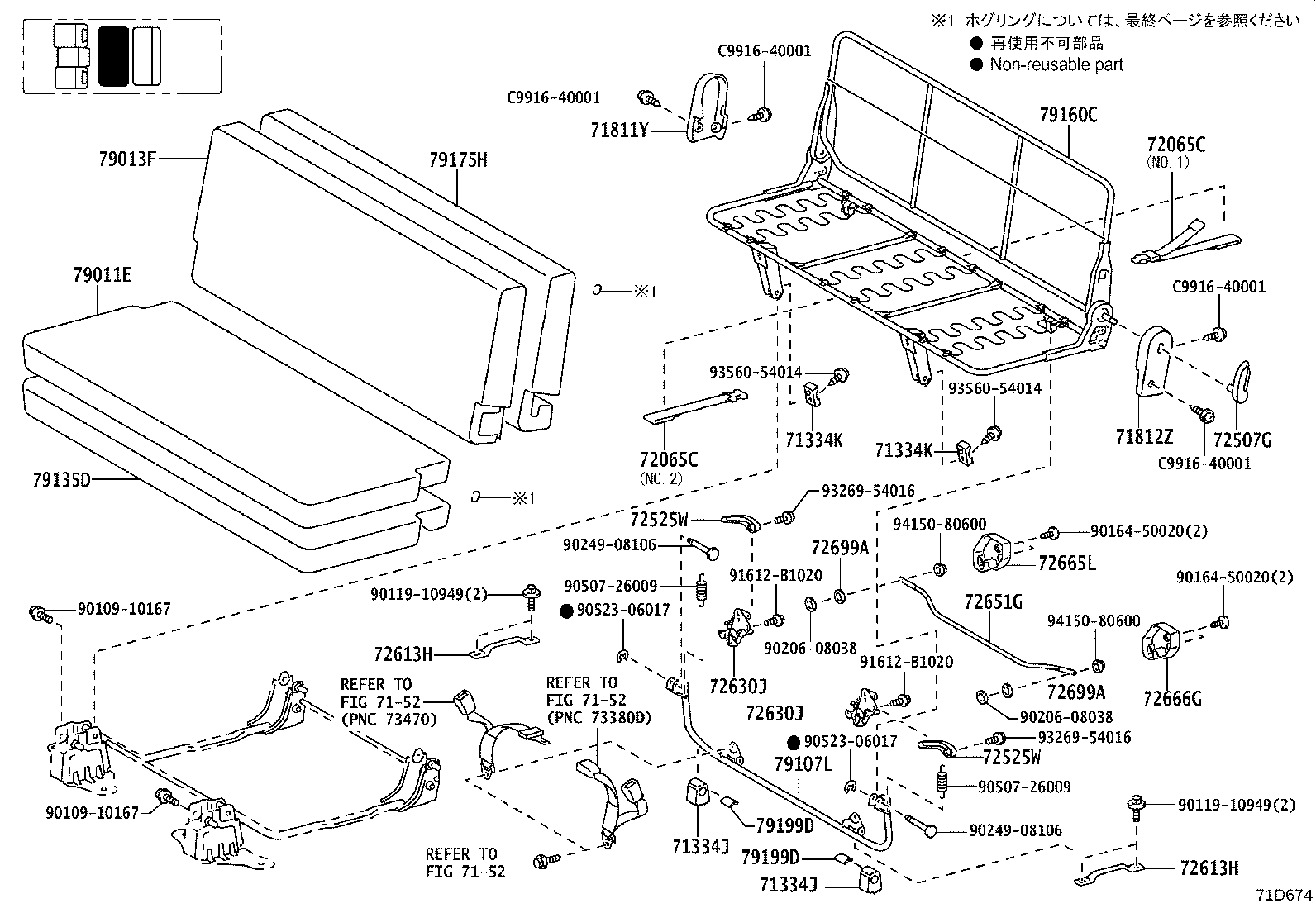

(1312-1606)09S..4FC,5F ; (1501- )TRH200..09S..6FC

Click highlighted areas on diagram

ﾘﾔ NO.1 ｼｰﾄ ｱﾘ(ｼｰﾄﾍﾞﾙﾄ)

diagram 71334J 71334J 71334K 71334K 7152 7152 7152 71811Y 71812Z 72065C 72065C 72507G 72525W 72525W 72613H 72613H 72630J 72630J 72651G 72665L 72666G 72699A 72699A 79011E 79013F 79107L 79135D 79160C 79175H 79199D 79199D 9010910167 9010910167 9011910949 9011910949 9016450020 9016450020 9020608038 9020608038 9024908106 9024908106 9050726009 9050726009 9052306017 9052306017 91612B1020 91612B1020 9326954016 9326954016 9356054014 9356054014 9415080600 9415080600 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71334J - STOPPER, REAR SEAT LEG
71334-26100

KDH20#,TRH200..06S,09S

 2
71334J - STOPPER, REAR SEAT LEG
71334-26100

KDH20#,TRH200..06S,09S

 2
71334K - STOPPER, REAR SEAT LEG, NO.2
71334-26090

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
71334K - STOPPER, REAR SEAT LEG, NO.2
71334-26090

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
71811Y - COVER, RECLINING ADJUSTER, RH
71811-26160B1

KDH20#,221,TRH200,221,226..06S,09S

DK.GRAY,TRIM1#

 1
71812Z - COVER, RECLINING ADJUSTER, LH
71812-26320B1

KDH20#,TRH200..09S

DK.GRAY,TRIM1#

 1
72065C - BELT SUB-ASSY, REAR SEAT HOOK
72065-26050

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.1

 1
72065-26060

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.2

 1
72065C - BELT SUB-ASSY, REAR SEAT HOOK
72065-26050

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.1

 1
72065-26060

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

NO.2

 1
72507G - HANDLE SUB-ASSY, RECLINING RELEASE, LH
72507-58020B0

TRH200..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..(05S,06S,09S)..DX

DK.GRAY,TRIM1#

 1
72525W - HANDLE, RECLINING ADJUSTER RELEASE, NO.1
72525-26120B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 2
72525W - HANDLE, RECLINING ADJUSTER RELEASE, NO.1
72525-26120B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 2
72613H - STRIKER, REAR SEAT LOCK
72613-26090

TRH200..V2..06S..4FC;TRH200..V1..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..V1..(05S,06S,09S)..DX

 2
72613H - STRIKER, REAR SEAT LOCK
72613-26090

TRH200..V2..06S..4FC;TRH200..V1..(06S,09S)..(4FC,6FC);GDH20#,221,226,KDH20#,221,TRH221,226..V1..(05S,06S,09S)..DX

 2
72630J - LOCK ASSY, REAR NO.1 SEAT
72630-26080

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
72630J - LOCK ASSY, REAR NO.1 SEAT
72630-26080

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
72651G - ROD, REAR SEAT LOCK, NO.1
72651-26090

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 1
72665L - COVER, REAR SEAT BACK LOCK, RH
72665-26050B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 1
72666G - COVER, REAR SEAT BACK LOCK, LH
72665-26060B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 1
72699A - PLATE, REAR SEAT LOCK RELEASE, NO.1
72699-26040

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
72699A - PLATE, REAR SEAT LOCK RELEASE, NO.1
72699-26040

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
79011E - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-26A43B2

KDH20#,TRH200..09S

BLUISH GRAY,TRIM1#

 1
79013F - COVER SUB-ASSY, NO.1 SEAT BACK
79013-26A02B7

KDH20#,221,TRH200,221,226..06S,09S

BLUISH GRAY,TRIM1#

 1
79107L - LEG SUB-ASSY, NO.1 SEAT, REAR
79107-26141

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 1
79107-26210

KDH20#,TRH200..09S

 1
79135D - PAD, NO.1 SEAT CUSHION
79135-26352

KDH20#,TRH200..09S

 1
79160C - SPRING ASSY, NO.1 SEAT CUSHION
79160-26220

KDH20#,TRH200..09S

 1
79175H - PAD, NO.1 SEAT BACK
79175-26261

KDH20#,221,TRH200,221,226..06S,09S

 1
79199D - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

TRH200..6FC..SGL;KDH201..V1..HRF..5F;TRH200..(05S,06S,09S)..4FC;GDH20#,211,KDH20#,211,TRH211,216..SGL

 2
79199D - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

TRH200..6FC..SGL;KDH201..V1..HRF..5F;TRH200..(05S,06S,09S)..4FC;GDH20#,211,KDH20#,211,TRH211,216..SGL

 2
Common parts
90109-10167
90119-10949
90164-50020
90206-08038
90249-08106
90507-26009
90523-06017
91612-B1020
93269-54016
93560-54014
94150-80600
C9916-40001
Linked diagrams
7152

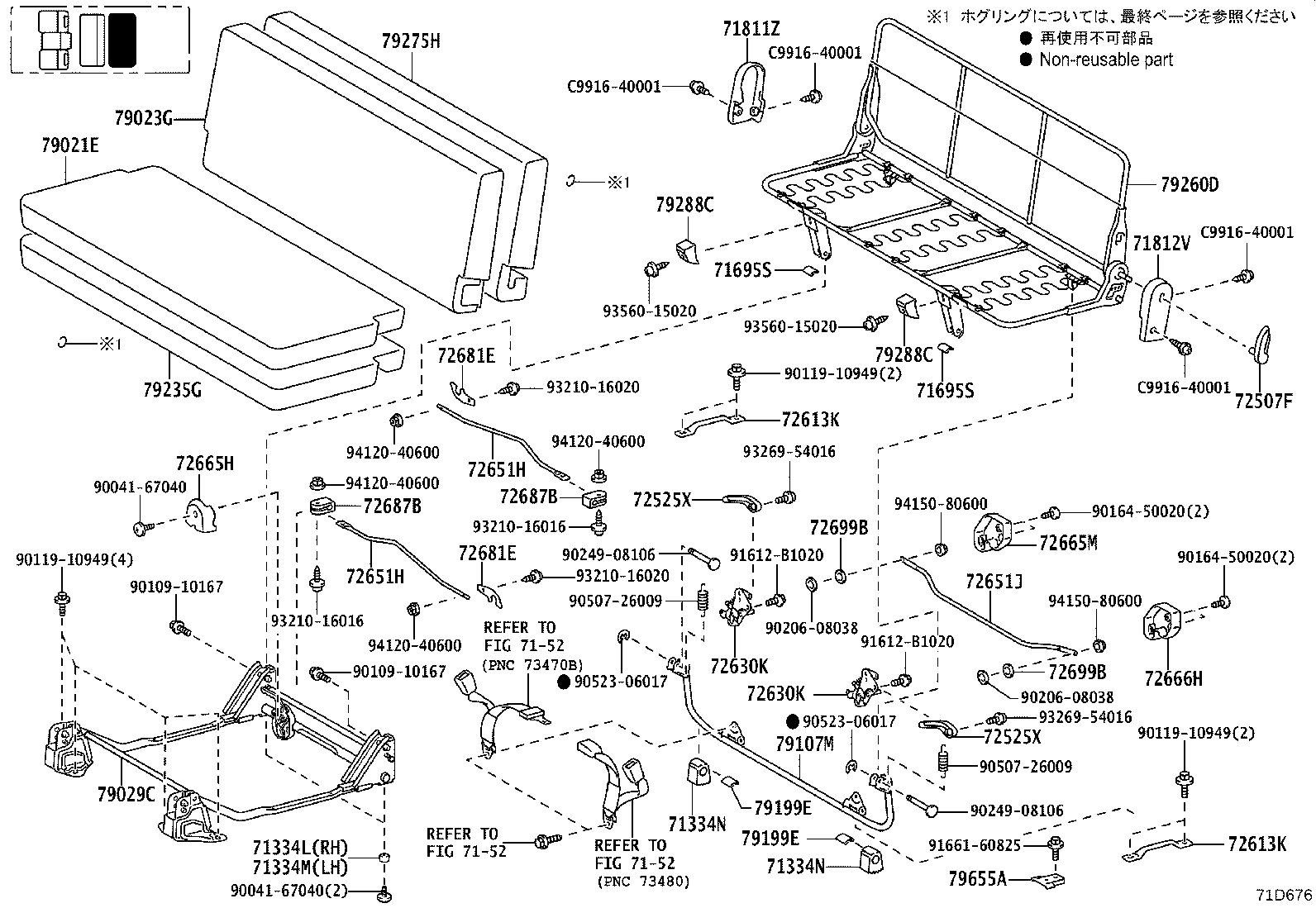

(1312-1801)09S

Click highlighted areas on diagram

ﾘﾔ NO.2 ｼｰﾄ ｱﾘ(ｼｰﾄﾍﾞﾙﾄ)

diagram 71334L 71334M 71334N 71334N 7152 7152 7152 71695S 71695S 71811Z 71812V 72507F 72525X 72525X 72613K 72613K 72630K 72630K 72651H 72651H 72651J 72665H 72665M 72666H 72681E 72681E 72687B 72687B 72699B 72699B 79021E 79023G 79029C 79107M 79199E 79199E 79235G 79260D 79275H 79288C 79288C 79655A 9004167040 9004167040 9010910167 9010910167 9011910949 9011910949 9011910949 9016450020 9016450020 9020608038 9020608038 9024908106 9024908106 9050726009 9050726009 9052306017 9052306017 91612B1020 91612B1020 9166160825 9321016016 9321016016 9321016020 9321016020 9326954016 9326954016 9356015020 9356015020 9412040600 9412040600 9412040600 9412040600 9415080600 9415080600 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
71334N - STOPPER, REAR SEAT LEG, NO.2
71334-26070

KDH20#,TRH200..09S

 2
71334N - STOPPER, REAR SEAT LEG, NO.2
71334-26070

KDH20#,TRH200..09S

 2
71695S - PROTECTOR, REAR SEAT, NO.1
71695-26090

KDH20#,TRH200..09S

 2
71695S - PROTECTOR, REAR SEAT, NO.1
71695-26090

KDH20#,TRH200..09S

 2
71811Z - SHIELD, REAR SEAT CUSHION, RH
71811-26160B1

KDH20#,TRH200..09S

DK.GRAY,TRIM1#

 1
71812V - SHIELD, REAR SEAT CUSHION, LH
71812-26150B1

KDH20#,TRH200..09S

DK.GRAY,TRIM1#

 1
72507F - HANDLE SUB-ASSY, REAR SEAT RECLINING RELEASE
72507-58020B0

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 1
72525X - HANDLE, RECLINING ADJUSTER RELEASE, NO.2
72525-26120B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 2
72525X - HANDLE, RECLINING ADJUSTER RELEASE, NO.2
72525-26120B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 2
72613K - STRIKER, REAR SEAT LOCK, NO.2
72613-26090

KDH20#,TRH200..09S

 2
72613K - STRIKER, REAR SEAT LOCK, NO.2
72613-26090

KDH20#,TRH200..09S

 2
72630K - LOCK ASSY, REAR NO.2 SEAT
72630-26080

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
72630K - LOCK ASSY, REAR NO.2 SEAT
72630-26080

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
72651H - ROD, REAR SEAT LOCK, NO.2
72651-26110

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
72651H - ROD, REAR SEAT LOCK, NO.2
72651-26110

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
72651J - ROD, REAR SEAT LOCK, NO.3
72651-26090

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 1
72665M - COVER, REAR SEAT BACK LOCK, RH NO.2
72665-26050B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 1
72666H - COVER, REAR SEAT BACK LOCK, LH NO.2
72665-26060B2

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用),DK.GRAY,TRIM1#

 1
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72699B - PLATE, REAR SEAT LOCK RELEASE, NO.2
72699-26040

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
72699B - PLATE, REAR SEAT LOCK RELEASE, NO.2
72699-26040

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 2
79021E - COVER SUB-ASSY, NO.2 SEAT CUSHION
79011-26A53B2

KDH20#,TRH200..09S

BLUISH GRAY,TRIM1#

 1
79023G - COVER SUB-ASSY, NO.2 SEAT BACK
79013-26A02B7

KDH20#,TRH200..09S

BLUISH GRAY,TRIM1#

 1
79029C - STAY SUB-ASSY, NO.2 SEAT
79029-26050

KDH20#,TRH200..09S

 1
79107M - LEG SUB-ASSY, NO.2 SEAT, REAR
79107-26151

KDH20#,TRH200..09S

ﾘﾔｼｰﾄﾍﾞﾙﾄ−ｱｳﾀ:3点式&ｾﾝﾀ:2点式ﾀｲﾌﾟ(ﾘﾔｼｰﾄ:6人用)

 1
79107-26220

KDH20#,TRH200..09S

 1
79199E - HOLDER, NO.2 SEAT LEG STOPPER
79199-26010

KDH20#,TRH200..09S

 2
79199E - HOLDER, NO.2 SEAT LEG STOPPER
79199-26010

KDH20#,TRH200..09S

 2
79235G - PAD, NO.2 SEAT CUSHION
79135-26352

KDH20#,TRH200..09S

 1
79260D - SPRING ASSY, NO.2 SEAT
79160-26230

KDH20#,TRH200..09S

 1
79275H - PAD, NO.2 SEAT BACK
79175-26261

KDH20#,TRH200..09S

 1
79288C - STOPPER, NO.2 SEAT CUSHION
79288-26010

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
79288C - STOPPER, NO.2 SEAT CUSHION
79288-26010

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

 2
79655A - STRIKER, NO.2 SEAT LEG
79239-26010

KDH20#,TRH200..09S

 2
Common parts
90041-67040
90109-10167
90119-10949
90164-50020
90206-08038
90249-08106
90507-26009
90523-06017
91612-B1020
91661-60825
93210-16016
93210-16020
93269-54016
93560-15020
94120-40600
94150-80600
C9916-40001
Linked diagrams
7152

(1312- )TRH214,219..GL ; (1312- )GDH223,KDH223,TRH223,228..CBU ; (1712- )T

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ(ｶﾊﾞｰ & ﾊﾟｯﾄﾞ, ｽﾍﾟｰｽｱｯﾌﾟｼｰﾄ)

diagram 71931G 71931G 71931G 71931G 71931G 71931G 71931G 71931G 71940M 71940M 71940M 71940M 79031C 79032B 79033B 79034A 79041C 79042A 79043B 79044B 79335B 79345B 79375C 79385 79435B 79445A 79475B 79485B
Part # Description Qty Price

(1312-1712)TRH214,219..GL ; (1312-1712)KDH223,TRH223,228..CBU ; (1609-1701)TRH224,2

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ(ﾌﾚｰﾑ, ｽﾍﾟｰｽｱｯﾌﾟｼｰﾄ:RH)

diagram 71147H 71324T 71324U 71325E 7152 7152 7152 7152 7152 7152 7152 7152 7152 71628K 71647L 71H11A 71H11B 71H12A 71H12B 71H67 72065G 72525R 72658G 72658H 72667E 72668P 72749J 72927F 72928N 73C73J 7818520080 7889926010 79319A 79360B 79380B 79460B 79480B 9010511058 9010511058 9010908137 9011910948 9011910948 9017610008 9020612050 9020612050 9038612035 9321056016 9324056018 9324056025 9356054012 9356054012 9356054012 9356054012 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
Common parts
78185-20080
78899-26010
90105-11058
90109-08137
90119-10948
90176-10008
90206-12050
90386-12035
93210-56016
93240-56018
93240-56025
93560-54012
C9916-40001
Linked diagrams
7152

(1312-1712)TRH214,219..GL ; (1312-1712)KDH223,TRH223,228..CBU ; (1609-1701)TRH224,2

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ(ﾌﾚｰﾑ, ｽﾍﾟｰｽｱｯﾌﾟｼｰﾄ:LH)

diagram 71147H 71324T 71324V 71325F 7152 7152 7152 7152 7152 7152 7152 7152 7152 71628K 71647L 71H11D 71H11E 71H12D 71H12E 71H68 72065H 72526L 72658H 72667E 72668P 72749J 72928E 72928N 73C75B 7818520080 7889926010 79329B 79370 79390B 79470 79490B 9010511058 9010511058 9010908137 9017610008 9020612050 9020612050 9038612035 9321056016 9324056018 9324056025 9356054012 9356054012 9356054012 9356054012 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001 C991640001
Part # Description Qty Price
Common parts
78185-20080
78899-26010
90105-11058
90109-08137
90176-10008
90206-12050
90386-12035
93210-56016
93240-56018
93240-56025
93560-54012
C9916-40001
Linked diagrams
7152

(1312- )TRH214,219..GL ; (1312- )GDH223,KDH223,TRH223,228..CBU ; (1609-1701)T

Click highlighted areas on diagram

ｽﾍﾟｰｽｱｯﾌﾟｼｰﾄ ﾖｳ ﾌｯｸ

diagram 72613M 72613M 72681E 72681E 72687B 72687B 9011910949 9011910949 9338526020 9338526020
Part # Description Qty Price
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72681E - HOOK, REAR SEAT
72681-26030B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
72687B - BRACKET, REAR SEAT HOOK
72687-95J01B1

GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC)

DK.GRAY,TRIM1#

 2
Common parts
90119-10949
93385-26020
