TRH200V-RHPDK (2013)
Toyota Hiace/Regiusace
ILLUST NO. 1 OF 2(1312-1712)KDH20#,TRH200,214,219..4D
ｱｳﾀﾊﾟﾈﾙ,ｱﾘ(ｶｯﾄﾎｷｭｳﾖｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61132-26141 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61226A - RAIL, ROOF SIDE OUTER UPPER NO.1, LH | ||||
| 61226-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-26110 |
KDH20#,211,TRH200,21# |
1 | ||
| 61384 - EXTENSION, CENTER BODY PILLAR, OUTER LH | ||||
| 61384-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-26270 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||

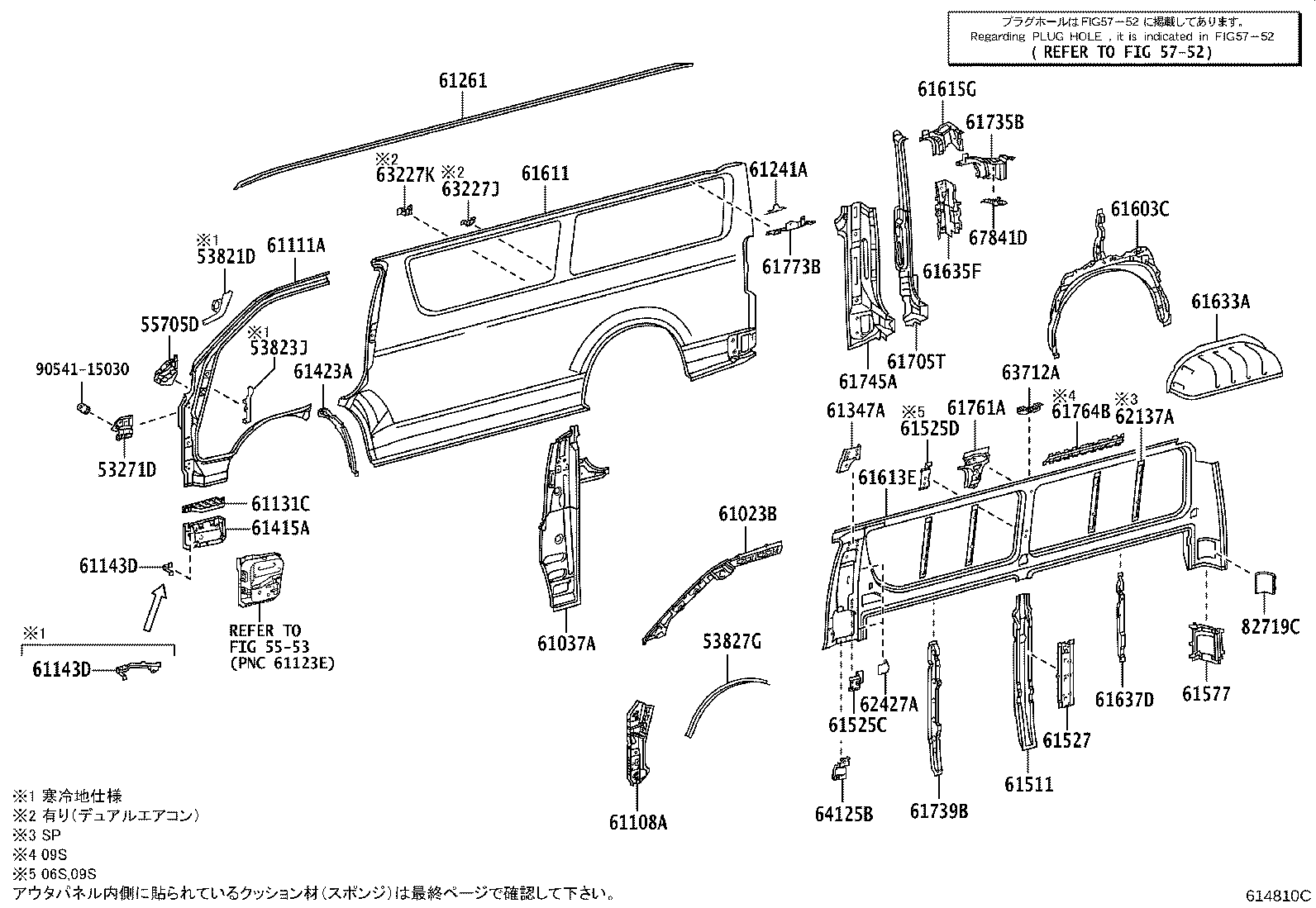

ILLUST NO. 2 OF 2(1312- )SRF..4D
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271D - BRACKET, HEADLAMP MOUNTING, RH | ||||
| 53271-26021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53821D - PROTECTOR, FRONT SIDE PANEL, NO.1 RH | ||||
| 53821-26031 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53823J - PROTECTOR, FRONT SIDE PANEL, NO.2 RH | ||||
| 53823-26011 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-26080 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-26190 |
GDH201..DX..CBU;GDH206,KDH20#..DX;TRH200..(4FC,6FC)..DX |
1 | ||
| 61023-26140 |
GDH20#,KDH20#..SRF..4D..SG;TRH200..SRF..4D..SG..(4FC,6FC) ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-26040 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-26301 |
GDH201..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,KDH20#,TRH214,219..4D..DX |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-26081 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26011 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 61143-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61143D - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 61143-26011 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 61143-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61241A - GUSSET, ROOF SIDE RAIL, REAR RH | ||||
| 61241-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-26051 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-26040 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-26021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61511 - PILLAR, QUARTER LOCK, RH | ||||
| 61511-26060 |
GDH201..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,KDH20#,TRH214,219..4D |
1 | ||
| 61525C - RETAINER, SEPARATOR BAR BRACKET, RH NO.2 | ||||
| 61525-26090 |
GDH201..V1..4D..CBU;TRH200..V1..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH221,223,224,226,228..(COM,V1,WG)..4D..(02S,03S,05S,06S,09S)..(CBU,IV5) |
1 | ||
| 61525D - RETAINER, SEPARATOR BAR BRACKET, RH NO.3 | ||||
| 61525-26110 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-26030 |
GDH201..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,KDH20#,TRH214,219..4D |
1 | ||
| 61577 - PLATE, CAB REAR PILLAR, LOWER RH | ||||
| 61577-26020 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228..02S,03S,05S,06S,09S,10S;GDH201,211,221,226,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61610-26010 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-26460 |
GDH206,KDH20#..4D..SG;TRH200..4D..SG..(4FC,6FC);GDH201,TRH214,219..4D..SG..CBU |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-26A80 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) |
1 | ||
| 61613-26A90 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-26130 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-26050 |
GDH201..V1..CBU;TRH223,228..4FC..IV5;TRH200..V1..(4FC,6FC);TRH21#,221,224,226,229..4FC..(DX,GC,SGL)..(CBU,IV6,IV7);GDH206,211,221,226,KDH20#,211,22#,TRH224..(COM,V1,WG)..(02S,03S,05S,06S,09S) |
1 | ||
| 61635F - REINFORCEMENT, QUARTER PANEL, UPR RH | ||||
| 61635-26050 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228..02S,03S,05S,06S,09S,10S;GDH201,211,221,226,KDH211,221,TRH211,216,221,226,229..CBU,IV6 |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61705T - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61705-26240 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 61735B - EXTENSION, QUARTER PANEL, INNER RH | ||||
| 61735-26A10 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-26030 |
TRH200..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..4D..(CBU,IV6,IV7) |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-26050 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61761A - REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH | ||||
| 61761-26080 |
GDH201..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,KDH20#,TRH214,219..4D |
1 | ||
| 61764B - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61077-26070 |
TRH200..09S..(4FC,6FC);GDH20#,KDH20#,TRH214,219..4D..(09S,10S) |
1 | ||
| 61773B - FRAME, BACK DOOR OPENING SIDE, UPPER RH | ||||
| 61773-26160 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 62427A - BRACKET, CENTER PILLAR GARNISH, RH | ||||
| 62427-26050 |
TRH200..4D..SG..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..4D..SG..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
2 | ||
| 62427-26050 |
TRH200..4D..(4FC,6FC)..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..4D..CBU |
1 | ||
| 63227J - BRACKET, ROOF HEADLINING, FR RH NO.4 | ||||
| 63227-26070 |
GDH20#,KDH20#..4D..SG..CBU;TRH200..4D..SG..(4FC,6FC)..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63227K - BRACKET, ROOF HEADLINING, FR RH NO.5 | ||||
| 63227-26060 |
GDH20#,KDH20#..SRF..4D..SG;TRH200..SRF..4D..SG..(4FC,6FC) ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63712A - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63717-26010 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 64125B - ANCHOR, PILLAR SEAT BELT | ||||
| 64125-26050 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 67841D - COVER, QUARTER SERVICE HOLE, RH | ||||
| 67841-26010B0 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX LT.GRAY,TRIM1# |
1 | ||
| 82719C - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26030B1 |
TRH200..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..DX..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||

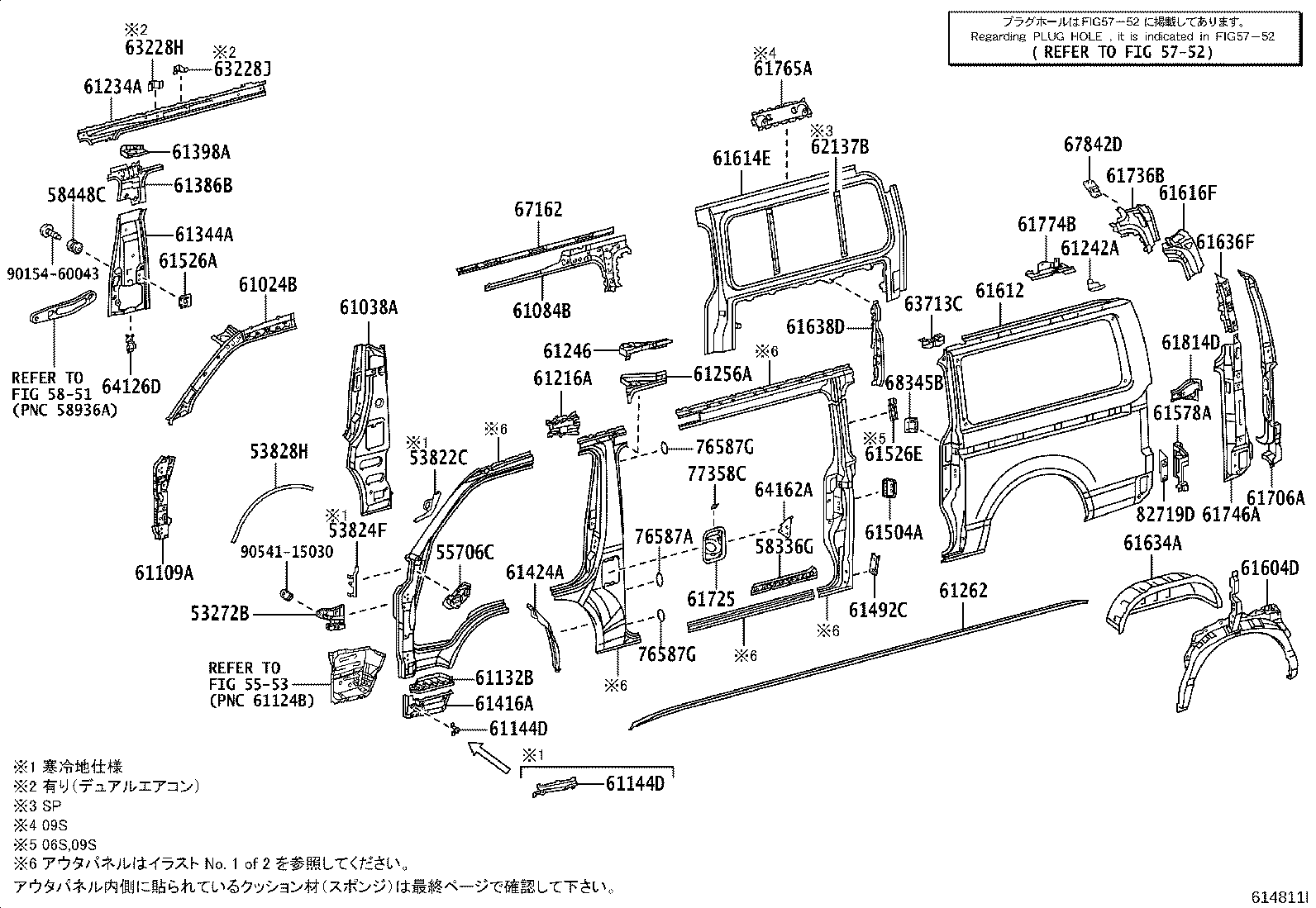

ILLUST NO. 2 OF 2(1312-1712)SRF..4D
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53272B - BRACKET, HEADLAMP MOUNTING, LH | ||||
| 53272-26011 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 53822C - PROTECTOR, FRONT SIDE PANEL, NO.1 LH | ||||
| 53822-26021 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53824F - PROTECTOR, FRONT SIDE PANEL, NO.2 LH | ||||
| 53824-26011 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 寒冷地仕様 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58336G - PLATE, FLOOR SIDE, FR LH | ||||
| 58336-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 58448C - HOOK, ENGINE SERVICE HOLE COVER, NO.2 LH | ||||
| 58448-26010B0 |
GDH201..DX..CBU;TRH200,211,216..4FC..SGL;GDH223,KDH20#,211..03S,05S,06S,09S,14S;GDH206,221,226,KDH22#,TRH200,214,219,22#..(4FC,6FC)..(DX,GC,GL) LT.GRAY,TRIM1# |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-26150 |
GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-26010 |
KDH20#,TRH200..IV5;KDH20#..05S,06S,09S;GDH206,KDH223,TRH223,224,228;TRH200..(05S,06S,09S)..(4FC,6FC);GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61084B - BRACE SUB-ASSY, ROOF SIDE INNER, FR LH | ||||
| 61084-26060 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-26121 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144-26011 |
TRH214..GL;TRH219..4D..GL;TRH200..6FC..SGL;GDH221,226,KDH221..02S,06S;TRH200,214,219..4FC..(DX,SGL);KDH20#,TRH221,223,226,228..(4FC,5F)..(CBU,IV5);GDH20#,211,KDH211,223,TRH211,216,221,224,226,229..02S,05S,10S,14S 寒冷地仕様 |
1 | ||
| 61144D - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 61144-26010 |
TRH219..4D;TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH211,214,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61144-26011 |
TRH214..GL;TRH219..4D..GL;TRH200..6FC..SGL;GDH221,226,KDH221..02S,06S;TRH200,214,219..4FC..(DX,SGL);KDH20#,TRH221,223,226,228..(4FC,5F)..(CBU,IV5);GDH20#,211,KDH211,223,TRH211,216,221,224,226,229..02S,05S,10S,14S 寒冷地仕様 |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-26330 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) |
1 | ||
| 61234-26340 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-26030 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-26020 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-26021 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-26310 |
GDH20#,KDH20#..SG..DX..CBU;TRH200..SG..(4FC,6FC)..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 61344-26320 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX |
1 | ||
| 61386B - EXTENSION, CENTER BODY PILLAR, INNER LH | ||||
| 61386-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-26060 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-26021 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61491-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61504A - REINFORCE SUB-ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 61503-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61526A - RETAINER, SEPARATOR BAR BRACKET, LH | ||||
| 61526-26050 |
KDH201..SG;GDH201..SG..CBU;GDH201,KDH201..V1..SP;TRH200..SG..(4FC,6FC);TRH200..V1..SP..(4FC,6FC);GDH206,211,221,226,KDH206,211,22#,TRH211,216,221,223,224,226,228..(02S,03S,05S,06S,09S)..(CBU,IV5) |
1 | ||
| 61526E - RETAINER, SEPARATOR BAR BRACKET, LH NO.2 | ||||
| 61525-26110 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) |
1 | ||
| 61578A - PLATE, CAB REAR PILLAR, LOWER LH | ||||
| 61578-26030 |
TRH200..(4FC,6FC)..CBU;GDH20#,211,221,226,KDH20#,211,221,TRH211,216,221,224,226,229..CBU,IV6,IV7 |
1 | ||
| 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61620-26130 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61620-26130 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61620-26010 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-26520 |
TRH219..4D;GDH201..SG..CBU;TRH200..SG..(4FC,6FC);GDH206,211,KDH20#,211,TRH211,214,216..SG |
1 | ||
| 61612-26590 |
GDH206,KDH20#..SG..DX;TRH200..SG..(4FC,6FC)..DX;GDH201,TRH214,219..SG..DX..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ ﾒﾀﾘｯｸ(ｶﾗｰNO.058を除く)&寒冷地仕様 |
1 | ||
| 61612-26590 |
GDH206,KDH20#..SG..DX;TRH200..SG..(4FC,6FC)..DX;GDH201,TRH214,219..SG..DX..CBU ﾎﾞﾃﾞｰｶﾗｰ−ﾓﾉﾄｰﾝ 3ｺｰﾃｨﾝｸﾞ(ｶﾗｰNO.058)&寒冷地仕様 |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-26B00 |
GDH20#,KDH20#..09S;TRH200..09S..(4FC,6FC) |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-26050 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-26050 |
GDH201..V1..CBU;TRH223,228..4FC..IV5;TRH200..V1..(4FC,6FC);TRH21#,221,224,226,229..4FC..(DX,GC,SGL)..(CBU,IV6,IV7);GDH206,211,221,226,KDH20#,211,22#,TRH224..(COM,V1,WG)..(02S,03S,05S,06S,09S) |
1 | ||
| 61636F - REINFORCEMENT, QUARTER PANEL, UPR LH | ||||
| 61636-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228..02S,03S,05S,06S,09S,10S;GDH201,211,221,226,KDH211,221,TRH211,216,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-26230 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-26041 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 61736B - EXTENSION, QUARTER PANEL, INNER LH | ||||
| 61736-26A10 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-26040 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6 |
1 | ||
| 61765A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61078-26090 |
TRH200..09S..(4FC,6FC);GDH20#,KDH20#,TRH214,219..(09S,10S)..DX |
1 | ||
| 61774B - FRAME, BACK DOOR OPENING SIDE, UPPER LH | ||||
| 61774-26160 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 61814D - REINFORCEMENT, QUARTER PANEL EXTENSION, NO.3 LH | ||||
| 61814-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 63228H - BRACKET, ROOF HEADLINING, FRONT LH NO.2 | ||||
| 63227-26010 |
GDH20#,KDH20#..SRF..SG..DX;TRH200..SRF..SG..(4FC,6FC)..DX ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63228J - BRACKET, ROOF HEADLINING, FRONT LH NO.3 | ||||
| 63227-26020 |
GDH20#,KDH20#..SG..DX..CBU;TRH200..SG..(4FC,6FC)..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63713C - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63717-26010 |
GDH20#,KDH20#..SRF;TRH200..SRF..(4FC,6FC) |
1 | ||
| 64126D - ANCHOR, PILLAR SEAT BELT, LH | ||||
| 64126-26030 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 64162A - BRACKET, FUEL INLET | ||||
| 64162-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 67162 - EXTENSION, SLIDE DOOR INSIDE PANEL, UPPER LH | ||||
| 67162-26010 |
GDH206,KDH20#;TRH200..4FC,6FC;GDH201,211,KDH211,TRH21#..CBU |
1 | ||
| 67842D - COVER, QUARTER SERVICE HOLE, LH | ||||
| 67842-26010B0 |
GDH20#,KDH20#..SRF..DX;TRH200..SRF..(4FC,6FC)..DX LT.GRAY,TRIM1# |
1 | ||
| 68345B - COVER, SLIDE DOOR CENTER RAIL, RH | ||||
| 68345-26020B0 |
GDH20#,22#,KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26010 |
TRH200..4D..(4FC,6FC);GDH201,223,TRH224..4D..CBU;GDH206,221,226,KDH20#,22#,TRH214,219,221,223,226,228,229..4D |
1 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
2 | ||
| 76587G - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-26030 |
GDH201,223..4D..CBU;TRH200..4D..(4FC,6FC);GDH206,221,226,KDH20#,22#,TRH214,219,22#..4D |
2 | ||
| 77358C - STOPPER, FUEL FILLER OPENING LID, NO.1 | ||||
| 77358-26010 |
TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 |
1 | ||
| 82719D - COVER, WIRE HANRESS SERVICE HOLE | ||||
| 82719-26040B1 |
TRH200..(4FC,6FC)..DX..CBU;GDH20#,221,226,KDH20#,221,TRH221,226..DX..(CBU,IV6,IV7) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90541-15030 | ||||
| Linked diagrams | ||||
| 5553 | ||||
| 5752 | ||||
| 5851 | ||||
(1312- )
ｸｯｼｮﾝｻﾞｲ(ｽﾎﾟﾝｼﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26330 | ||||
| 61667-26340 | ||||
| 61667-26350 | ||||
| 61667-26360 | ||||
| 61667-26390 | ||||
| 61667-26400 | ||||
| 61667-26420 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
