TRH200V-RHMDK (2004)
Toyota Hiace/Regiusace
Production
Aug 2004
-
Dec 2013
Engine
1TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )TRH200..5F

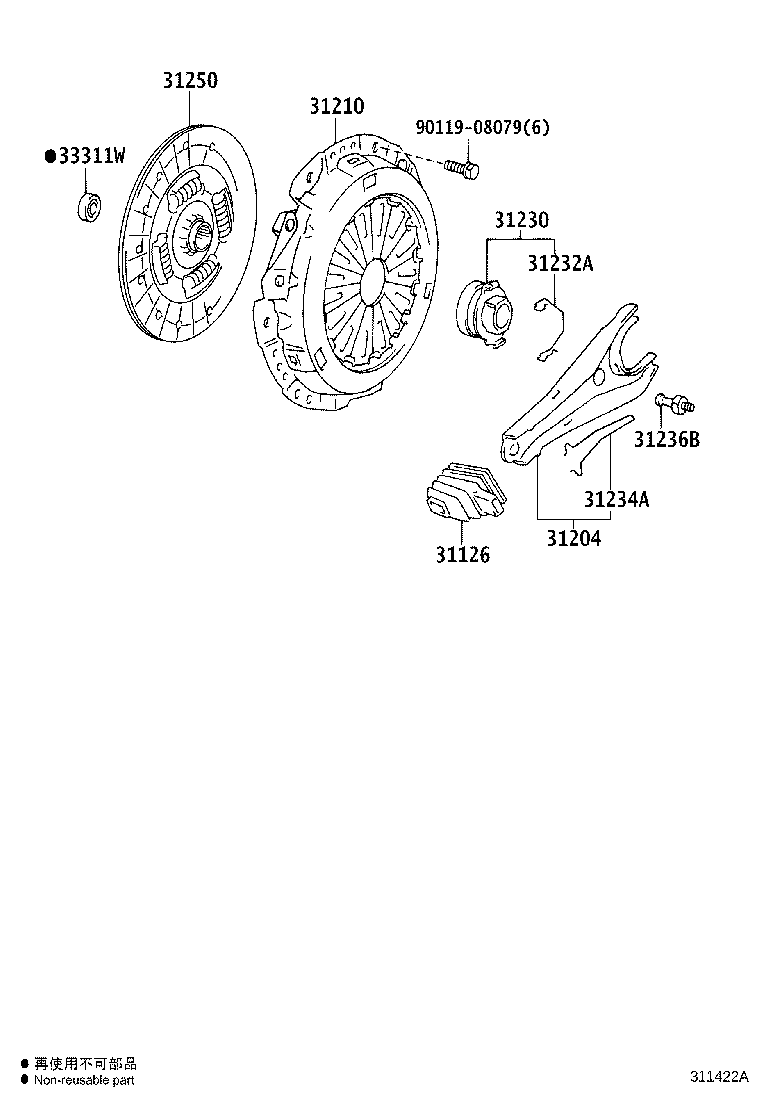

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-0K030 |
TRH200..5F |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-20071 |
TRH200..5F (J) |
1 | ||
| 31204-0K030 |
TRH200..5F (L) |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-30241 |
TRH200..5F |
1 | ||
| 31210-35280 |
TRH200..5F |
1 | ||
| 31210-35281 |
TRH200..5F |
1 | ||
| 31210-26120 |
TRH200..5F |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-35091 |
TRH200..5F |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35040 |
TRH200..5F |
1 | ||
| 31234A - SPRING, RELEASE FORK SUPPORT | ||||
| 31234-35020 |
TRH200..5F |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-26010 |
TRH200..5F |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-26200 |
TRH200..5F |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12018 |
TRH200..5F NSK |
1 | ||
| 90363-12020 |
TRH200..5F NACHI |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
