TRH200K-FRPDK (2007)
Toyota Hiace/Regiusace

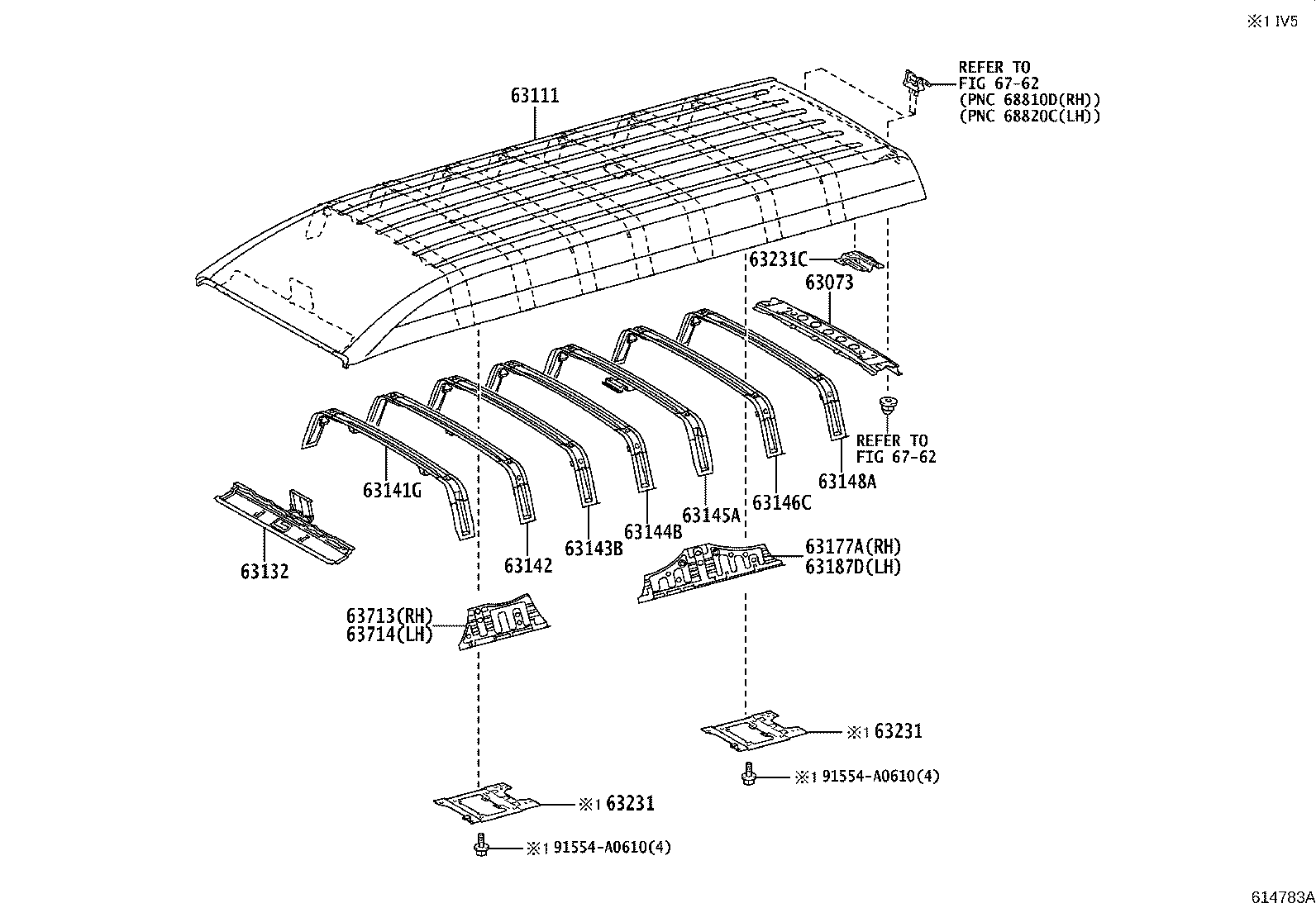

(0408- )KDH20#,TRH200..HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63073 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER | ||||
| 63073-26090 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-26480 |
KDH20#,TRH200..HRF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-26140 |
KDH20#,TRH200..HRF |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26280 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63103-26290 |
KDH200,201,206,TRH200..HRF..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-26180 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63104-26190 |
KDH200,201,206,TRH200..HRF..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63105-26150 |
KDH20#,TRH200..HRF |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63106-26040 |
KDH20#,TRH200..HRF |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63107-26070 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63106-26040 |
KDH20#,TRH200..HRF |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63207-26040 |
KDH20#,TRH200..HRF |
1 | ||
| 63177A - REINFORCEMENT, ROOF PANEL, RH NO.7 | ||||
| 63177-26030 |
KDH20#,TRH200..HRF |
1 | ||
| 63187D - REINFORCEMENT, ROOF PANEL, LH NO.7 | ||||
| 63187-26080 |
KDH20#,TRH200..HRF |
1 | ||
| 63713 - BRACKET, ROOF PANEL REINFORCEMENT, NO.3 | ||||
| 63713-26020 |
KDH20#,TRH200..HRF |
1 | ||
| 63714 - BRACKET, ROOF PANEL REINFORCEMENT, NO.4 | ||||
| 63714-26010 |
KDH20#,TRH200..HRF |
1 | ||
| Common parts | ||||
| 91554-A0610 | ||||

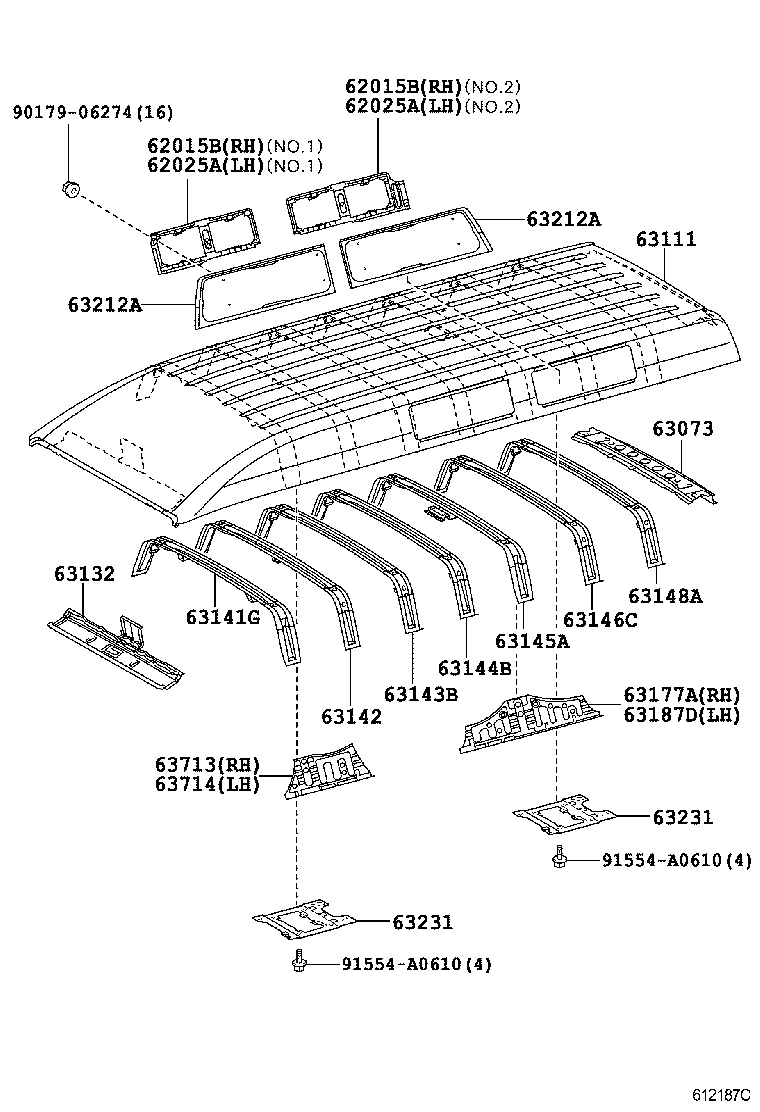

(0408- )KDH20#,TRH200..HRF
ｱﾘ(ﾙｰﾌｻｲﾄﾞｳｲﾝﾄﾞｳ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63073 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER | ||||
| 63073-26090 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-26480 |
KDH20#,TRH200..HRF |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-26140 |
KDH20#,TRH200..HRF |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-26280 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63103-26290 |
KDH200,201,206,TRH200..HRF..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-26180 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63104-26190 |
KDH200,201,206,TRH200..HRF..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63105-26150 |
KDH20#,TRH200..HRF |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63106-26040 |
KDH20#,TRH200..HRF |
1 | ||
| 63145A - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63107-26070 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 63146C - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6 | ||||
| 63106-26040 |
KDH20#,TRH200..HRF |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63207-26040 |
KDH20#,TRH200..HRF |
1 | ||
| 63177A - REINFORCEMENT, ROOF PANEL, RH NO.7 | ||||
| 63177-26030 |
KDH20#,TRH200..HRF |
1 | ||
| 63187D - REINFORCEMENT, ROOF PANEL, LH NO.7 | ||||
| 63187-26080 |
KDH20#,TRH200..HRF |
1 | ||
| 63713 - BRACKET, ROOF PANEL REINFORCEMENT, NO.3 | ||||
| 63713-26020 |
KDH20#,TRH200..HRF |
1 | ||
| 63714 - BRACKET, ROOF PANEL REINFORCEMENT, NO.4 | ||||
| 63714-26010 |
KDH20#,TRH200..HRF |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91554-A0610 | ||||

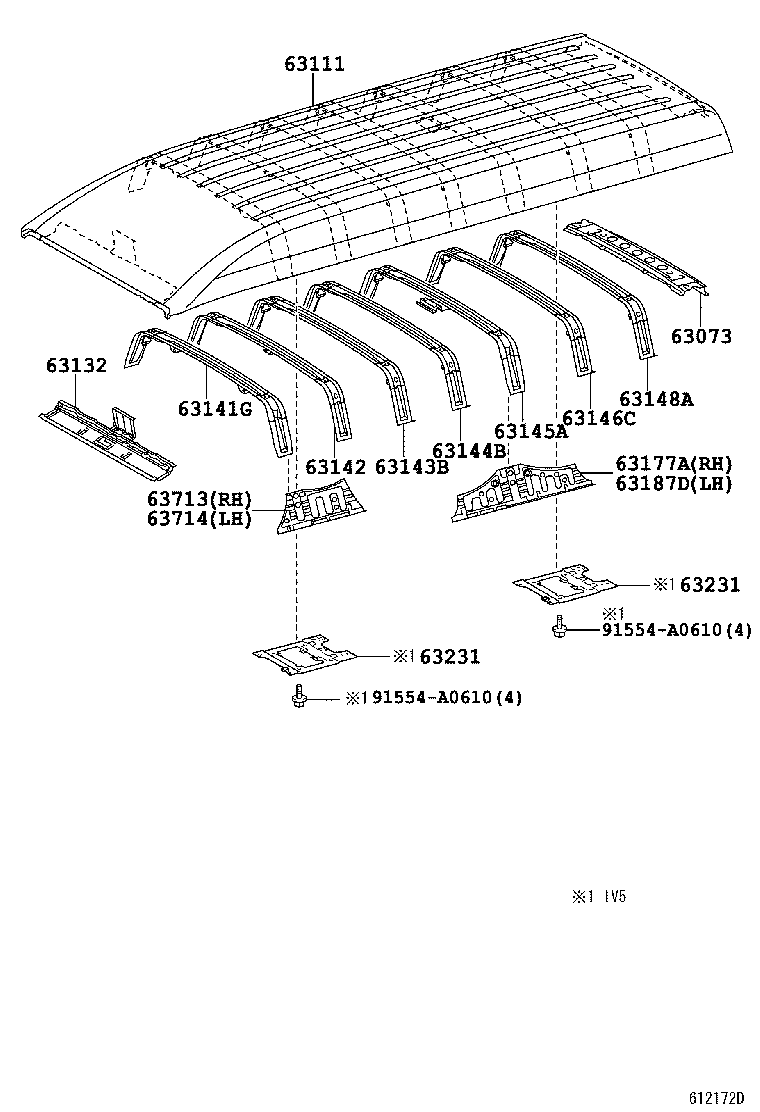

(1312- )GDH20#,KDH20#,TRH200..HRF..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91554-A0610 | ||||
| Linked diagrams | ||||
| 6762 | ||||
