TRH200K-FRPDK (2007)
Toyota Hiace/Regiusace

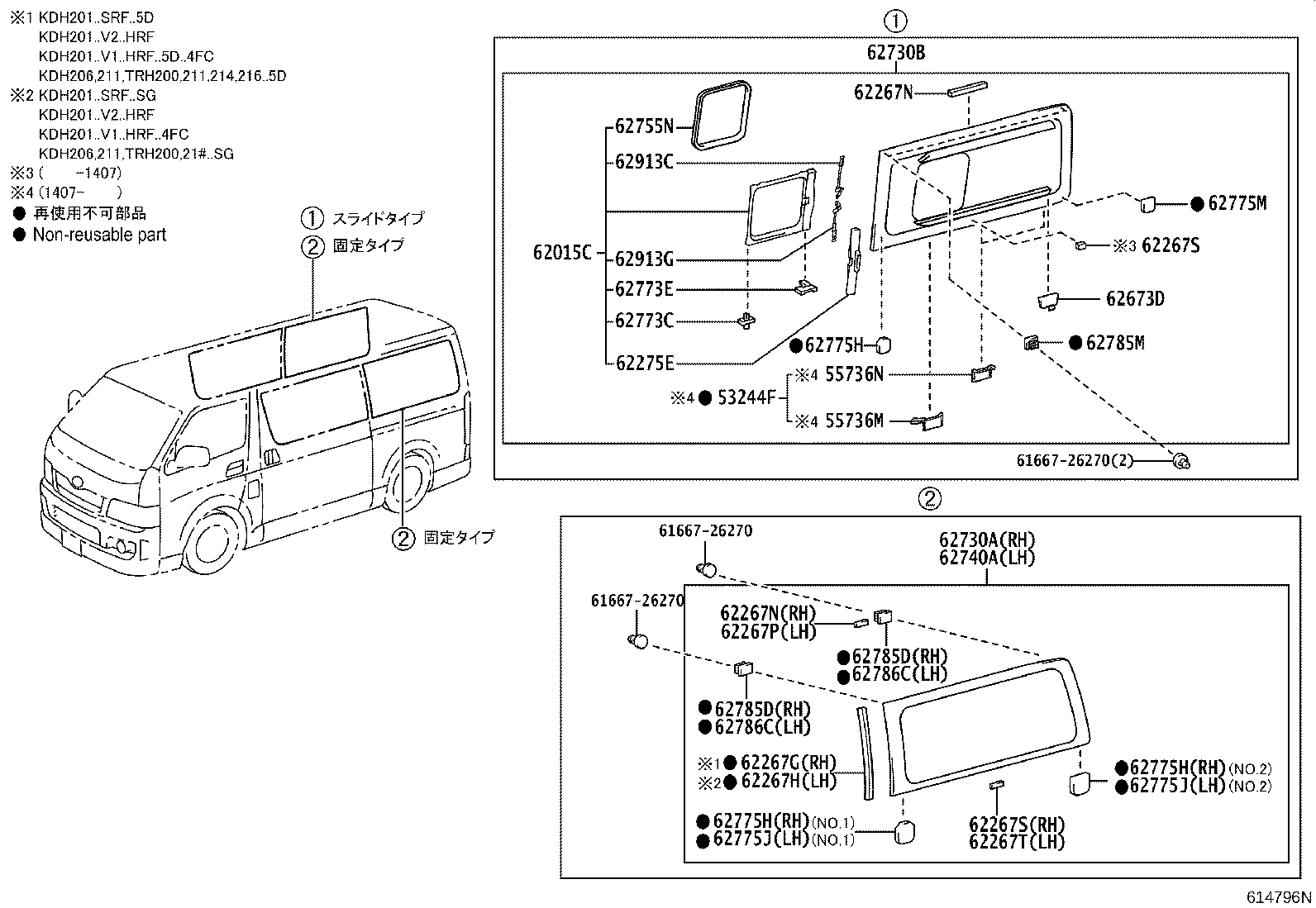

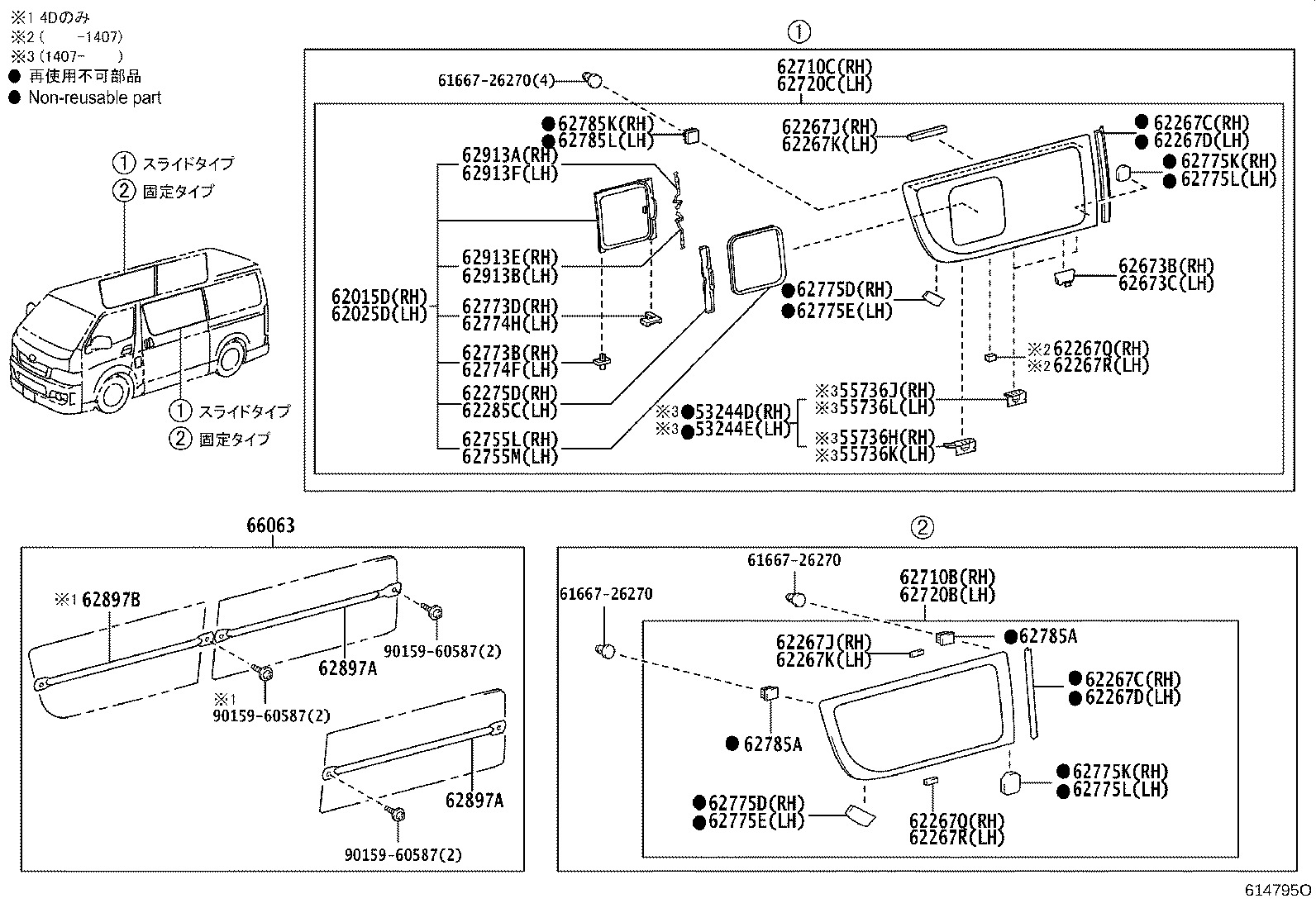

ILLUST NO. 1 OF 2(0408- )KDH20#,211,TRH200,21#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62249 - PLATE, SIDE WINDOW, RH | ||||
| 62249-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62249-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62249A - PLATE, SIDE WINDOW, LH | ||||
| 62249-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62249-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62267C - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26020 |
KDH20#,211,TRH200,211,216..5D |
1 | ||
| 62267C - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26020 |
KDH20#,211,TRH200,211,216..5D |
1 | ||
| 62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH | ||||
| 62267-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
1 | ||
| 62267D - DAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH | ||||
| 62267-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
1 | ||
| 62267J - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26040 |
KDH20#,211,TRH200,211,216..5D 下側 |
1 | ||
| 62267-26030 |
KDH20#,211,TRH200,211,216..5D 上側 |
1 | ||
| 62267J - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26040 |
KDH20#,211,TRH200,211,216..5D 下側 |
1 | ||
| 62267-26030 |
KDH20#,211,TRH200,211,216..5D 上側 |
1 | ||
| 62267J - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26040 |
KDH20#,211,TRH200,211,216..5D 下側 |
1 | ||
| 62267-26030 |
KDH20#,211,TRH200,211,216..5D 上側 |
1 | ||
| 62267J - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26040 |
KDH20#,211,TRH200,211,216..5D 下側 |
1 | ||
| 62267-26030 |
KDH20#,211,TRH200,211,216..5D 上側 |
1 | ||
| 62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG 上側 |
1 | ||
| 62267-26040 |
KDH20#,211,22#,TRH200,21#,22#..SG 下側 |
1 | ||
| 62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG 上側 |
1 | ||
| 62267-26040 |
KDH20#,211,22#,TRH200,21#,22#..SG 下側 |
1 | ||
| 62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG 上側 |
1 | ||
| 62267-26040 |
KDH20#,211,22#,TRH200,21#,22#..SG 下側 |
1 | ||
| 62267K - DAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG 上側 |
1 | ||
| 62267-26040 |
KDH20#,211,22#,TRH200,21#,22#..SG 下側 |
1 | ||
| 62384K - CAP, FRONT SIDE WINDOW CLIP, RH | ||||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62384K - CAP, FRONT SIDE WINDOW CLIP, RH | ||||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62384L - CAP, FRONT SIDE WINDOW CLIP, LH | ||||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62384L - CAP, FRONT SIDE WINDOW CLIP, LH | ||||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62384-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62710B - WINDOW ASSY, SIDE, FRONT RH | ||||
| 62750-26270 |
KDH20#,TRH200..5D..06S ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68103-26010 |
KDH20#,TRH200..5D..DX *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62750-26260 |
KDH20#,TRH200..5D..06S ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 68103-26020 |
KDH20#,TRH200..5D..06S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62710B - WINDOW ASSY, SIDE, FRONT RH | ||||
| 62750-26270 |
KDH20#,TRH200..5D..06S ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68103-26010 |
KDH20#,TRH200..5D..DX *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62750-26260 |
KDH20#,TRH200..5D..06S ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 68103-26020 |
KDH20#,TRH200..5D..06S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62720B - WINDOW ASSY, SIDE, FRONT LH | ||||
| 62760-26640 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62760-26650 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68104-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68104-26010 |
KDH20#,220,221,225,TRH200,221,226..SG..(03S,06S,09S)..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62760-26641 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62760-26651 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68104-26011 |
KDH20#,221,TRH200,221,226..SG..(03S,06S,09S)..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104-26021 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62720B - WINDOW ASSY, SIDE, FRONT LH | ||||
| 62760-26640 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62760-26650 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68104-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68104-26010 |
KDH20#,220,221,225,TRH200,221,226..SG..(03S,06S,09S)..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62760-26641 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62760-26651 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 68104-26011 |
KDH20#,221,TRH200,221,226..SG..(03S,06S,09S)..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 68104-26021 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26010 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26010 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26010 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775D - CLIP, FRONT SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26010 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775E - CLIP, FRONT SIDE WINDOW, LH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775E - CLIP, FRONT SIDE WINDOW, LH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775E - CLIP, FRONT SIDE WINDOW, LH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775E - CLIP, FRONT SIDE WINDOW, LH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775-26030 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62785A - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62785A - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62785G - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62785G - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62785K - SPACER, FRONT SIDE WINDOW GLASS, RH | ||||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62785K - SPACER, FRONT SIDE WINDOW GLASS, RH | ||||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62785L - SPACER, FRONT SIDE WINDOW GLASS, LH | ||||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62785L - SPACER, FRONT SIDE WINDOW GLASS, LH | ||||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
2 | ||
| 62785-26020 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62793-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62793C - RETAINER, SIDE WINDOW LOCK, LH | ||||
| 62793-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62793-26010 |
KDH20#,220,221,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62897A - BAR, SIDE WINDOW GUARD | ||||
| 62897-26060B0 |
KDH205..5D..DX;KDH205..4D..(06S,09S)..CBU;KDH200,201,206,TRH200..5D..03S;KDH200,201,206,220,221,225,TRH200,221,226..(06S,09S)..CBU ｳｨﾝﾄﾞｳｶﾞｰﾄﾞ−有り(ｸｫｰﾀｳｲﾝﾄﾞｳ),LT.GRAY,058 ,1E7 ,599 ,6S3 ,8P4 |
2 | ||
| 62897A - BAR, SIDE WINDOW GUARD | ||||
| 62897-26060B0 |
KDH205..5D..DX;KDH205..4D..(06S,09S)..CBU;KDH200,201,206,TRH200..5D..03S;KDH200,201,206,220,221,225,TRH200,221,226..(06S,09S)..CBU ｳｨﾝﾄﾞｳｶﾞｰﾄﾞ−有り(ｸｫｰﾀｳｲﾝﾄﾞｳ),LT.GRAY,058 ,1E7 ,599 ,6S3 ,8P4 |
2 | ||
| 62910F - LOCK ASSY, SIDE FRONT WINDOW, RH | ||||
| 62910-26050 |
KDH20#,220,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62910-26050 |
KDH20#,220,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62920A - LOCK ASSY, SIDE FRONT WINDOW, LH | ||||
| 62910-26050 |
KDH20#,220,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(UVｶｯﾄｸﾞﾘｰﾝ) |
1 | ||
| 62910-26050 |
KDH20#,220,225,TRH200,221,226..(06S,09S)..CBU ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞﾚｰ)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 66063 - GUARD SUB-ASSY, SIDE WINDOW | ||||
| 66063-26010B0 |
KDH205..5D..DX;KDH205..4D..(06S,09S)..CBU;KDH200,201,206,TRH200..5D..03S;KDH200,201,206,220,221,225,TRH200,221,226..(06S,09S)..CBU ***,ｳｨﾝﾄﾞｳｶﾞｰﾄﾞ−有り(ｸｫｰﾀｳｲﾝﾄﾞｳ),LT.GRAY,058 ,1E7 ,599 ,6S3 ,8P4 |
1 | ||
| Common parts | ||||
| 61667-26270 | ||||
| 90159-60587 | ||||
| 90164-40091 | ||||
| 93540-54012 | ||||
ILLUST NO. 2 OF 2(0408- )KDH20#,211,TRH200,21#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62267G - DAM, REAR SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26010 |
KDH20#,211,TRH200,211,216..5D |
1 | ||
| 62267G - DAM, REAR SIDE WINDOW ADHESIVE, NO.1 RH | ||||
| 62267-26010 |
KDH20#,211,TRH200,211,216..5D |
1 | ||
| 62267H - DAM, REAR SIDE WINDOW ADHESIVE, NO.1 LH | ||||
| 62267-26010 |
KDH20#,211,TRH200,21#..SG |
1 | ||
| 62267N - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26030 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 上側 |
1 | ||
| 62267-26030 |
KDH201,206,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62267-26040 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 下側 |
1 | ||
| 62267N - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26030 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 上側 |
1 | ||
| 62267-26030 |
KDH201,206,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62267-26040 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 下側 |
1 | ||
| 62267N - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26030 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 上側 |
1 | ||
| 62267-26030 |
KDH201,206,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62267-26040 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 下側 |
1 | ||
| 62267N - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 RH | ||||
| 62267-26030 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 上側 |
1 | ||
| 62267-26030 |
KDH201,206,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU |
2 | ||
| 62267-26040 |
KDH20#,211,221,TRH200,211,216,221,226..SG..(03S,05S,06S,09S)..CBU 下側 |
1 | ||
| 62267P - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26030 |
KDH201,206,223,TRH200,214,219,223,228..SG..DX..CBU;KDH200,205,220,221,222,225,227,TRH221,226..SG..(03S,05S,06S,09S,15S) |
2 | ||
| 62267-26030 |
KDH20#,221,TRH200,221,226..SG..(03S,06S,09S)..CBU ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ,上側 |
1 | ||
| 62267-26040 |
KDH20#,221,TRH200,221,226..SG..(03S,06S,09S)..CBU ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ,下側 |
1 | ||
| 62267-26040 |
TRH224..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 下側 |
1 | ||
| 62267-26030 |
TRH224..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 上側 |
1 | ||
| 62267P - DAM, REAR SIDE WINDOW ADHESIVE, NO.2 LH | ||||
| 62267-26030 |
KDH201,206,223,TRH200,214,219,223,228..SG..DX..CBU;KDH200,205,220,221,222,225,227,TRH221,226..SG..(03S,05S,06S,09S,15S) |
2 | ||
| 62267-26030 |
KDH20#,221,TRH200,221,226..SG..(03S,06S,09S)..CBU ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ,上側 |
1 | ||
| 62267-26040 |
KDH20#,221,TRH200,221,226..SG..(03S,06S,09S)..CBU ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ,下側 |
1 | ||
| 62267-26040 |
TRH224..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 下側 |
1 | ||
| 62267-26030 |
TRH224..IV5;KDH20#,22#,TRH200,214,219,221,223,226,228..SG..(03S,06S,09S,10S,15S)..DX..CBU 上側 |
1 | ||
| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62073-26050 |
KDH20#,TRH200..5D..06S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62073-26050 |
KDH20#,TRH200..5D..06S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞ戟[)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62073-26040 |
KDH20#,TRH200..5D..DX *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62073-26050 |
KDH201,206..5D..DX;TRH200..V1..HRF..5D;KDH200,205,TRH200..5D..03S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62073-26041 |
KDH20#,TRH200..5D..DX *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62073-26051 |
KDH20#,TRH200..5D..DX *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62730A - WINDOW ASSY, SIDE, REAR RH | ||||
| 62073-26050 |
KDH20#,TRH200..5D..06S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62073-26050 |
KDH20#,TRH200..5D..06S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞ戟[)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62073-26040 |
KDH20#,TRH200..5D..DX *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62073-26050 |
KDH201,206..5D..DX;TRH200..V1..HRF..5D;KDH200,205,TRH200..5D..03S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62073-26041 |
KDH20#,TRH200..5D..DX *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62073-26051 |
KDH20#,TRH200..5D..DX *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62740A - WINDOW ASSY, SIDE, REAR LH | ||||
| 62074-26040 |
KDH20#,TRH200..(06S,09S)..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−固定式(濃色ｸﾞﾚｰj&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62074-26040 |
TRH200..V1..HRF..5D;KDH201,206..SG..DX..CBU;KDH200,205,TRH200..SG..03S *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62074-26030 |
KDH20#,TRH200,214,219..SG..DX..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62074-26040 |
KDH20#,TRH200..(06S,09S)..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ(左側)−ｽﾗｲﾄﾞ式(濃色ｸﾞ戟[)&ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62074-26031 |
KDH20#,TRH200,214,219..SG..DX..CBU *UVCT,厚さ=3.1,ｸﾞﾘｰﾝ |
1 | ||
| 62074-26041 |
KDH20#,TRH200..SG..DX..CBU *TEM,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ﾊﾞｯｸｶﾞﾗｽ−濃色ｸﾞﾚｰ |
1 | ||
| 62775H - CLIP, REAR SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775-26050 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775H - CLIP, REAR SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775-26050 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775H - CLIP, REAR SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775-26050 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775H - CLIP, REAR SIDE WINDOW, RH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775-26050 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775J - CLIP, REAR SIDE WINDOW, LH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775-26050 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62775J - CLIP, REAR SIDE WINDOW, LH | ||||
| 62775-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.1 |
1 | ||
| 62775-26050 |
KDH20#,211,22#,TRH200,21#,22#..SG NO.2 |
1 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| 62785D - SPACER, QUARTER WINDOW GLASS | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| 62786C - SPACER, QUARTER WINDOW GLASS LH | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| 62786C - SPACER, QUARTER WINDOW GLASS LH | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| 62786C - SPACER, QUARTER WINDOW GLASS LH | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| 62786C - SPACER, QUARTER WINDOW GLASS LH | ||||
| 62785-26020 |
KDH20#,211,22#,TRH200,21#,22#..SG |
2 | ||
| Common parts | ||||
| 61667-26270 | ||||
| 90164-40091 | ||||
| 93540-54012 | ||||
ILLUST NO. 1 OF 2(1312- )GDH20#,211,KDH20#,211,TRH200,21#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26270 | ||||
| 90159-60587 | ||||
ILLUST NO. 2 OF 2(1312- )GDH20#,211,KDH20#,211,TRH200,21#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 61667-26270 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
