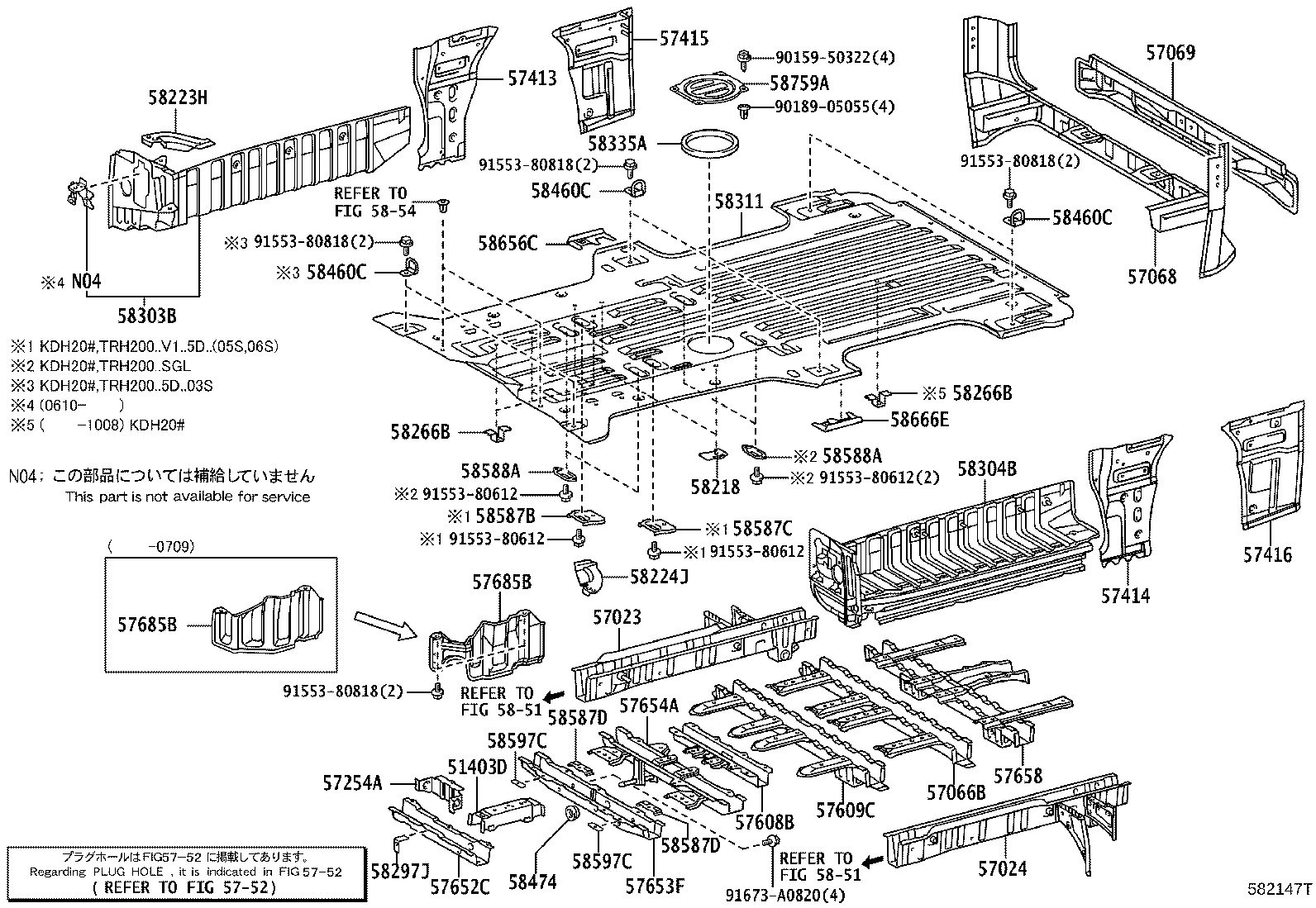

TRH200K-FRPDK (2007)
Toyota Hiace/Regiusace
(0408- )KDH20#,TRH200..V1..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-26230 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 51403-26231 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 51403-26232 |
TRH200,211,214,221,223,224..4FC |
1 | ||
| 57023 - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-26650 |
KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..V1..(03S,05S,06S,09S) |
1 | ||
| 57024 - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-26660 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..V1..(03S,05S,06S,09S)..CBU |
1 | ||
| 57066B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6 | ||||
| 57066-26120 |
KDH20#,TRH200..V1 |
1 | ||
| 57066-26121 |
KDH20#,TRH200..V1 |
1 | ||
| 57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57068-26230 |
KDH20#,TRH200..V1..SG..DX..CBU |
1 | ||
| 57069 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57069-26140 |
KDH20#,TRH200 |
1 | ||
| 57254A - REINFORCEMENT, ENGINE REAR MOUNTING MEMBER | ||||
| 57254-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57254-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-26A90 |
KDH20#,TRH200..V1..5D..06S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 57405-26A80 |
KDH20#,TRH200..V1..5D..06S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-26500 |
KDH20#,TRH200..06S..CBU |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57415-26210 |
KDH20#,220,221,225,TRH200,221,226..V1..DX..CBU |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-26160 |
KDH20#,220,221,225,TRH200,221,226..V1..DX..CBU |
1 | ||
| 57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 | ||||
| 57608-26300 |
KDH20#,TRH200..CBU |
1 | ||
| 57608-26301 |
KDH20#,TRH200..CBU |
1 | ||
| 57609C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5 | ||||
| 57609-26180 |
KDH20#,TRH200..V1..CBU |
1 | ||
| 57609-26181 |
KDH20#,TRH200..V1..CBU |
1 | ||
| 57609-26182 |
KDH20#,TRH200..V1..CBU |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-26070 |
KDH20#,TRH200 |
1 | ||
| 57652-26071 |
KDH20#,TRH200 |
1 | ||
| 57653F - MEMBER, REAR FLOOR CROSS, NO.2 | ||||
| 57653-26130 |
KDH200,205,TRH200 |
1 | ||
| 57653-26131 |
TRH200 |
1 | ||
| 57654A - MEMBER, REAR FLOOR CROSS, NO.3 | ||||
| 57607-26600 |
KDH200,201,TRH200..V2..03S;KDH20#,TRH200..(05S,06S)..CBU |
1 | ||
| 57607-26601 |
KDH201,TRH200..V2..03S;KDH20#,TRH200..(05S,06S)..CBU |
1 | ||
| 57658 - MEMBER, REAR FLOOR CROSS, NO.7 | ||||
| 57067-26101 |
KDH20#,TRH200..V1..CBU |
1 | ||
| 57067-26100 |
KDH20#,TRH200..V1..CBU |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26010 |
KDH20#,TRH200 寒冷地仕様 |
1 | ||
| 57685-26040 |
KDH20#,211,TRH200 寒冷地仕様 |
1 | ||
| 57685B - GUARD, FUEL TANK | ||||
| 57685-26010 |
KDH20#,TRH200 寒冷地仕様 |
1 | ||
| 57685-26040 |
KDH20#,211,TRH200 寒冷地仕様 |
1 | ||
| 58218 - PLATE, SEAT FLOOR PANEL | ||||
| 58218-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58223H - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-26071 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58223-26070 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224J - REINFORCEMENT, FLOOR PANEL SIDE, LH | ||||
| 58224-26091 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58224-26090 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
TRH200..CBU;KDH222,227..IV5;KDH211,221,223,TRH21#,22# |
4 | ||
| 58266B - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-95J00 |
TRH200..CBU;KDH222,227..IV5;KDH211,221,223,TRH21#,22# |
4 | ||
| 58297J - RETAINER, FLOOR CLAMP | ||||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,221,223,TRH200,21#,22# |
1 | ||
| 58297-26020 |
KDH201..V1;KDH201..V2..5F;KDH206,211,22#,TRH200,21#,22#..HRF,SMRF,SRF |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-26270 |
TRH200..5D..06S 寒冷地仕様 |
1 | ||
| 58303-26250 |
KDH20#,TRH200..5D..06S |
1 | ||
| 58303-26280 |
KDH200,205..5D..06S;TRH200..V1..HRF..5D 寒冷地仕様 |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-26410 |
TRH200,221,226..(06S,09S)..CBU 寒冷地仕様 |
1 | ||
| 58304-26330 |
TRH200,221,226..(06S,09S)..CBU |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-26B60 |
KDH20#,TRH200..V1..5D..06S ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 58311-26B70 |
KDH20#,TRH200..V1..5D..06S |
1 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-26030 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 |
1 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..(05S,06S,09S)..CBU |
4 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..(05S,06S,09S)..CBU |
4 | ||
| 58460C - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
KDH20#,211,220,221,225,TRH200,211,216,221,226..(05S,06S,09S)..CBU |
4 | ||
| 58474 - COVER, INSPECTION HOLE | ||||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
2 | ||
| 58474-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58587B - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 RH | ||||
| 58587-26060 |
KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..V1..(05S,06S) |
1 | ||
| 58587C - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 LH | ||||
| 58587-26080 |
KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..V1..(05S,06S)..CBU |
1 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58587D - PLATE, NO.3 SEAT LEG SPACE POCKET, NO.1 | ||||
| 58587-26010 |
KDH200,201,TRH200..V2..03S;KDH222,223,227,TRH223,224,228,229..IV5;KDH20#,211,220,221,225,TRH200,211,216,221,226..05S,06S,09S |
2 | ||
| 58656C - PLATE, REAR FLOOR, CENTER LOWER NO.2 RH | ||||
| 58656-26020 |
KDH20#,211,TRH200,211,216..5D |
1 | ||
| 58666E - PLATE, REAR FLOOR, CENTER LOWER NO.2 LH | ||||
| 58666-26010 |
KDH20#,211,TRH200,21# |
1 | ||
| 58759A - COVER, FUEL TANK INSPECTION HOLE | ||||
| 58759-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||

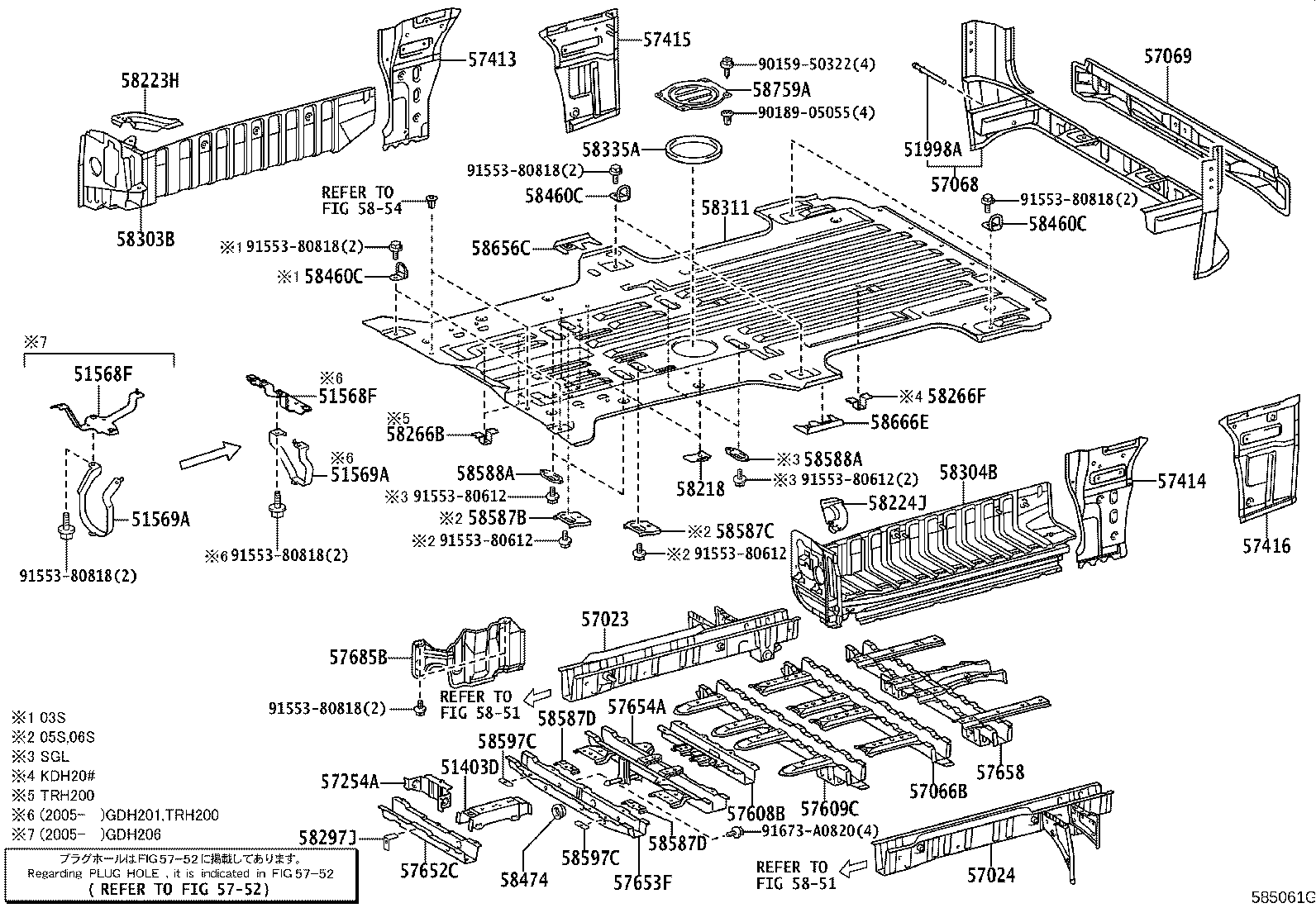

(1312- )GDH20#,KDH20#,TRH200..V1..5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05055 | ||||
| 91553-80612 | ||||
| 91553-80818 | ||||
| 91673-A0820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5851 | ||||
| 5854 | ||||
