TRH200K-FRPDK (2007)
Toyota Hiace/Regiusace
Production
Sep 2007
-
Dec 2013
Engine
1TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0408- )KDH20#,TRH200
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53752B - BRACKET, WASHER TANK MOUNTING | ||||
| 53752-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55015-26261 |
TRH200..4FC |
1 | ||
| 55015-26260 |
TRH200..4FC |
1 | ||
| 55112 - PANEL, DASH, NO.2 | ||||
| 55112-26110 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55112-26112 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55112-26111 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55127 - REINFORCEMENT, PARKING BRAKE | ||||
| 55127-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55135C - BRACKET, BRAKE PEDAL, NO.2 | ||||
| 55135-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55149C - BRACKET, DASH WIRING HARNESS | ||||
| 55149-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 55161C - BRACKET, HEATER MOUNTING | ||||
| 55161-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 58197D - RETAINER, INSTR PANEL BRACE MT BRACKET | ||||
| 58197-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90174-06002 | ||||
| 90174-08008 | ||||

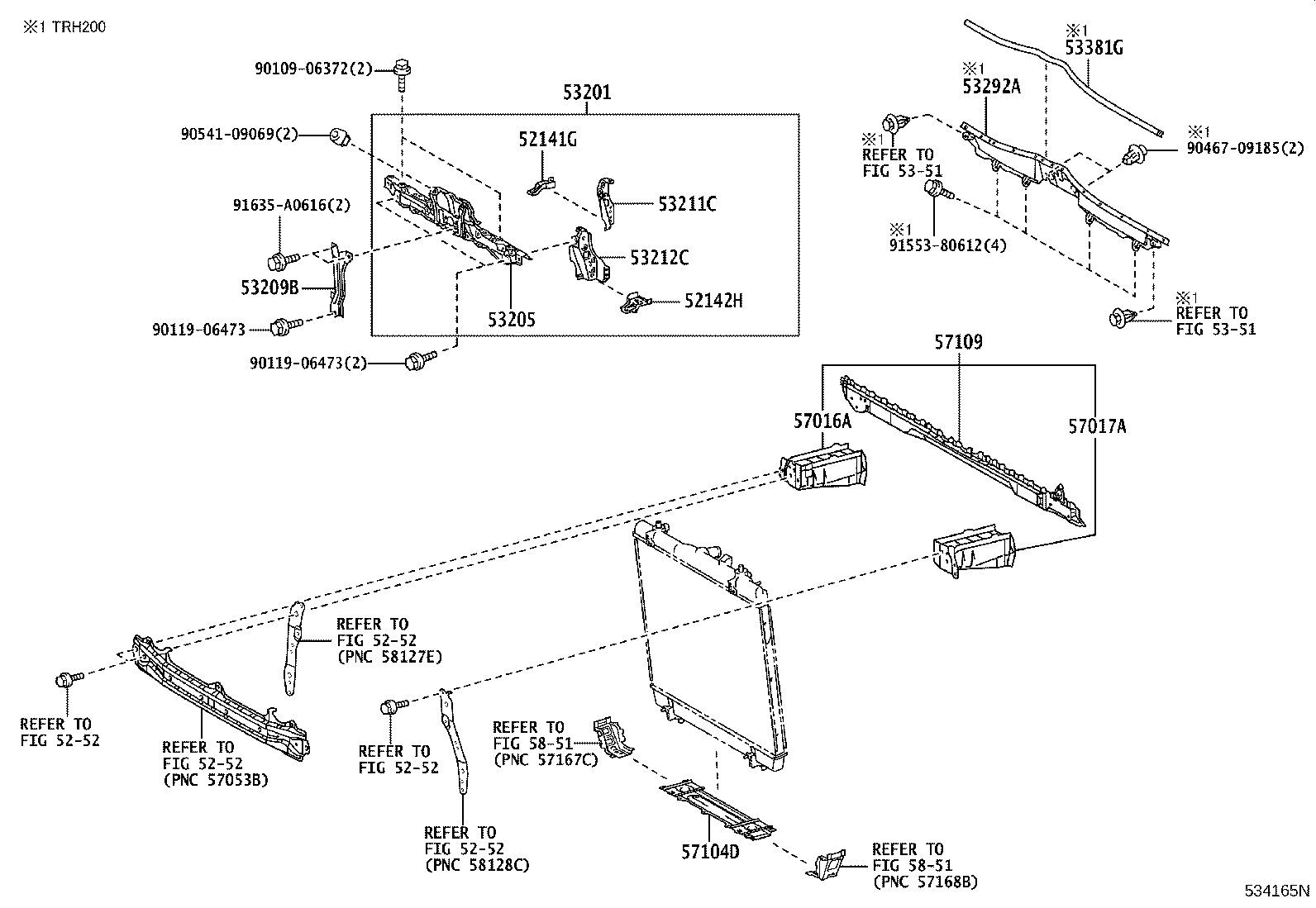

ILLUST NO. 1 OF 2(0408- )TRH200
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-26082 |
KDH20#,TRH200 |
1 | ||
| 53201-26080 |
KDH20#,TRH200 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-26010 |
KDH20#,TRH200 |
1 | ||
| 53205-26012 |
KDH20#,TRH200 |
1 | ||
| 53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT | ||||
| 53209-26100 |
KDH20#,TRH200 |
1 | ||
| 53211C - SUPPORT, RADIATOR, RH | ||||
| 53211-26080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53212C - SUPPORT, RADIATOR, LH | ||||
| 53212-26080 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-26070 |
TRH200 |
1 | ||
| 53381G - SEAL, HOOD TO RADIATOR SUPPORT, NO.1 | ||||
| 53381-26110 |
TRH200 |
1 | ||
| 57016A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-26010 |
KDH20#,TRH200 |
1 | ||
| 57017A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-26010 |
KDH20#,TRH200 |
1 | ||
| 57104D - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-26220 |
KDH200,201,TRH200 |
1 | ||
| 57104-26221 |
KDH201,TRH200 |
1 | ||
| 57109 - REINFORCEMENT SUB-ASSY, DASH PANEL CROSS MEMBER | ||||
| 57109-26020 |
TRH200 |
1 | ||
| 57109-26021 |
KDH20#,TRH200 |
1 | ||
| Common parts | ||||
| 90109-06372 | ||||
| 90119-06473 | ||||
| 90467-09185 | ||||
| 90541-09069 | ||||
| 90541-09078 | ||||
| 91553-80612 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 5252 | ||||
| 5351 | ||||
| 5851 | ||||

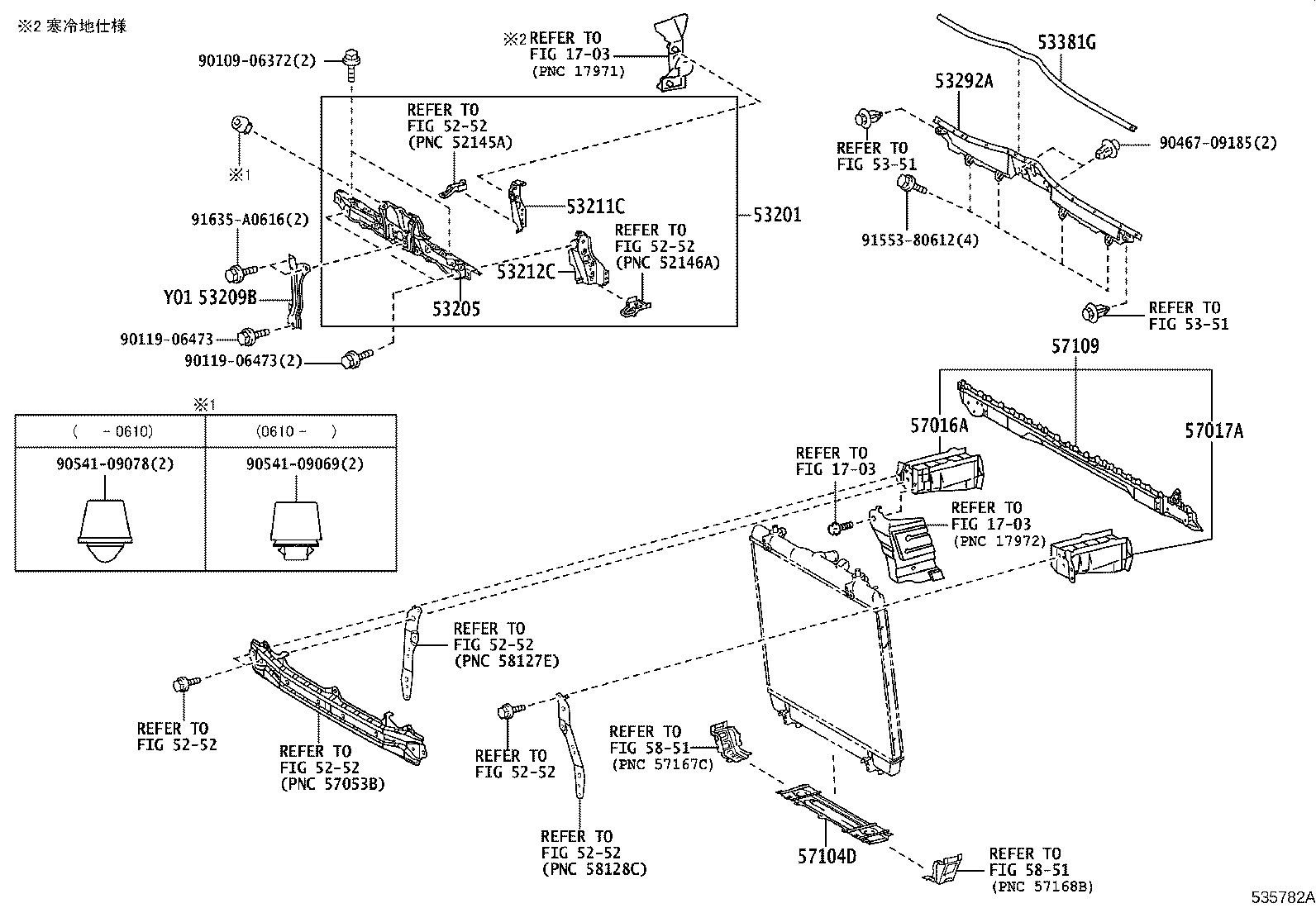

ILLUST NO. 1 OF 2(1312- )GDH20#,KDH20#,TRH200
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06372 | ||||
| 90119-06473 | ||||
| 90467-09185 | ||||
| 90541-09069 | ||||
| 91553-80612 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5351 | ||||
| 5851 | ||||
ILLUST NO. 2 OF 2(1312- )GDH20#,KDH20#,TRH200
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90115-06166 | ||||
| 90174-06002 | ||||
| 90174-08008 | ||||
