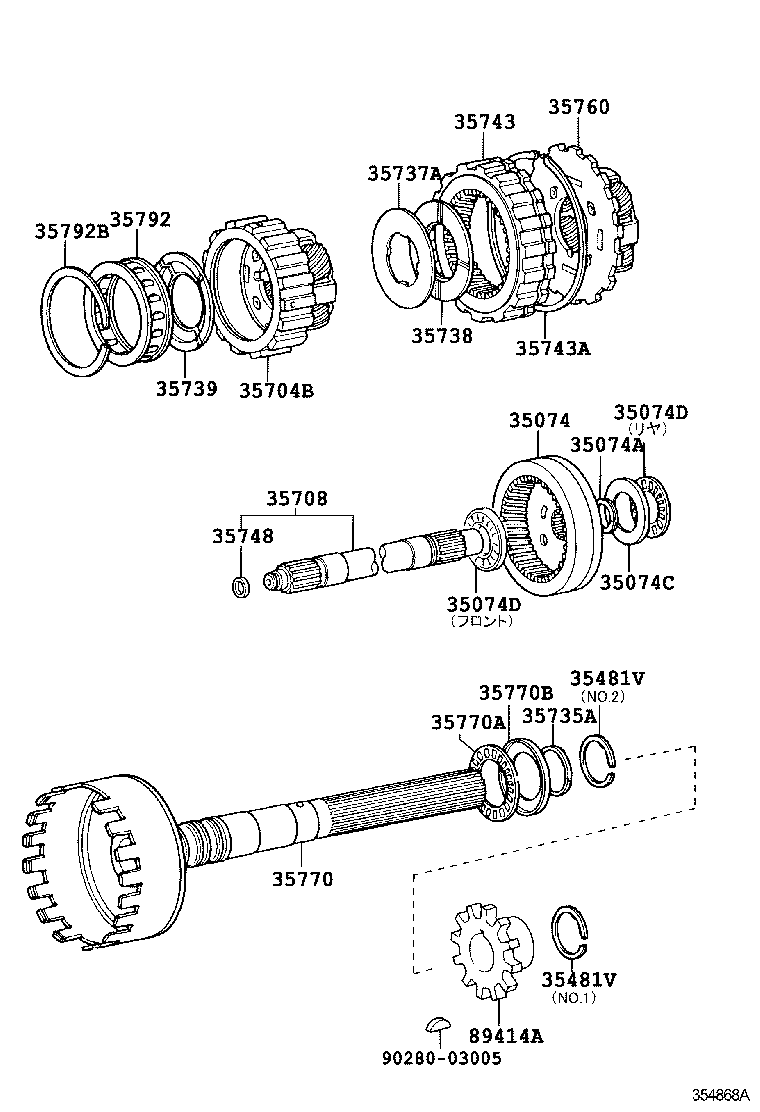

TRH200K-FRPDK (2007)
Toyota Hiace/Regiusace
(0408- )TRH200..4FC
A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30030 |
TRH200..4FC |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
TRH200..4FC |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
TRH200..4FC |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-21001 |
TRH200..4FC ﾌﾛﾝﾄ |
1 | ||
| 90374-28014 |
TRH200..4FC ﾘﾔ |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-21001 |
TRH200..4FC ﾌﾛﾝﾄ |
1 | ||
| 90374-28014 |
TRH200..4FC ﾘﾔ |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
KDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC 厚さ=1.50,外径=33.8,NO.1 |
1 | ||
| 90520-29004 |
TRH200..4FC 厚さ=1.50,外径=34.8,NO.2 |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
KDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC 厚さ=1.50,外径=33.8,NO.1 |
1 | ||
| 90520-29004 |
TRH200..4FC 厚さ=1.50,外径=34.8,NO.2 |
1 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-30040 |
TRH200..4FC |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-30041 |
TRH200..4FC |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
TRH200..4FC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-22010 |
TRH200..4FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-30030 |
TRH200..4FC |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-30020 |
TRH200..4FC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-30010 |
TRH200..4FC |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
TRH200..4FC |
1 | ||
| 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL | ||||
| 35748-30010 |
TRH200..4FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30040 |
TRH200..4FC |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-53010 |
TRH200..4FC |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
TRH200..4FC |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
TRH200..4FC |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30030 |
TRH200..4FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
TRH200..4FC |
1 | ||
| 89414A - ROTOR, SENSOR | ||||
| 89414-22020 |
TRH200..4FC |
1 | ||
| Common parts | ||||
| 90280-03005 | ||||
(1312-1501)TRH200..4FC
A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30030 |
TRH200..4FC |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
TRH200..4FC |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
TRH200..4FC |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-21001 |
TRH200..4FC ﾌﾛﾝﾄ |
1 | ||
| 90374-28014 |
TRH200..4FC ﾘﾔ |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-21001 |
TRH200..4FC ﾌﾛﾝﾄ |
1 | ||
| 90374-28014 |
TRH200..4FC ﾘﾔ |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
KDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC 厚さ=1.50,外径=33.8,NO.1 |
1 | ||
| 90520-29004 |
TRH200..4FC 厚さ=1.50,外径=34.8,NO.2 |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
KDH200,201,211,220,221,222,223,TRH200,211,214,221,223,224..4FC 厚さ=1.50,外径=33.8,NO.1 |
1 | ||
| 90520-29004 |
TRH200..4FC 厚さ=1.50,外径=34.8,NO.2 |
1 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-30040 |
TRH200..4FC |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-30041 |
TRH200..4FC |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
TRH200..4FC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-22010 |
TRH200..4FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-30030 |
TRH200..4FC |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-30020 |
TRH200..4FC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-30010 |
TRH200..4FC |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
TRH200..4FC |
1 | ||
| 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL | ||||
| 35748-30010 |
TRH200..4FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30040 |
TRH200..4FC |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-53010 |
TRH200..4FC |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
TRH200..4FC |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
TRH200..4FC |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30030 |
TRH200..4FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
TRH200..4FC |
1 | ||
| 89414A - ROTOR, SENSOR | ||||
| 89414-22020 |
TRH200..4FC |
1 | ||
| Common parts | ||||
| 90280-03005 | ||||
