TRH200K-ERPDK5 (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1712)TRH224..4FC ; (1312-1712)KDH223,TRH214,219,223,228,229..4FC..CBU ; (1501

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

diagram 8712 8712126130 8712126140 8712426481 8712426481 87248F 87249F 9009900275 9009900275 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26680

KDH20#,TRH200..IV5

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26690

KDH20#,TRH200..IV5

 1
Common parts
87121-26130
87121-26140
87124-26481
90099-00275
90466-18001
91553-80818
Linked diagrams
8712

(1312-1712)KDH20#,TRH200..4FC..IV5 ; (1501-1712)TRH200..IV5

Click highlighted areas on diagram

ﾘﾔ:ﾌﾛｱ

diagram 8712 8712126130 8712126170 8712426481 8712426481 87248F 87249F 9009900275 9009900275 9046400558 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26680

KDH20#,TRH200..IV5

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26690

KDH20#,TRH200..IV5

 1
Common parts
87121-26130
87121-26170
87124-26481
90099-00275
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

(1312-1712)KDH211,221,TRH211,216,221,226..4FC ;(1501-1712)TRH211,216,221,226 ; (15

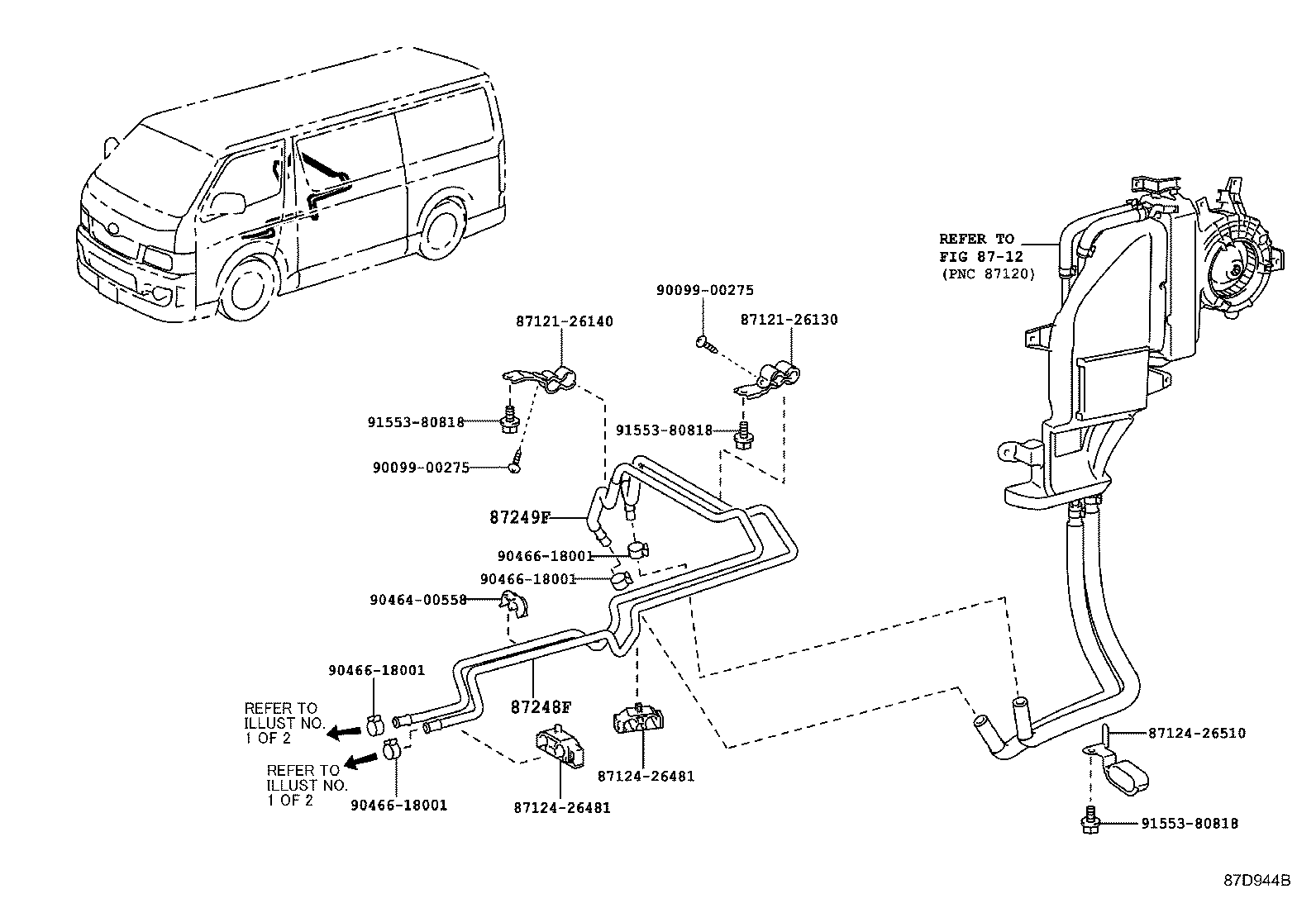

Click highlighted areas on diagram

ﾘﾔ:ﾄﾘﾑ

diagram 8712 8712126130 8712126140 8712426481 8712426481 8712426510 87248F 87249F 9009900275 9009900275 9046400558 9046618001 9046618001 9046618001 9046618001 9155380818 9155380818 9155380818
Part # Description Qty Price
87248F - PIPE, HEATER WATER INLET, F
87248-26680

KDH20#,TRH200..IV5

 1
87249F - PIPE, HEATER WATER OUTLET, F
87248-26690

KDH20#,TRH200..IV5

 1
Common parts
87121-26130
87121-26140
87124-26481
87124-26510
90099-00275
90464-00558
90466-18001
91553-80818
Linked diagrams
8712

(1312-1612)TRH200..SG..4FC,5F ; (1312-1612)TRH200..V1..SP..4FC,5F ; (1501-1612)V1..

Click highlighted areas on diagram

ﾌﾛﾝﾄ:ﾘﾔﾋｰﾀｰﾂｷ

diagram 1104 1603 8712126080 8712126090 8712425110 8712426450 8712426460 8712426520 8712447030 87124A 8714 8714 87245A 87245B 87245C 87245E 87246 87246B 87246C 87246E 87248A 87248B 87249A 87249B 9046719022 9046719022 9155380814 9155380814 9613442100 9613442100 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87124A - CLAMP, HEATER
87124-25110

GDH201..CBU;GDH206,KDH20#;TRH200..4FC,6FC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-26A90

KDH20#;TRH200..4FC,6FC

 1
87245B - HOSE, HEATER WATER, INLET B
87245-26B40

TRH200..4FC,6FC

 1
87245C - HOSE, HEATER WATER ,INLET C
87209-26180

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87245E - HOSE, HEATER WATER, INLET E
87245-26B60

TRH200,21#,22#..4FC,6FC

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-26D60

KDH20#;TRH200..4FC,6FC

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-26B50

TRH200..4FC,6FC

 1
87246C - HOSE, HEATER WATER, OUTLET C
99556-20220

TRH200..IV5;TRH200,21#,223,224,228,229..02S,05S,10S,14S

*H,L=220

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-26B70

TRH200,21#,22#..4FC,6FC

 1
87248A - PIPE, HEATER WATER INLET, A
87248-26400

KDH20#;TRH200..4FC,6FC

 1
87248B - PIPE, HEATER WATER INLET, B
87248-26460

TRH200..SGL;TRH200..IV5

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-26410

KDH20#;TRH200..4FC,6FC

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-26470

TRH200..SGL;TRH200..IV5

 1
Common parts
87121-26080
87121-26090
87124-25110
87124-26450
87124-26460
87124-26520
87124-47030
90467-19022
91553-80814
96134-42100
96136-42501
Linked diagrams
1104
1603
8714
