Toyota Hiace/regiusace TRH200 FRONT SEAT & SEAT TRACK

TRH200K-ERPDK (2013)

Toyota Hiace/Regiusace

Production Dec 2013 - Jan 2015

Engine 1TRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(1312- )

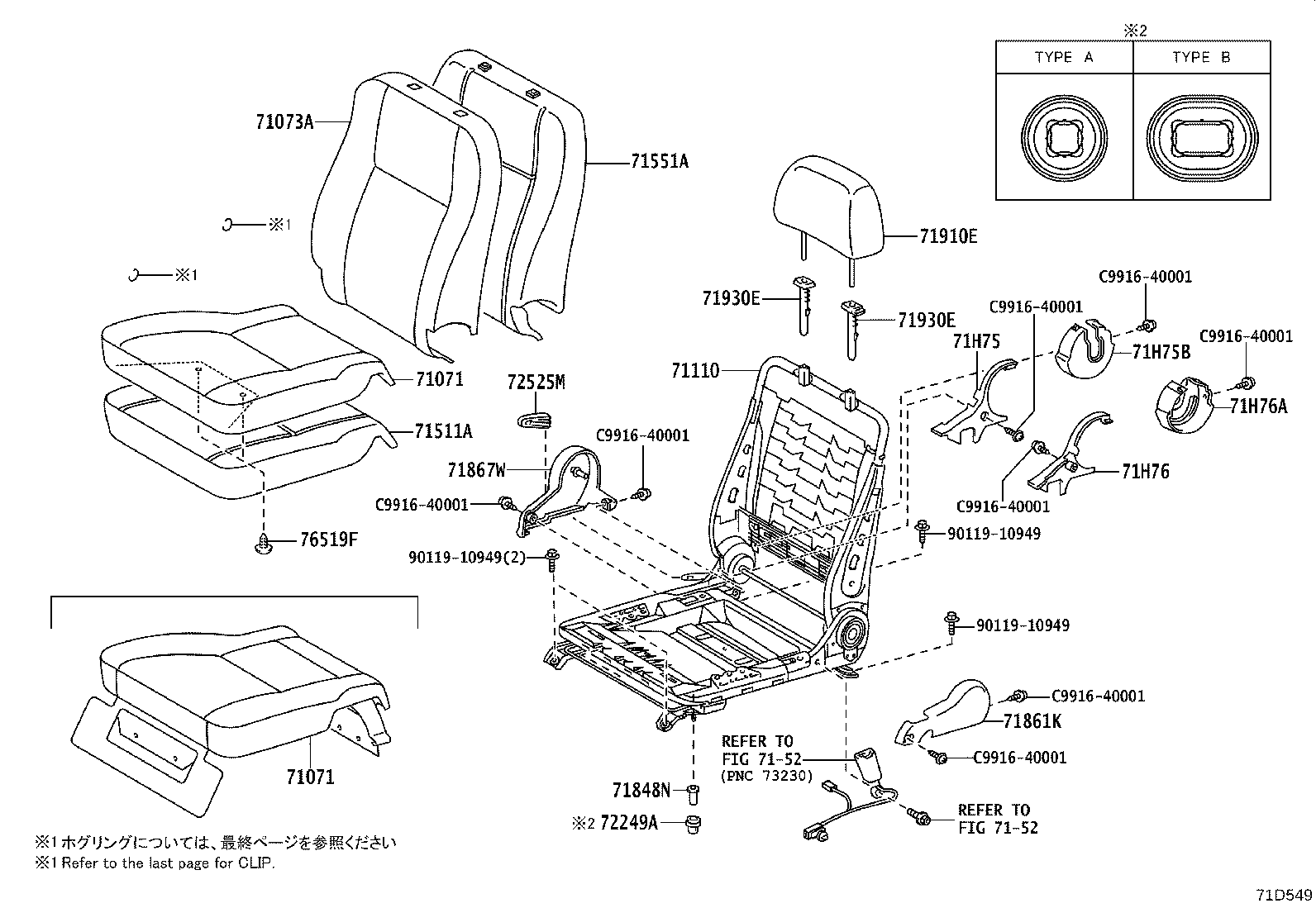

Click highlighted areas on diagram

ｼｰﾄｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ

Part #	Description	Period	Qty	Price
Common parts
71149-30050
90468-16019
90468-18008

(1312- )KDH20#,22#,TRH200,214,219,221,223,226,228..DX..CBU,IV5

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH
71071-26A80B0	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH
71071-26A80B0	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH
71027-26041B4	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26011	TRH200..(4FC,6FC)..DX;KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
71511A - PAD, FRONT SEAT CUSHION, RH
71511-26170	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
71551A - PAD, FRONT SEAT BACK, RH
71551-26270	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,22#,TRH221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1
71848-26010	GDH206,KDH223,TRH224;TRH200..(4FC,6FC)..DX;TRH214,219,223,228..4D..GL;KDH20#,TRH223,228..(4FC,5F)..DX;GDH201,211,22#,KDH221,TRH221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
71861K - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH
71867-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)
71875-26020B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F
71875-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)
71876-26030B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F
71876-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
72249A - GUIDE, SEAT TRACK LOCKING
72249-26020	TRH200..HRF..4D..4FC..CBU 特装車両:008K,NO.1	01/2014 - 01/2015	1
72249-26030	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 TYPE B:ｲﾗｽﾄ参照	12/2013 - 12/2999	1
72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
76519F - CLIP, FRONT SEAT CUSHION COVER
90467-08186C0	KDH20#,221,TRH200,221,226..DX..(CBU,IV5) BLACK	12/2013 - 10/2016	2
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(1312- )TRH221,226..02S ; (1312- )KDH20#,TRH200..SRF..4D..06S..4FC,6FC ; (131

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH
71071-26A80B0	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71071-26A80B0	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH
71071-26A80B0	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71071-26A80B0	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH
71027-26041B4	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71027-26041B4	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,22#,KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH
71110-26011	TRH200..(4FC,6FC)..DX;KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
71110-26011	TRH200..(4FC,6FC)..DX;KDH20#,22#,TRH214,219,221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
71511A - PAD, FRONT SEAT CUSHION, RH
71511-26170	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
71511-26170	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
71551A - PAD, FRONT SEAT BACK, RH
71551-26270	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,22#,TRH221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
71551-26270	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,22#,TRH221,223,226,228..DX..(CBU,IV5)	12/2013 - 12/2999	1
71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1
71848-26010	GDH206,KDH223,TRH224;TRH200..(4FC,6FC)..DX;TRH214,219,223,228..4D..GL;KDH20#,TRH223,228..(4FC,5F)..DX;GDH201,211,22#,KDH221,TRH221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
71848-26010	GDH206,KDH223,TRH224;TRH200..(4FC,6FC)..DX;TRH214,219,223,228..4D..GL;KDH20#,TRH223,228..(4FC,5F)..DX;GDH201,211,22#,KDH221,TRH221,226,229..CBU,IV6,IV7	12/2013 - 12/2999	1
71861K - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71861-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH
71867-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71867-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT)
71875-26020B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71875-26020B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F
71875-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71875-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)
71876-26030B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71876-26030B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F
71876-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71876-26010B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
72249A - GUIDE, SEAT TRACK LOCKING
72249-26020	TRH200..HRF..4D..4FC..CBU 特装車両:008K,NO.1	01/2014 - 01/2015	1
72249-26020	TRH200..HRF..4D..4FC..CBU 特装車両:008K,NO.1	01/2014 - 01/2015	1
72249-26030	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 TYPE B:ｲﾗｽﾄ参照	12/2013 - 12/2999	1
72249-26030	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 TYPE B:ｲﾗｽﾄ参照	12/2013 - 12/2999	1
72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-26080B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
72525-26080B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
76519F - CLIP, FRONT SEAT CUSHION COVER
90467-08186C0	KDH20#,221,TRH200,221,226..DX..(CBU,IV5) BLACK	12/2013 - 10/2016	2
90467-08186C0	KDH20#,221,TRH200,221,226..DX..(CBU,IV5) BLACK	12/2013 - 10/2016	2
Common parts
90119-10949
C9916-40001
Linked diagrams
7152

(1312- )GDH20#,KDH20#,22#,TRH200,221,226..DX..CBU,IV5

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ(2ﾆﾝｶﾞｹｼｰﾄ)

Part #	Description	Period	Qty
58801F - BOX SUB-ASSY, CONSOLE
58801-26100B2	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
58839F - COVER, CONSOLE BOX HOLE, NO.1
58839-26040B2	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
58839G - COVER, CONSOLE BOX HOLE, NO.2
58839-26050B2	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71014 - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-26180	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	1
71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH
71072-26872B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側),BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71072-26882B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH
70169-26111B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71095 - COVER SUB-ASSY, CENTER SEAT BACK
71095-26202B5	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) BLUISH GRAY,TRIM1#	12/2013 - 12/2999	1
71365A - PAD, CENTER SEAT BACK
71033-26021	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	1
71377B - PLATE, CENTER SEAT HINGE, RH
71377-26031	GDH201..DX..CBU;GDH206,KDH20#..DX;TRH200..(4FC,6FC)..DX	12/2013 - 12/2999	1
71389F - SPACER, CENTER SEAT HINGE
71389-26020	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	2
71389F - SPACER, CENTER SEAT HINGE
71389-26020	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	2
71395E - COVER, CENTER SEAT HINGE, RH
71395-26030B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71396J - CUSHION, FRONT SEAT SUPPORT, REAR LH
71396-26040B0	GDH201..DX..CBU;GDH206,KDH20#..DX;TRH200..(4FC,6FC)..DX DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71398J - COVER, CENTER SEAT HINGE, UPPER LH
71398-26050B0	GDH201..DX..CBU;GDH206,KDH20#..DX;TRH200..(4FC,6FC)..DX DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71512 - PAD, FRONT SEAT CUSHION, LH
71502-26111	KDH20#,221,TRH200,221,226..DX..(CBU,IV5)	12/2013 - 12/2017	1
71052-26081	KDH20#,221,TRH200,221,226..DX..(CBU,IV5) SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側)	12/2013 - 12/2017	1
71552A - PAD, FRONT SEAT BACK, LH
71551-26310	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	1
71862K - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-26030B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71867X - SHIELD, FRONT SEAT CUSHION, FRONT LH
71868-26050B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71A49A - COVER, FRONT SEAT LEG(FOR LH SEAT)
71148-26010	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	1
71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT)
71875-26040B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H75D - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT BACK F
71875-26050B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT)
71876-26040B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F
71876-26050B1	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
72520F - LOCK ASSY, FRONT SEAT BACK, LH
72520-26130	KDH20#..DX;TRH200..(4FC,6FC)..DX	12/2013 - 12/2999	1
72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-26020B1	TRH200..4FC,6FC;GDH206,KDH20#,223,TRH223,224,228;GDH201,211,22#,KDH211,221,TRH21#,221,226,229..CBU,IV6,IV7 DK.GRAY,TRIM1#	12/2013 - 12/2999	1
72526Q - HANDLE, RECLINING ADJUSTER RELEASE, LH NO.2
72526-26030B2	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
72848M - CAP, SEAT ARMREST, NO.1
90339-10001P5	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	2
72881B - SUPPORT, SEAT CENTER ARMREST NO.1
72881-26010	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	1
72881C - SUPPORT, SEAT CENTER ARMREST NO.2
72881-26020	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5)	12/2013 - 12/2999	1
78061A - TABLE SUB-ASSY, FRONT SEAT SIDE
78061-26030B2	GDH201..DX..CBU;TRH200..(4FC,6FC)..DX;GDH206,KDH20#,221,TRH221,226..DX..(CBU,IV5) DK.GRAY,TRIM1#	12/2013 - 12/2999	1
Common parts
72702-26100
72702-26110
72702-26120
78899-52030
90105-10261
90119-10949
90159-40082
90386-12036
93249-14008
93249-54006
93269-54016
C9916-40001

TRH200K-ERPDK (2013)

(1312- )

(1312- )KDH20#,22#,TRH200,214,219,221,223,226,228..DX..CBU,IV5

(1312- )TRH221,226..02S ; (1312- )KDH20#,TRH200..SRF..4D..06S..4FC,6FC ; (131

(1312- )GDH20#,KDH20#,22#,TRH200,221,226..DX..CBU,IV5

Part Price Details
