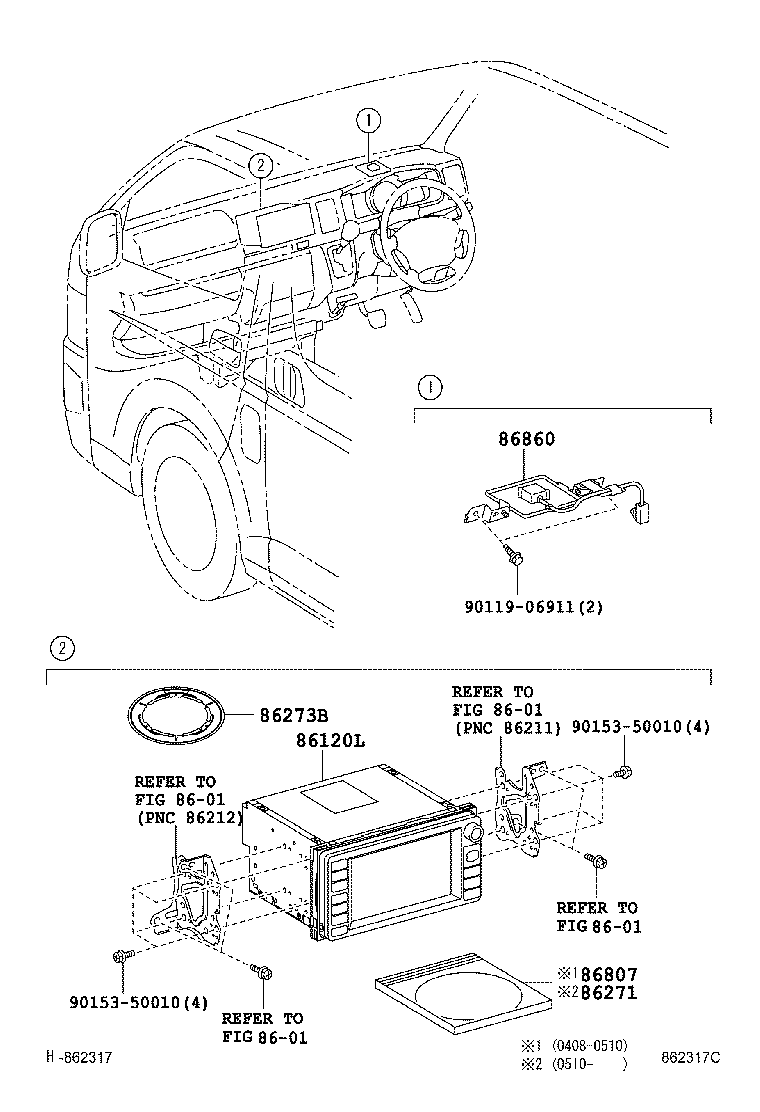

TRH200K-ERPDK (2004)
Toyota Hiace/Regiusace
(0408-1008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-1A210 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX..CBU DENSO,ID=E6002,ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰJ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86120-52650 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX FUJITSU TEN,ID=26006,ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVc) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-13065 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-13068 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-13064 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-52070 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-13067 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-13069 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-13066 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-52072 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-52073 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86271-52071 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86807 - DISC KIT, CD-ROM | ||||
| 86807-12030 |
KDH20#,TRH200,21#..DX..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86807-12032 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86807-12031 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-26060 |
KDH20#,211,22#,TRH200,21#,22#..03S,05S,06S,09S,10S,15S EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−有り |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 90153-50010 | ||||
| Linked diagrams | ||||
| 8601 | ||||
