TRH200K-ERPDK (2004)
Toyota Hiace/Regiusace

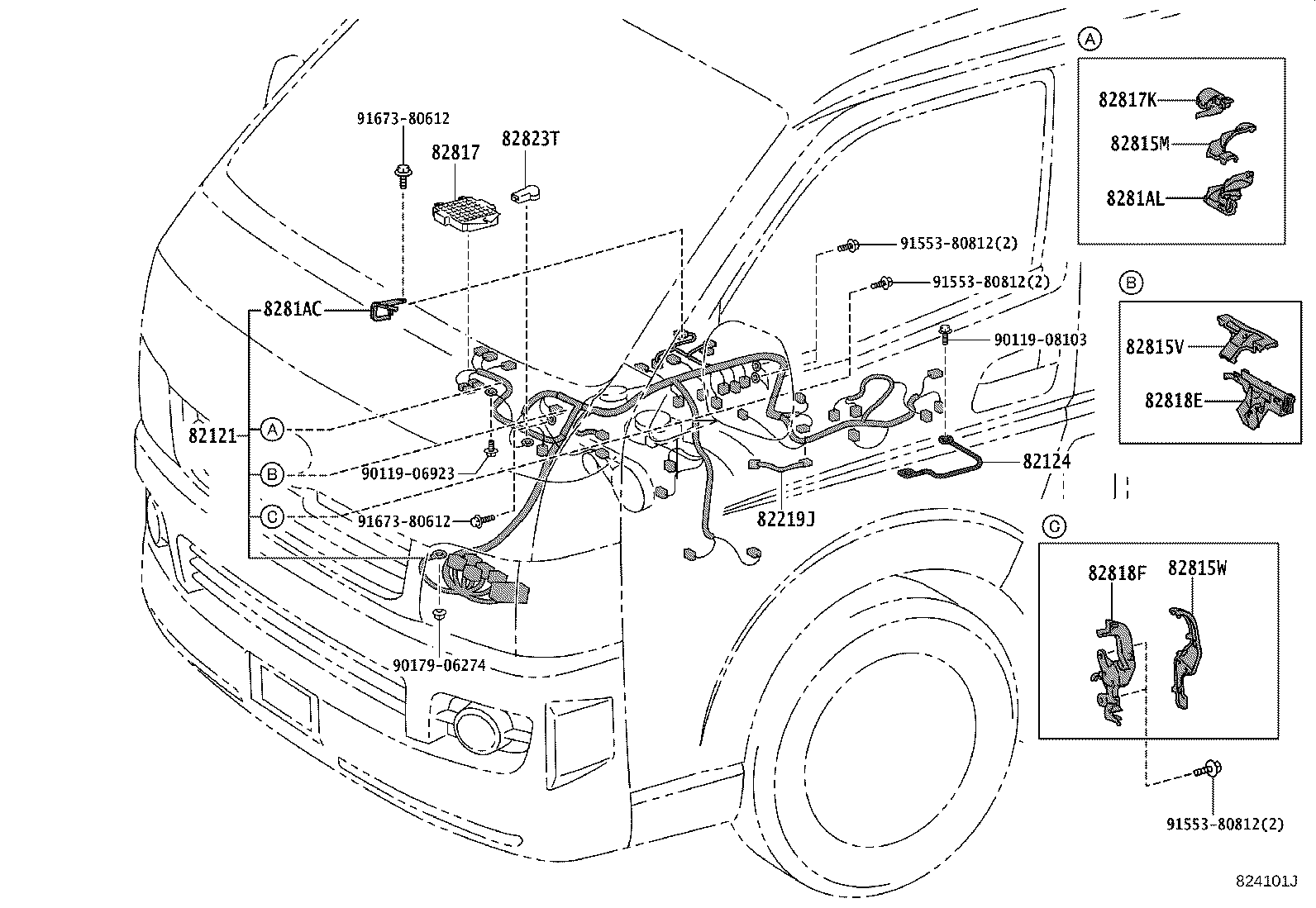

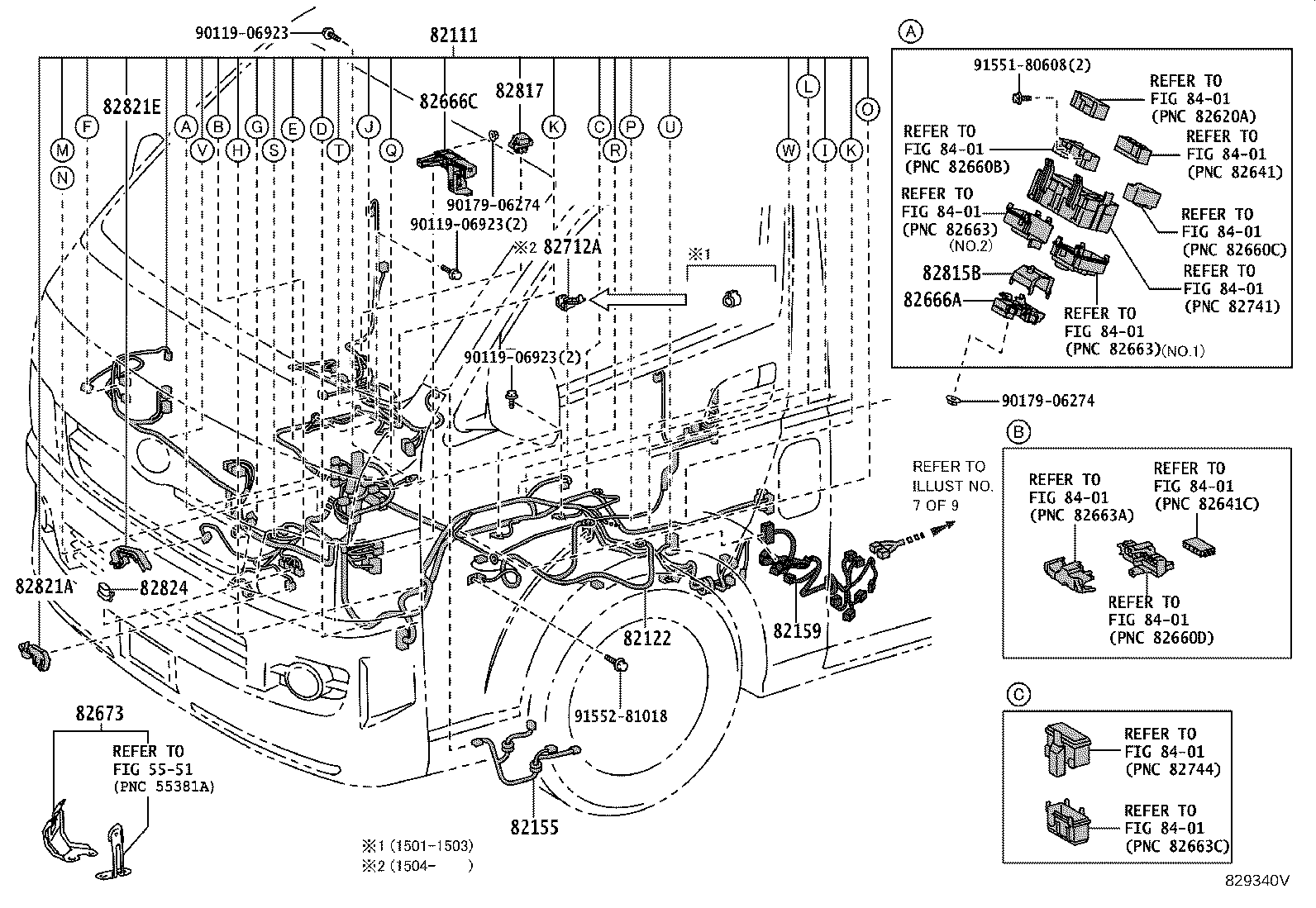

ILLUST NO. 1 OF10(0408- )TRH200,21#,22#
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-26B40 |
TRH200..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B40 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B40 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B40 |
TRH200..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J80 |
TRH200..DX..CBU |
1 | ||
| 82111-26B41 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B41 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B41 |
TRH200..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B41 |
TRH200..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B41 |
TRH200..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B41 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B41 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J81 |
TRH200..DX..CBU |
1 | ||
| 82111-26B42 |
TRH200..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B42 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B42 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B42 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B42 |
TRH200..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B42 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B42 |
TRH200..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J82 |
TRH200..DX..CBU |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B43 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B43 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B43 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J83 |
TRH200..V1..SP;TRH200..SG..DX..CBU |
1 | ||
| 82111-26B43 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B44 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B44 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26J84 |
TRH200..V1..SP;TRH200..SG..DX..CBU |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-26V70 |
TRH200..06S..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26V70 |
TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26V70 |
TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26V70 |
TRH200..06S..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26B40 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26B40 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26J80 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J80 |
1 | ||
| 82111-26B40 |
TRH200..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26B41 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26B41 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26B41 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26B41 |
TRH200..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26J81 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J81 |
1 | ||
| 82111-26B42 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26B42 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26B42 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26B42 |
TRH200..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26J82 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J82 |
1 | ||
| 82111-26B43 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26B43 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26J83 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J83 |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26B44 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26B44 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26J84 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J84 |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||
| 82111-26V70 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||
| 82111-26V70 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-26610 |
TRH200 |
1 | ||
| 82159 - WIRE, PILLAR, NO.2 | ||||
| 82159-26020 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-26220 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-26420 |
TRH200..06S..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82666-26420 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82666-26420 |
TRH200..06S..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666-26420 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82666-26420 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666-26420 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,221,TRH200,221,226..SG..(03S,06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82666-26420 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666-26420 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26431 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82666-26430 |
TRH200,21#,22# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-26460 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-26510 |
KDH201,206,TRH200;KDH200,205,211,22#,TRH21#,22#..4FC |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-26500 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82815-26500 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82815-26500 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82815-26500 |
TRH200..V1..SP;TRH200..SG..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82815-26500 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82815-26500 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82815-26500 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26C40 |
KDH201,206,TRH200;KDH200,205,211,22#,TRH21#,22#..4FC |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-26E10 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82817-26E10 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82817-26E10 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26E10 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82817-26E10 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26E10 |
TRH200..V1..SP;TRH200..SG..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26E10 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-26C30 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82817-26C30 |
TRH200..V1..SP;TRH200..SG..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26C30 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26C30 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82817-26C30 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26C30 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82817-26C30 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||

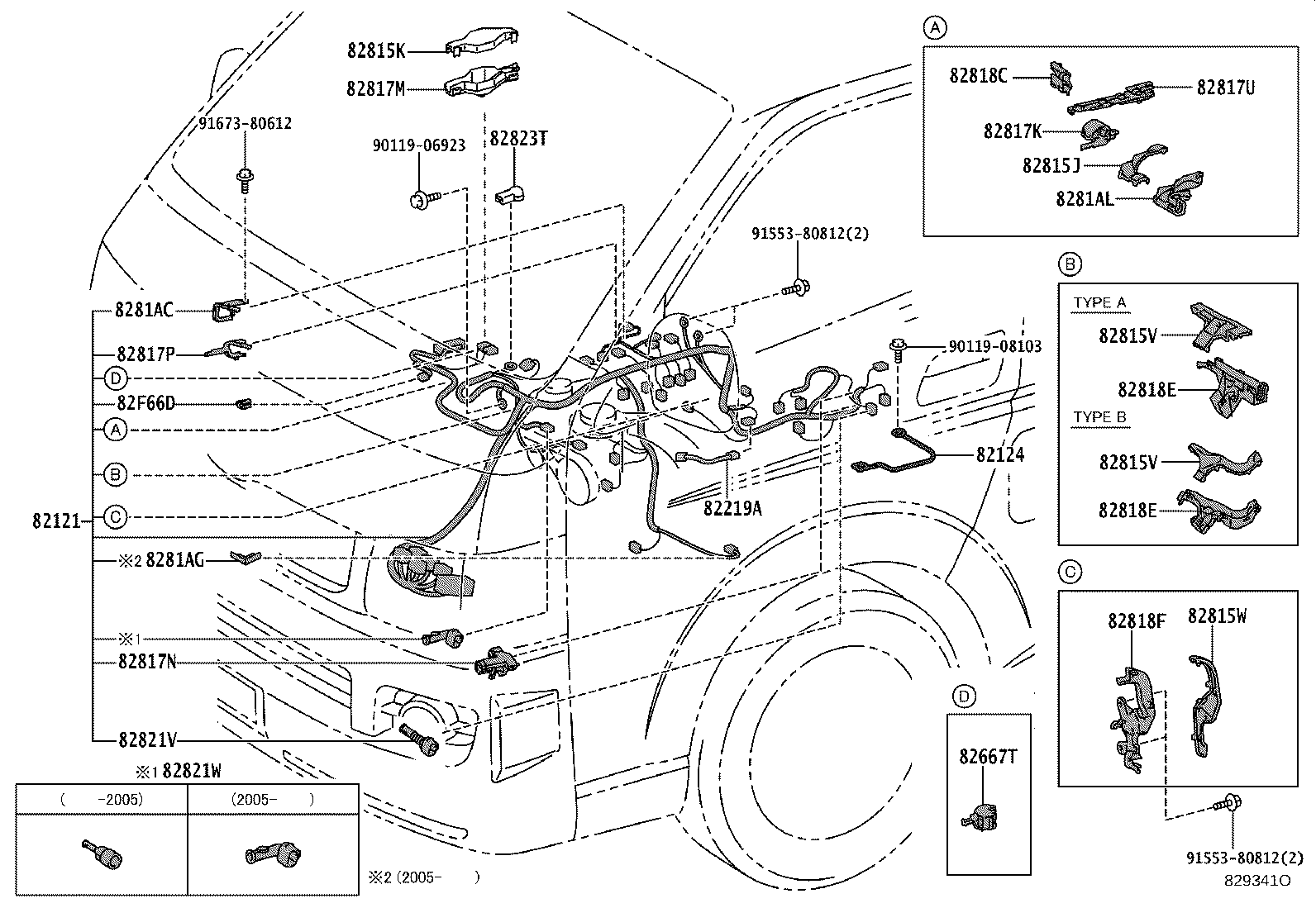

ILLUST NO. 2 OF10(0408- )TRH200,21#,22#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-26A80 |
TRH200..4FC |
1 | ||
| 82121-26A81 |
TRH200..4FC |
1 | ||
| 82121-26A82 |
TRH200..4FC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-26150 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82124-26151 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82219J - WIRE, KNOCK SENSOR | ||||
| 82219-26190 |
TRH229..CBU;TRH200,21#,221,223,224,226,228 |
1 | ||
| 82219-35050 |
TRH200,21#,22# |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-26440 |
KDH20#,TRH200 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-26800 |
TRH200,21#,22# |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-26490 |
TRH200,21#,22# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82712-26280 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-26D30 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26F50 |
TRH200,21#,22# |
1 | ||

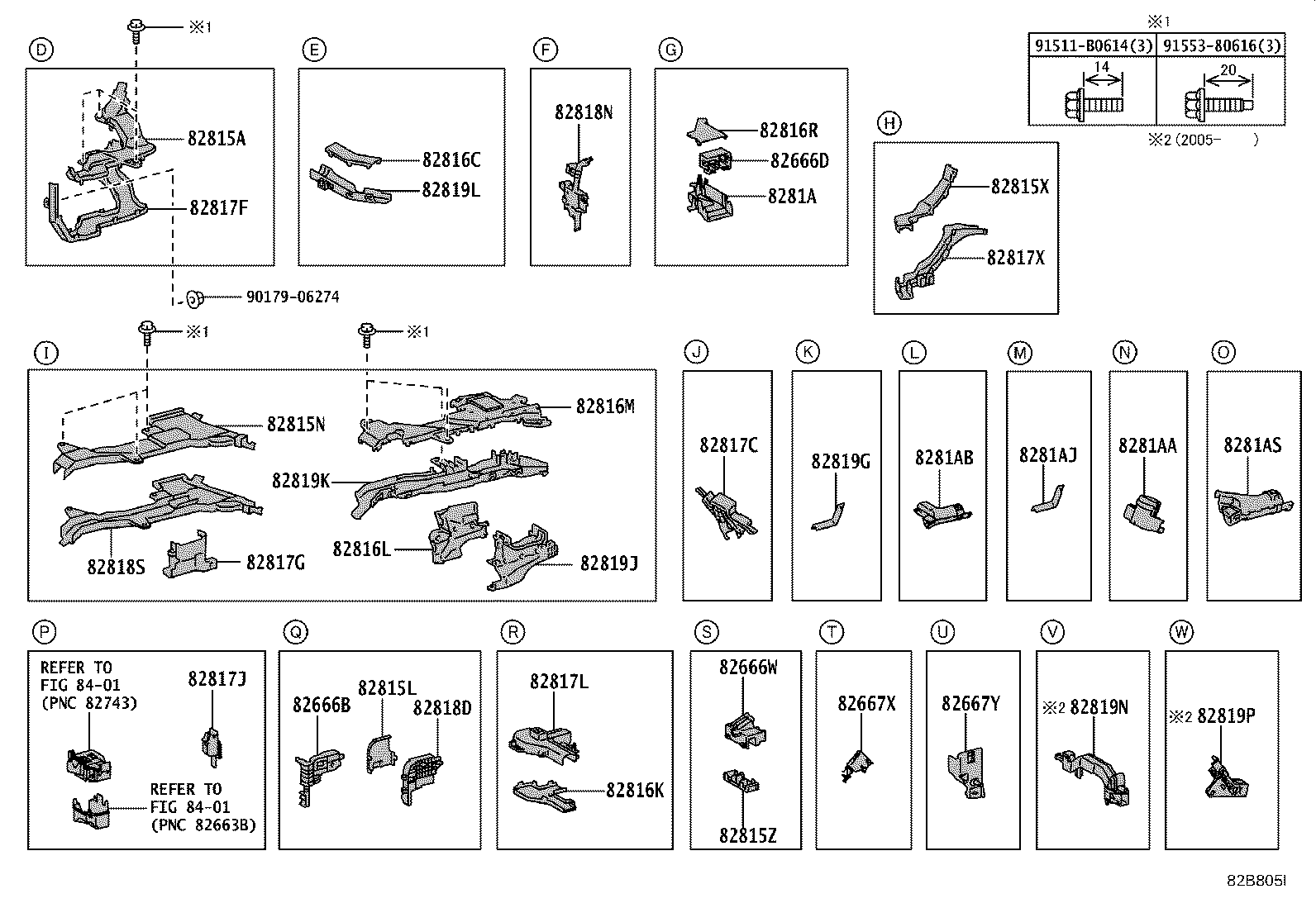

| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-26C20 |
TRH200,21#,22# |
1 | ||
| 8281AC - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-26E50 |
TRH200,21#,22# |
1 | ||
| 8281AL - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-26B50 |
KDH20#,TRH200 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-26020 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82823-22050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 90119-08103 | ||||
| 90179-06274 | ||||
| 91553-80812 | ||||
| 91673-80612 | ||||
ILLUST NO. 3 OF10(0408- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-26B40 |
TRH200..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B40 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B40 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B40 |
TRH200..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J80 |
TRH200..DX..CBU |
1 | ||
| 82111-26B41 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B41 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B41 |
TRH200..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B41 |
TRH200..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B41 |
TRH200..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B41 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B41 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J81 |
TRH200..DX..CBU |
1 | ||
| 82111-26B42 |
TRH200..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B42 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B42 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B42 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B42 |
TRH200..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B42 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B42 |
TRH200..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J82 |
TRH200..DX..CBU |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26B43 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B43 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B43 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26J83 |
TRH200..V1..SP;TRH200..SG..DX..CBU |
1 | ||
| 82111-26B43 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B44 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B44 |
TRH200..06S..CBU 寒冷地仕様&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様 |
1 | ||
| 82111-26J84 |
TRH200..V1..SP;TRH200..SG..DX..CBU |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-26V70 |
TRH200..06S..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26V70 |
TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26V70 |
TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26V70 |
TRH200..06S..CBU 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82111-26B40 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26B40 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26B40 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26J80 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J80 |
1 | ||
| 82111-26B40 |
TRH200..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B40 |
1 | ||
| 82111-26B41 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26B41 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26B41 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26B41 |
TRH200..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B41 |
1 | ||
| 82111-26J81 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J81 |
1 | ||
| 82111-26B42 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26B42 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26B42 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26B42 |
TRH200..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B42 |
1 | ||
| 82111-26J82 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J82 |
1 | ||
| 82111-26B43 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26B43 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26B43 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B43 |
1 | ||
| 82111-26J83 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J83 |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26B44 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26B44 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26B44 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26B44 |
1 | ||
| 82111-26J84 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26J84 |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||
| 82111-26V70 |
TRH200..06S..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||
| 82111-26V70 |
TRH200..V1..SP;TRH200..SG..(03S,06S)..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||
| 82111-26V70 |
TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82111−26V70 |
1 | ||

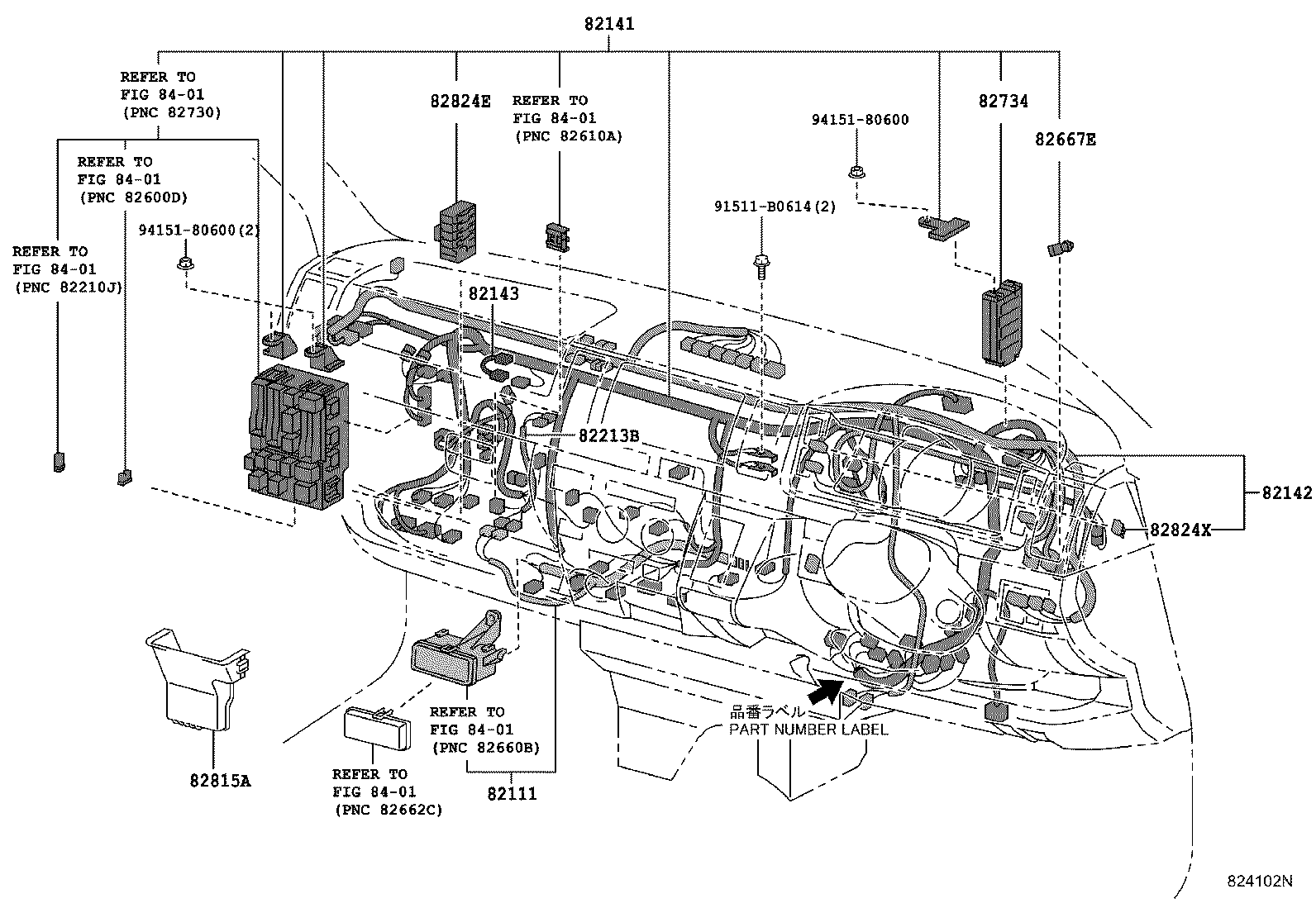

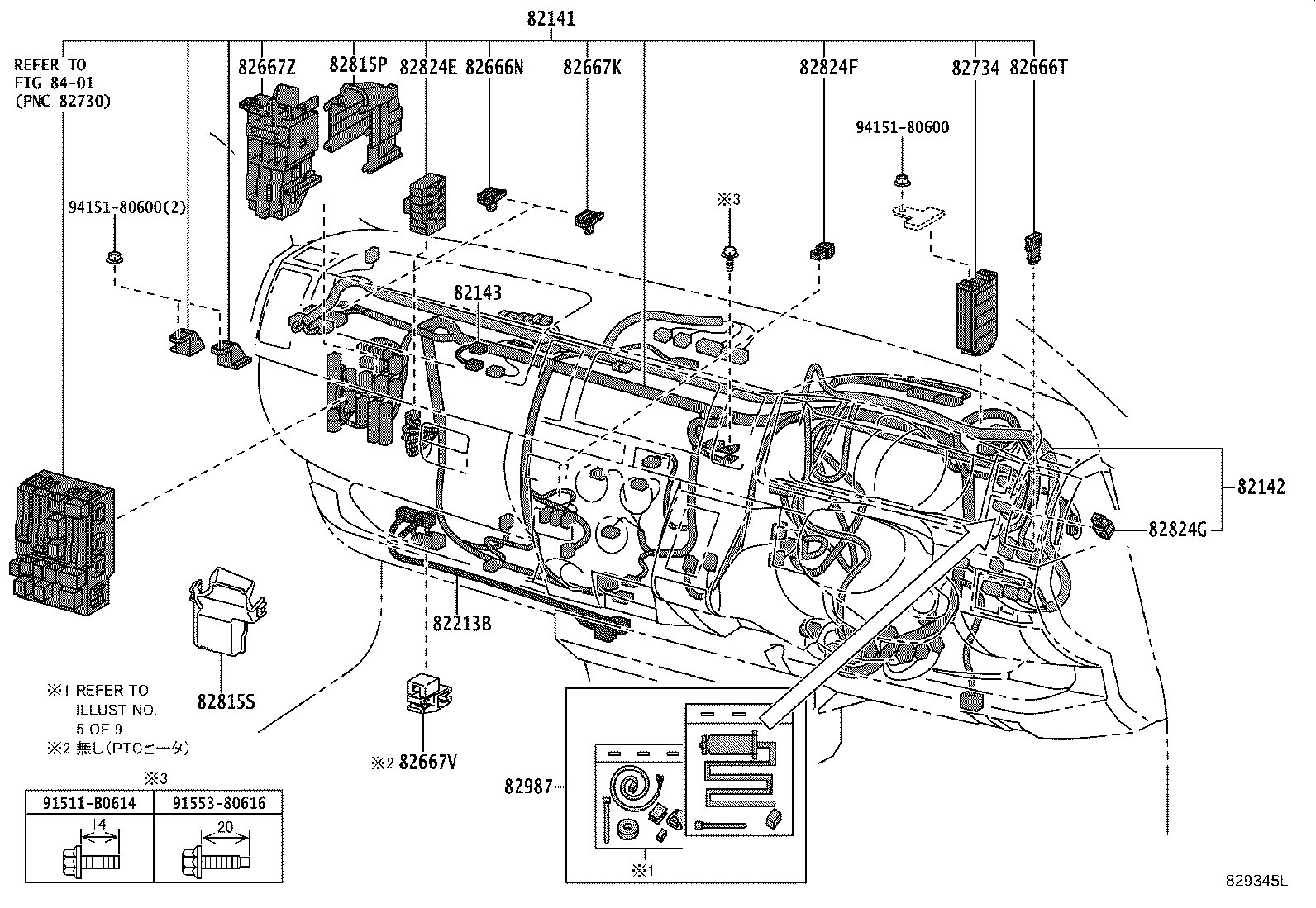

| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-26320 |
KDH20#,TRH200..DX ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26320 |
KDH20#,TRH200..DX ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26320 |
KDH20#,TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26560 |
KDH20#,TRH200..4FC..DX |
1 | ||
| 82141-26321 |
KDH20#,TRH200..DX ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26321 |
KDH20#,TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26561 |
KDH20#,TRH200..4FC..DX |
1 | ||
| 82141-26321 |
KDH20#,TRH200..DX ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26332 |
KDH206..4FC..DX;KDH201,TRH200..V1..SP..4FC;KDH201,TRH200..SG..4FC..DX |
1 | ||
| 82141-26681 |
KDH206..DX;KDH201,TRH200..SG..DX;KDH201,TRH200..V1..SP 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 82141-26333 |
KDH206..4FC..DX;KDH201,TRH200..V1..SP..4FC;KDH201,TRH200..SG..4FC..DX |
1 | ||
| 82141-26682 |
KDH206..DX;KDH201,TRH200..SG..DX;KDH201,TRH200..V1..SP 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 82141-26334 |
KDH206..4FC..DX;KDH201,TRH200..V1..SP..4FC;KDH201,TRH200..SG..4FC..DX |
1 | ||
| 82141-26683 |
KDH206..DX;KDH201,TRH200..SG..DX;KDH201,TRH200..V1..SP 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..DX..CBU ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..DX..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26753 |
KDH20#,TRH200..DX..CBU |
1 | ||
| 82141-26684 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82141-26684 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..SG..DX..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26684 |
KDH20#,TRH200..DX..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵)&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26A80 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26A80 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｲﾝﾊﾞｰﾀ−有り(100V)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82141-26320 |
KDH20#,TRH200..DX 品番ﾗﾍﾞﾙ=82141−26320 |
1 | ||
| 82141-26A80 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82141-26321 |
KDH20#,TRH200..DX 品番ﾗﾍﾞﾙ=82141−26321 |
1 | ||
| 82141-26560 |
KDH20#,TRH200..4FC..DX 品番ﾗﾍﾞﾙ=82141−26560 |
1 | ||
| 82141-26332 |
KDH206..4FC..DX;KDH201,TRH200..V1..SP..4FC;KDH201,TRH200..SG..4FC..DX 品番ﾗﾍﾞﾙ=82141−26332 |
1 | ||
| 82141-26561 |
KDH20#,TRH200..4FC..DX 品番ﾗﾍﾞﾙ=82141−26561 |
1 | ||
| 82141-26681 |
KDH206..DX;KDH201,TRH200..SG..DX;KDH201,TRH200..V1..SP 品番ﾗﾍﾞﾙ=82141−26681 |
1 | ||
| 82141-26333 |
KDH206..4FC..DX;KDH201,TRH200..V1..SP..4FC;KDH201,TRH200..SG..4FC..DX 品番ﾗﾍﾞﾙ=82141−26333 |
1 | ||
| 82141-26682 |
KDH206..DX;KDH201,TRH200..SG..DX;KDH201,TRH200..V1..SP 品番ﾗﾍﾞﾙ=82141−26682 |
1 | ||
| 82141-26334 |
KDH206..4FC..DX;KDH201,TRH200..V1..SP..4FC;KDH201,TRH200..SG..4FC..DX 品番ﾗﾍﾞﾙ=82141−26334 |
1 | ||
| 82141-26684 |
KDH20#,TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82141−26684 |
1 | ||
| 82141-26684 |
KDH20#,TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82141−26684 |
1 | ||
| 82141-26684 |
KDH20#,TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82141−26684 |
1 | ||
| 82141-26683 |
KDH206..DX;KDH201,TRH200..SG..DX;KDH201,TRH200..V1..SP 品番ﾗﾍﾞﾙ=82141−26683 |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..(06S,09S)..CBU 品番ﾗﾍﾞﾙ=82141−26A80 |
1 | ||
| 82141-26753 |
KDH20#,TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82141−26753 |
1 | ||
| 82141-26A80 |
KDH20#,TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82141−26A80 |
1 | ||
| 82141-26A80 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82141−26A80 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-26130 |
TRH200..CBU |
1 | ||
| 82142-26131 |
TRH200..CBU |
1 | ||
| 82142-26152 |
TRH200..DX..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82142-26152 |
TRH200..DX..CBU ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82142-26132 |
TRH200..DX..CBU |
1 | ||
| 82142-26152 |
TRH200..DX..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82142-26152 |
TRH200..DX..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82142-26152 |
TRH200..DX..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82142-26152 |
TRH200..DX..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82142-26152 |
TRH200..DX..CBU ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82142-26153 |
TRH200..DX..CBU ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82142-26133 |
TRH200..DX..CBU |
1 | ||
| 82142-26153 |
TRH200..DX..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82142-26153 |
TRH200..DX..CBU ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-26021 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..03S,05S,06S,09S,15S SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 82143-26020 |
KDH20#,211,22#,TRH200,211,216,221,223,226,228..03S,05S,06S,09S,15S SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-26020 |
TRH200 寒冷地仕様 |
1 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-26180 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82666-20270 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-26850 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

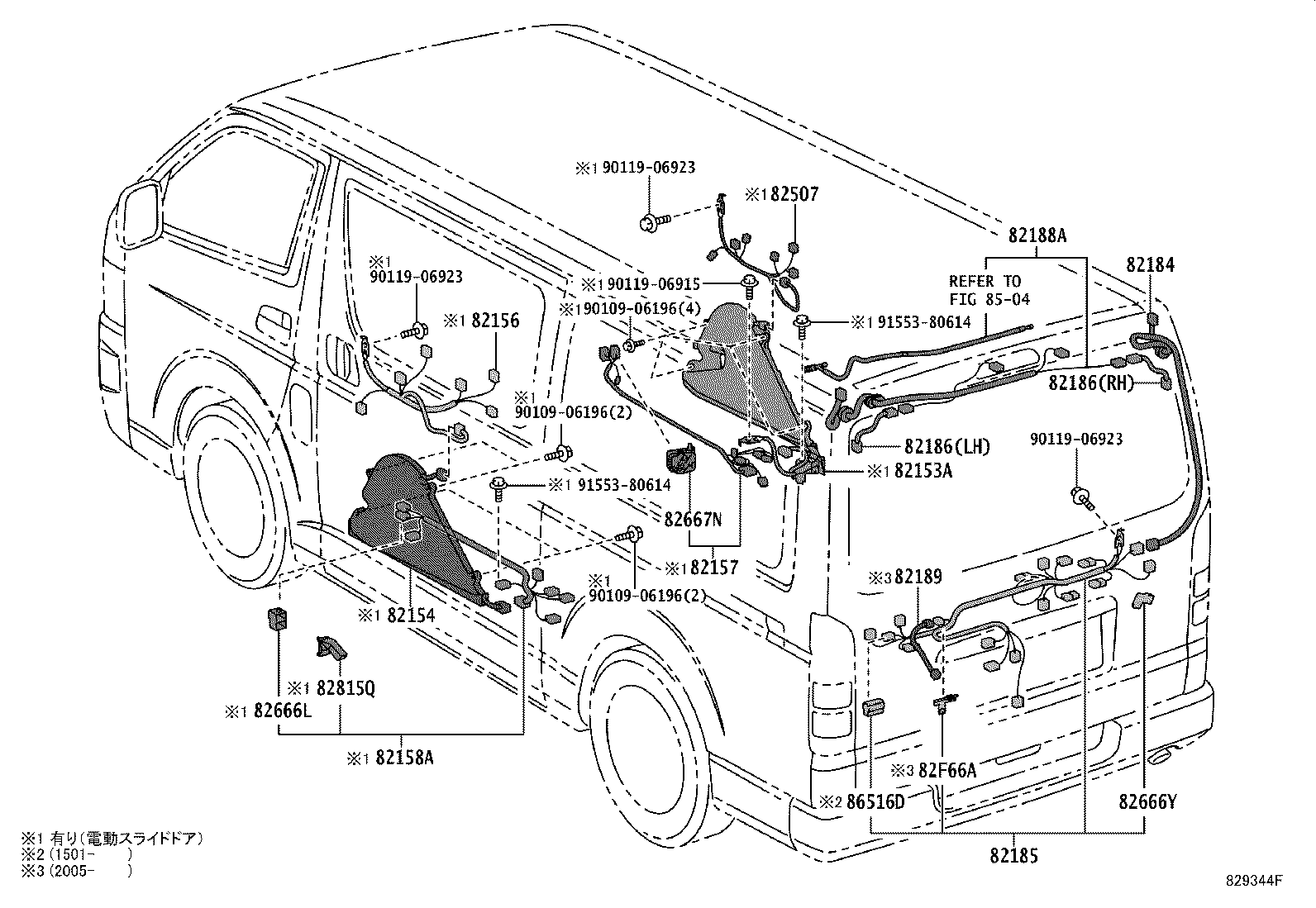

ILLUST NO. 5 OF10(0408- )
ﾘﾔ ﾄﾞｱ & ﾊﾞｯｸ ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-26330 |
KDH200,201,206,TRH200..HRF..CBU |
1 | ||
| 82184-26331 |
KDH20#,TRH200..HRF..CBU |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-26401 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU |
1 | ||
| 82185-26400 |
KDH200,205,206..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..CBU |
1 | ||
| 82185-26560 |
KDH206..DX..CBU;KDH201,TRH200..V1..SP;KDH201,TRH200..SG..DX..CBU ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26090 |
KDH20#,TRH200..05S,06S,09S 左側 |
1 | ||
| 82186-26080 |
KDH20#,TRH200..05S,06S,09S 右側 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-26090 |
KDH20#,TRH200..05S,06S,09S 左側 |
1 | ||
| 82186-26080 |
KDH20#,TRH200..05S,06S,09S 右側 |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26240 |
KDH20#,TRH200..HRF ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 82188-26230 |
KDH20#,TRH200..HRF |
1 | ||
| 82188-26240 |
KDH20#,TRH200..HRF |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-26240 |
KDH20#,TRH200..HRF ﾊｲﾏｳﾝﾄｽﾄｯﾌﾟﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 82188-26230 |
KDH20#,TRH200..HRF |
1 | ||
| 82188-26240 |
KDH20#,TRH200..HRF |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-26400 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06923 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8504 | ||||

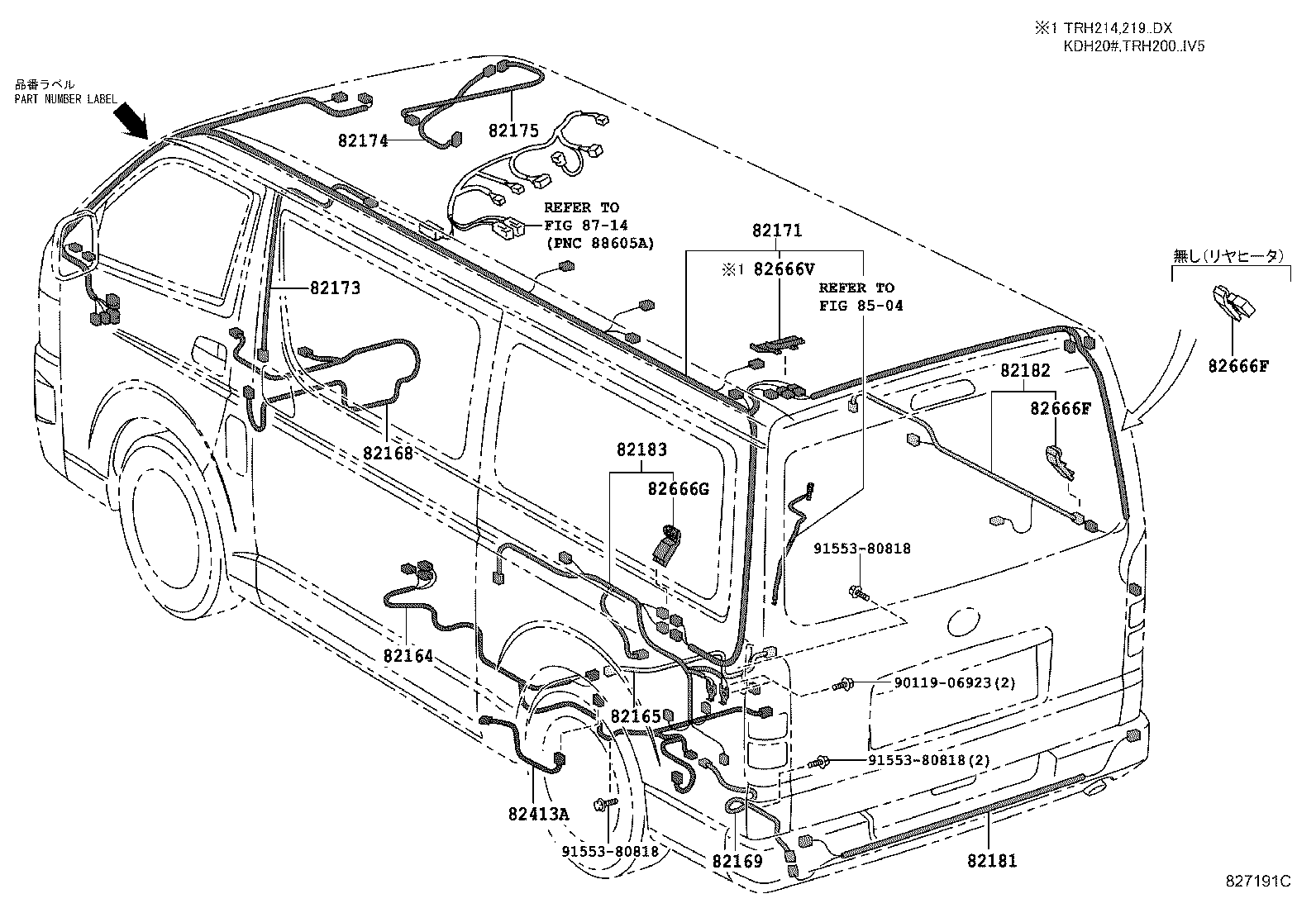

ILLUST NO. 6 OF10(0408-1008)KDH20#,211,TRH200,21#
ﾌﾛｱ,ﾙｰﾌ,ﾄﾗﾝｸﾊﾟﾈﾙ & ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-26630 |
KDH20#,TRH200..CBU |
1 | ||
| 82164-26660 |
KDH20#,TRH200..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82164-26661 |
KDH20#,TRH200..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82164-26631 |
KDH20#,TRH200..CBU |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-26030 |
KDH20#,TRH200..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-26200 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82169-26201 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82169-26202 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-26A50 |
KDH200,TRH200..HRF..CBU |
1 | ||
| 82171-26A51 |
KDH200,TRH200..HRF..CBU |
1 | ||
| 82171-26A60 |
KDH200,TRH200..HRF..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82171-26A52 |
KDH20#,TRH200..HRF..CBU |
1 | ||
| 82171-26A61 |
KDH20#,TRH200..HRF..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82171-26A62 |
KDH20#,TRH200..HRF..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82171-26A50 |
KDH200,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A50 |
1 | ||
| 82171-26A53 |
KDH20#,TRH200..HRF..CBU |
1 | ||
| 82171-26A51 |
KDH200,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A51 |
1 | ||
| 82171-26A52 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A52 |
1 | ||
| 82171-26A61 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A61 |
1 | ||
| 82171-26A60 |
KDH200,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A60 |
1 | ||
| 82171-26A62 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A62 |
1 | ||
| 82171-26A53 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A53 |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-26200 |
KDH200,201,206,TRH200..HRF..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-26180 |
KDH20#,TRH200..HRF ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-26110 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82181-26111 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-26040 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26090 |
TRH200..V1..SP;TRH200,21#..SG..DX..CBU |
1 | ||
| 82183-26110 |
TRH200..V1..SP;TRH200,21#..SG..DX..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26100 |
TRH200..V1..SP;TRH200..V2..HRF;TRH200..HRF..4D..CBU;TRH200,214,219..(SMRF,SRF)..SG..DX |
1 | ||
| 82183-26120 |
TRH200..V1..SP;TRH200..V2..HRF;TRH200..HRF..4D..CBU;TRH200,214,219..(SMRF,SRF)..SG..DX ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26121 |
KDH20#,211,TRH200,21#..(DX,SGL)..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26101 |
KDH20#,211,TRH200,21#..(DX,SGL)..CBU |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-26020 |
TRH200,21#,22# |
1 | ||
| 82413-26021 |
TRH200,21#,22# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26450 |
KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX |
1 | ||
| 82666-26410 |
KDH20#,220,221,225,TRH200,221,226..4D..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26450 |
KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX |
1 | ||
| 82666-26410 |
KDH20#,220,221,225,TRH200,221,226..4D..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-26390 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06923 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8714 | ||||

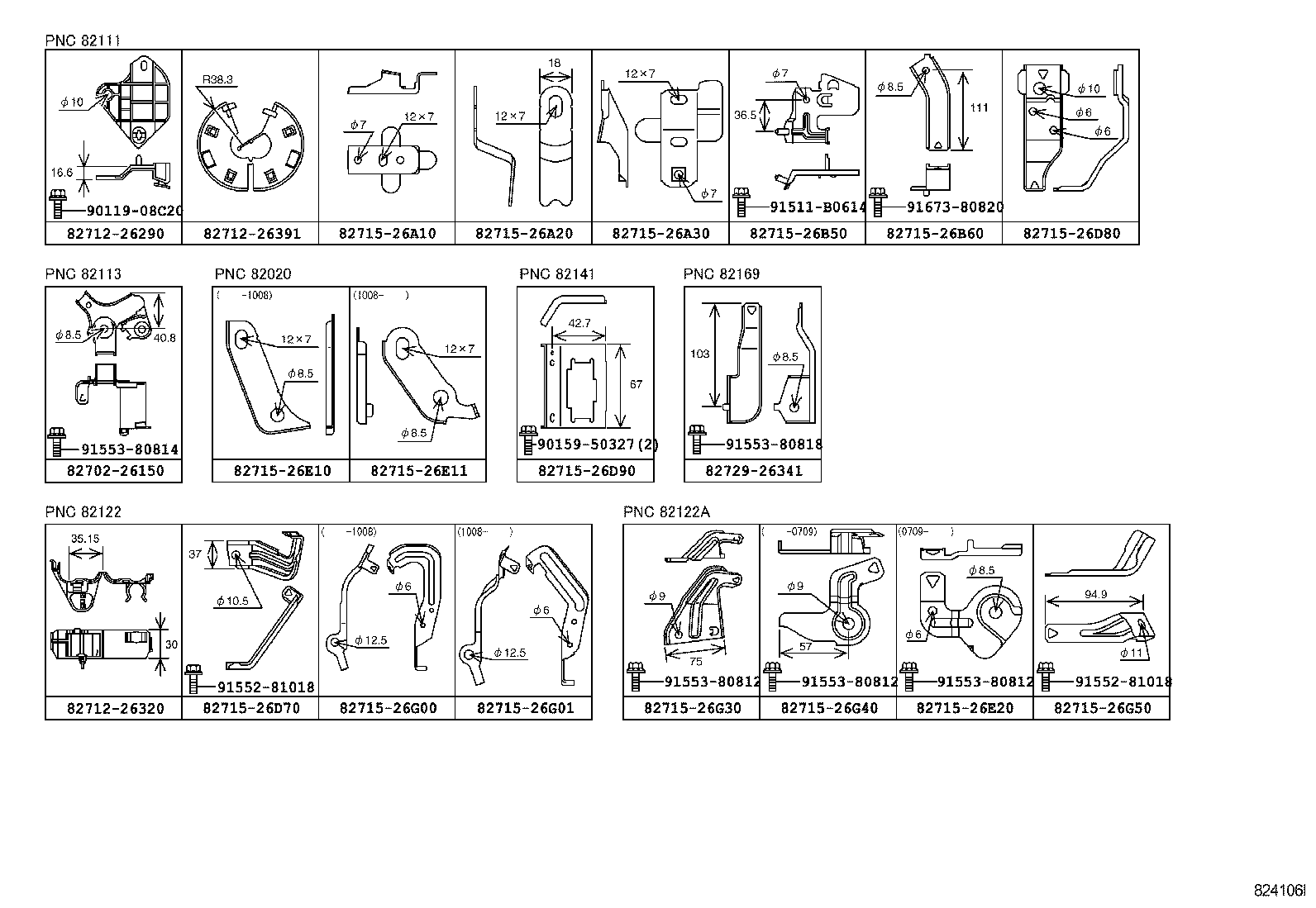

ILLUST NO. 7 OF10(0408- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82702-26150 | ||||
| 82712-26290 | ||||
| 82712-26320 | ||||
| 82712-26391 | ||||
| 82715-26A10 | ||||
| 82715-26A20 | ||||
| 82715-26A30 | ||||
| 82715-26B50 | ||||
| 82715-26B60 | ||||
| 82715-26D70 | ||||
| 82715-26D80 | ||||
| 82715-26D90 | ||||
| 82715-26E10 | ||||
| 82715-26E11 | ||||
| 82715-26E20 | ||||
| 82715-26G00 | ||||
| 82715-26G01 | ||||
| 82715-26G30 | ||||
| 82715-26G40 | ||||
| 82715-26G50 | ||||
| 82729-26341 | ||||
| 90119-08C20 | ||||
| 90159-50327 | ||||
| 91511-B0614 | ||||
| 91552-81018 | ||||
| 91553-80812 | ||||
| 91553-80814 | ||||
| 91553-80818 | ||||
| 91673-80820 | ||||
ILLUST NO. 8 OF10(0408- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-25850 | ||||
| 82715-25A30 | ||||
| 82715-26A00 | ||||
| 82715-26A40 | ||||
| 82715-26A50 | ||||
| 82715-26B40 | ||||
| 82715-26B70 | ||||
| 82715-26B90 | ||||
| 82715-26C10 | ||||
| 82715-26C50 | ||||
| 82715-26C70 | ||||
| 82715-26C80 | ||||
| 82715-26D40 | ||||
| 82715-26E30 | ||||
| 82715-26E40 | ||||
| 82715-26E70 | ||||
| 82715-26E80 | ||||
| 82715-26E90 | ||||
| 82715-26F10 | ||||
| 82715-26F50 | ||||
| 82715-26G10 | ||||
| 82715-26G80 | ||||
| 82715-26G81 | ||||
| 82715-28430 | ||||
| 82715-89119 | ||||
| 90119-06375 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 91553-80810 | ||||
| 91611-B0610 | ||||
| 91671-A0612 | ||||
| 91673-80612 | ||||

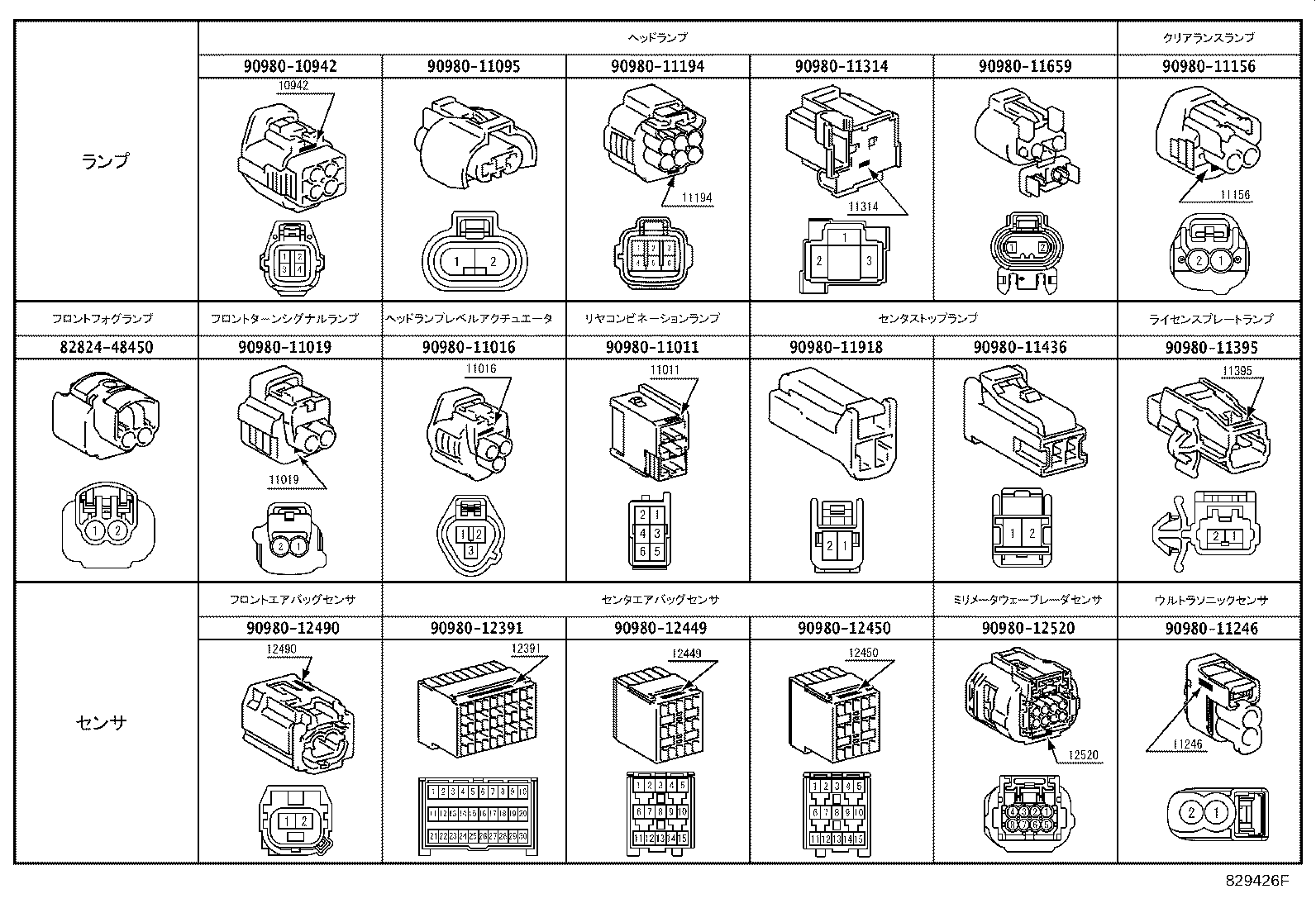

ILLUST NO. 9 OF10(0408- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-48450 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11095 | ||||
| 90980-11096 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
| 90980-11395 | ||||
| 90980-11918 | ||||

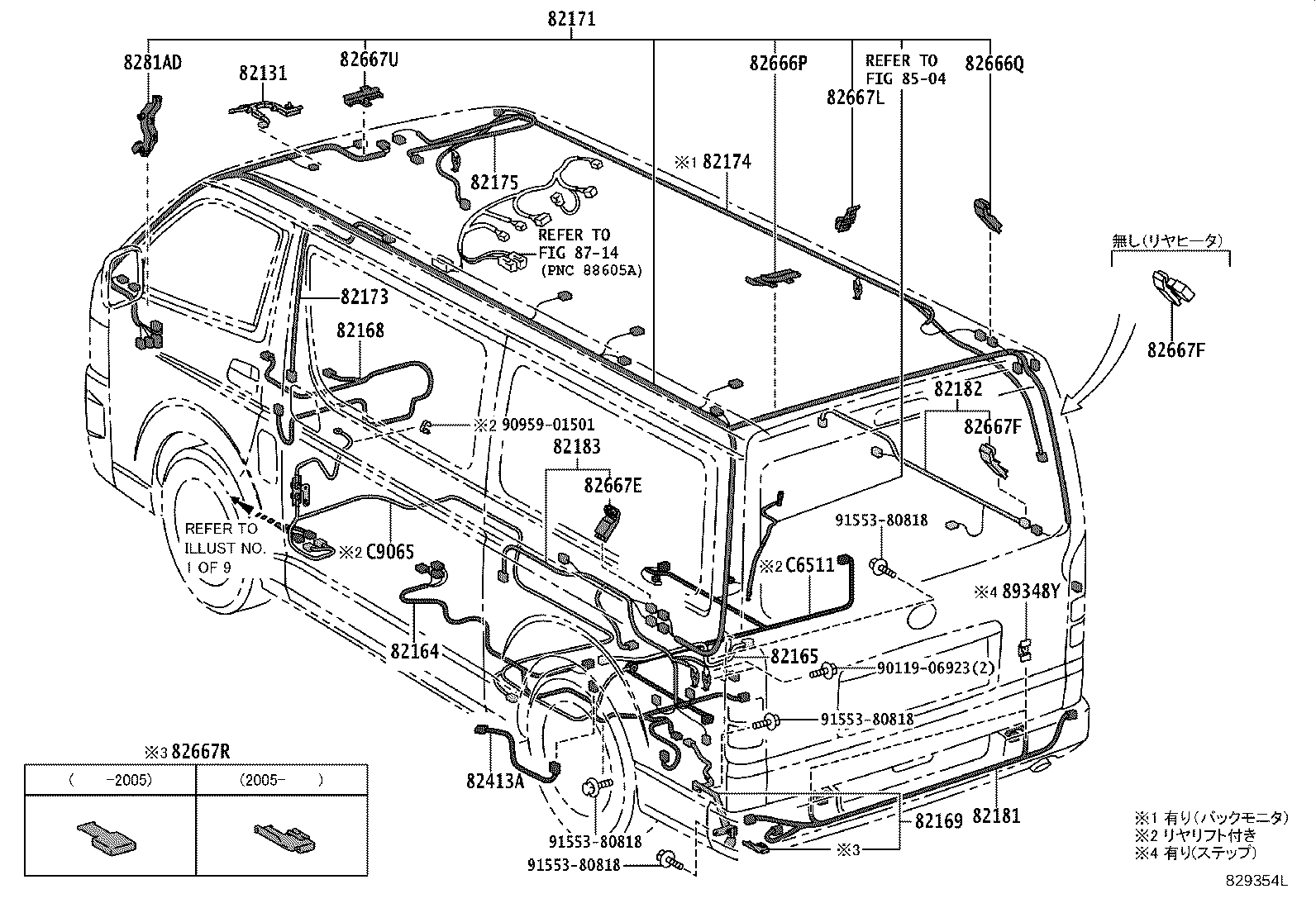

ILLUST NO. 6 OF10(1008- )KDH20#,211,TRH200,21#
ﾌﾛｱ,ﾙｰﾌ,ﾄﾗﾝｸﾊﾟﾈﾙ & ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82164 - WIRE, FRAME | ||||
| 82164-26630 |
KDH20#,TRH200..CBU |
1 | ||
| 82164-26660 |
KDH20#,TRH200..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82164-26661 |
KDH20#,TRH200..CBU ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82164-26631 |
KDH20#,TRH200..CBU |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-26030 |
KDH20#,TRH200..DX SRSｴｱﾊﾞｯｸﾞ−有り(運転席側&助手席側) |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-26200 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82169-26201 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82169-26202 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-26A50 |
KDH200,TRH200..HRF..CBU |
1 | ||
| 82171-26A51 |
KDH200,TRH200..HRF..CBU |
1 | ||
| 82171-26A60 |
KDH200,TRH200..HRF..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82171-26A52 |
KDH20#,TRH200..HRF..CBU |
1 | ||
| 82171-26A61 |
KDH20#,TRH200..HRF..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82171-26A62 |
KDH20#,TRH200..HRF..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82171-26A50 |
KDH200,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A50 |
1 | ||
| 82171-26A53 |
KDH20#,TRH200..HRF..CBU |
1 | ||
| 82171-26A51 |
KDH200,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A51 |
1 | ||
| 82171-26A52 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A52 |
1 | ||
| 82171-26A61 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A61 |
1 | ||
| 82171-26A60 |
KDH200,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A60 |
1 | ||
| 82171-26A62 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A62 |
1 | ||
| 82171-26A53 |
KDH20#,TRH200..HRF..CBU 品番ﾗﾍﾞﾙ=82171−26A53 |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-26200 |
KDH200,201,206,TRH200..HRF..CBU ｴｱｺﾝ−ﾃﾞｭｱﾙｴｱｺﾝ |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-26180 |
KDH20#,TRH200..HRF ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-26110 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82181-26111 |
KDH20#,TRH200 ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-26040 |
KDH20#,TRH200..(06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-26090 |
TRH200..V1..SP;TRH200,21#..SG..DX..CBU |
1 | ||
| 82183-26110 |
TRH200..V1..SP;TRH200,21#..SG..DX..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26100 |
TRH200..V1..SP;TRH200..V2..HRF;TRH200..HRF..4D..CBU;TRH200,214,219..(SMRF,SRF)..SG..DX |
1 | ||
| 82183-26120 |
TRH200..V1..SP;TRH200..V2..HRF;TRH200..HRF..4D..CBU;TRH200,214,219..(SMRF,SRF)..SG..DX ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26121 |
KDH20#,211,TRH200,21#..(DX,SGL)..CBU ｲﾝﾊﾞｰﾀ−有り(100V) |
1 | ||
| 82183-26101 |
KDH20#,211,TRH200,21#..(DX,SGL)..CBU |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-26020 |
TRH200,21#,22# |
1 | ||
| 82413-26021 |
TRH200,21#,22# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26450 |
KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX |
1 | ||
| 82666-26410 |
KDH20#,220,221,225,TRH200,221,226..4D..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26450 |
KDH20#,22#,TRH200,214,219,221,223,226,228..4D..DX |
1 | ||
| 82666-26410 |
KDH20#,220,221,225,TRH200,221,226..4D..(02S,06S,09S)..CBU ﾘﾔﾋｰﾀ−有り(ｻｲﾄﾞﾄﾘﾑ内蔵) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-26390 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8714 | ||||

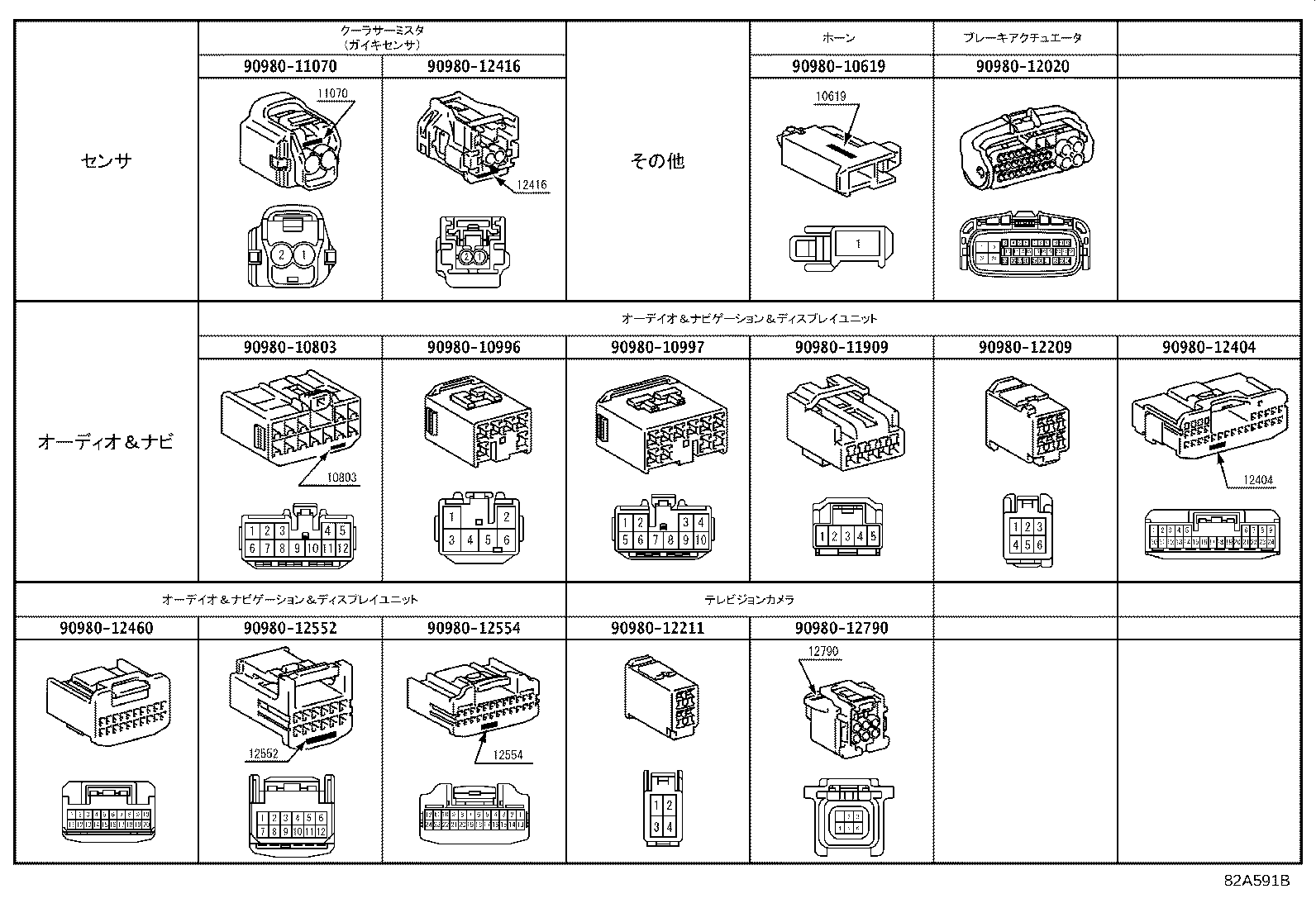

ILLUST NO.10 OF10(0408- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11246 | ||||
| 90980-11909 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12391 | ||||
| 90980-12404 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12460 | ||||
| 90980-12490 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12790 | ||||

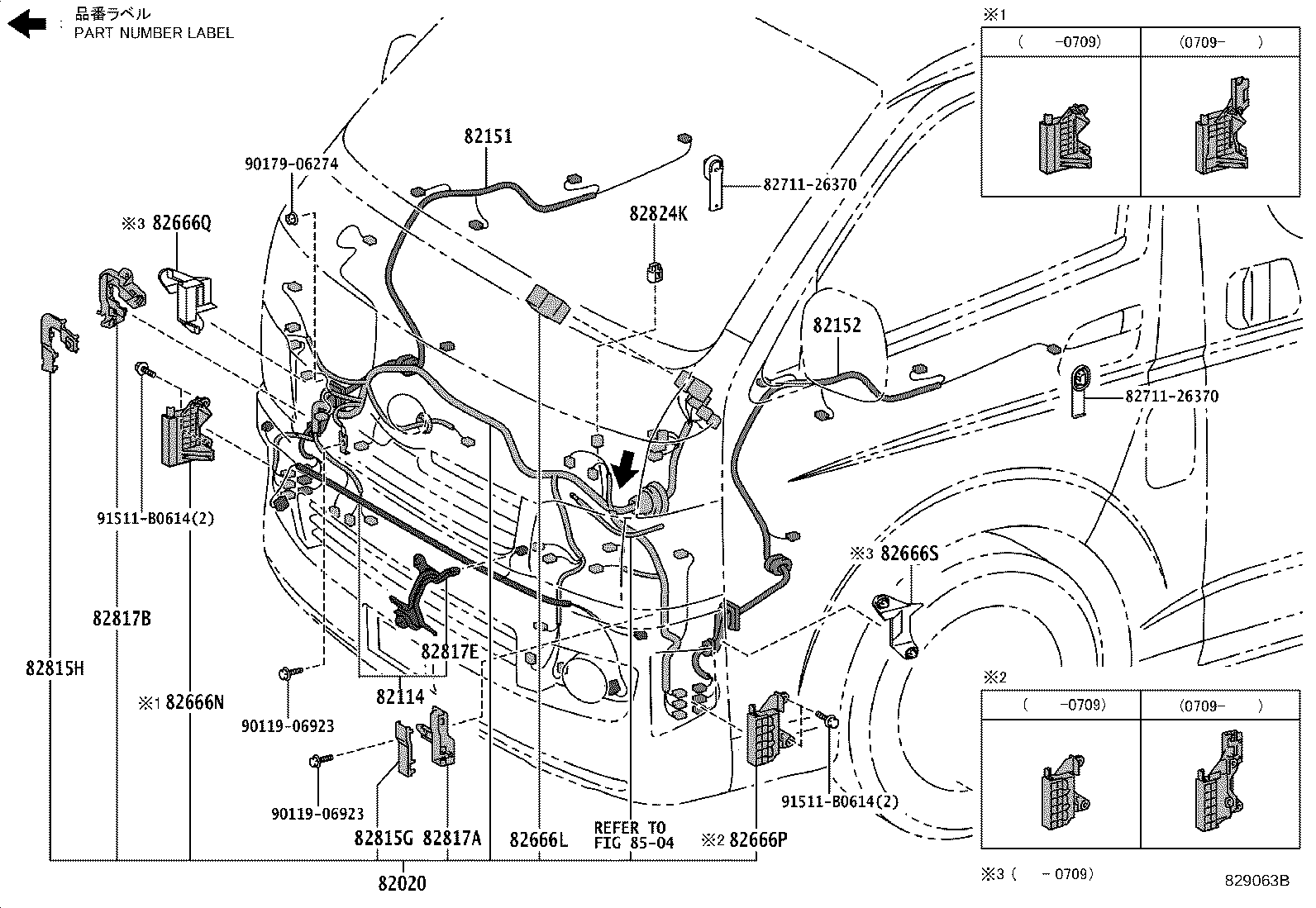

ILLUST NO. 4 OF10(0408- )
ﾌﾛﾝﾄ ﾄﾞｱ & ﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82020 - HARNESS ASSY, WIRING COWL TO HEADLAMP | ||||
| 82020-26300 |
TRH200..DX..CBU ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ |
1 | ||
| 82020-26300 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 82020-26290 |
TRH200..DX |
1 | ||
| 82020-26300 |
TRH200..DX..CBU ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26300 |
TRH200..DX..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26300 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26300 |
TRH200..DX..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ |
1 | ||
| 82020-26300 |
TRH200..DX..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰｶ |
1 | ||
| 82020-26300 |
TRH200..DX..CBU ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26300 |
TRH200..DX..CBU ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(CD) 2ｽﾋﾟｰｶ |
1 | ||
| 82020-26300 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26300 |
TRH200..DX..CBU ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26301 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 82020-26301 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26301 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ |
1 | ||
| 82020-26301 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26301 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ |
1 | ||
| 82020-26301 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26301 |
TRH200..DX ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26301 |
TRH200..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26301 |
TRH200..DX ｵｰﾃﾞｨｵ(日本仕向け用)−ｱﾝﾃﾅ&ﾊｰﾈｽ&2ｽﾋﾟｰｶ |
1 | ||
| 82020-26301 |
TRH200..DX ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ |
1 | ||
| 82020-26291 |
TRH200..DX |
1 | ||
| 82020-26301 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｵｰﾃﾞｨｵ(日本仕向け用)−AVN(DVD) 2ｽﾋﾟｰｶ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26600 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 82020-26292 |
TRH200..DX |
1 | ||
| 82020-26600 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26600 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26601 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 82020-26601 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82020-26601 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26293 |
TRH200..DX |
1 | ||
| 82020-26601 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26601 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26601 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26601 |
TRH200..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82020-26602 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26602 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26602 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82020-26294 |
TRH200..DX |
1 | ||
| 82020-26603 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26603 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82020-26603 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26661 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26661 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82020-26661 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26661 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82020-26C10 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26C00 |
TRH200..DX |
1 | ||
| 82020-26C10 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82020-26C10 |
TRH200..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26290 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26290 |
1 | ||
| 82020-26300 |
TRH200..DX..CBU 品番ﾗﾍﾞﾙ=82020−26300 |
1 | ||
| 82020-26300 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26300 |
1 | ||
| 82020-26291 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26291 |
1 | ||
| 82020-26301 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26301 |
1 | ||
| 82020-26292 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26292 |
1 | ||
| 82020-26600 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26600 |
1 | ||
| 82020-26293 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26293 |
1 | ||
| 82020-26601 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26601 |
1 | ||
| 82020-26602 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26602 |
1 | ||
| 82020-26603 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26603 |
1 | ||
| 82020-26294 |
TRH200..DX 品番ﾗﾍﾞﾙ=82020−26294 |
1 | ||
| 82020-26661 |
TRH200..V1..SP;TRH200..SG..DX..CBU 品番ﾗﾍﾞﾙ=82020−26661 |
1 | ||
| 82020-26C00 |
TRH200..DX |
1 | ||
| 82020-26C10 |
TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ);ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱ~ﾗｰ;ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82020-26661 |
TRH200..V1..SP;TRH200..SG..CBU 品番ﾗﾍﾞﾙ=82020−26661 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-26070 |
KDH20#,TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82114-26060 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 82114-26061 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 82114-26080 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82114-26081 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82114-26071 |
KDH20#,TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82114-26062 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 82114-26072 |
KDH20#,TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82114-26082 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-26520 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 82151-26530 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82151-26540 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 82151-26540 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 82151-26540 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-26490 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82152-26480 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 82152-26500 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 82152-26500 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席)&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82152-26501 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82152-26500 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-26300 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666-26300 |
TRH200 |
1 | ||
| 82666-26300 |
TRH200 |
1 | ||
| 82666-26300 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82666-26300 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82666-26300 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-26311 |
TRH200 |
1 | ||
| 82666-26311 |
TRH200 |
1 | ||
| 82666-26311 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666-26311 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82666-26310 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82666-26311 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82666-26311 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-26321 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666-26321 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82666-26321 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82666-26320 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82666-26321 |
TRH200 |
1 | ||
| 82666-26321 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82666-26321 |
TRH200 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-26230 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-26250 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-26620 |
TRH200 |
1 | ||
| 82815-26620 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82815-26620 |
TRH200 |
1 | ||
| 82815-26620 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82815-26620 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82815-26620 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-26611 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82815-26610 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82815-26611 |
TRH200 |
1 | ||
| 82815-26611 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82815-26611 |
TRH200 |
1 | ||
| 82815-26611 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82815-26611 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-26B30 |
TRH200 |
1 | ||
| 82817-26B30 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26B30 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817-26B30 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26B30 |
TRH200 |
1 | ||
| 82817-26B30 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-26B21 |
TRH200 |
1 | ||
| 82817-26B21 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82817-26B21 |
TRH200 |
1 | ||
| 82817-26B20 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 82817-26B21 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| 82817-26B21 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26B21 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-26J70 |
KDH20#,TRH200..DX ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82817-26J70 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 82817-26J70 |
KDH20#,TRH200..DX..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-26080 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82824-26080 |
TRH200 |
1 | ||
| 82824-26080 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 82824-26080 |
TRH200..V1..SP;TRH200..SG..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82824-26080 |
TRH200 |
1 | ||
| 82824-26080 |
TRH200..V1..SP;TRH200..SG..DX..CBU ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ｱｳﾀﾐﾗｰ−電動格納式ﾘﾓｺﾝﾄﾞｱﾐﾗｰ |
1 | ||
| Common parts | ||||
| 82711-26370 | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 1 OF 9(1312-1712)TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06923 | ||||
| 90179-06274 | ||||
| 91551-80608 | ||||
| 91552-81018 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(1312- )TRH200,21#,22#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06923 | ||||
| 90119-08103 | ||||
| 91553-80812 | ||||
| 91673-80612 | ||||
ILLUST NO. 6 OF 9(1312- )
ﾘﾔ ﾄﾞｱ & ﾊﾞｯｸ ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91553-80614 | ||||
| Linked diagrams | ||||
| 8504 | ||||
ILLUST NO. 4 OF 9(1312- )
ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF 9(1312- )KDH20#,211,TRH200,21#..4FC,5F ; (1501- )TRH214,219..4D ; (1501- )T
ﾌﾛｱ,ﾙｰﾌ,ﾄﾗﾝｸﾊﾟﾈﾙ & ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06923 | ||||
| 90959-01501 | ||||
| 91553-80818 | ||||
| Linked diagrams | ||||
| 8504 | ||||
| 8714 | ||||
ILLUST NO. 9 OF 9(1312- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-48450 | ||||
| 90980-10942 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11095 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11314 | ||||
| 90980-11395 | ||||
| 90980-11436 | ||||
| 90980-11659 | ||||
| 90980-11918 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
ILLUST NO. 9 OF 9(1312- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11909 | ||||
| 90980-12020 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12404 | ||||
| 90980-12416 | ||||
| 90980-12460 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12790 | ||||
ILLUST NO. 1 OF 9(1312- )TRH200,21#,22#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06274 | ||||
| 91511-B0614 | ||||
| 91553-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
