TRH200K-ERPDK (2004)
Toyota Hiace/Regiusace
(0408-1008)CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

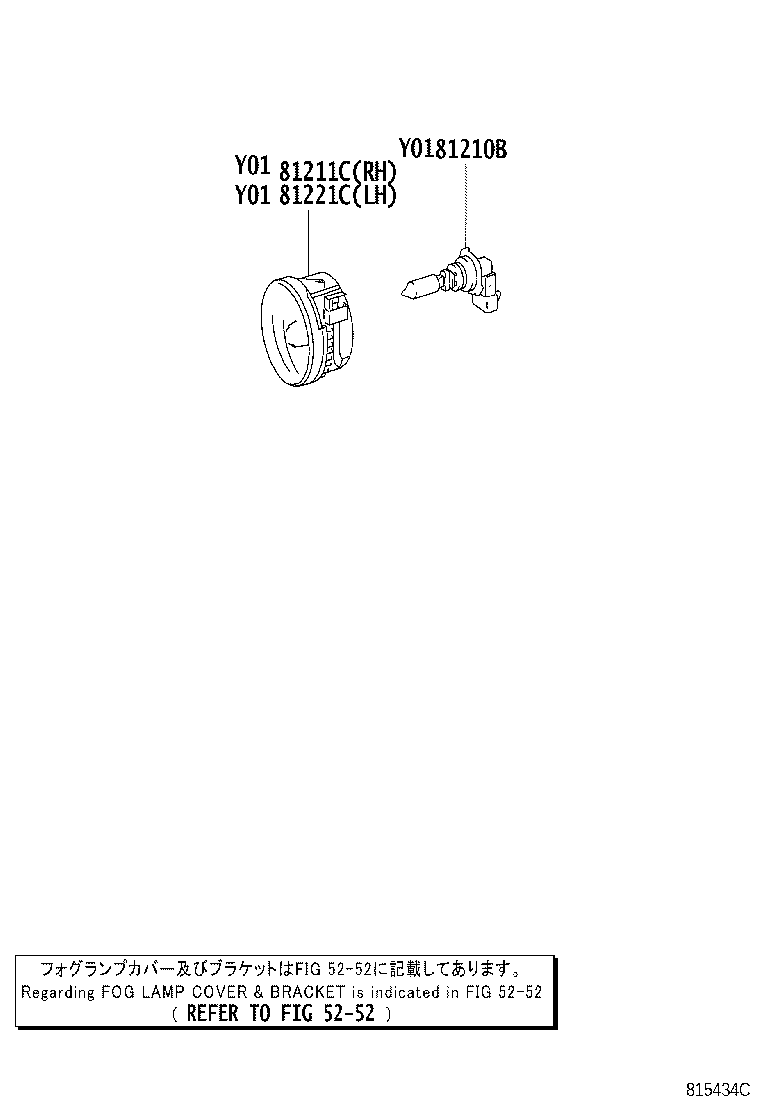

| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜCﾄ) |
2 | ||
| 90981-AD011 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU 12V 26W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
2 | ||
| 90981-13047 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
2 | ||
| 90981-13047 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜCﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 90981-13047 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗ塔X&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 90981-AD011 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU 12V 26W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯNｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-52050 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52050 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52051 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52051 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52053 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52052 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-21051 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52052 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-21051 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52053 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-52050 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52050 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52051 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-21051 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-21051 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52051 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| Linked diagrams | ||||
| 5252 | ||||
(1008-1205)CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜCﾄ) |
2 | ||
| 90981-AD011 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU 12V 26W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
2 | ||
| 90981-13047 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
2 | ||
| 90981-13047 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜCﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 90981-13047 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗ塔X&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 90981-AD011 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU 12V 26W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯNｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 81211C - LAMP UNIT, FOG LAMP, RH | ||||
| 81211-52050 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52050 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52051 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52051 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52053 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52052 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-21051 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52052 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81211-21051 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81211-52053 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221C - LAMP UNIT, FOG LAMP, LH | ||||
| 81221-52050 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52050 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52051 |
KDH20#,220,225,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-21051 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52052 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-21051 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81221-52051 |
KDH20#,22#,TRH200,21#,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81221-52053 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| Linked diagrams | ||||
| 5252 | ||||
(1205- )CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

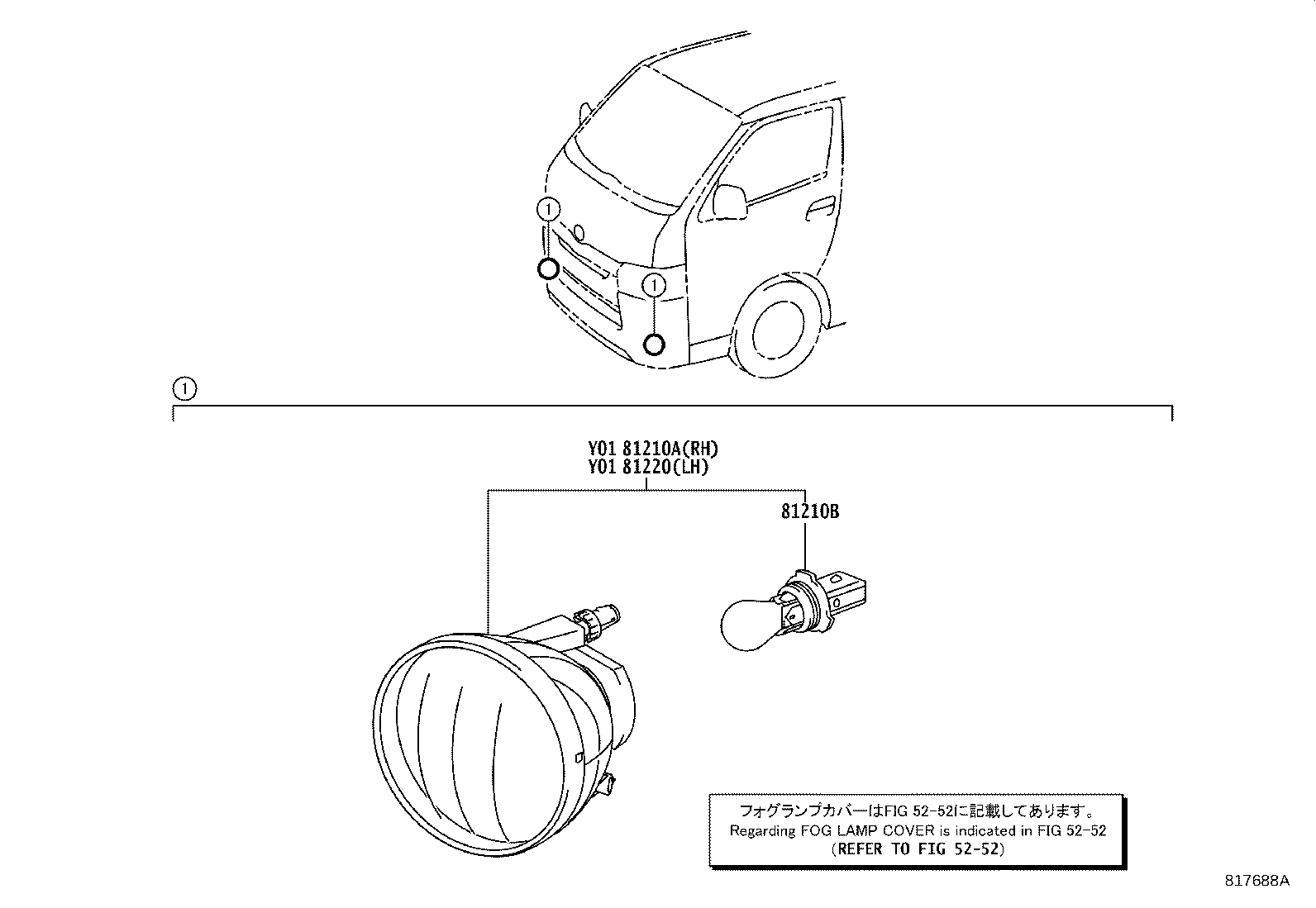

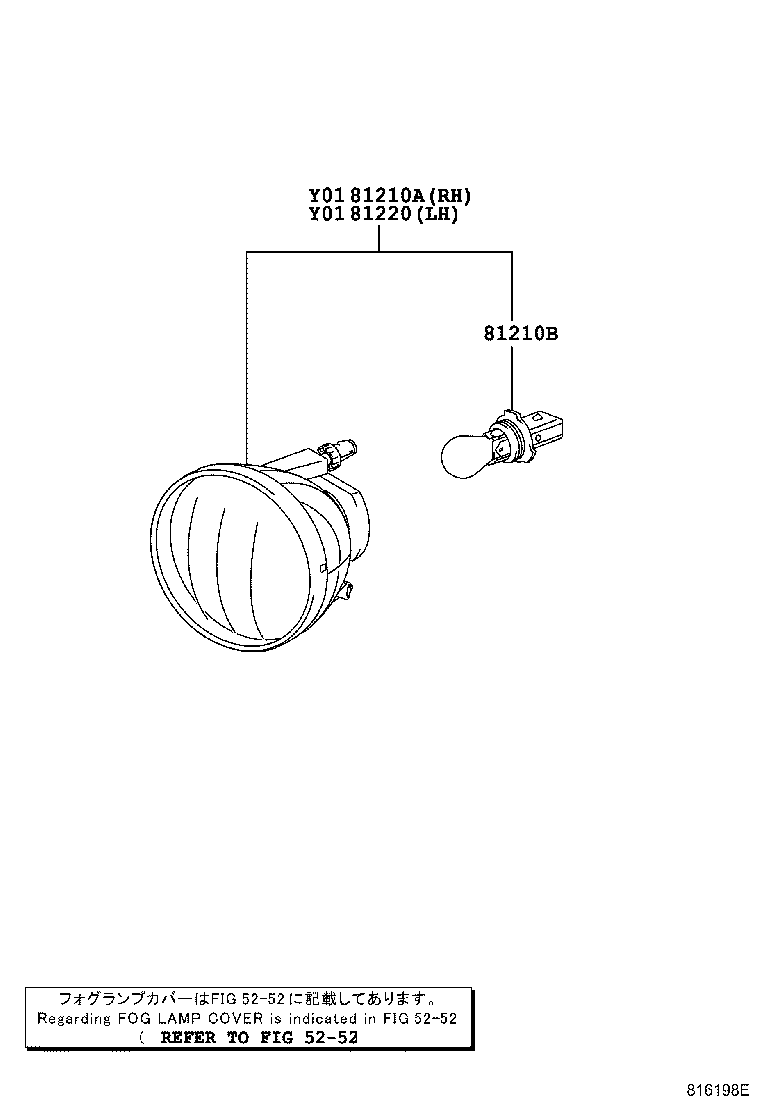

| 81210A - LAMP ASSY, FOG, RH | ||||
| 81210-0E022 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81210-0E022 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| 81210B - BULB, FOG LAMP | ||||
| 90981-13047 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜCﾄ) |
2 | ||
| 90981-AD011 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU 12V 26W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
2 | ||
| 90981-13047 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
2 | ||
| 90981-13047 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,GLﾊﾟｯｹｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜCﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 90981-13047 |
KDH20#,220,221,225,TRH200,221,226..(03S,06S,09S)..CBU 12V 55W,ﾊﾛｹﾞﾝ,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗ塔X&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 90981-AD011 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU 12V 26W,ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯNｿﾅｰ−有り(4ｾﾝｻ) |
2 | ||
| 81220 - LAMP ASSY, FOG, LH | ||||
| 81210-0E022 |
TRH214,219..DX;KDH20#,22#,TRH200,22#..(03S,06S,09S,10S,15S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ) |
1 | ||
| 81210-0E022 |
KDH20#,221,TRH200,221,226..(03S,06S,09S)..CBU ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP,ﾎﾜｲﾄ)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(4ｾﾝｻ) |
1 | ||
| Linked diagrams | ||||
| 5252 | ||||
(1312- )CBU,IV6,IV7
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 5252 | ||||
