TRH200K-ERPDK (2004)
Toyota Hiace/Regiusace
ILLUST NO. 2 OF 3(0408- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-26670B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席),DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 67610-26671B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席),DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 67610-26680B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 67610-26671B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-26650B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席),DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 67620-26660B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 67620-26651B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席),DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 67620-26651B0 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX DK.GRAY,TRIM1#,ﾄﾞｱﾄﾘﾑ=TYPE E−*104 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-26051 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68171-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68172-26051 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| Common parts | ||||
| 67771-58010 | ||||
| 90189-06018 | ||||
| 90467-09203 | ||||
| 90467-10161 | ||||
| 93540-56025 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 3 OF 3(0408- )
ﾄﾘﾑｺｰﾄﾞ
| Part # | Description | Qty | Price |
|---|

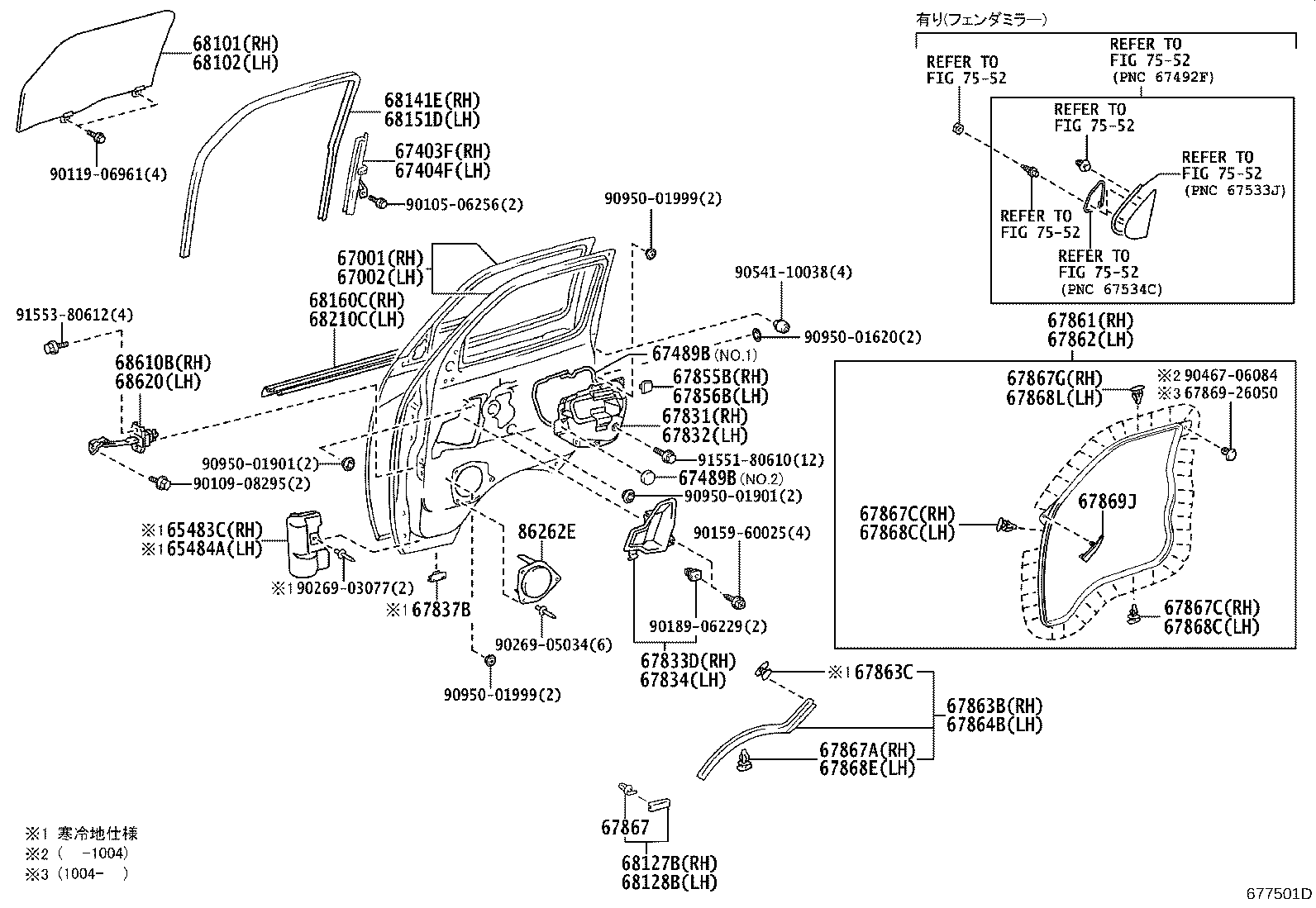

ILLUST NO. 1 OF 3(0709- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65483C - PROTECTOR, FRONT CORNER, LOWER RH | ||||
| 65483-26030 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 65484A - PROTECTOR, FRONT CORNER, LOWER LH | ||||
| 65484-26030 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-26311 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67001-26301 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67001-26300 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67001-26302 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67001-26301 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67001-26310 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-26291 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002-26280 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67002-26281 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002-26290 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002-26282 |
TRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S |
1 | ||
| 67002-26281 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67489B - PACKING, FRONT DOOR LOWER COVER | ||||
| 67489-26010 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 67489-26020 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 67489B - PACKING, FRONT DOOR LOWER COVER | ||||
| 67489-26010 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 67489-26020 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67834-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-26040 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
2 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67861-26040 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67861-26041 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-26041 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67862-26040 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67862-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-26020 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 67863-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67863C - CLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67869-26010 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
2 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-26020 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 67864-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
12 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52010 |
KDH20#,22#,TRH200,21#,22# |
14 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
13 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67868E - RETAINER, FRONT DOOR LOWER PROTECTOR, LH | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
12 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
14 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
13 | ||
| 67867-52010 |
KDH20#,22#,TRH200,21#,22# |
14 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26060 |
KDH20#,211,22#,TRH200,21#,22# 左側 |
1 | ||
| 67869-20030 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 67869-26040 |
KDH20#,211,22#,TRH200,21#,22# 右側 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-26081 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-26082 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-26080 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-26082 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-26082 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-26081 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-26082 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-26080 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68127B - SHUTTER, FRONT DOOR, LOWER RH | ||||
| 68127-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68128B - SHUTTER, FRONT DOOR, LOWER LH | ||||
| 68127-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68610-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68610-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 86262E - COVER, SPEAKER, FRONT | ||||
| 86262-26010 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
2 | ||
| Common parts | ||||
| 67869-26050 | ||||
| 90105-06256 | ||||
| 90109-08295 | ||||
| 90119-06961 | ||||
| 90159-60025 | ||||
| 90189-06229 | ||||
| 90269-03077 | ||||
| 90269-05034 | ||||
| 90467-06084 | ||||
| 90541-10038 | ||||
| 90950-01620 | ||||
| 90950-01901 | ||||
| 90950-01999 | ||||
| 91551-80610 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7552 | ||||
ILLUST NO. 1 OF 3(0408-0709)
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-26311 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67001-26301 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67001-26300 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67001-26302 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67001-26301 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67001-26310 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-26291 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002-26280 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67002-26281 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002-26290 |
KDH20#,22#,TRH200,21#,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
1 | ||
| 67002-26282 |
TRH214,219..DX;KDH20#,22#,TRH200,221,223,226,228..03S,06S,09S,15S |
1 | ||
| 67002-26281 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(運転席&助手席) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-26060 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67489B - PACKING, FRONT DOOR LOWER COVER | ||||
| 67489-26010 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 67489-26020 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 67489B - PACKING, FRONT DOOR LOWER COVER | ||||
| 67489-26010 |
KDH20#,211,22#,TRH200,21#,22# NO.1 |
2 | ||
| 67489-26020 |
KDH20#,211,22#,TRH200,21#,22# NO.2 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67833D - COVER, FRONT DOOR SERVICE HOLE, NO.2 RH | ||||
| 67833-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67834 - COVER, FRONT DOOR SERVICE HOLE, NO.2 LH | ||||
| 67834-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67837B - SEAL, FRONT DOOR DUST PROOF | ||||
| 67837-26040 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
2 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67861-26040 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67861-26041 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-26041 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67862-26040 |
KDH20#,22#,TRH200,21#,22# |
1 | ||
| 67862-26050 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-26020 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 67863-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67863C - CLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67869-26010 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
2 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-26020 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
1 | ||
| 67864-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
4 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
12 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52010 |
KDH20#,22#,TRH200,21#,22# |
14 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
13 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
14 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-52010 |
KDH20#,22#,TRH200,21#,22# |
14 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
13 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
14 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
25 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
24 | ||
| 67867-12150 |
KDH20#,22#,TRH200,21#,22# |
24 | ||
| 67868E - RETAINER, FRONT DOOR LOWER PROTECTOR, LH | ||||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# |
10 | ||
| 67867-12150 |
KDH20#,211,22#,TRH200,21#,22# 寒冷地仕様 |
12 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
14 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
13 | ||
| 67867-52010 |
KDH20#,22#,TRH200,21#,22# |
14 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
14 | ||
| 67867-52010 |
KDH20#,211,22#,TRH200,21#,22# |
13 | ||
| 67867-52010 |
KDH20#,22#,TRH200,21#,22# |
14 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26060 |
KDH20#,211,22#,TRH200,21#,22# 左側 |
1 | ||
| 67869-20030 |
KDH20#,22#,TRH200,21#,22# |
2 | ||
| 67869-26040 |
KDH20#,211,22#,TRH200,21#,22# 右側 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-26081 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-26082 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-26080 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68101-26082 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-26082 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-26081 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-26082 |
TRH229..CBU;KDH20#,211,22#,TRH200,21#,221,223,224,226,228 *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68102-26080 |
KDH20#,211,22#,TRH200,21#,22# *UVCT,厚さ=3.5,ｸﾞﾘｰﾝ |
1 | ||
| 68127B - SHUTTER, FRONT DOOR, LOWER RH | ||||
| 68127-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68128B - SHUTTER, FRONT DOOR, LOWER LH | ||||
| 68127-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-26030 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-26010 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68610-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-26041 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 68610-26040 |
KDH20#,211,22#,TRH200,21#,22# |
1 | ||
| 86262E - COVER, SPEAKER, FRONT | ||||
| 86262-26010 |
KDH20#,22#,TRH200,214,219,221,223,226,228..(03S,06S,09S,10S,15S)..DX |
2 | ||
| Common parts | ||||
| 90105-06256 | ||||
| 90109-08295 | ||||
| 90119-06961 | ||||
| 90159-60025 | ||||
| 90189-06229 | ||||
| 90269-05034 | ||||
| 90467-06084 | ||||
| 90541-10038 | ||||
| 90950-01620 | ||||
| 90950-01901 | ||||
| 90950-01999 | ||||
| 91551-80610 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7552 | ||||
ILLUST NO. 1 OF 2(1312- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67869-26050 | ||||
| 90105-06256 | ||||
| 90109-08295 | ||||
| 90119-06961 | ||||
| 90159-60025 | ||||
| 90189-06229 | ||||
| 90269-03077 | ||||
| 90541-10038 | ||||
| 90950-01901 | ||||
| 90950-01999 | ||||
| 90950-01A05 | ||||
| 91551-80610 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7552 | ||||
ILLUST NO. 2 OF 2(1312- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 67771-58010 | ||||
| 90189-06018 | ||||
| 90467-09203 | ||||
| 90467-10161 | ||||
| 93540-56025 | ||||
| Linked diagrams | ||||
| 7451 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
