TRH200K-ERPDK (2004)
Toyota Hiace/Regiusace

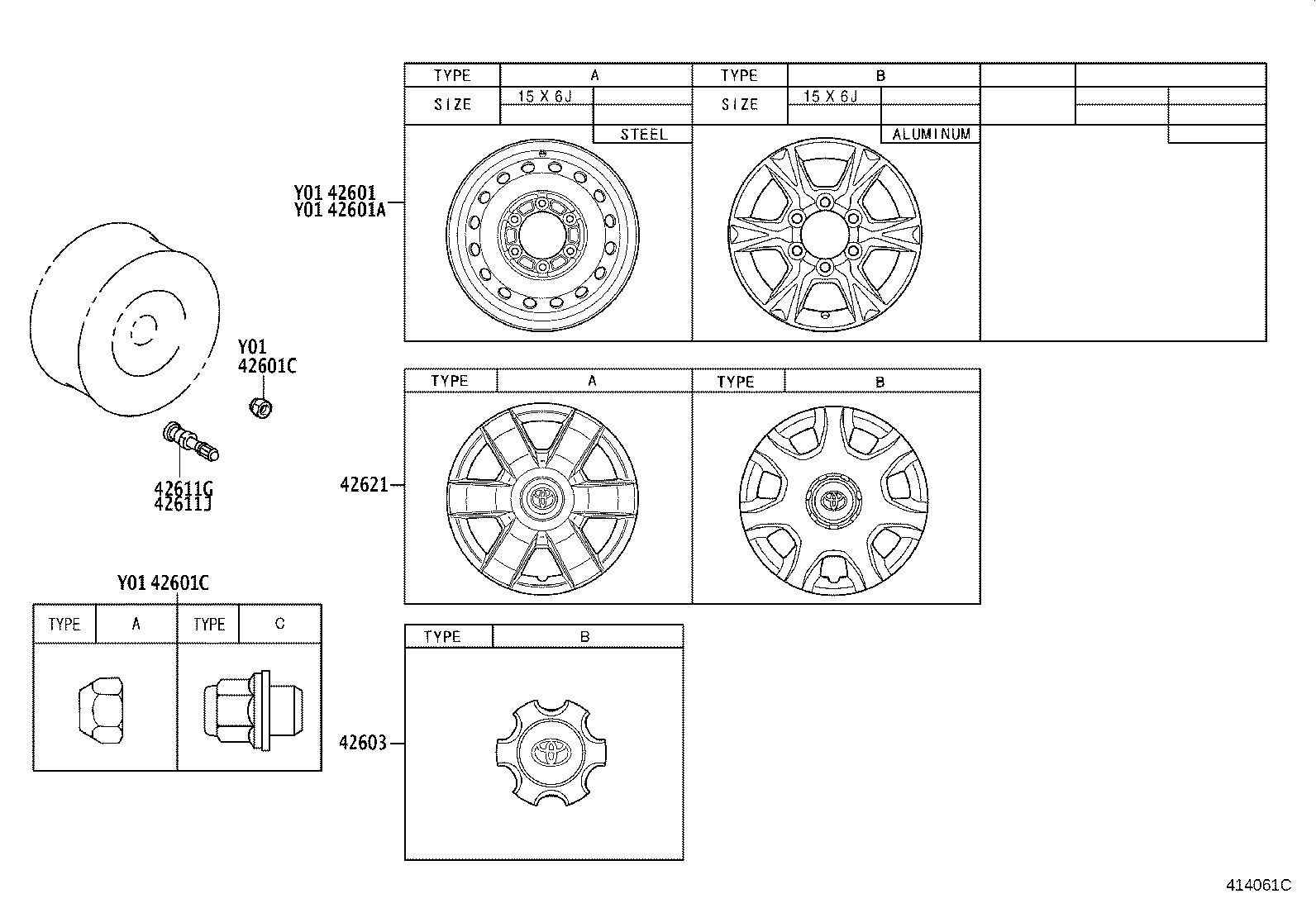

ILLUST NO. 1 OF 3(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-26150 |
KDH206..IV5;KDH201,TRH200,214..(V1,WG)..DX..CBU 15X6JJ,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611-26170 |
KDH206..IV5;KDH201,TRH200,214..(V1,WG)..DX..CBU 15X6J,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝﾄ:103L潟пF107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42611-26150 |
KDH206..IV5;TRH226..HRF..02S;KDH206,TRH219..GL,SGL;KDH201,TRH200..V1..CBU;KDH211,221,TRH211,214,216,221,224,229..HRF,SMRF 15X6JJ,TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611-26170 |
KDH206..IV5;TRH226..HRF..02S;KDH206,TRH219..GL,SGL;KDH201,211,221,TRH200,211,214,216,221,224,229..(V1,WG)..(HRF,SMRF,SRF)..CBU 15X6J,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-26170 |
KDH206..IV5;KDH201,TRH200,214..(V1,WG)..DX..CBU 15X6J,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝﾄ:103L潟пF107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42611-26150 |
TRH214,219,221,226..(SHRF,SMRF)..DX;KDH201,206,221,223,TRH200,221,223,226,228..(COM,V1)..(03S,06S,09S,15S) 15X6JJ,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 42611-26170 |
KDH206..IV5;TRH226..HRF..02S;KDH206,TRH219..GL,SGL;KDH201,211,221,TRH200,211,214,216,221,224,229..(V1,WG)..(HRF,SMRF,SRF)..CBU 15X6J,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
KDH201,221,TRH200,221..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝﾄ:103L ﾘﾔ:107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
24 | ||
| 90942-01058 |
KDH206..IV5;KDH201,221,TRH200,214,221..(V1,WG)..(03S,06S,09S,10S)..DX..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝﾄ:103L ﾘﾔ:107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
24 | ||
| 90942-01058 |
KDH201,221,TRH200,221..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
24 | ||
| 90942-01058 |
KDH206..IV5;TRH226..HRF..02S;KDH206,TRH219..GL,SGL;KDH201,211,221,TRH200,211,214,216,221,224,229..(V1,WG)..(HRF,SMRF,SRF)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107L(ｱﾙﾐ),TYPE BFｲﾗｽﾄ参照 |
24 | ||
| 90942-01007 |
TRH221,226..SHRF;KDH201,206,TRH200,214,219..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S TYPE A:ｲﾗｽﾄ参照 |
24 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
KDH201,221,TRH200,221..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝﾄ:103L ﾘﾔ:107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
24 | ||
| 90942-01058 |
KDH206..IV5;KDH201,221,TRH200,214,221..(V1,WG)..(03S,06S,09S,10S)..DX..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝﾄ:103L ﾘﾔ:107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
24 | ||
| 90942-01058 |
KDH201,221,TRH200,221..V1..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107L(ｱﾙﾐ),TYPE B:ｲﾗｽﾄ参照 |
24 | ||
| 90942-01058 |
KDH206..IV5;TRH226..HRF..02S;KDH206,TRH219..GL,SGL;KDH201,211,221,TRH200,211,214,216,221,224,229..(V1,WG)..(HRF,SMRF,SRF)..CBU ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107L(ｱﾙﾐ),TYPE BFｲﾗｽﾄ参照 |
24 | ||
| 90942-01007 |
TRH221,226..SHRF;KDH201,206,TRH200,214,219..DX;KDH200,205,22#,TRH221,223,226,228..03S,05S,06S,09S,15S TYPE A:ｲﾗｽﾄ参照 |
24 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 4260B-26010 |
KDH206..IV5;TRH226..HRF..02S;KDH206,TRH219..GL,SGL;KDH201,211,221,TRH200,211,214,216,221,224,229..(V1,WG)..(HRF,SMRF,SRF)..CBU *ALU,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107L(ｱﾙﾐ),TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 4260B-26010 |
KDH201,221,TRH200,221..V1..(06S,09S)..CBU *ALU,GLﾊﾟｯｹｰｼﾞ&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝg:103L ﾘﾔ:107L(ｱﾙﾐ),TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 4260B-26010 |
KDH201,221,TRH200,221..V1..(06S,09S)..CBU *ALU,GLﾊﾟｯｹｰｼﾞ&ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT 107k(ｱﾙﾐ),TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 4260B-26010 |
KDH206..IV5;KDH201,221,TRH200,214,221..(V1,WG)..(03S,06S,09S,10S)..DX..CBU *ALU,ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−195/80R15LT ﾌﾛﾝﾄ:103L ﾘпF107L(ｱﾙﾐ),TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
KDH20#,211,22#,TRH200,21#,22#..COM,V1,WG |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
KDH20#,211,22#,TRH200,21#,22#..COM,V1,WG |
1 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-26010 |
TRH221,226..SHRF;KDH222,223,227,TRH223,228..CBU;KDH20#,220,221,225,TRH200,214,219,221,226..(03S,06S,09S,10S)..DX TYPE A:ｲﾗｽﾄ参照 |
4 | ||
| 42602-26020 |
KDH20#,221,TRH200,221,226..(06S,09S)..CBU GLﾊﾟｯｹｰｼﾞ,TYPE B:ｲﾗｽﾄ参照 |
4 | ||
ILLUST NO. 2 OF 3(0408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

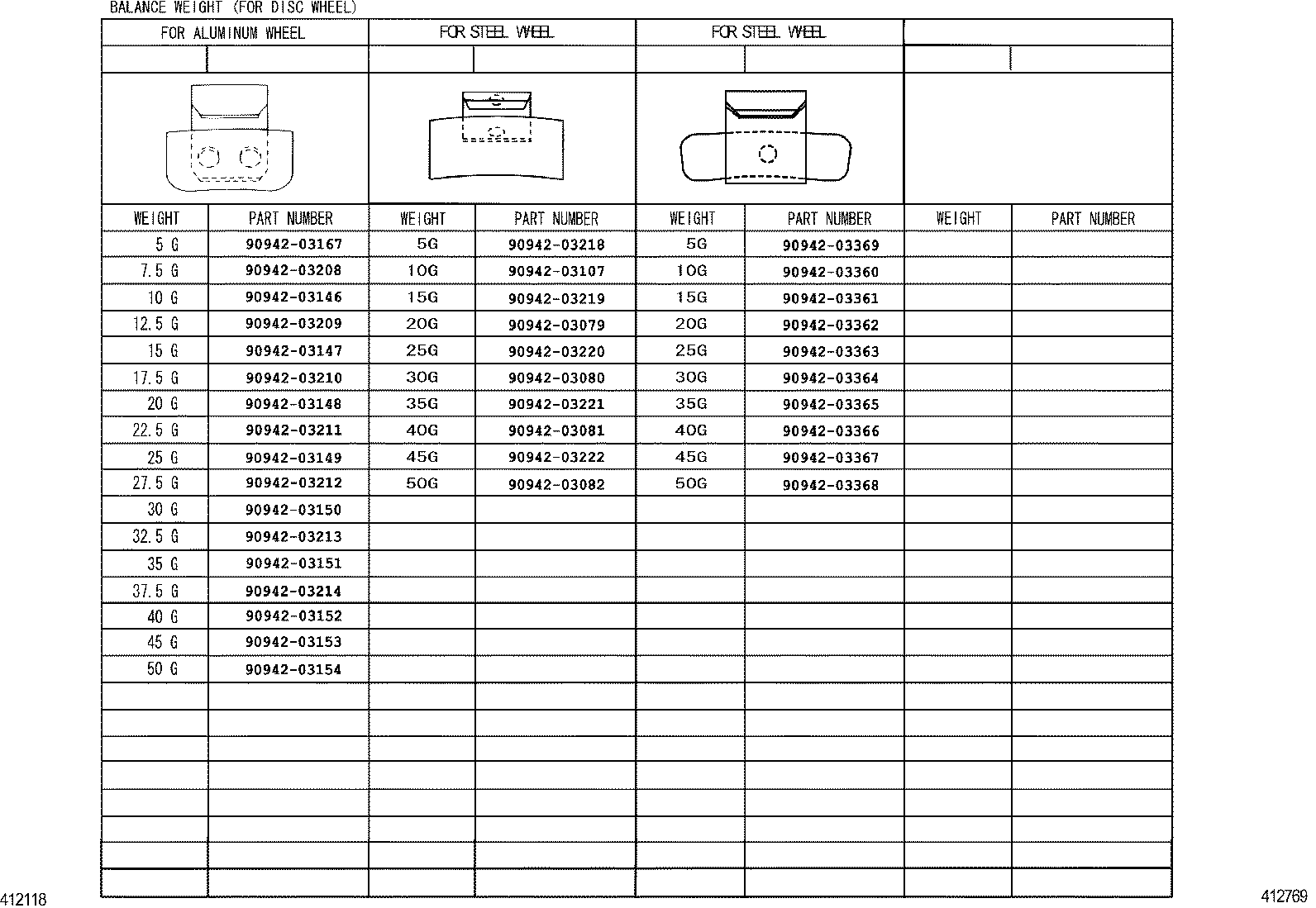

| Common parts | ||||
| 90942-03079 | ||||
| 90942-03080 | ||||
| 90942-03081 | ||||
| 90942-03082 | ||||
| 90942-03107 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03218 | ||||
| 90942-03219 | ||||
| 90942-03220 | ||||
| 90942-03221 | ||||
| 90942-03222 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
ILLUST NO. 3 OF 3(0408- )
| Part # | Description | Qty | Price |
|---|

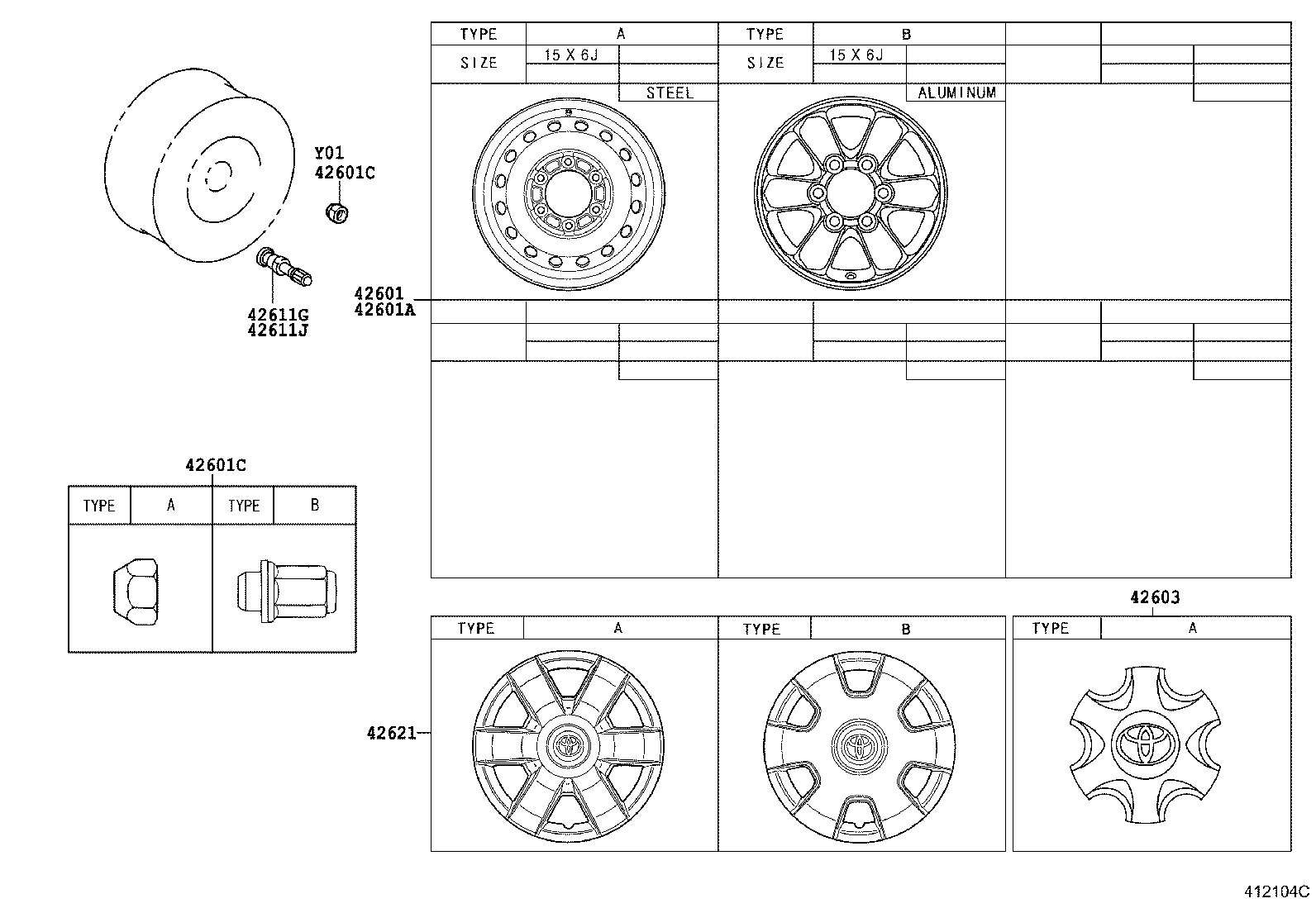

ILLUST NO. 1 OF 2(1312- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(1312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
