TRH200K-ERPDK (2004)
Toyota Hiace/Regiusace
Production
Aug 2004
-
Dec 2013
Engine
1TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0408- )TRH200..4FC

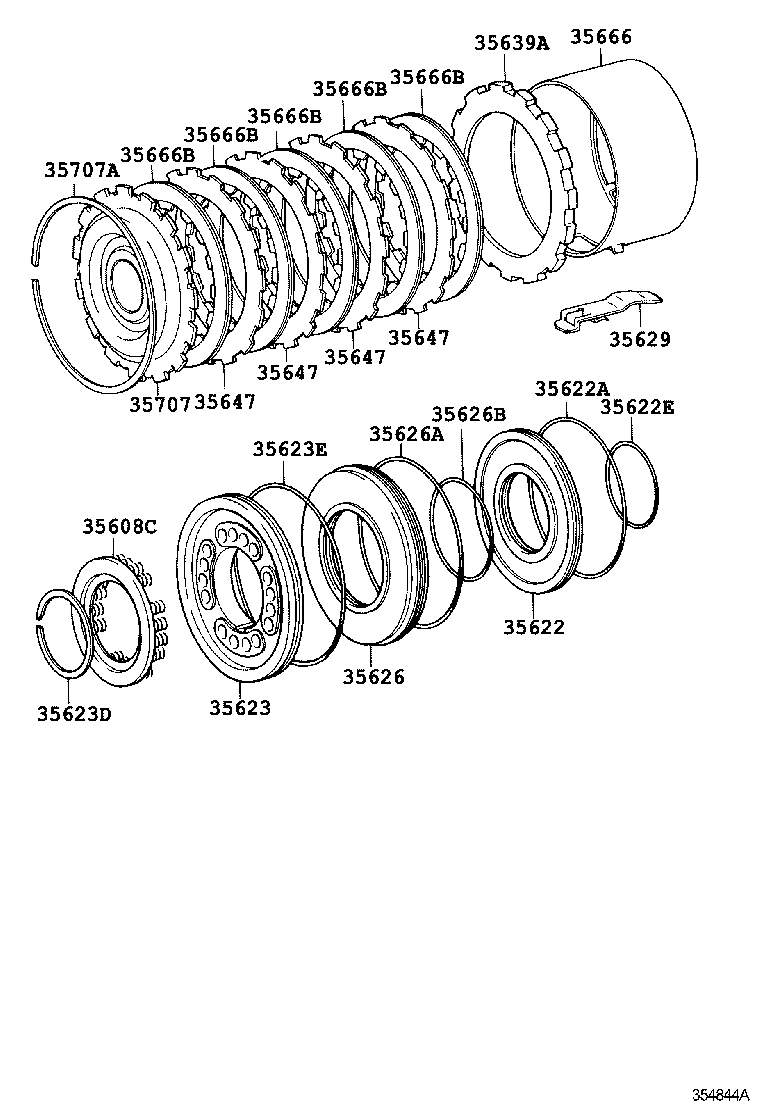

Click highlighted areas on diagram
A45DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN | ||||
| 35608-20020 |
TRH200..4FC |
1 | ||
| 35622 - PISTON, BRAKE, NO.2 | ||||
| 35622-22010 |
TRH200..4FC |
1 | ||
| 35622A - RING (FOR BRAKE PISTON OUTER) | ||||
| 90301-99084 |
TRH200..4FC |
1 | ||
| 35622E - RING, O (FOR BRAKE PISTON NO.2) | ||||
| 90301-56007 |
TRH200..4FC |
1 | ||
| 35623 - PISTON, BRAKE, NO.3 | ||||
| 35623-22010 |
TRH200..4FC |
1 | ||
| 35623D - RING, SHAFT SNAP (FOR BRAKE) | ||||
| 90520-52262 |
TRH200..4FC |
1 | ||
| 35623E - RING, O, NO.1 (FOR BRAKE PISTON) | ||||
| 90301-99110 |
TRH200..4FC |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22010 |
TRH200..4FC |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99109 |
TRH200..4FC |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-67005 |
KDH20#,211,22#,TRH200,21#,22#..4FC |
1 | ||
| 35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER) | ||||
| 35629-22010 |
TRH200..4FC |
1 | ||
| 35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE) | ||||
| 35639-22020 |
TRH200..4FC 厚さ=3.25 |
1 | ||
| 35639-22060 |
TRH200..4FC 厚さ=4.25 |
1 | ||
| 35639-22010 |
TRH200..4FC 厚さ=3.0 |
1 | ||
| 35639-22040 |
TRH200..4FC 厚さ=3.75 |
1 | ||
| 35639-22050 |
TRH200..4FC 厚さ=4.0 |
1 | ||
| 35639-22030 |
TRH200..4FC 厚さ=3.5 |
1 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
TRH200..4FC |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
TRH200..4FC |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
TRH200..4FC |
4 | ||
| 35647 - PLATE, CLUTCH, NO.2 | ||||
| 35647-22010 |
TRH200..4FC |
4 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-30010 |
TRH200..4FC |
1 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22060 |
TRH200..4FC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22060 |
TRH200..4FC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22060 |
TRH200..4FC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22060 |
TRH200..4FC |
5 | ||
| 35666B - DISC, CLUTCH (FOR BRAKE) | ||||
| 35633-22060 |
TRH200..4FC |
5 | ||
| 35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER | ||||
| 35707-30020 |
TRH200..4FC |
1 | ||
| 35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE) | ||||
| 90521-99140 |
TRH200..4FC |
1 | ||
(1312-1501)TRH200..4FC
Click highlighted areas on diagram
A45DE
| Part # | Description | Qty | Price |
|---|
