TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

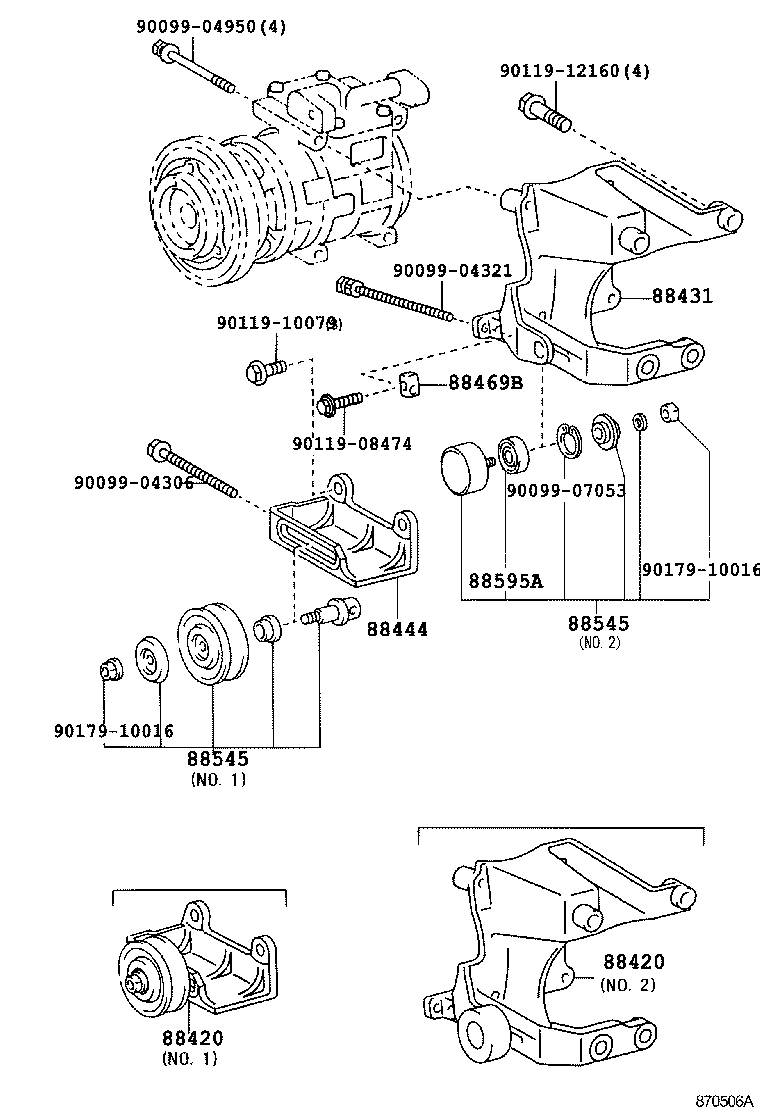

ILLUST NO. 1 OF 2(8908- )LH10#,11#,12#,140,16#,17#,18#

Click highlighted areas on diagram

DEALER OPT

diagram 88420 88420 88431 88444 88469B 88545 88545 88595A 9009904306 9009904321 9009904950 9009907053 9011908474 9011910079 9011912160 9017910016 9017910016
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-95J00

RZH10#,11#,12#

 1
88431-25290

TRH102,112,12#

 1
88444 - BRACKET, IDLE PULLEY
88444-95J00

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

 1
88469B - COLLAR
88469-30280

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

 1
88545 - PULLEY ASSY, IDLE
88440-95J00

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
88440-26090

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.1

 1
88440-25070

TRH102,112,12#

 1
88440-26070

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.2

 1
88545 - PULLEY ASSY, IDLE
88440-95J00

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
88440-26090

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.1

 1
88440-25070

TRH102,112,12#

 1
88440-26070

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.2

 1
88595A - BEARING (FOR COOLER IDLE PULLEY)
90099-10015

LH113,119..SG;LH113..SP..5F;LH162,17#..CD,DX;LH10#,110,115,117,12#,140,168,18#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW

 1
Common parts
90099-04306
90099-04321
90099-04950
90099-07053
90119-08474
90119-10079
90119-12160
90179-10016

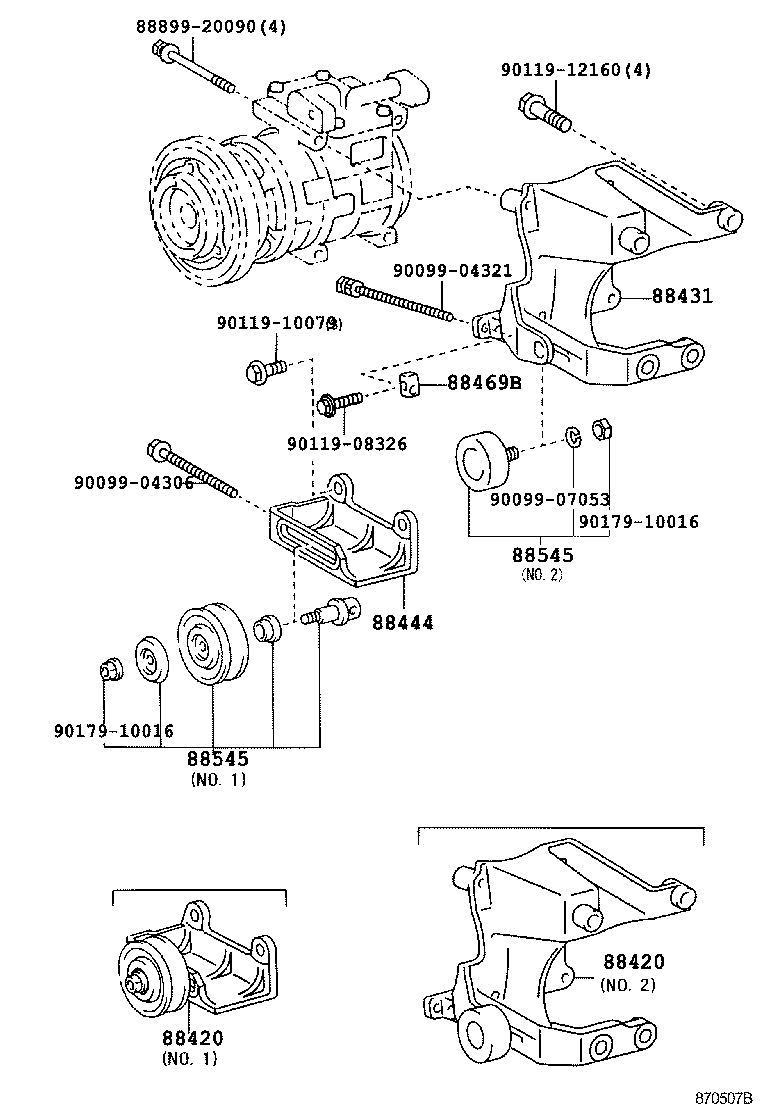

ILLUST NO. 1 OF 2(8908- )LH10#,11#,12#,140,16#,17#,18#

Click highlighted areas on diagram

MAKER OPT

diagram 88420 88420 88431 88444 88469B 88545 88545 8889920090 9009904306 9009904321 9009907053 9011908326 9011910079 9011912160 9017910016 9017910016
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-95J00

RZH10#,11#,12#

 1
88431-25290

TRH102,112,12#

 1
88444 - BRACKET, IDLE PULLEY
88444-95J00

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

 1
88469B - COLLAR
88469-30280

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

 1
88545 - PULLEY ASSY, IDLE
88440-95J00

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
88440-26090

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.1

 1
88440-25070

TRH102,112,12#

 1
88440-26070

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.2

 1
88545 - PULLEY ASSY, IDLE
88440-95J00

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
88440-26090

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.1

 1
88440-25070

TRH102,112,12#

 1
88440-26070

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.2

 1
Common parts
88899-20090
90099-04306
90099-04321
90099-07053
90119-08326
90119-10079
90119-12160
90179-10016

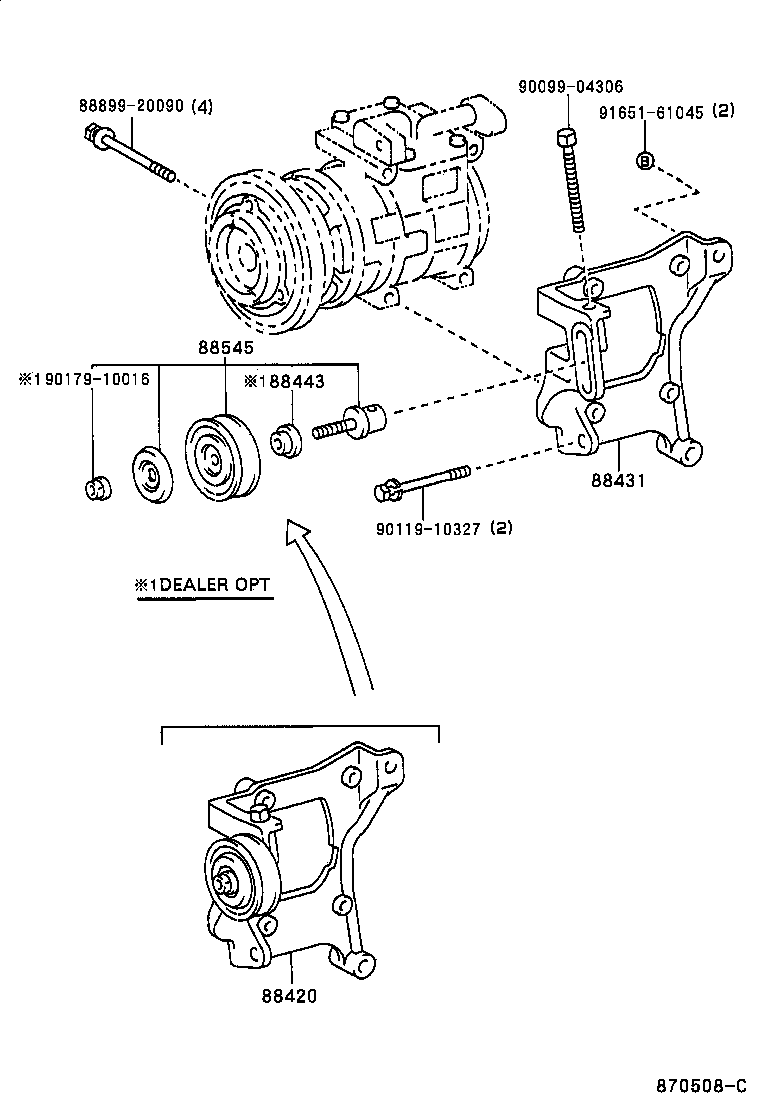

ILLUST NO. 1 OF 2(8908- )RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

diagram 88420 88431 88443 88545 8889920090 9009904306 9011910327 9017910016 9165161045
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-95J00

RZH10#,11#,12#

 1
88431-25290

TRH102,112,12#

 1
88443 - COLLAR, IDLE PULLEY
88443-36010

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

 1
88545 - PULLEY ASSY, IDLE
88440-95J00

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
88440-26090

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.1

 1
88440-25070

TRH102,112,12#

 1
88440-26070

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.2

 1
Common parts
88899-20090
90099-04306
90119-10327
90179-10016
91651-61045

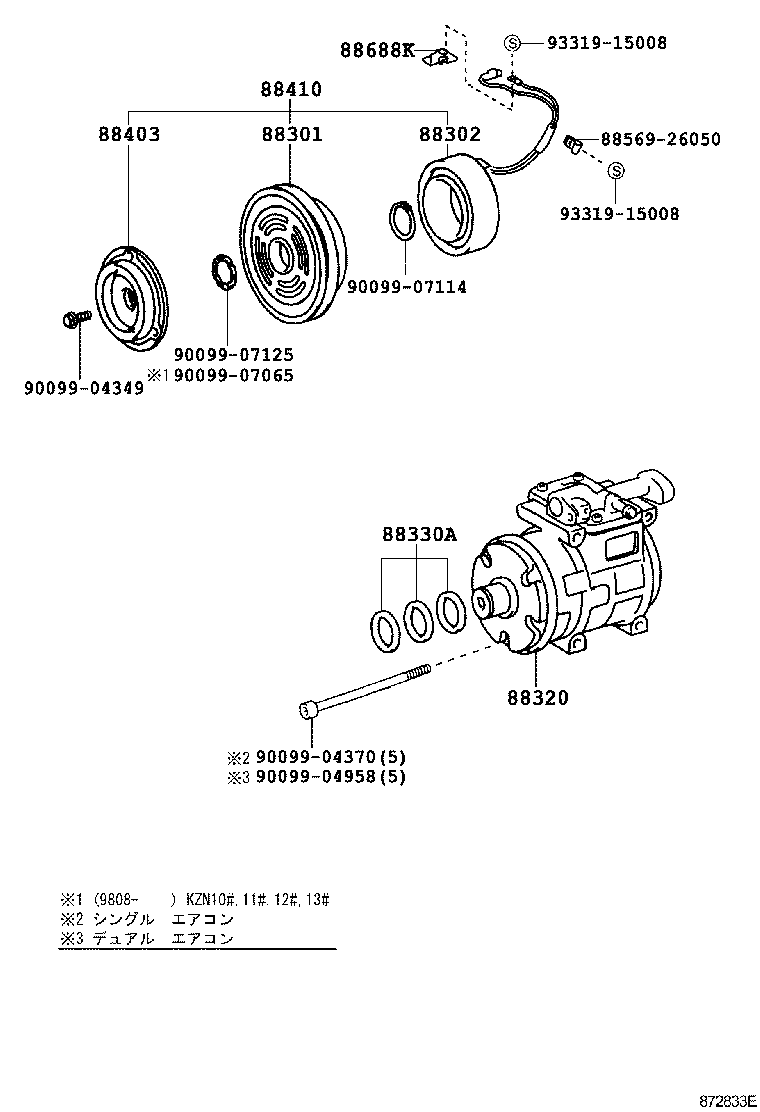

ILLUST NO. 2 OF 2(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 8856926050 88688K 9009904349 9009904370 9009904958 9009907065 9009907114 9009907125 9331915008 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-95J01

RZH102,112..GL;RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88320-2F010

TRH102,112,12#..03S,05S,06S,15S

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

LH10#,11#,12#,RZH10#,11#,12#

 1
88410 - CLUTCH ASSY, MAGNET
88410-95J00

RZH10#,11#,12#

 1
88410-2F010

TRH102,112,12#..03S,05S,06S,15S

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33260

TRH102,112,12#

 1
Common parts
88569-26050
90099-04349
90099-04370
90099-04958
90099-07065
90099-07114
90099-07125
93319-15008

ILLUST NO. 1 OF 2(0308- )TRH102,112,12#

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 88431 88545 88688K 9009140612 9009904349 9009907065 9009907114 9010508403 9010510362 9011908B42 9151281035 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-95J01

RZH102,112..GL;RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88320-2F010

TRH102,112,12#..03S,05S,06S,15S

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

LH10#,11#,12#,RZH10#,11#,12#

 1
88410 - CLUTCH ASSY, MAGNET
88410-95J00

RZH10#,11#,12#

 1
88410-2F010

TRH102,112,12#..03S,05S,06S,15S

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-95J00

RZH10#,11#,12#

 1
88431-25290

TRH102,112,12#

 1
88545 - PULLEY ASSY, IDLE
88440-95J00

RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM

ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
88440-26090

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.1

 1
88440-25070

TRH102,112,12#

 1
88440-26070

LH113,119..SG;LH113..SP..5F;LH10#,110,115,117,12#,140,16#,17#,18#

NO.2

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-33260

TRH102,112,12#

 1
Common parts
90091-40612
90099-04349
90099-07065
90099-07114
90105-08403
90105-10362
90119-08B42
91512-81035
93319-15008
