TRH124B-ZRMDK (2003)
Toyota Hiace/Regiusace

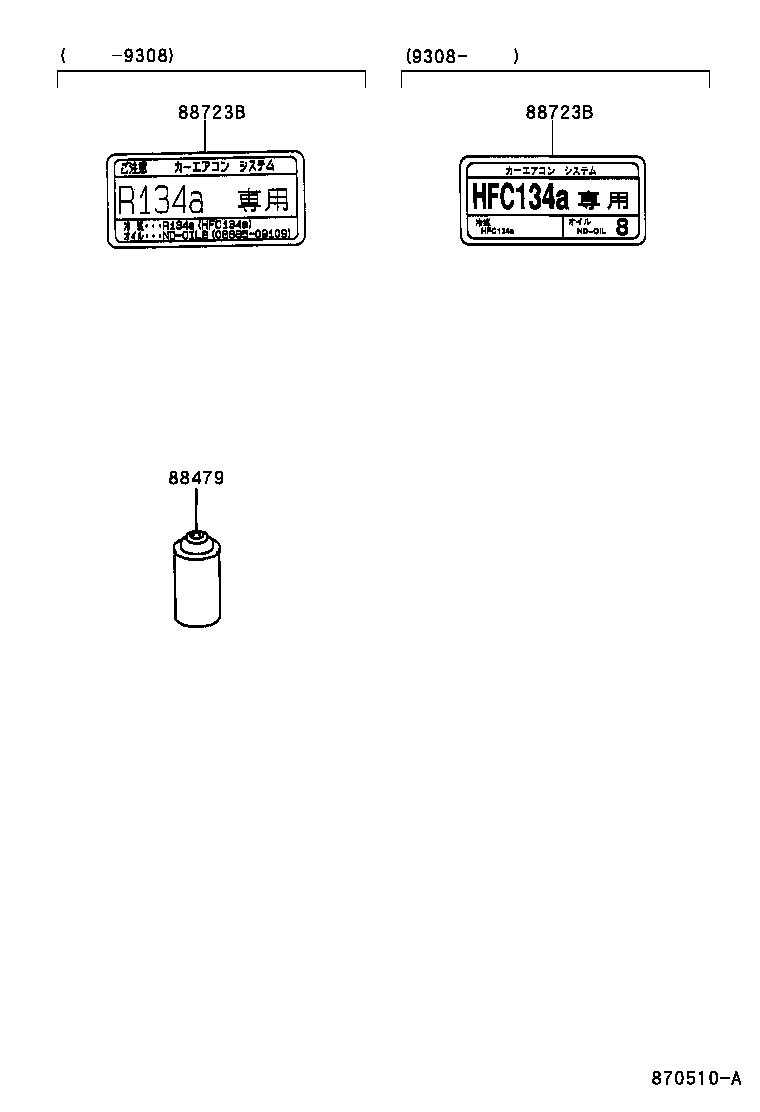

ILLUST NO. 5 OF 5(8908- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 5(0308- )TRH124 ; (0308- )TRH102,112,122..SGL,SGLE

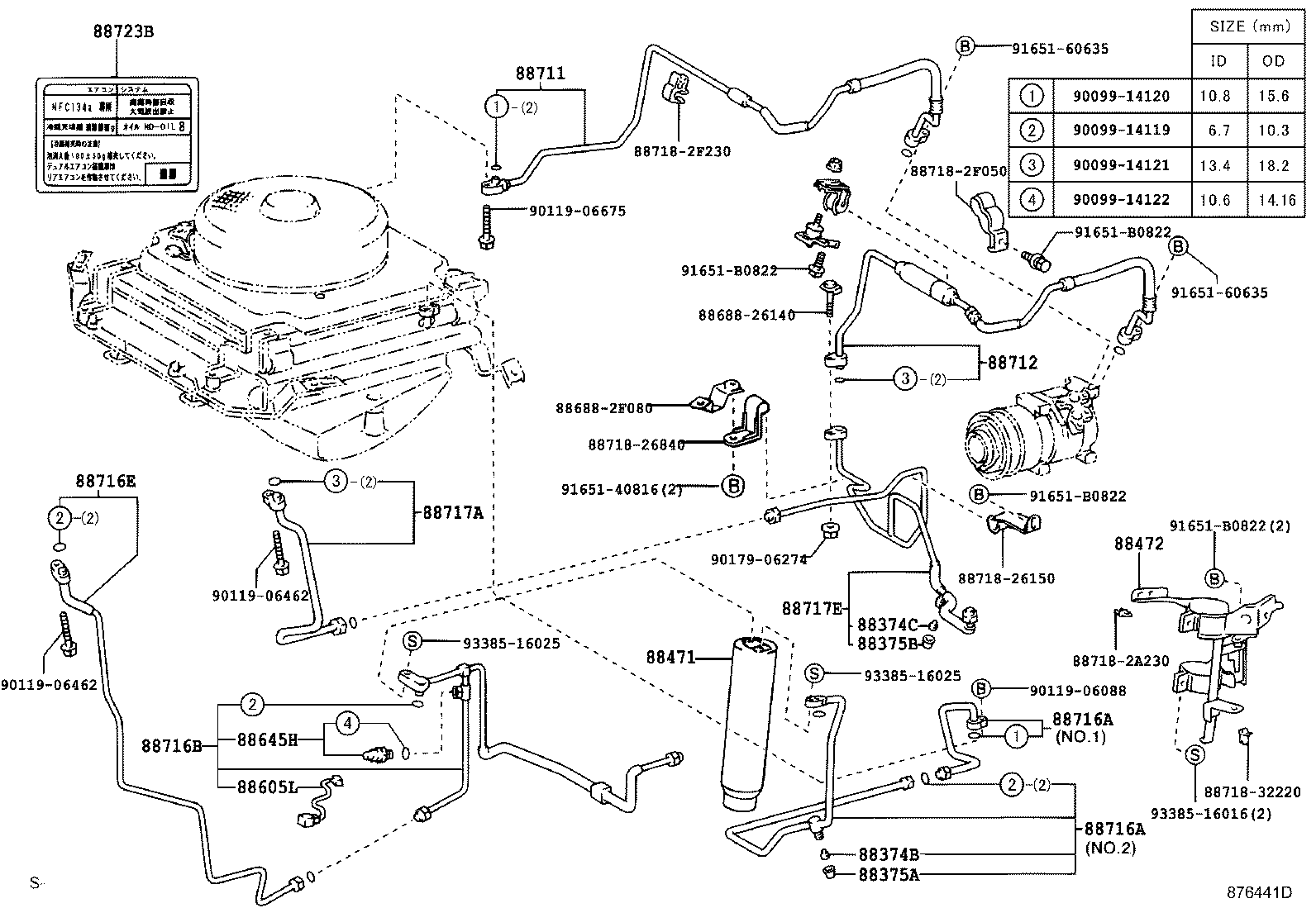

FRONT PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-12020 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30270 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL 吸入側 |
1 | ||
| 88375-20010 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL ﾘｷｯﾄﾞ側 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-95J02 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N32 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側 |
1 | ||
| 88605-26030 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) 右側 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10020 |
LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL NO.2 |
1 | ||
| 88645-95J02 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) NO.1 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-95J12 |
RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88711-2F210 |
TRH124;TRH102,112,122..SGL,SGLE |
1 | ||
| 88711-2F120 |
TRH102,112,12#..CD,DX,GL ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-95J22 |
RZH10#,11#,12# |
1 | ||
| 88704-26010 |
TRH124;TRH102,112,122..SGL,SGLE |
1 | ||
| 88712-2F120 |
TRH124 ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-26060 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95J80 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1 |
1 | ||
| 88716-95N09 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2 |
1 | ||
| 88716-95N08 |
LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-26040 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-95J40 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 88717E - PIPE, COOLER REFRIGERANT SUCTION, E | ||||
| 88717-95J41 |
LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM) ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ) |
1 | ||
| Common parts | ||||
| 88688-26140 | ||||
| 88688-2F080 | ||||
| 88718-26150 | ||||
| 88718-26840 | ||||
| 88718-2A230 | ||||
| 88718-2F050 | ||||
| 88718-2F230 | ||||
| 88718-32220 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90119-06088 | ||||
| 90119-06462 | ||||
| 90119-06675 | ||||
| 90179-06274 | ||||
| 91651-40816 | ||||
| 91651-60635 | ||||
| 91651-B0822 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
ILLUST NO. 3 OF 5(0308- )TRH124 ; (0308- )TRH102,112,122..SGLE

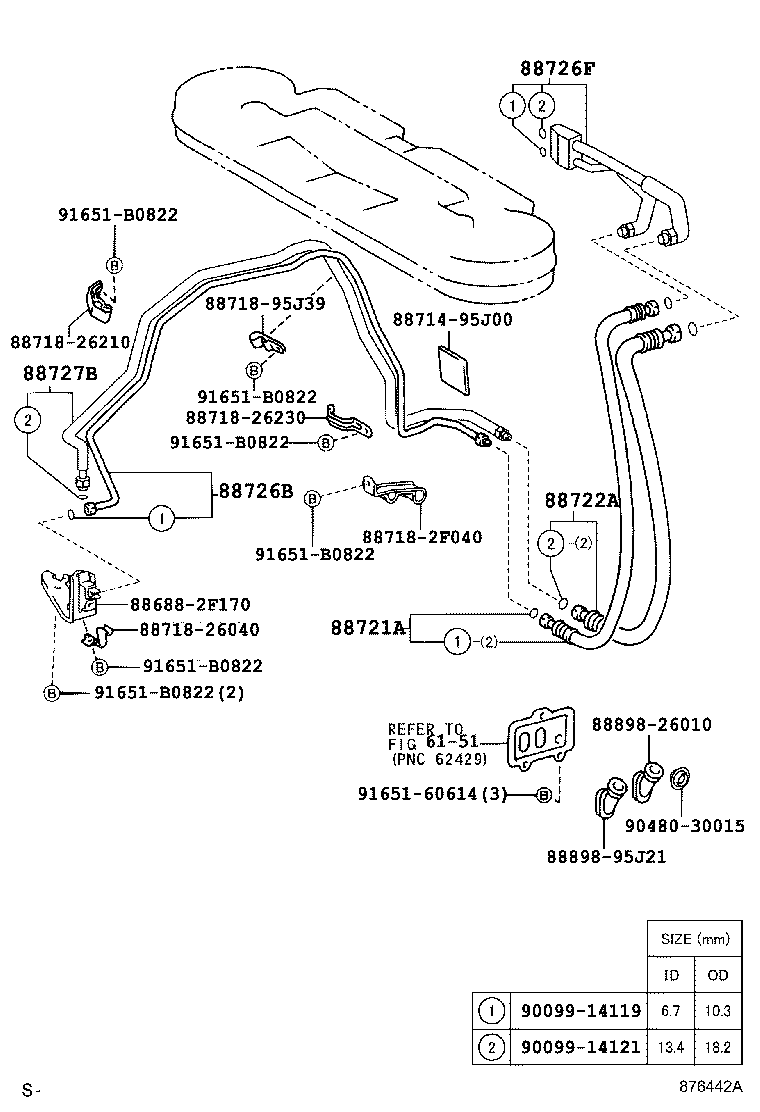

REAR PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88722A - HOSE, SUCTION, A | ||||
| 88712-2F140 |
LH184..GL;LH184..4FC;TRH112,122..HRF..4D;KZH120,13#,LH182,186,188,TRH124..03S,05S,10S,15S |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-95N00 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-95J50 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM) |
1 | ||
| 88717-2F450 |
LH184..GL;LH184..4FC;TRH102,122..SG;TRH112..SRF..SG;TRH112..HRF..4D;LH162,17#,182,186,188,TRH124..05S,08S,15S ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ |
1 | ||
| Common parts | ||||
| 88688-2F170 | ||||
| 88714-95J00 | ||||
| 88718-26040 | ||||
| 88718-26210 | ||||
| 88718-26230 | ||||
| 88718-2F040 | ||||
| 88718-95J39 | ||||
| 88898-26010 | ||||
| 88898-95J21 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-30015 | ||||
| 91651-60614 | ||||
| 91651-B0822 | ||||
| Linked diagrams | ||||
| 6151 | ||||
