TRH124B-ZRMDK (2003)

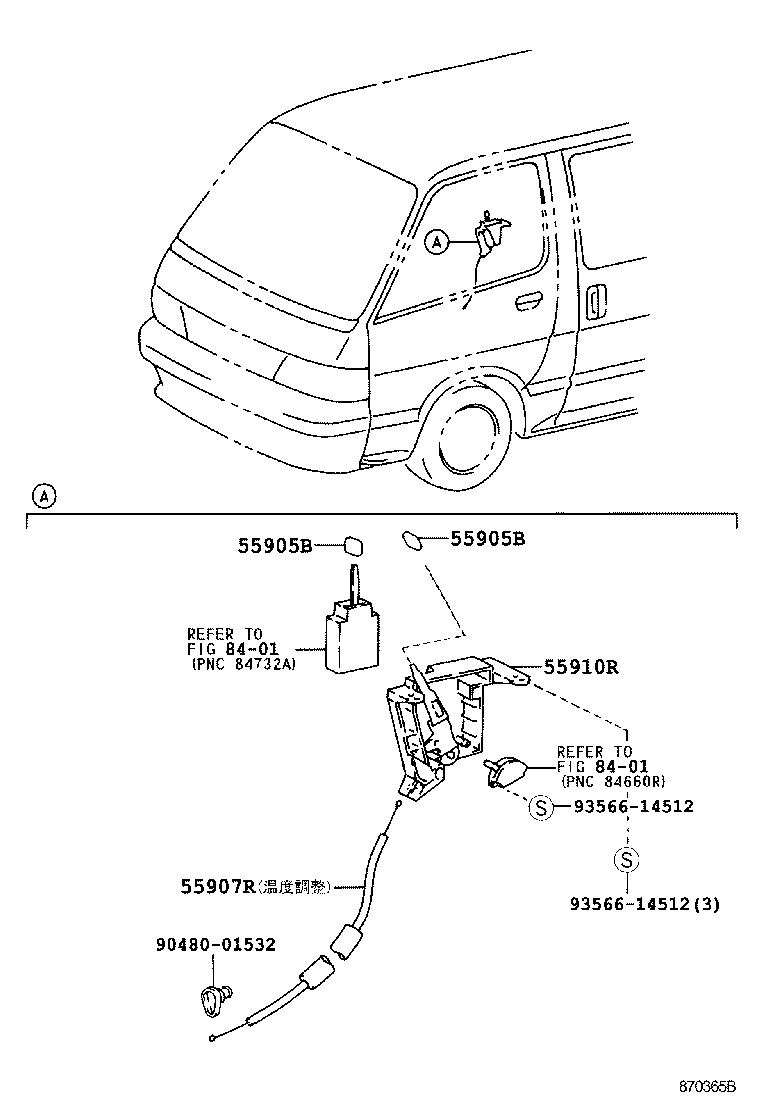

Toyota Hiace/Regiusace
ILLUST NO. 2 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907R - CABLE SUB-ASSY, TEMPERATURE CONTROL | ||||
| 55907-95J05 |
RZH102,112..850K;LH100,102,109,113,115,119,123,125,129,RZH100,102,112,12#..(COM,V1,WG)..4D..(DX,GL,SGL) |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-95J21 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) |
1 | ||
| Common parts | ||||
| 90480-01532 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||

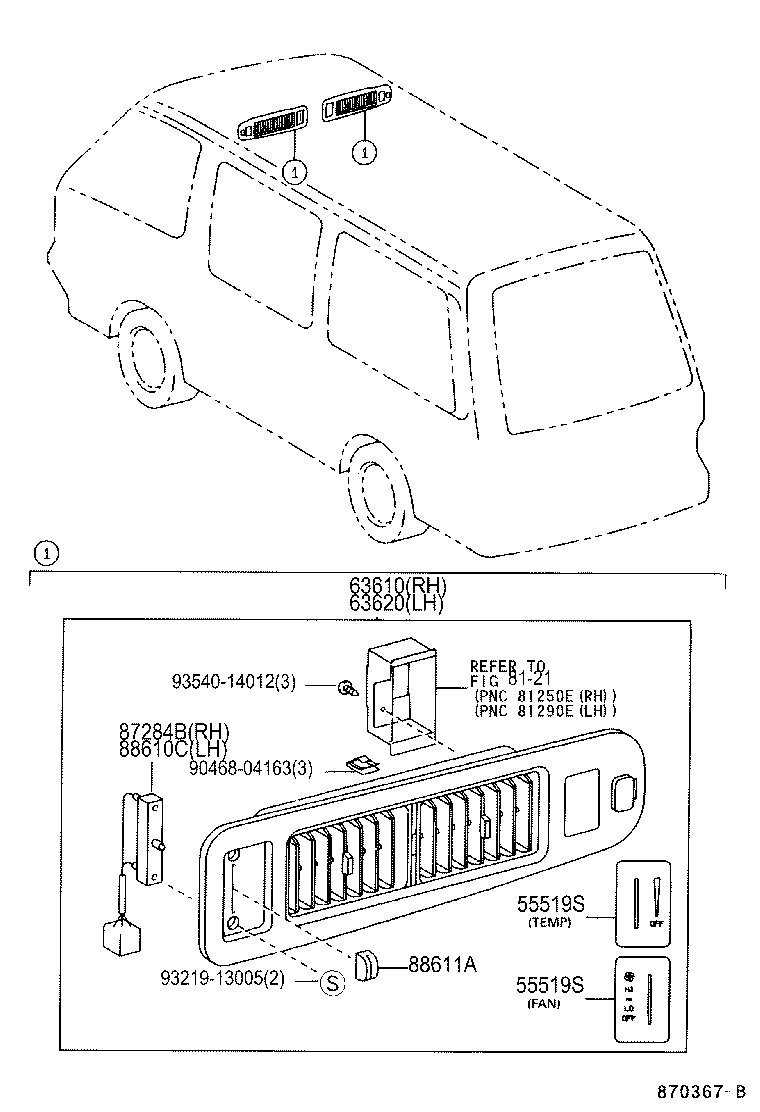

ILLUST NO. 5 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,RZH10#,11#,12#,133
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| Common parts | ||||
| 90468-04163 | ||||
| 93219-13005 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 8121 | ||||

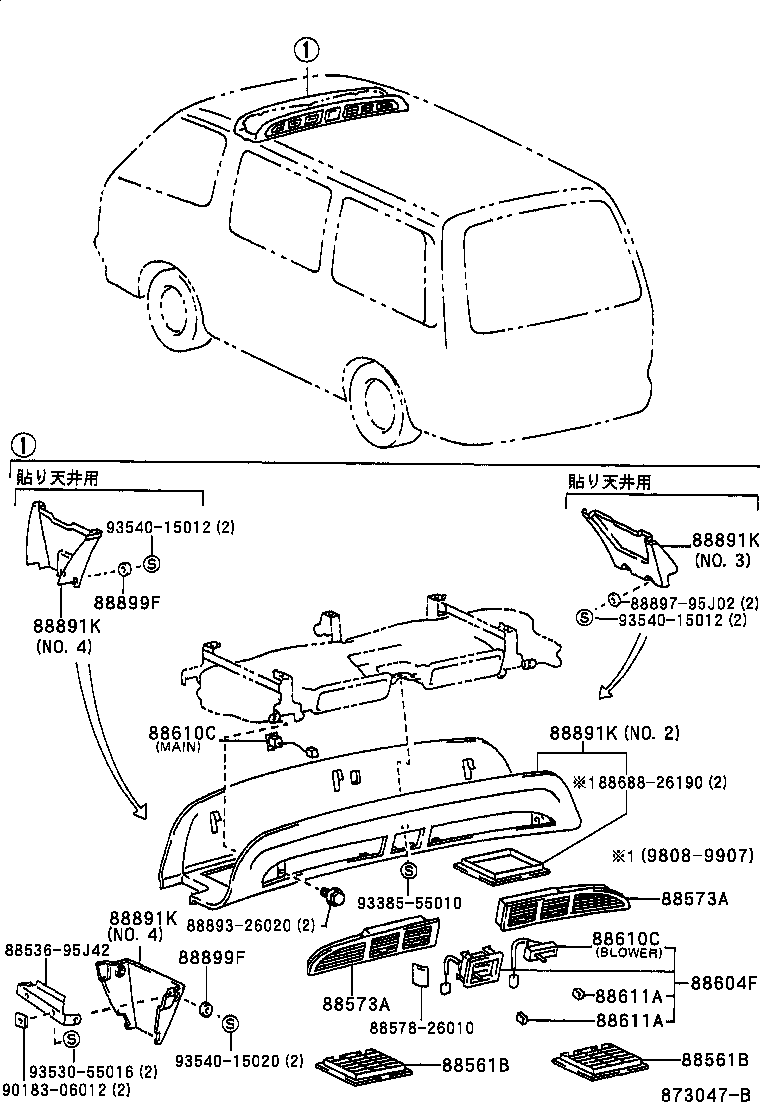

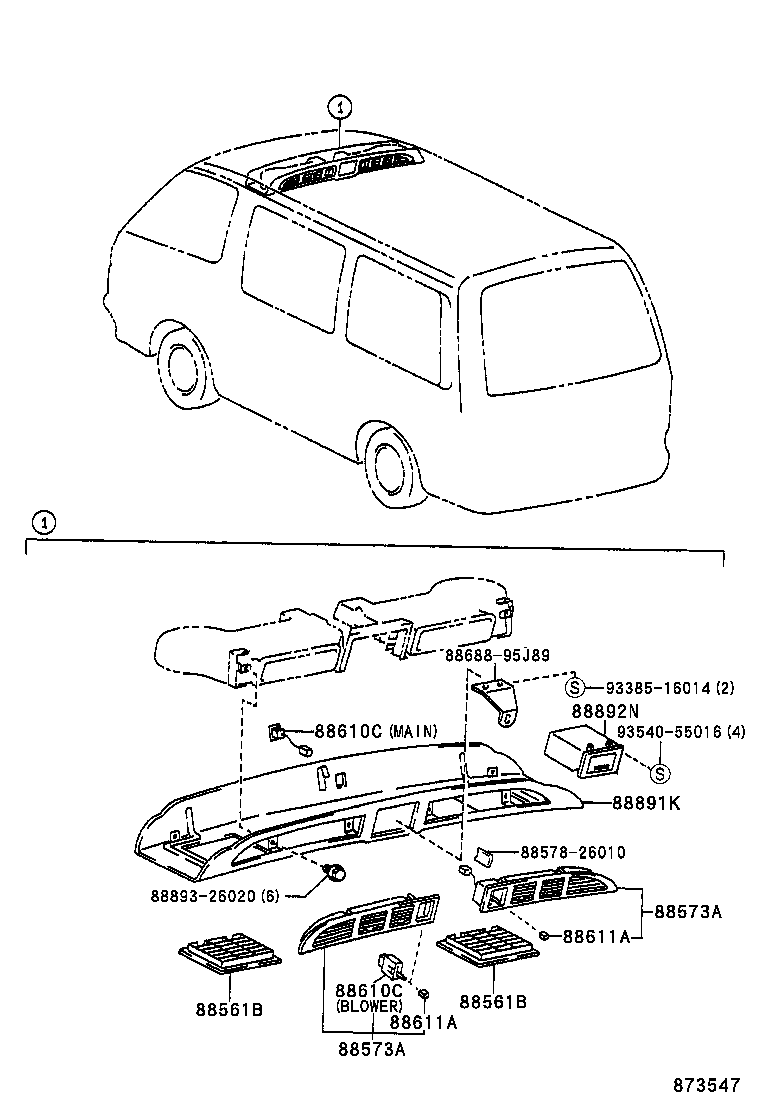

ILLUST NO. 5 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ(ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH110,115,117,125,RZH110,124..DX,GL IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| Common parts | ||||
| 88536-95J42 | ||||
| 88578-26010 | ||||
| 88688-26190 | ||||
| 88893-26020 | ||||
| 88897-95J02 | ||||
| 90183-06012 | ||||
| 93385-55010 | ||||
| 93530-55016 | ||||
| 93540-15012 | ||||
| 93540-15020 | ||||

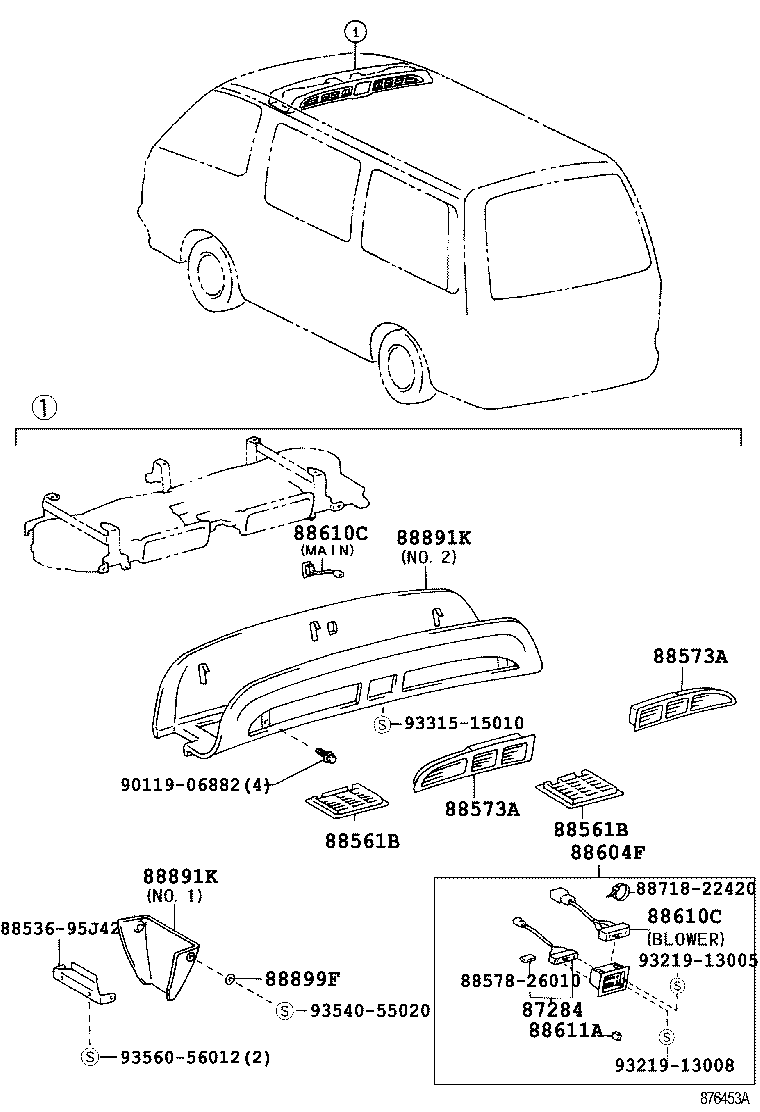

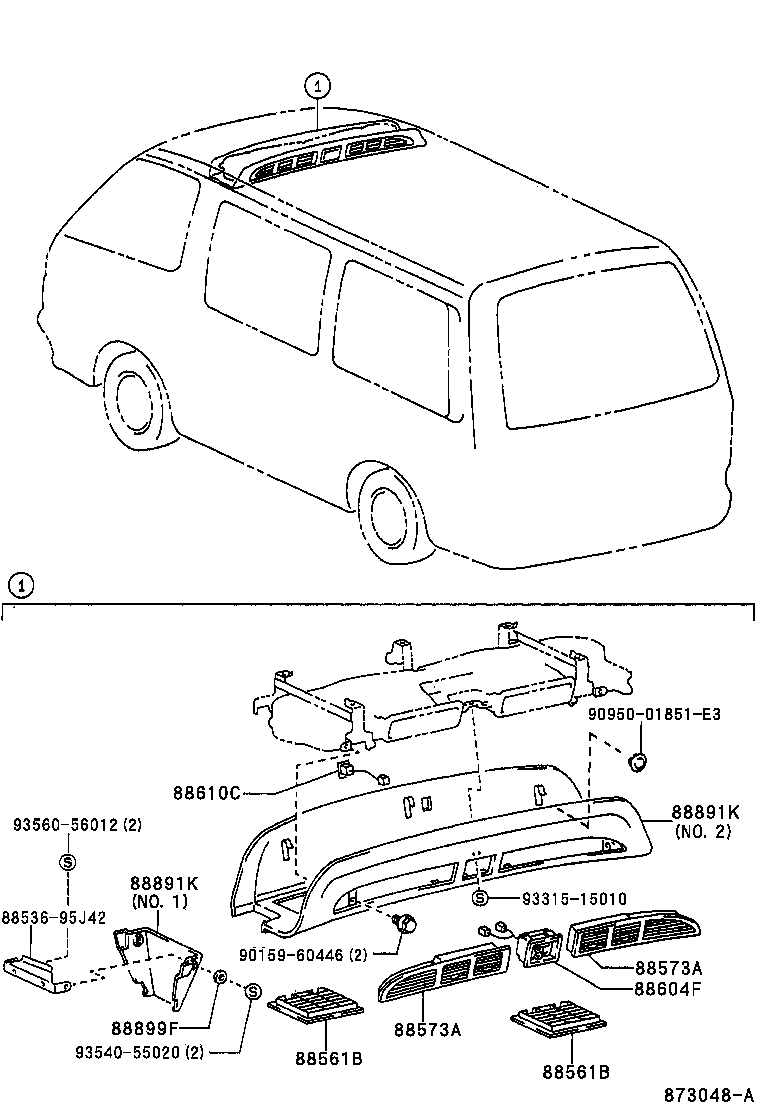

ILLUST NO. 5 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ(ﾒ-ｶ-ｵﾌﾟｼﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH110,115,117,125,RZH110,124..DX,GL IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| Common parts | ||||
| 88536-95J42 | ||||
| 90159-60446 | ||||
| 90950-01851E3 | ||||
| 93315-15010 | ||||
| 93540-55020 | ||||
| 93560-56012 | ||||
ILLUST NO. 1 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾌﾛﾝﾄｺﾝﾄﾛ-ﾙ(ﾚﾊﾞ-ﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-22060 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22280 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S MODE,内外気 |
2 | ||
| 55905-22260 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾌﾞﾛﾜ,TEMP |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-22280 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S MODE,内外気 |
2 | ||
| 55905-22260 |
LH10#,11#,12#,140,RZH10#,11#,12# ﾌﾞﾛﾜ,TEMP |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95J03 |
LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95J09 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S ﾌﾞﾗﾂｸ |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S ﾌﾞﾙ- |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J09 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-13013 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 55922 - BRACKET, HEATER CONTROL BASE | ||||
| 55922-95J01 |
KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 93560-15020 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
| 8712 | ||||
| 8716 | ||||

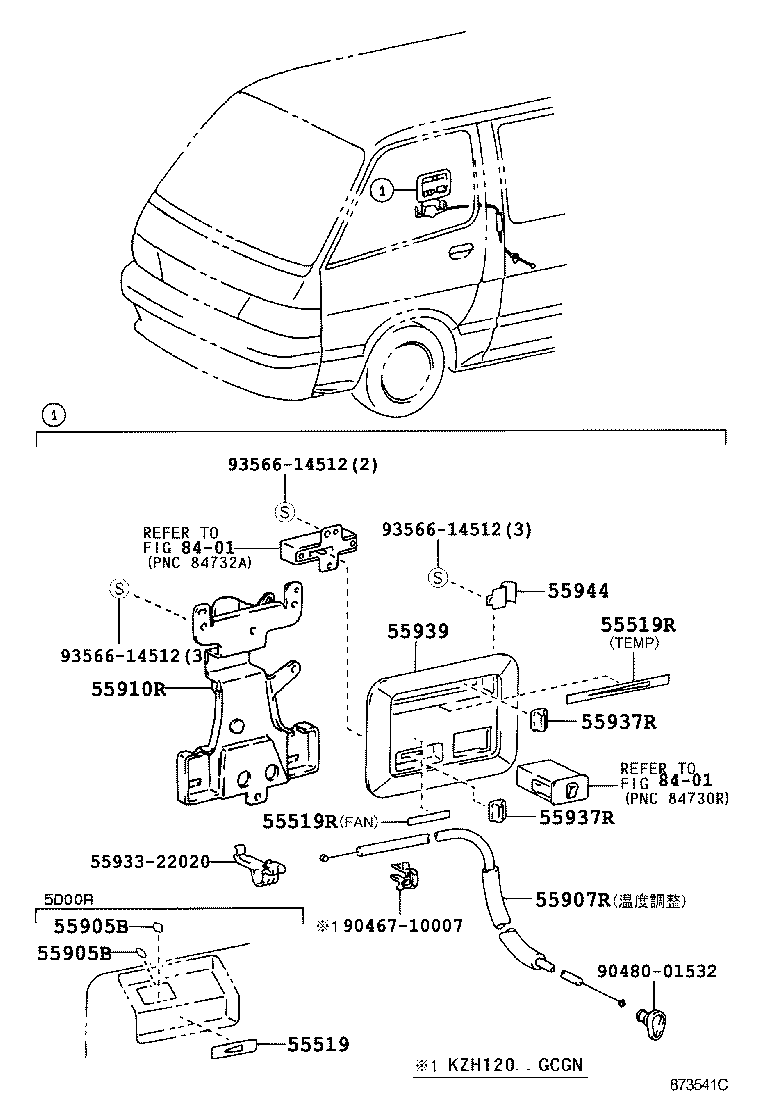

ILLUST NO. 2 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-95J20 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) TEMP |
1 | ||
| 55519-95J19 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) ﾌｧﾝ |
1 | ||
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-95J20 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) TEMP |
1 | ||
| 55519-95J19 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) ﾌｧﾝ |
1 | ||
| 55907R - CABLE SUB-ASSY, TEMPERATURE CONTROL | ||||
| 55907-95J05 |
RZH102,112..850K;LH100,102,109,113,115,119,123,125,129,RZH100,102,112,12#..(COM,V1,WG)..4D..(DX,GL,SGL) |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-95J21 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) |
1 | ||
| 55937R - KNOB, HEATER CONTROL LEVER | ||||
| 55905-10110 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) |
2 | ||
| 55937R - KNOB, HEATER CONTROL LEVER | ||||
| 55905-10110 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) |
2 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55939-95J0102 |
LH110,115,117,125,RZH110,124..DX,GL NEW MAROON,TRIM3# |
1 | ||
| 55944 - PLATE, HEATER CONTROL SUPPORT | ||||
| 55944-95J00 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SGL) |
3 | ||
| Common parts | ||||
| 55933-22020 | ||||
| 90467-10007 | ||||
| 90480-01532 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

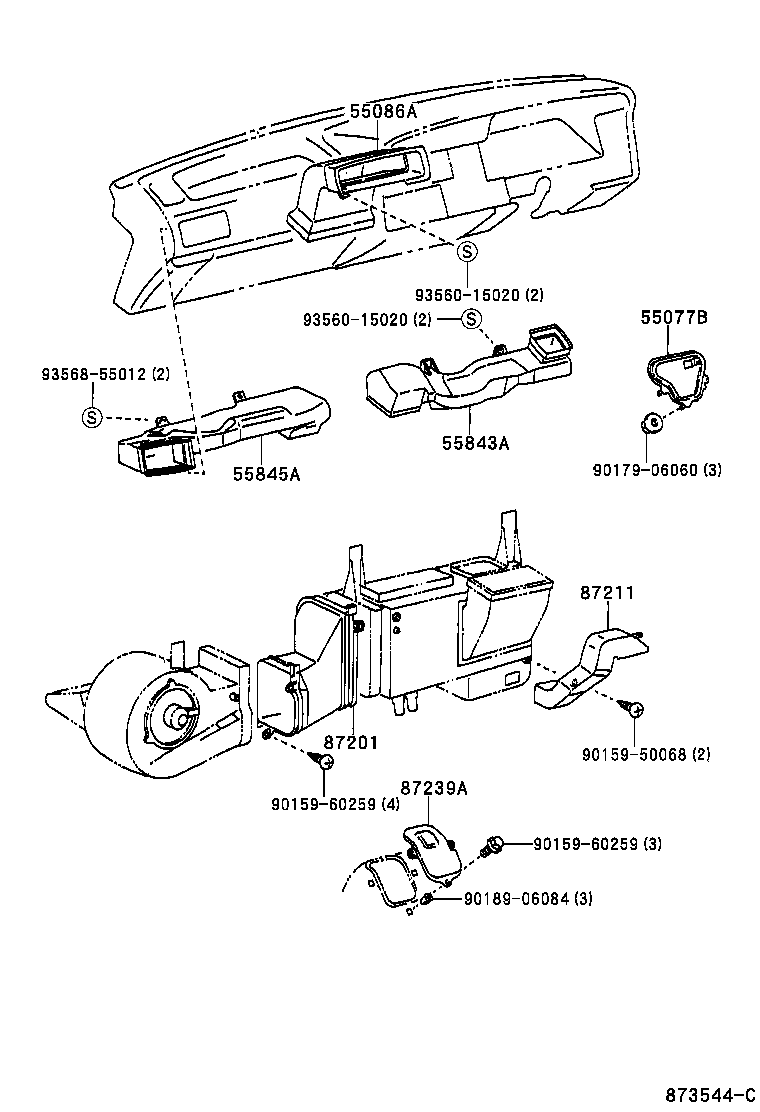

ﾌﾛﾝﾄﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55077B - COVER SUB-ASSY, HEATER AIR DUCT HOLE | ||||
| 55077-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-95J05 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-95J03 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-95J01 |
LH10#,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95J11 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 87239A - COVER, HEATER INLET HOLE | ||||
| 87239-95J04 |
LH10#,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL,SW |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90159-60259 | ||||
| 90179-06060 | ||||
| 90189-06084 | ||||
| 93560-15020 | ||||
| 93568-55012 | ||||

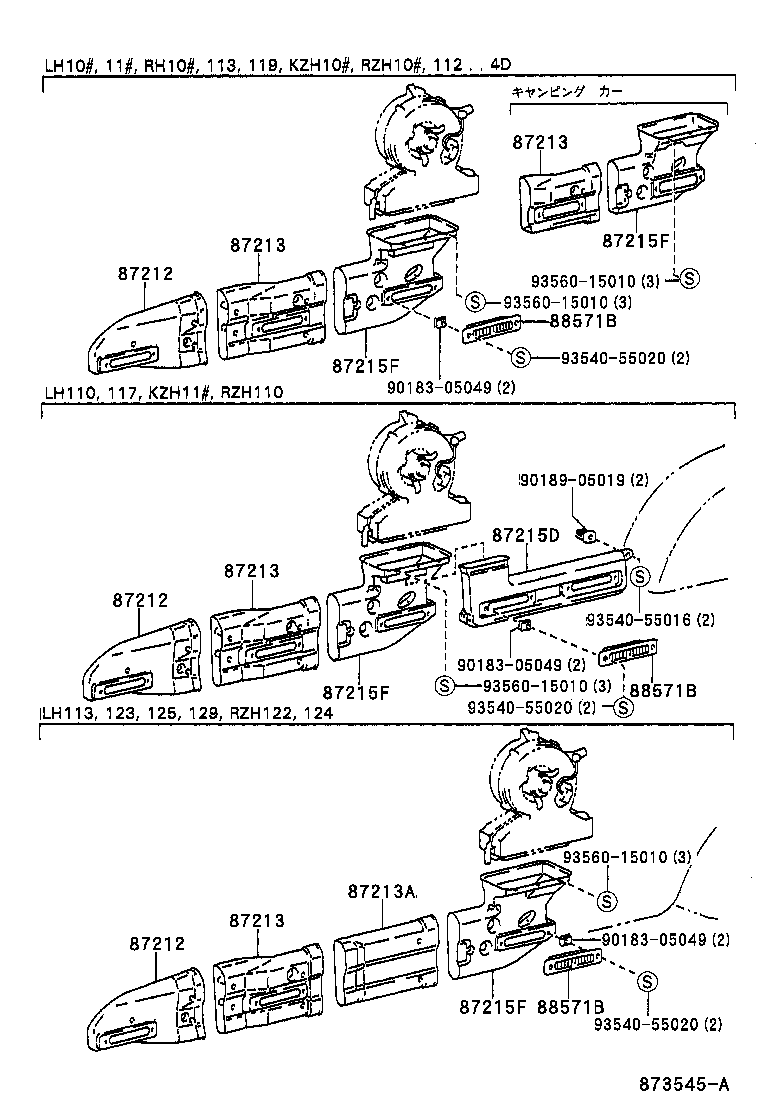

ILLUST NO. 4 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔﾋ-ﾀ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-95J02 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-95J02 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-95J02 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-95J03 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-95J03 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-95J03 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-95J03 |
RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-95J02 |
RZH102,112..850K;LH10#,113,119,123,125,129,RZH10#,112,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,15S) |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-95J02 |
RZH102,112..850K;LH10#,113,119,123,125,129,RZH10#,112,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,15S) |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-95J02 |
RZH102,112..850K;LH10#,113,119,123,125,129,RZH10#,112,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,15S) |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-95J02 |
RZH102,112..850K;LH10#,113,119,123,125,129,RZH10#,112,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,15S) |
1 | ||
| Common parts | ||||
| 90183-05049 | ||||
| 90189-05019 | ||||
| 93540-55016 | ||||
| 93540-55020 | ||||
| 93560-15010 | ||||

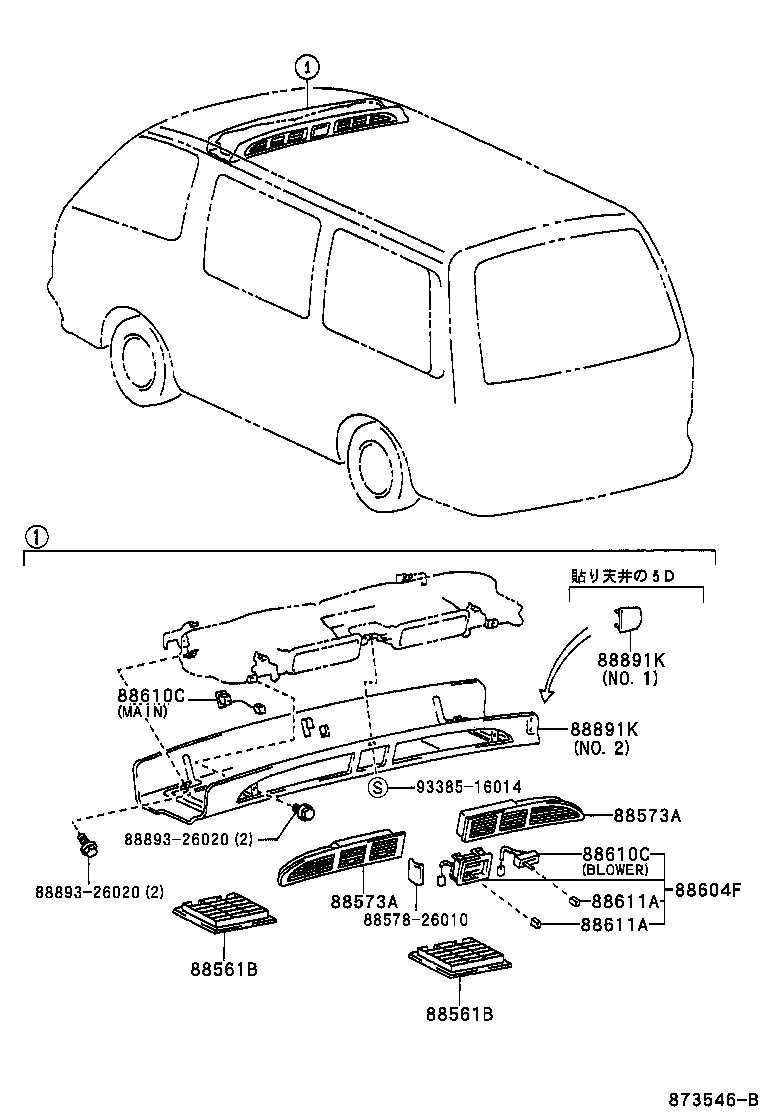

ILLUST NO. 5 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ(ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH110,115,117,125,RZH110,124..DX,GL IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| Common parts | ||||
| 88578-26010 | ||||
| 88893-26020 | ||||
| 93385-16014 | ||||
ILLUST NO. 5 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ(ﾃﾞｲ-ﾗ-ｵﾌﾟｼﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| Common parts | ||||
| 88578-26010 | ||||
| 88688-95J89 | ||||
| 88893-26020 | ||||
| 93385-16014 | ||||
| 93540-55016 | ||||
ILLUST NO. 5 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ(ﾒ-ｶ-ｵﾌﾟｼﾖﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| Common parts | ||||
| 88688-95J89 | ||||
| 90159-60446 | ||||
| 91651-40614 | ||||
| 93510-05010 | ||||
| 93540-55016 | ||||

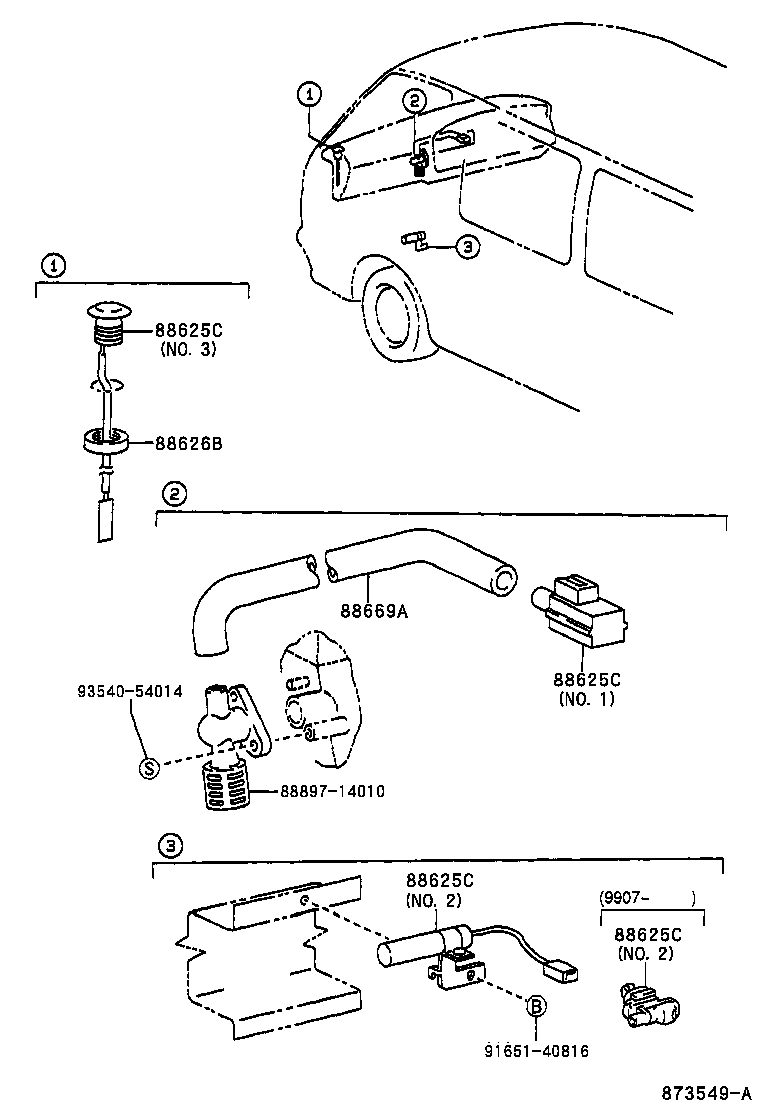

ILLUST NO. 6 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ｵ-ﾄｴｱｺﾝ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88897-14010 | ||||
| 91651-40816 | ||||
| 93540-54014 | ||||
ILLUST NO. 5 OF 6(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH110,115,117,125,RZH110,124..DX,GL IVORY,TRIM3# |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH110,115,117,125,RZH110,124..DX,GL IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| Common parts | ||||
| 88536-95J42 | ||||
| 88578-26010 | ||||
| 88718-22420 | ||||
| 88899-95J19 | ||||
| 90119-06882 | ||||
| 93219-13005 | ||||
| 93219-13008 | ||||
| 93315-15010 | ||||
| 93540-55020 | ||||
| 93560-56012 | ||||
ILLUST NO. 5 OF 6(0308- )TRH124
ﾘﾔｸ-ﾗ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0508 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
2 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88573A - BASE, GRILLE | ||||
| 88573-95J01A0 |
LH110,115,125,RZH110,124 IVORY,TRIM3#,左側 |
1 | ||
| 88573-95J00A0 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3#,右側 |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0308 |
LH110,115,117,125,RZH110,124..DX,GL IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95704 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL) ﾌﾞﾛﾜ |
1 | ||
| 88610-95J0208 |
LH110,115,117,120,125,RZH110,124..10S,15S IVORY,TRIM3# |
1 | ||
| 88611A - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95A01 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
2 | ||
| Common parts | ||||
| 88536-95J42 | ||||
| 88578-26010 | ||||
| 88718-22420 | ||||
| 90119-06882 | ||||
| 93219-13005 | ||||
| 93219-13008 | ||||
| 93315-15010 | ||||
| 93540-55020 | ||||
| 93560-56012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
