TRH124B-ZRMDK (2003)
Toyota Hiace/Regiusace
ILLUST NO. 2 OF 5(8908- )
REAR UNIT---TWIN TYPE (MAKER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 88515-28040 | ||||
| 88578-95J01 | ||||
| 88714-95J00 | ||||
| 88899-95J19 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14121 | ||||
| 90413-15001 | ||||
| 90480-26022 | ||||
ILLUST NO. 2 OF 5(8908- )
REAR UNIT (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-95J07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) ﾌﾛﾝﾄ |
2 | ||
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| Common parts | ||||
| 82711-95704 | ||||
| 88569-95J00 | ||||
| 88578-95J01 | ||||
| 88578-95J09 | ||||
| 88897-87101 | ||||
| 88899-95J19 | ||||
| 90099-32138 | ||||
| 90413-15001 | ||||
| 90480-20013 | ||||
| 90480-26022 | ||||
| 93385-16014 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||

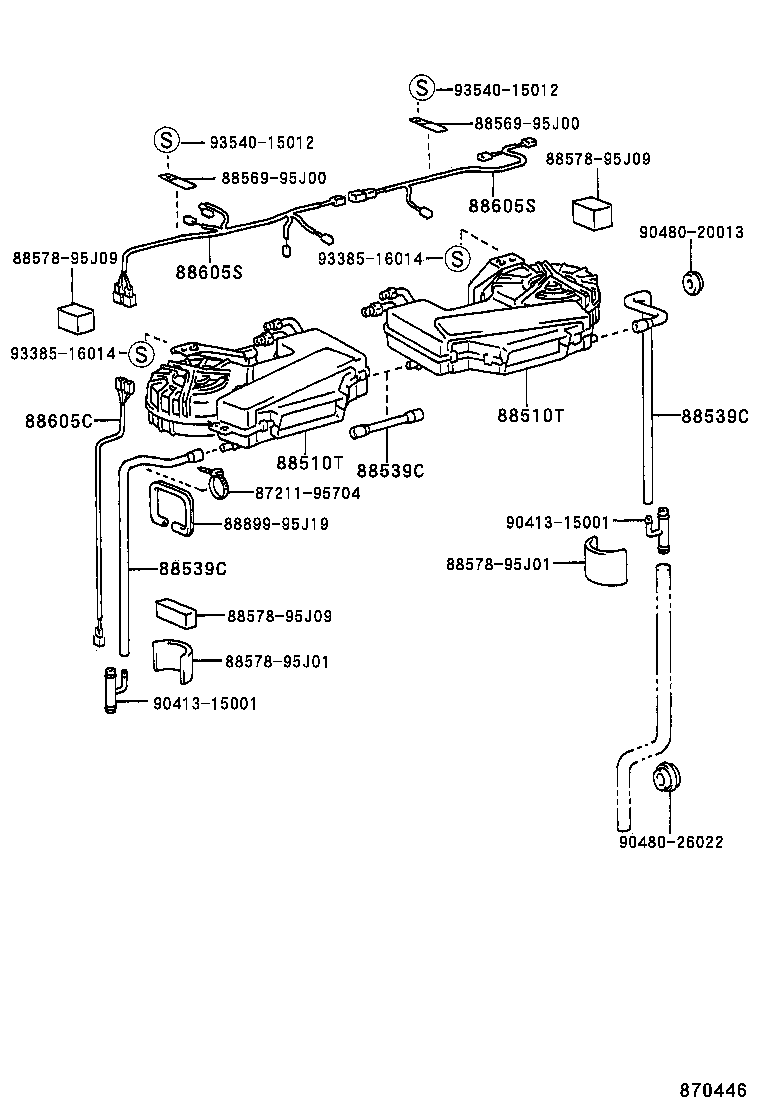

ILLUST NO. 2 OF 5(8908- )
REAR UNIT---TWIN TYPE (DEALER OPT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605C - HARNESS SUB-ASSY, COOLER WIRING, NO.2 | ||||
| 88605-95N07 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM) |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| Common parts | ||||
| 87211-95704 | ||||
| 88569-95J00 | ||||
| 88578-95J01 | ||||
| 88578-95J09 | ||||
| 88899-95J19 | ||||
| 90413-15001 | ||||
| 90480-20013 | ||||
| 90480-26022 | ||||
| 93385-16014 | ||||
| 93540-15012 | ||||
ILLUST NO. 3 OF 5(8908- )
REAR UNIT BRACKET (MAKER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06311 | ||||
| 90179-06274 | ||||
| 91651-40614 | ||||
| 93540-25010 | ||||

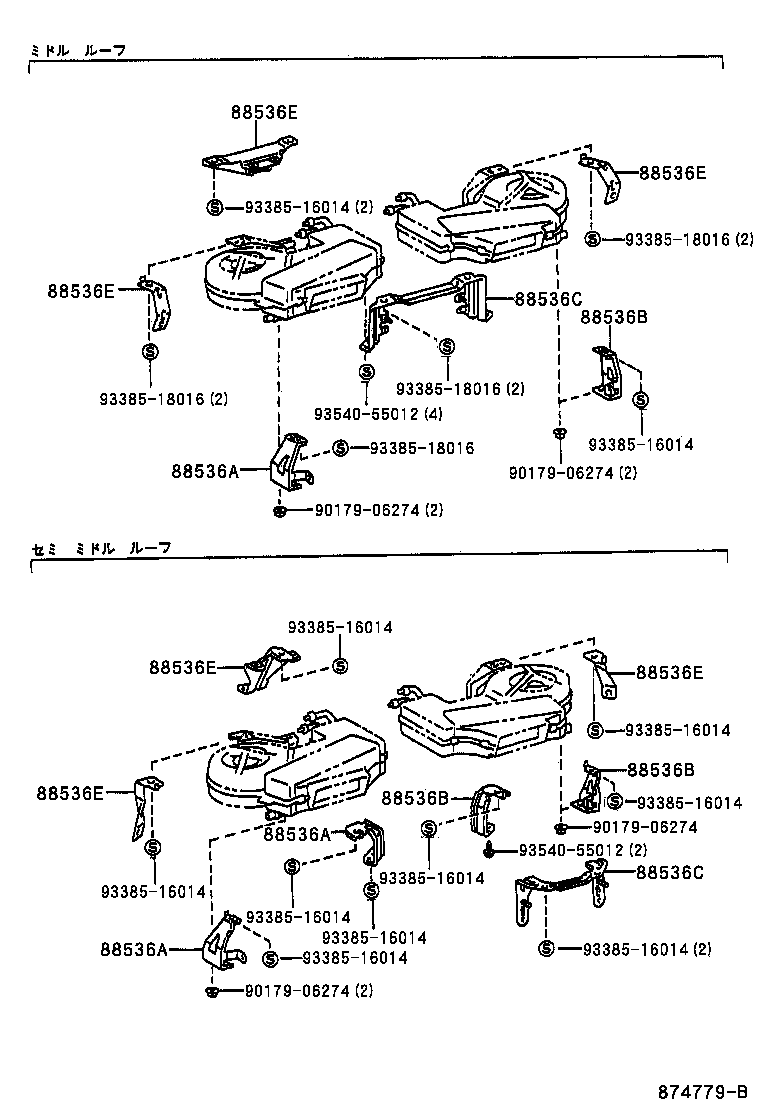

ILLUST NO. 3 OF 5(8908- )
REAR UNIT BRACKET (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-26010 | ||||
| 90091-20604 | ||||
| 90179-06274 | ||||
| 93385-16014 | ||||
| 93540-15012 | ||||
ILLUST NO. 3 OF 5(8908- )
REAR UNIT BRACKET (DEALER OPTION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06274 | ||||
| 93385-16014 | ||||
| 93385-18016 | ||||
| 93540-55012 | ||||
ILLUST NO. 2 OF 5(0308- )TRH12# ; (0308- )TRH102,112..SGLE
REAR UNIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-95N17 |
LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-90A00 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 88569-26030 | ||||
| 88578-95J09 | ||||
| 88899-95J19 | ||||
| 90099-00931 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90099-14121 | ||||
| 90099-32138 | ||||
| 90183-06020 | ||||
| 90480-26022 | ||||
| 93530-55016 | ||||
| 93540-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8718 | ||||
