TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )KZH12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#,TRH12#..

Click highlighted areas on diagram

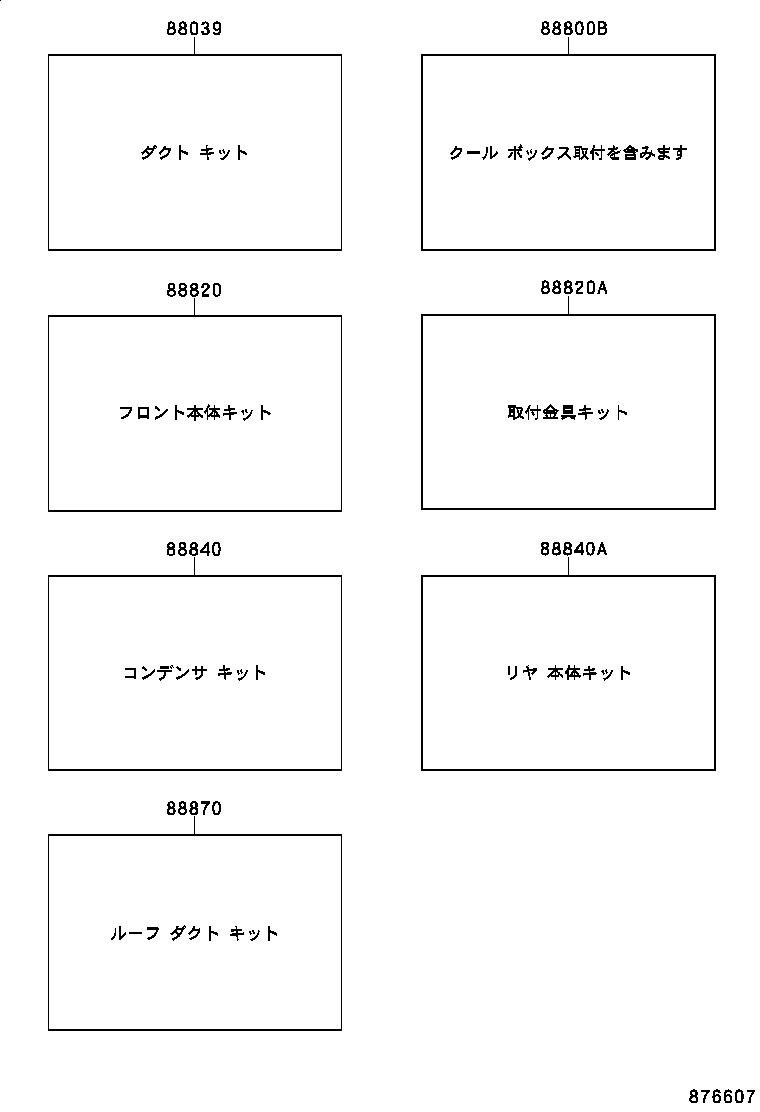

diagram 88039 88800B 88820 88820A 88840 88840A 88870
Part # Description Qty Price
88039 - ADDITIONAL KIT,AIRCONDITIONER
88870-26570

TRH124

 1
88870-26570

TRH124

 1
88820 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1
88820-95J05

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88820-95J05

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88820A - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2
88830-95J55

RZH102,112..GL;RZH112,12#..(09S,15S)..DX

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88830-95J55

RZH102,112..GL;RZH112,12#..(09S,15S)..DX

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88830-26680

TRH112..SRF..DX;TRH112..HRF..4D;TRH102,12#..DX,GL

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88830-26680

TRH112..SRF..DX;TRH112..HRF..4D;TRH102,12#..DX,GL

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88840 - AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.3
88840-95J06

LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88840-95J06

LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
