TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

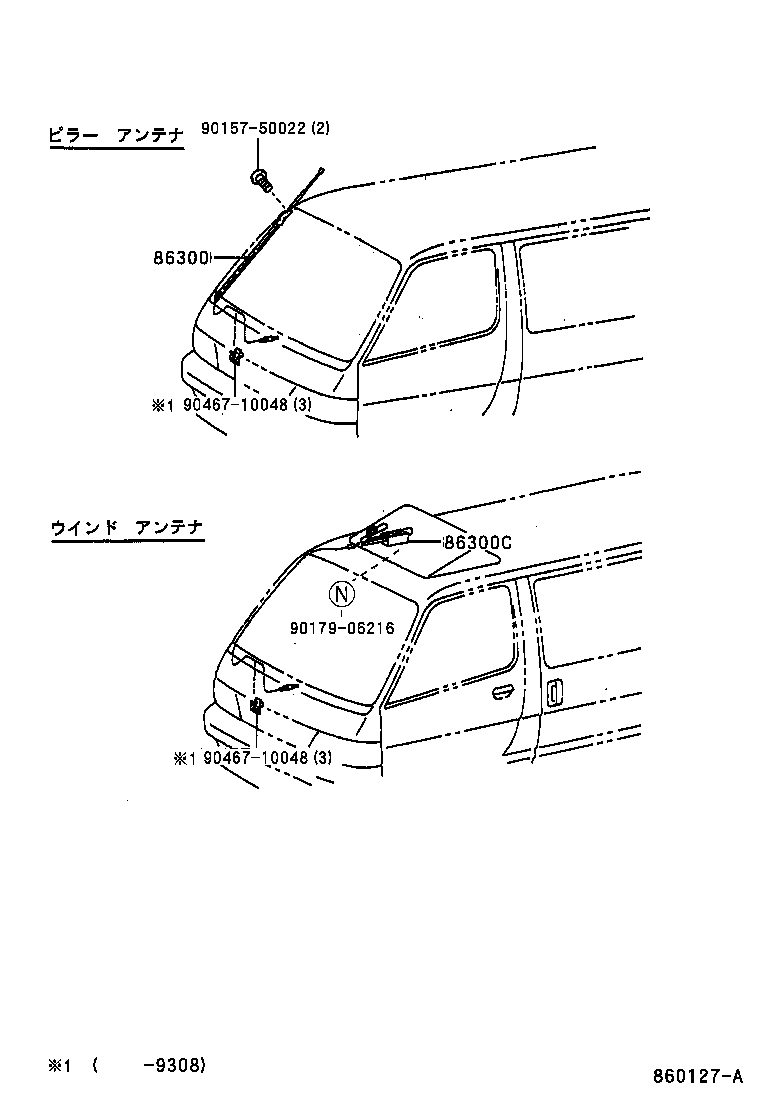

ILLUST NO. 1 OF 2(8908- )

Click highlighted areas on diagram

ﾗｼﾞｵ

diagram 86300 86300C 9015750022 9017906216 9046710048 9046710048
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-95J06

RZH100..08S,09S;LH10#,11#,12#,140,RZH101,102,11#,12#..HRF,SMRF,SRF

 1
Common parts
90157-50022
90179-06216
90467-10048
