TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

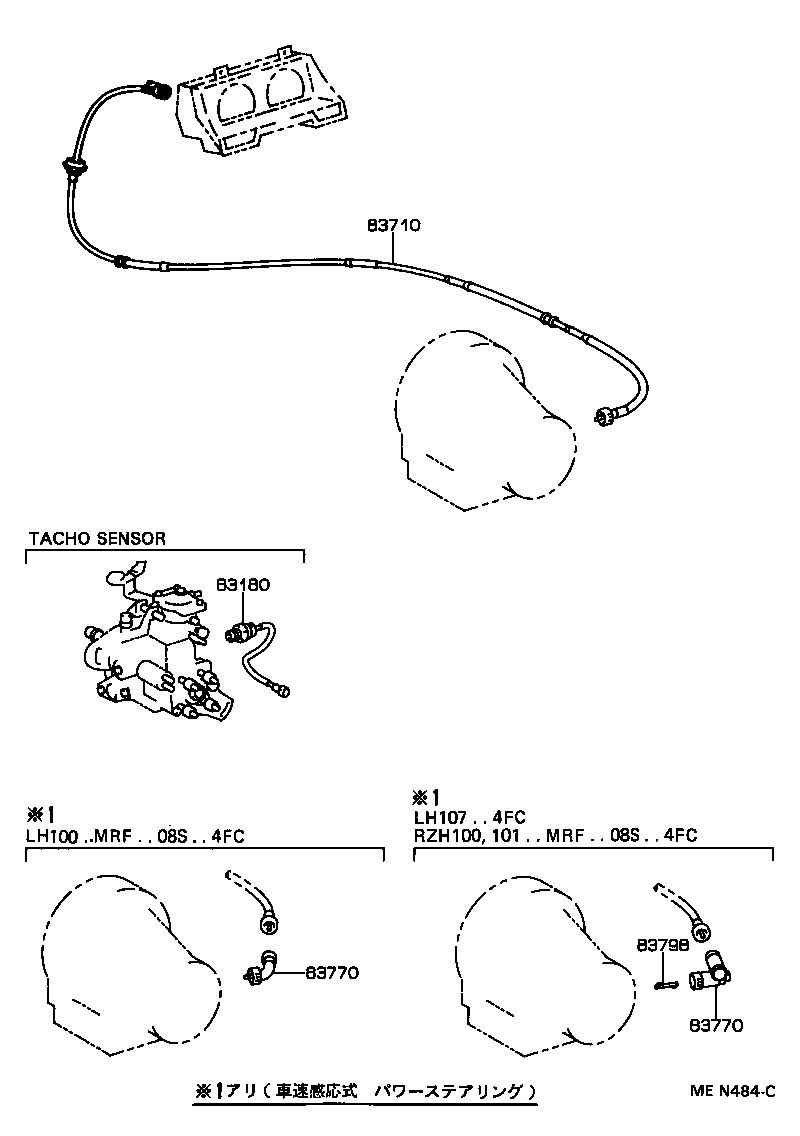

ILLUST NO. 3 OF 5(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

ｽﾋﾟｰﾄﾞﾒｰﾀ ｹｰﾌﾞﾙ

diagram 83180 83710 83770 83770 83798
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95J32

LH100,102,110,113,115,123,125,140,RZH100,102,11#,12#..5F..(CBR,DSL,EFI)

 1

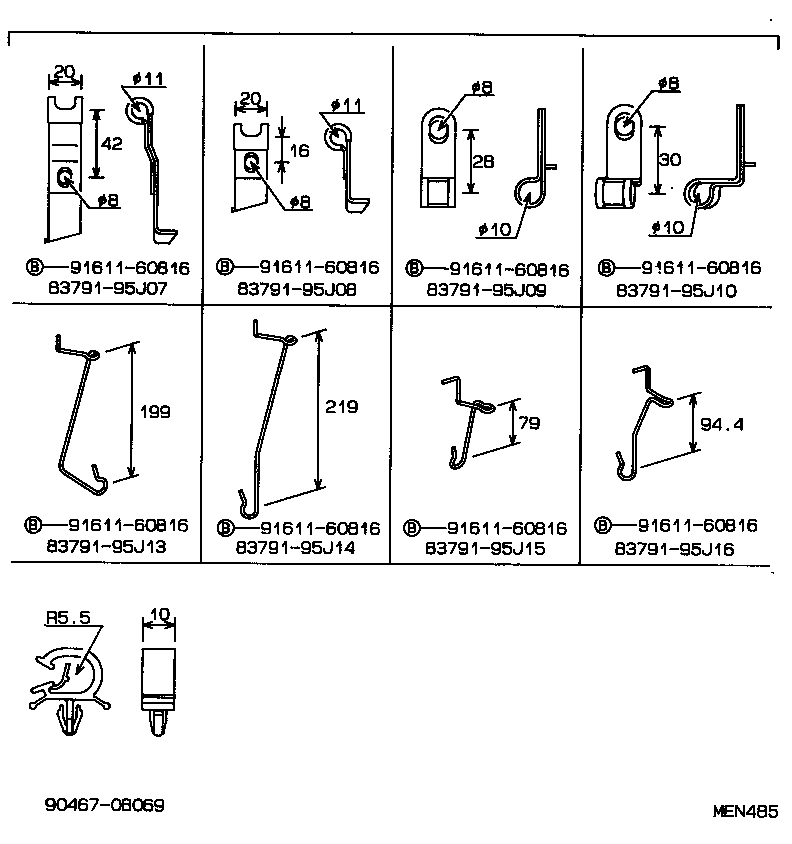

ILLUST NO. 5 OF 5(8908- )KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133,18#

Click highlighted areas on diagram

ｽﾋﾟｰﾄﾞﾒｰﾀｹｰﾌﾞﾙ ｸﾗﾝﾌﾟ

diagram 8379195J07 8379195J08 8379195J09 8379195J10 8379195J13 8379195J14 8379195J15 8379195J16 9046708069 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816
Part # Description Qty Price
Common parts
83791-95J07
83791-95J08
83791-95J09
83791-95J10
83791-95J13
83791-95J14
83791-95J15
83791-95J16
90467-08069
91611-60816
