TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

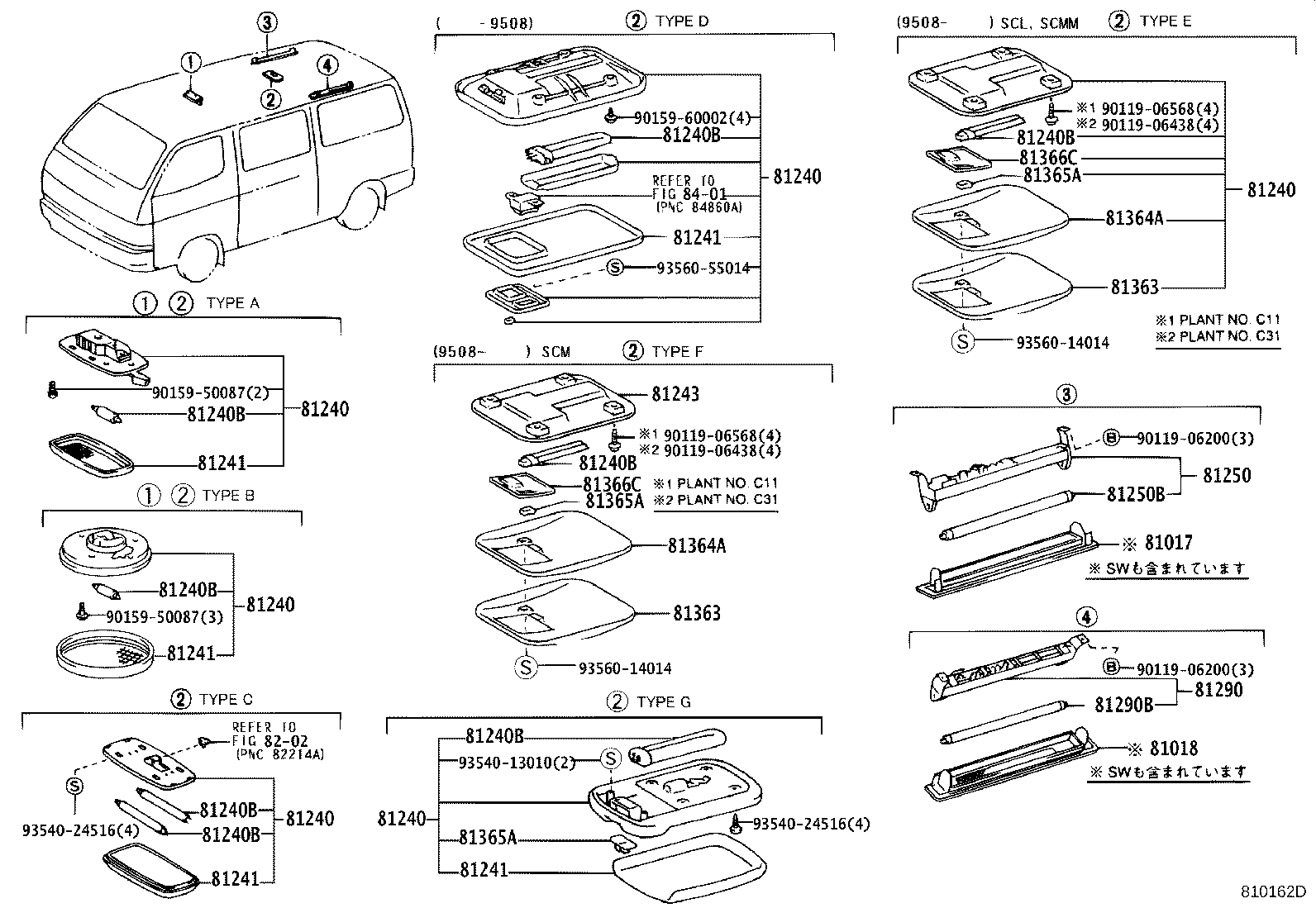

ILLUST NO. 1 OF 3(8908- )

Click highlighted areas on diagram

diagram 81017 81018 81240 81240 81240 81240 81240 81240 81240B 81240B 81240B 81240B 81240B 81240B 81240B 81240B 81241 81241 81241 81241 81241 81243 81250 81250B 81290 81290B 81363 81363 81364A 81364A 81365A 81365A 81365A 81366C 81366C 8202 8401 9011906200 9011906200 9011906438 9011906438 9011906568 9011906568 9015950087 9015950087 9015960002 9354013010 9354024516 9354024516 9356014014 9356014014 9356055014
Part # Description Qty Price
Common parts
90119-06200
90119-06438
90119-06568
90159-50087
90159-60002
93540-13010
93540-24516
93560-14014
93560-55014
Linked diagrams
8202
8401

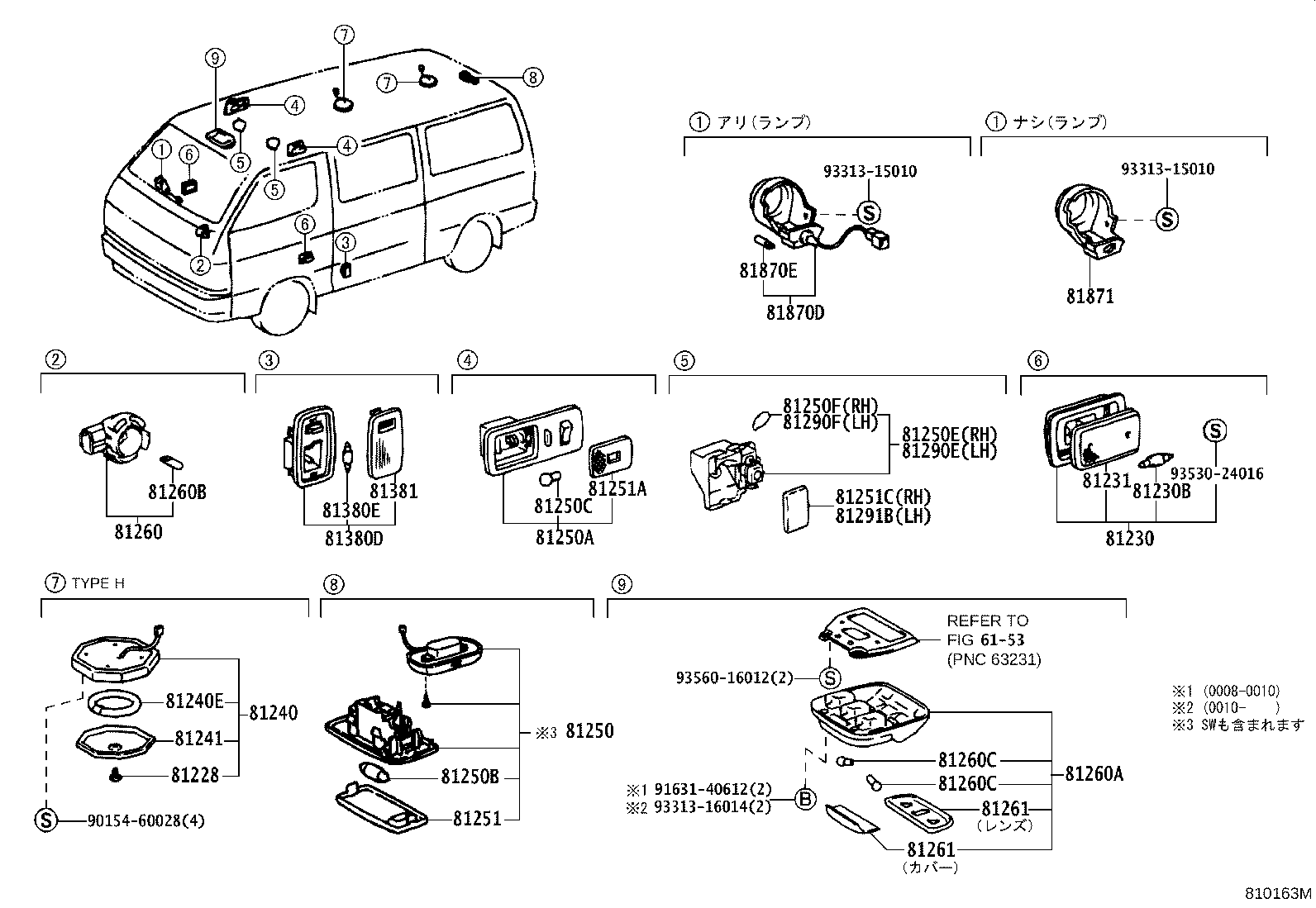

ILLUST NO. 2 OF 3(8908- )

Click highlighted areas on diagram

diagram 6153 81228 81230 81230B 81231 81240 81240E 81241 81250 81250A 81250B 81250C 81250E 81250F 81251 81251A 81251C 81260 81260A 81260B 81260C 81260C 81261 81261 81290E 81290F 81291B 81380D 81380E 81381 81870D 81870E 81871 9015460028 9163140612 9331315010 9331315010 9331316014 9353024016 9356016012
Part # Description Qty Price
81380D - LAMP ASSY, STEP
81250-95J0502

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

MAROON,TRIM3#

 1
81380E - BULB (FOR STEP LAMP)
99132-13050

LH100,102,107,11#,120,123,125,RZH100,101,11#,12#..05S,07S,08S,09S,10S,15S

 1
81381 - LENS, STEP LAMP
81251-12030

LH100,102,107,11#,120,123,125,RZH100,101,11#,12#..05S,07S,08S,09S,10S,15S

 1
81871 - LENS, KEY ILLUMINATION
81871-95J00

KZH100,11#,LH100,102,103,109,11#,12#,140,RZH100,102,11#,12#,133..CD,DX,SW

 1
Common parts
90154-60028
91631-40612
93313-15010
93313-16014
93530-24016
93560-16012
Linked diagrams
6153

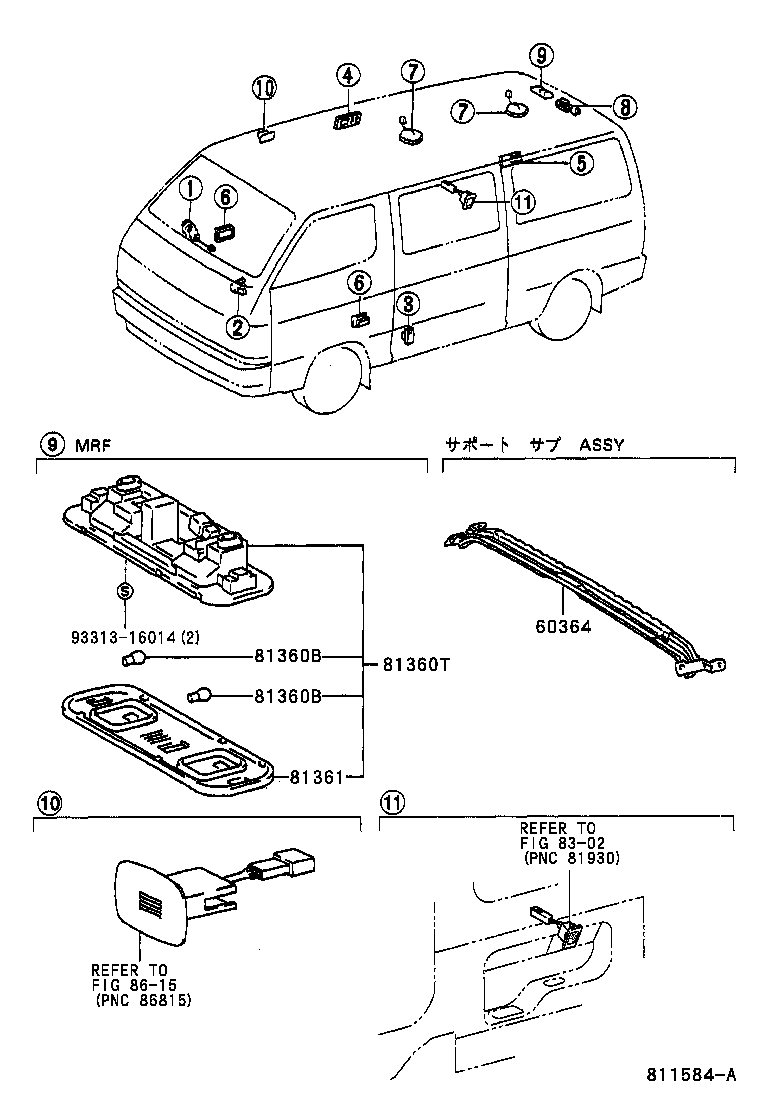

ILLUST NO. 3 OF 3(8908- )

Click highlighted areas on diagram

diagram 60364 81360B 81360B 81360T 81361 8302 8615 9331316014
Part # Description Qty Price
Common parts
93313-16014
Linked diagrams
8302
8615
