TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

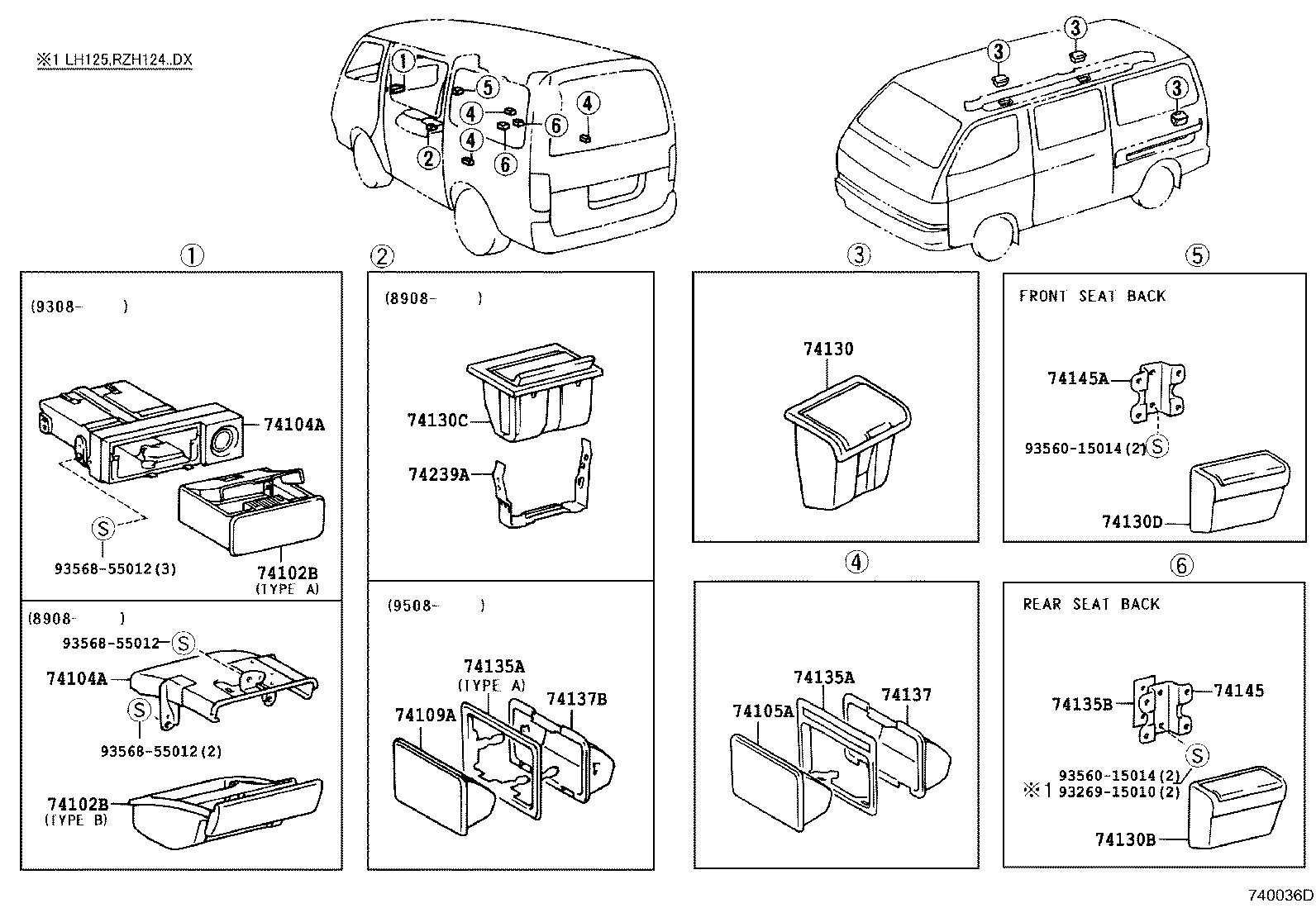

Click highlighted areas on diagram

diagram 74102B 74102B 74104A 74104A 74105A 74109A 74130 74130B 74130C 74130D 74135A 74135A 74135B 74137 74137B 74145 74145A 74239A 9326915010 9356015014 9356015014 9356855012 9356855012 9356855012
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-95J03

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-95J03

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW

 1
74105A - RECEPTACLE SUB-ASSY, REAR ASH
74105-1001012

LH120..GCGE;LH113..09S..5F;LH102..5D..5F..GL;LH102..4D..(DX,SGL);LH113..V1..4D..(05S,06S);LH100,109,110,115,117,119,125,RZH100,102,11#,124..(COM,V1,WG)..4D..(DX,GL,SGL)

NEW MAROON,TRIM3#

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-10030

LH120..GCGE;KZH100,11#,120,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#..4D..(DX,GCGE,GL,SGL,SW)

 1
74135A - RETAINER, REAR ASH RECEPTACLE, NO.1
74135-10030

LH120..GCGE;KZH100,11#,120,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#..4D..(DX,GCGE,GL,SGL,SW)

 1
74137 - RETAINER, REAR ASH RECEPTACLE, INNER RH
74137-10030

LH120..GCGE;KZH100,11#,120,LH100,102,103,109,11#,123,125,129,140,16#,17#,18#,RZH100,102,11#,12#..4D..(DX,GCGE,GL,SGL,SW)

 1
Common parts
93269-15010
93560-15014
93568-55012
