TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

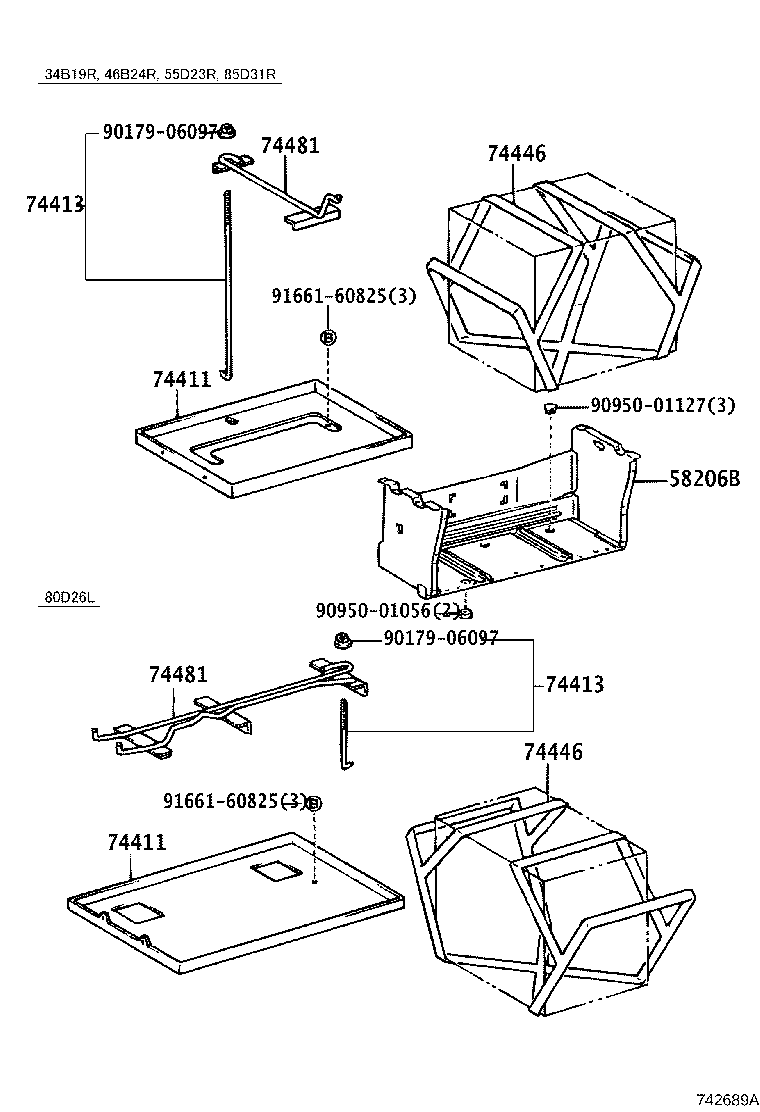

Click highlighted areas on diagram

diagram 58206B 74411 74411 74413 74413 74446 74446 74481 74481 9017906097 9017906097 9095001056 9095001127 9166160825 9166160825
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-95J03

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
74411 - CARRIER, BATTERY
74411-95J03

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
74413 - BOLT, BATTERY CLAMP
74451-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
74413 - BOLT, BATTERY CLAMP
74451-95J02

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
74446 - BAND, BATTERY
74446-95702

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
74446 - BAND, BATTERY
74446-95702

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J08

RZH102,112,12#..CD,DX

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19R OR 46B24R)

 1
74404-95J09

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95J08

RZH102,112,12#..CD,DX

ｱﾘ(ﾊﾞﾂﾃﾘ=34B19R OR 46B24R)

 1
74404-95J09

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#

 1
Common parts
90179-06097
90950-01056
90950-01127
91661-60825
