TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 71345C 71346C 71434 79041A 79043A 79189 79199 79378 79405 79405 79405A 79406 79406A 79420A 79435 79440A 79475 9010510161 9010510161 9011910315 9011910315 9011910409 9011910409 9011910415 9016450020 9050623023 9052306017
Part # Description Qty Price
71434 - PIN, REAR SEAT CUSHION LEG, REAR
71434-95701

LH113..V2..5D..DX;LH113,123..09S..4FC;LH113..V2..4D..5F..DX;LH113,119,123..V1..06S..DX;LH103,125,RZH112..DX,GL,SGL;KZH11#,LH102,109,110,115,117,129,RZH102,110,111,12#..DX

 2
79043A - COVER SUB-ASSY, NO.4 SEAT BACK
79043-26050B0

TRH124..DX

ｼ-ﾄ = TYPE C-*104,BLUISH GRAY,TRIM1#

 1
79189 - STOPPER, NO.1 SEAT LEG
79189-95J00

LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH110,115,119,123,125,RZH110,12#..09S,10S,15S

 2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00

LH113,RZH112..09S..DX;LH110,115,119,123,125,RZH110,12#..09S,10S,15S;LH102,109,113,119,RZH102,112..(05S,06S)..(GL,SGL)

 2
79378 - COVER, NO.3 SEAT CUSHION HINGE
79378-95J0002

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 2
79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT
79405-95J01

LH110,115,117,125,RZH110,124..DX

左側

 1
79405-95J03

LH110,115,117,125,RZH110,124..DX

右側

 1
79405 - LEG SUB-ASSY, NO.4 SEAT, FRONT
79405-95J01

LH110,115,117,125,RZH110,124..DX

左側

 1
79405-95J03

LH110,115,117,125,RZH110,124..DX

右側

 1
79475 - PAD, NO.4 SEAT BACK
79047-95J00

KZH11#,LH110,115,117,125,184,186,RZH110,111,124,125..DX

 1
Common parts
90105-10161
90119-10315
90119-10409
90119-10415
90164-50020
90506-23023
90523-06017

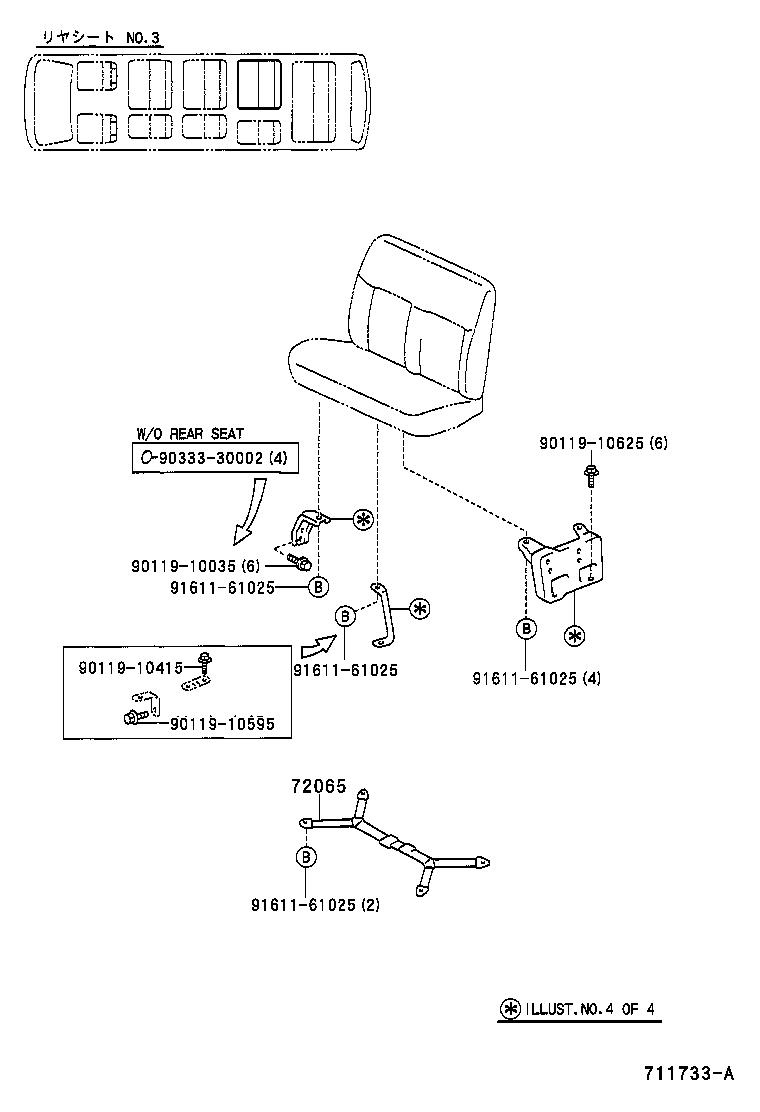

ILLUST NO. 4 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124

Click highlighted areas on diagram

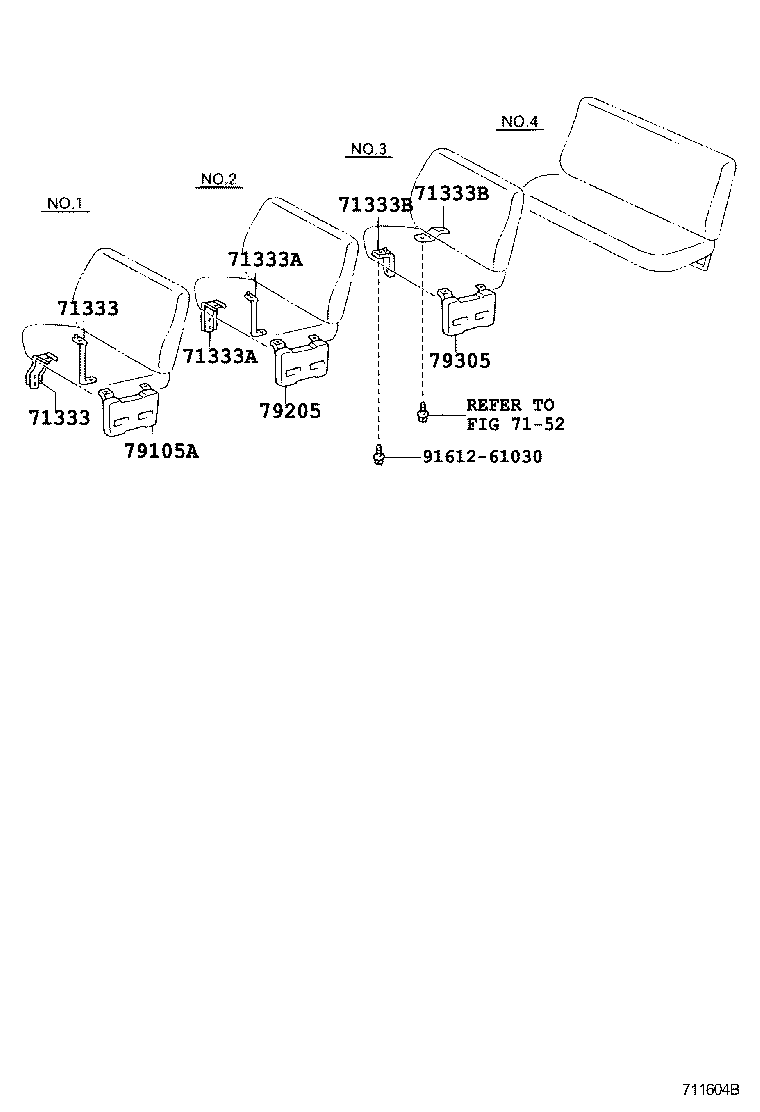

diagram 71333 71333 71333A 71333A 71333B 71333B 7152 79105A 79205 79305 9161261030
Part # Description Qty Price
Common parts
91612-61030
Linked diagrams
7152

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 71274 72329 7451 7456 79011A 79013A 79120A 79135 79140A 79175 79961 79961 9161161025
Part # Description Qty Price

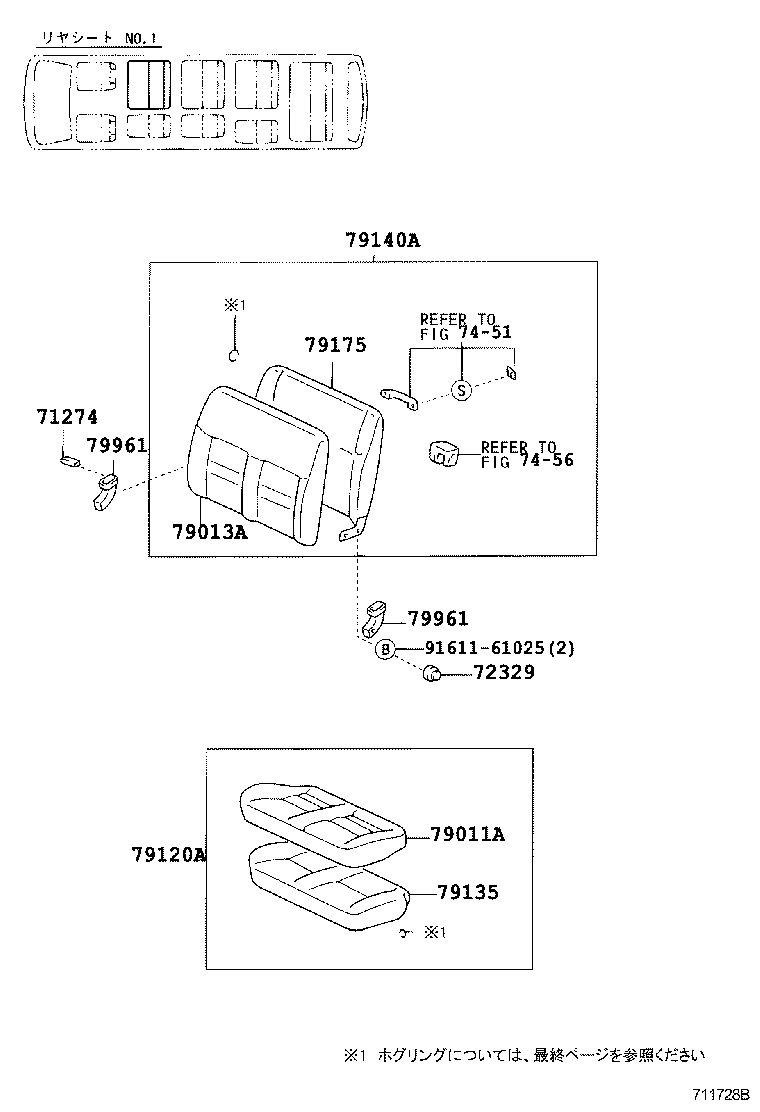

71274 - KNOB, FRONT SEAT HINGE
71274-95J0002

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
79135 - PAD, NO.1 SEAT CUSHION
79015-95J00

KZH11#,LH110,115,117,125,184,186,RZH110,111,124,125..DX

 1
Common parts
91611-61025
Linked diagrams
7451
7456

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 72065 9011910035 9011910625 9033330002 9161161025 9161161025 9161161025 9161161025
Part # Description Qty Price

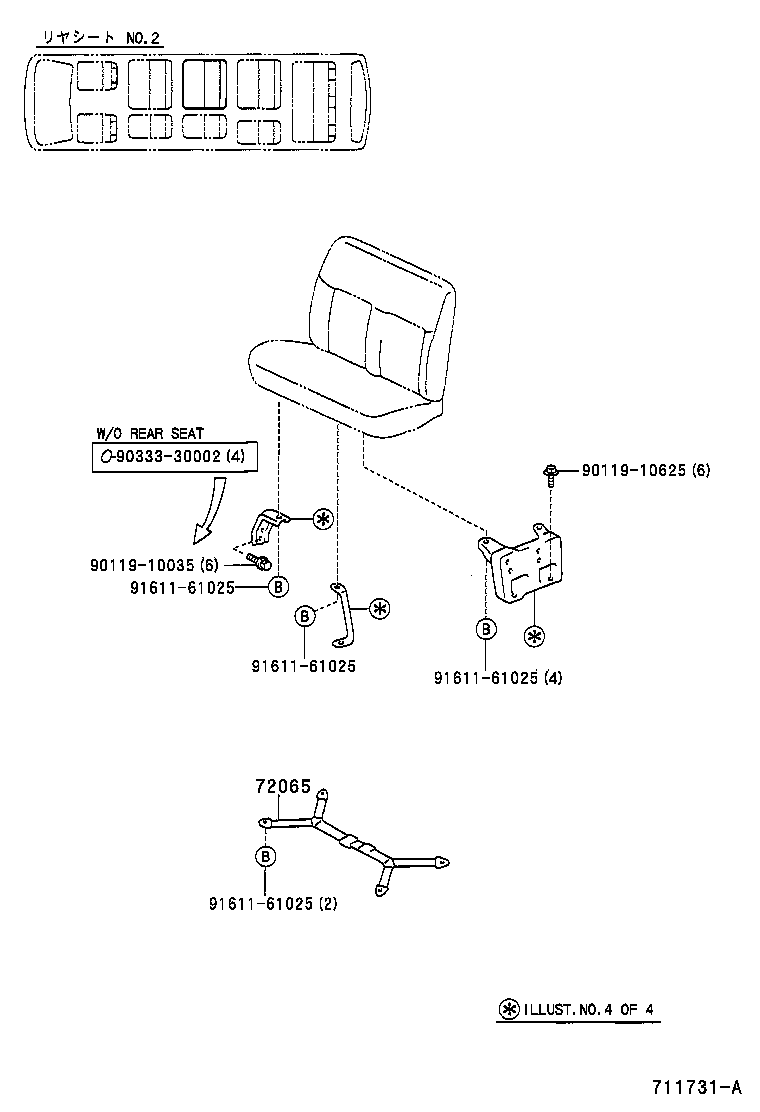

72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH
72065-95J04

KZH11#,LH110,115,117,125,RZH110,124..DX,GL

 1
Common parts
90119-10035
90119-10625
90333-30002
91611-61025

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 71274 72329 7451 7456 79021A 79023A 79220A 79235 79240A 79275 79961 79961 9161161025
Part # Description Qty Price

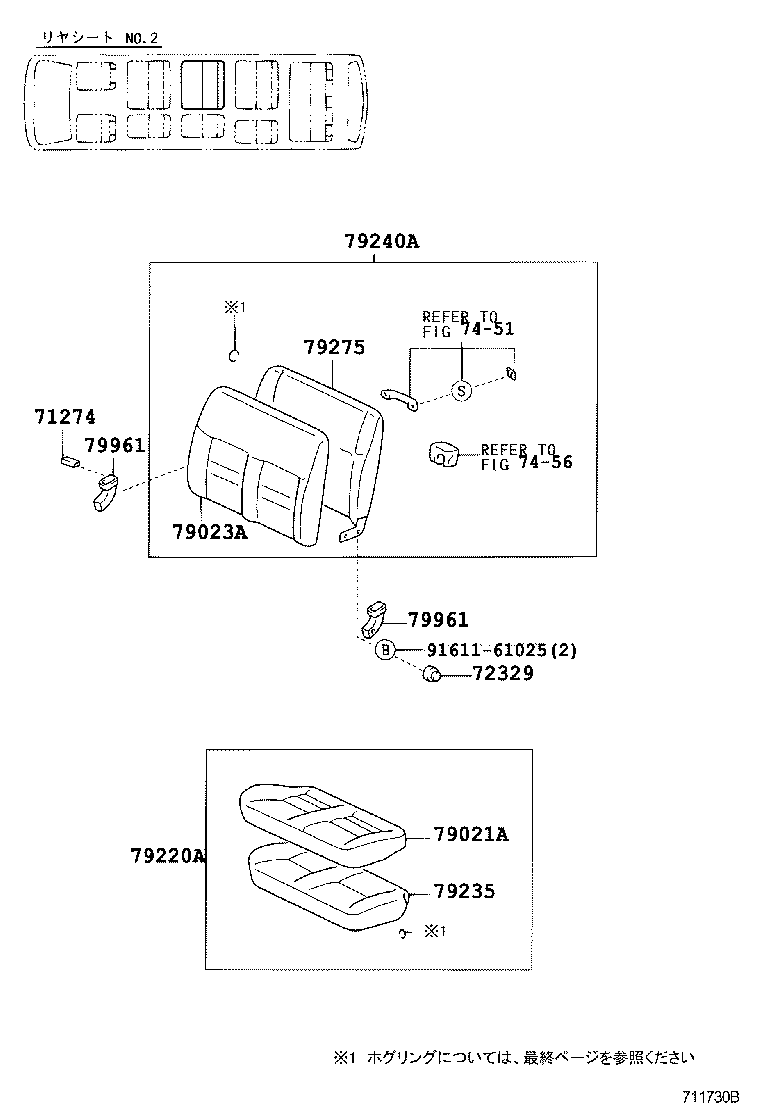

71274 - KNOB, FRONT SEAT HINGE
71274-95J0002

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
79235 - PAD, NO.2 SEAT CUSHION
79015-95J00

KZH11#,LH110,115,117,125,184,186,RZH110,111,124,125..DX

 1
Common parts
91611-61025
Linked diagrams
7451
7456

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 72065 9011910035 9011910625 9033330002 9161161025 9161161025 9161161025 9161161025
Part # Description Qty Price
72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH
72065-95J04

KZH11#,LH110,115,117,125,RZH110,124..DX,GL

 1
Common parts
90119-10035
90119-10625
90333-30002
91611-61025

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 71274 72329 7451 7456 79031A 79033A 79320A 79335 79340A 79375 79961 79961 9161261022
Part # Description Qty Price

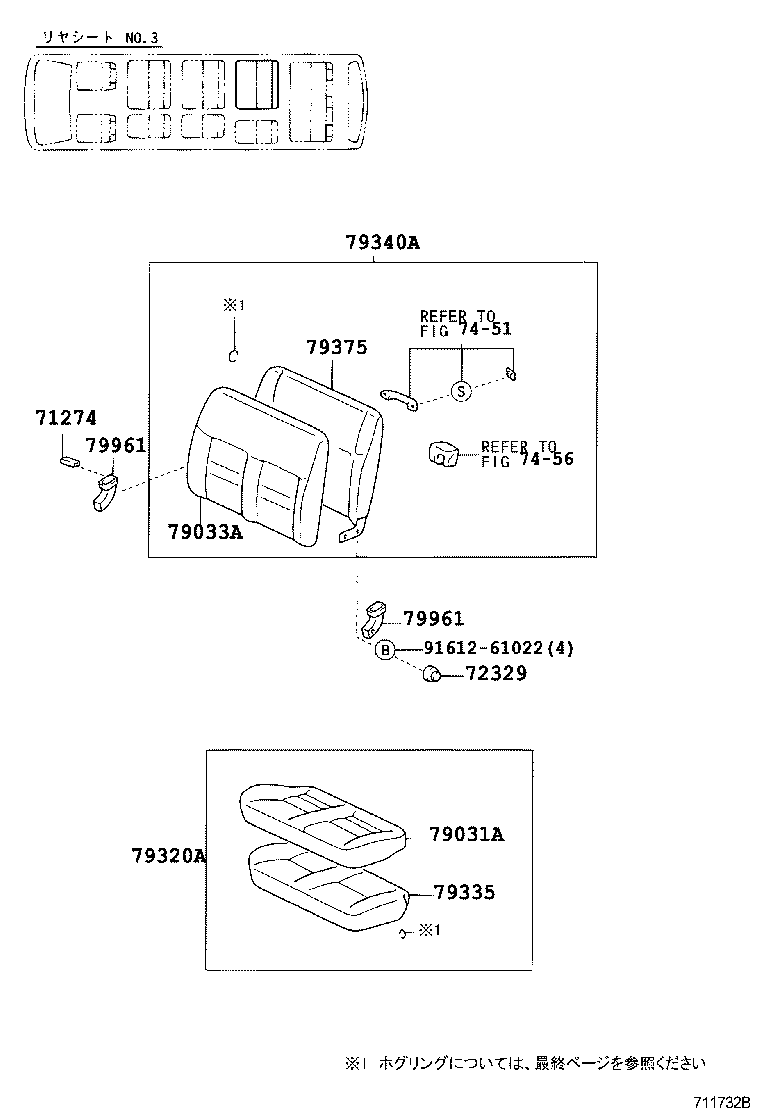

71274 - KNOB, FRONT SEAT HINGE
71274-95J0002

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
79320A - CUSHION ASSY, NO.3 SEAT
79320-26420

LH184,186,TRH124..DX

***

 1
Common parts
91612-61022
Linked diagrams
7451
7456

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 72065 9011910035 9011910415 9011910595 9011910625 9033330002 9161161025 9161161025 9161161025 9161161025
Part # Description Qty Price
72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH
72065-95J04

KZH11#,LH110,115,117,125,RZH110,124..DX,GL

 1
Common parts
90119-10035
90119-10415
90119-10595
90119-10625
90333-30002
91611-61025

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

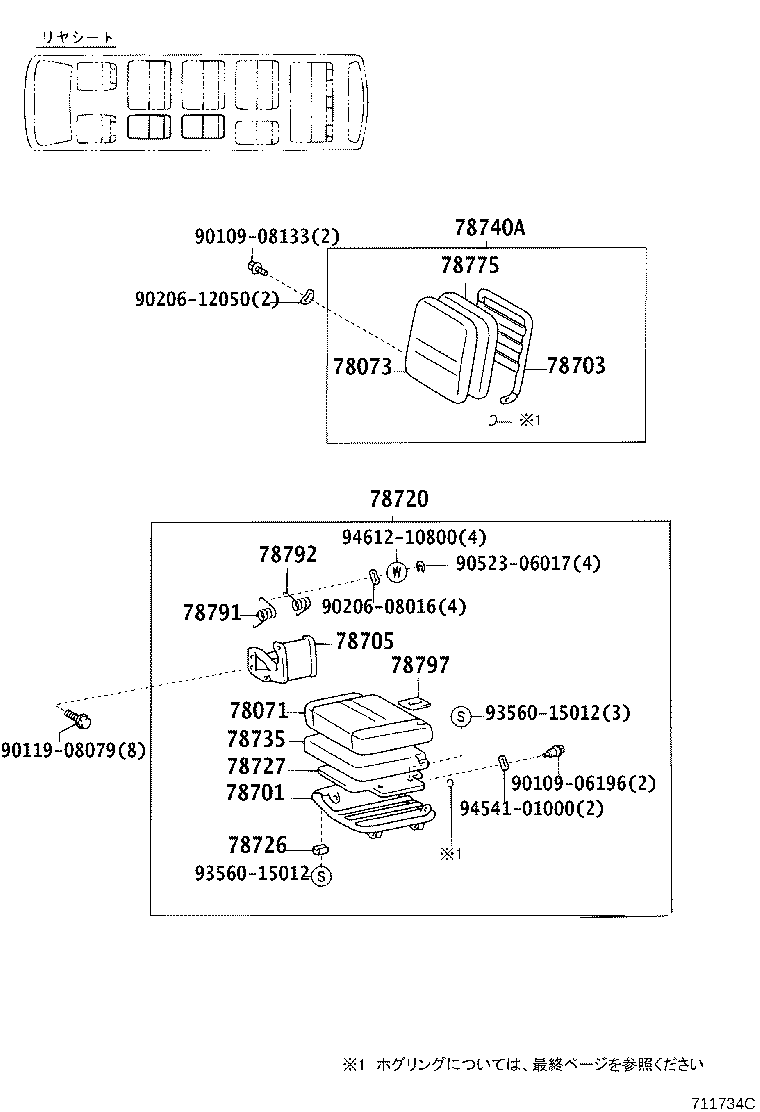

diagram 78071 78073 78701 78703 78705 78720 78726 78727 78735 78740A 78775 78791 78792 78797 9010906196 9010908133 9011908079 9020608016 9020612050 9052306017 9356015012 9356015012 9454101000 9461210800
Part # Description Qty Price
Common parts
90109-06196
90109-08133
90119-08079
90206-08016
90206-12050
90523-06017
93560-15012
94541-01000
94612-10800

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

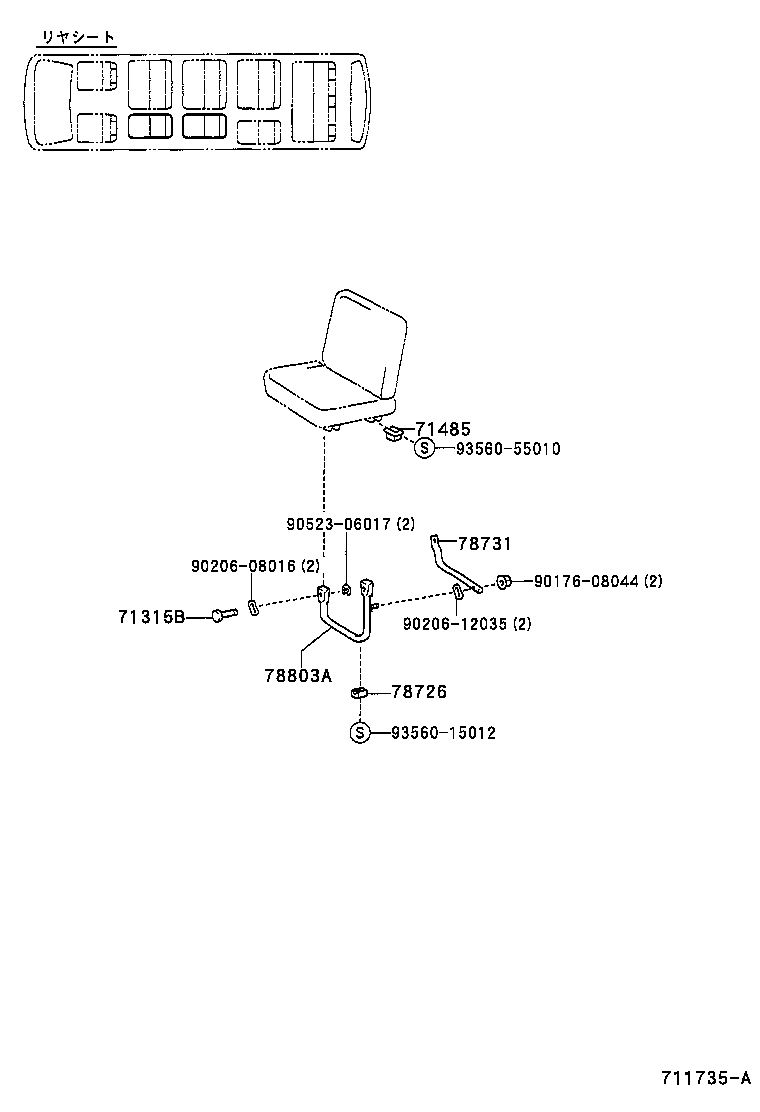

diagram 71315B 71485 78726 78731 78803A 9017608044 9020608016 9020612035 9052306017 9356015012 9356055010
Part # Description Qty Price
Common parts
90176-08044
90206-08016
90206-12035
90523-06017
93560-15012
93560-55010

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 78072 78074 78702 78703 78727 78730 78735 78750A 78775 78783 78791 78795 78797 78805 9010908133 9011910415 9011910579 9020612050 9038910026 9356015012 9454201400
Part # Description Qty Price

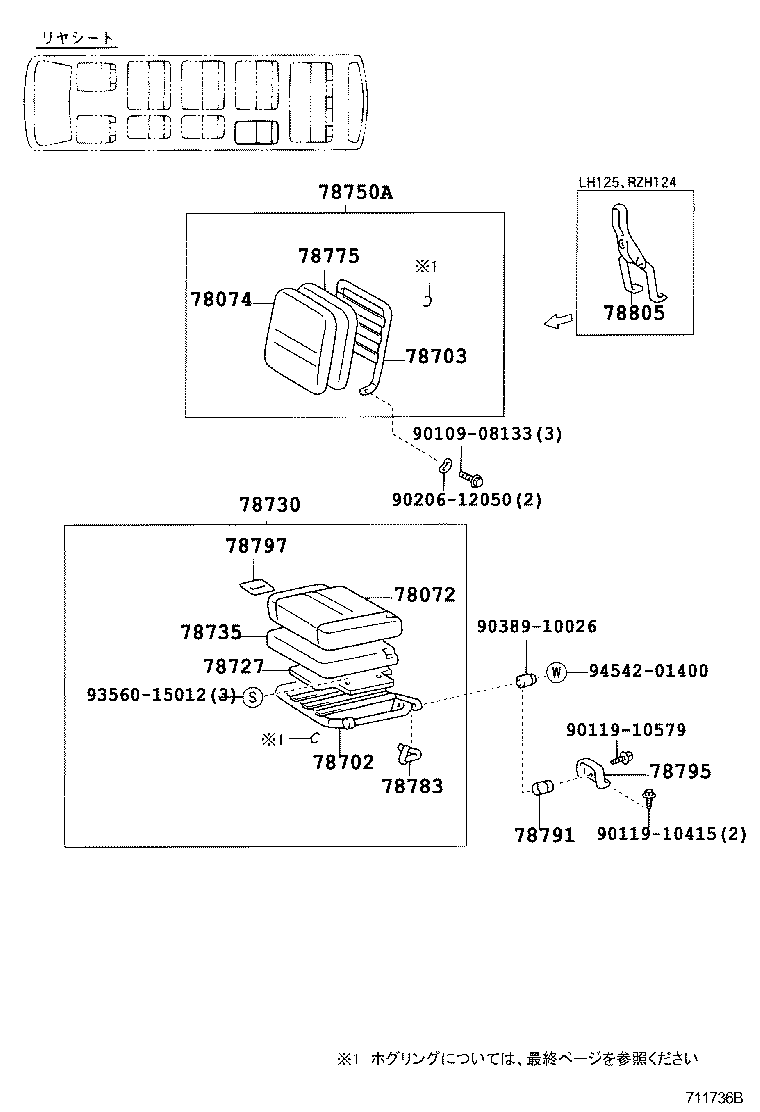

78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH
78702-95J03

LH110,115,117,125,RZH110,124..DX,GL

 1
78783 - COVER, SUB SEAT HINGE, LH
78783-95J0002

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
78795 - BRACKET, SUB SEAT, NO.2
78795-95J00

KZH11#,LH110,115,117,125,RZH110,124..DX

 1
Common parts
90109-08133
90119-10415
90119-10579
90206-12050
90389-10026
93560-15012
94542-01400

ILLUST NO. 2 OF 4(8908- )LH115,125,184,186,RZH124,125,TRH124..DX

Click highlighted areas on diagram

diagram 71315B 71485 78726 78731 78794 78804B 9010908137 9011910035 9011910271 9017608044 9020608016 9020612035 9020612035 9038910012 9052306017 9356015012 9356055010
Part # Description Qty Price
78804B - LEG SUB-ASSY, SUB SEAT, LH
78803-95J06

KZH11#,LH110,115,117,125,RZH110,124..DX

 1
Common parts
90109-08137
90119-10035
90119-10271
90176-08044
90206-08016
90206-12035
90389-10012
90523-06017
93560-15012
93560-55010

(8908- )

Click highlighted areas on diagram

ﾎｸﾞﾘﾝｸﾞ

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
