TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

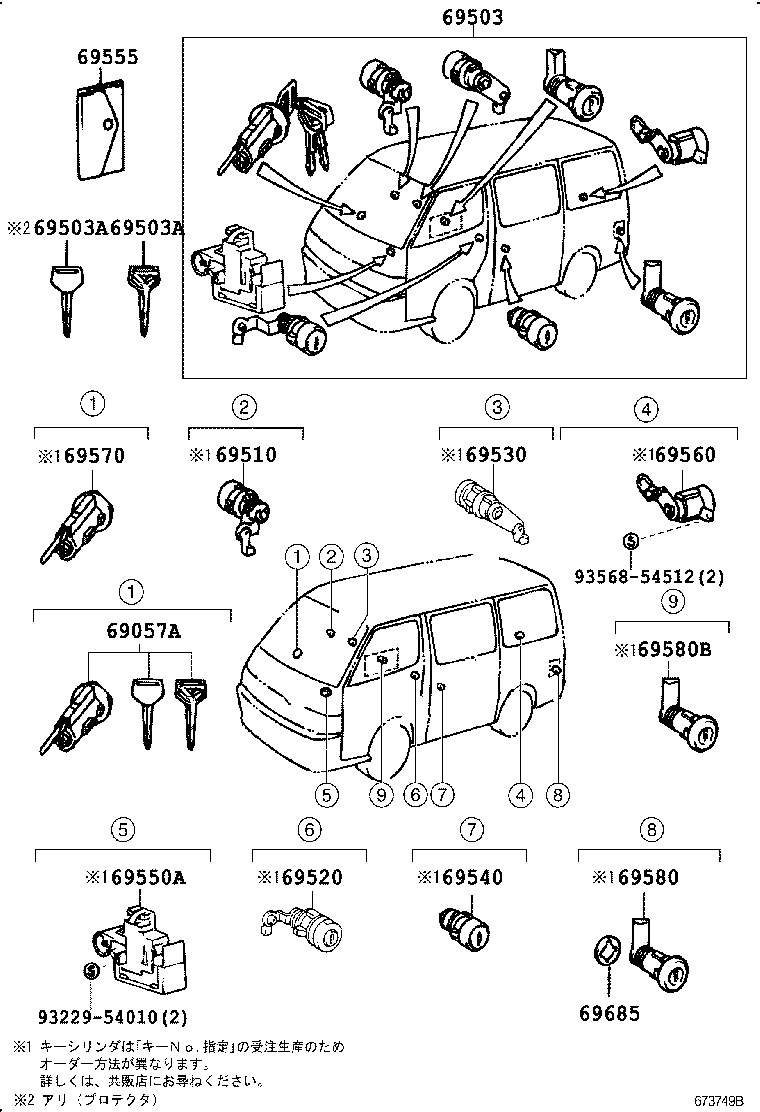

Click highlighted areas on diagram

diagram 69057A 69503 69503A 69503A 69510 69520 69530 69540 69550A 69555 69560 69570 69580 69580B 69685 9322954010 9356854512
Part # Description Qty Price
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95J18

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
69503 - CYLINDER SET, LOCK
69503-95J86

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..4D..(CTM,DX,GL,SGL,SW)

 1
69503A - KEY, BLANK
90999-00163

LH10#,11#,123,125,129,140,RZH10#,11#,12#

ﾏｽﾀｰｷｰ

 1
90999-00164

LH100..(08S,09S)..TDE;LH100,RZH100,101..DSL,EFI,TD;LH102,107,109,11#,123,125,129,140,RZH102,11#,12#..HRF,SMRF,SRF

ﾏｽﾀｰｷｰ,*68付き

 1
69503A - KEY, BLANK
90999-00163

LH10#,11#,123,125,129,140,RZH10#,11#,12#

ﾏｽﾀｰｷｰ

 1
90999-00164

LH100..(08S,09S)..TDE;LH100,RZH100,101..DSL,EFI,TD;LH102,107,109,11#,123,125,129,140,RZH102,11#,12#..HRF,SMRF,SRF

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-95J04

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-95J04

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
69540 - CYLINDER ASSY, SLIDE DOOR LOCK, LH
69540-95J04

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
69560 - CYLINDER ASSY, BACK DOOR LOCK
69560-95J04

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-95J10

LH10#,11#,123,125,129,140,RZH10#,11#,12#

 1
Common parts
93229-54010
93568-54512
