TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

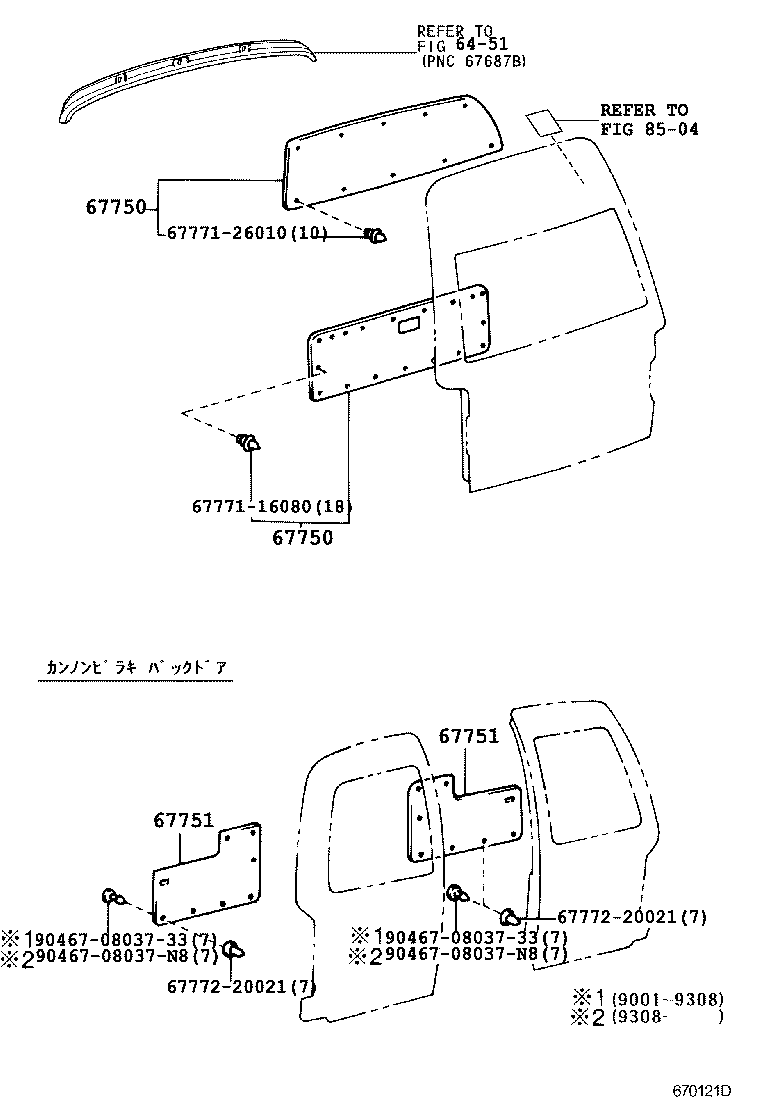

ILLUST NO. 1 OF 2(8908- )

Click highlighted areas on diagram

diagram 6451 67750 67750 67751 67751 6777116080 6777126010 6777220021 6777220021 8504 904670803733 904670803733 9046708037N8 9046708037N8
Part # Description Qty Price
Common parts
67771-16080
67771-26010
67772-20021
90467-0803733
90467-08037N8
Linked diagrams
6451
8504

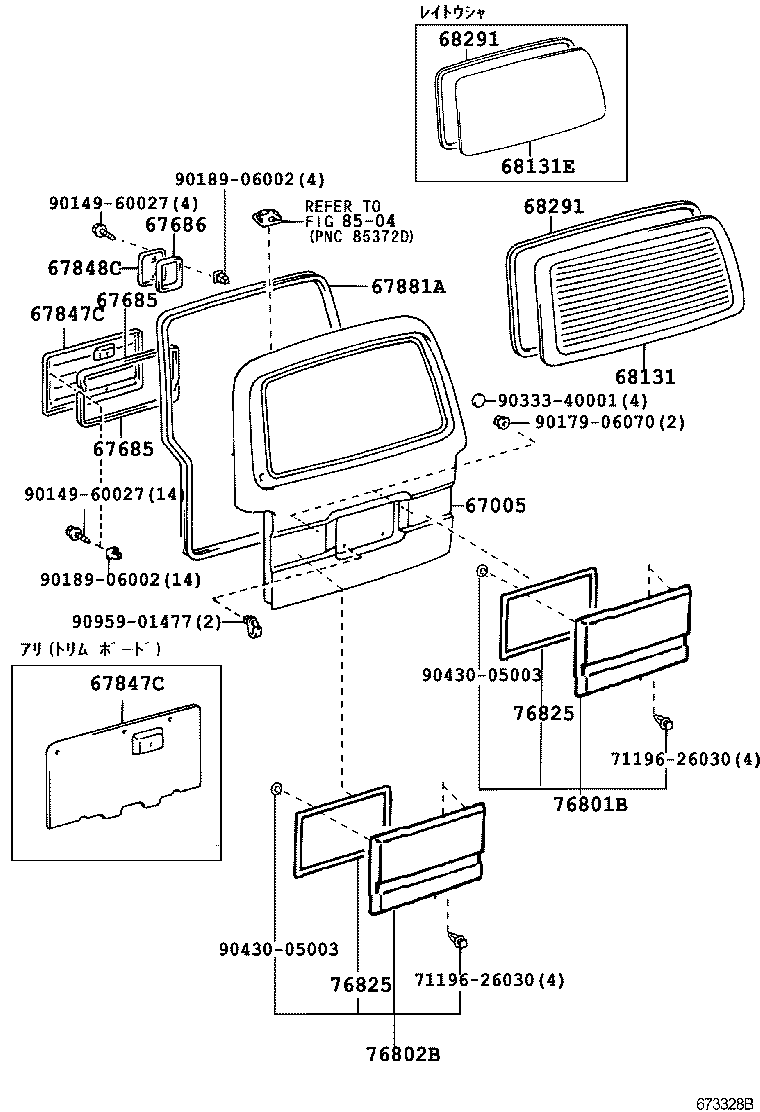

ILLUST NO. 2 OF 2(0308- )TRH102,112,12#

Click highlighted areas on diagram

diagram 67005 67685 67685 67686 67847C 67847C 67848C 67881A 68131 68131E 68291 68291 7119626030 7119626030 76801B 76802B 76825 76825 8504 9014960027 9014960027 9017906070 9018906002 9018906002 9033340001 9043005003 9043005003 9095901477
Part # Description Qty Price
67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1
67685-95J01

LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL

 2
67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1
67685-95J01

LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL

 2
67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2
67526-95A00

LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL

 2
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J08

KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM

ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ

 1
67847-95J05

LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,18#,RZH102,112,12#,133..03S,06S,09S,15S

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J08

KZH10#,11#,12#,LH100,107,110,117,120,RZH100,101,110,111..CTM,DX,GCGE,GCGN,SCL,SCM,SCMM

ﾎﾟﾘｴﾁﾚﾝ ﾌｨﾙﾑ

 1
67847-95J05

LH102,103,109,110,113,115,119,123,125,129,140,16#,17#,18#,RZH102,112,12#,133..03S,06S,09S,15S

 1
67848C - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-95J00

LH102,109,113,115,119,123,125,129,RZH102,11#,12#..CD,DX,GL

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-95J15

LH113,123,125,129,RZH112,12#..HRF..DX

 1
68131 - GLASS, BACK DOOR
68131-95J09

LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW

*EHT,厚さ=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95J05

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95J05

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133

 1
Common parts
71196-26030
90149-60027
90179-06070
90189-06002
90333-40001
90430-05003
90959-01477
Linked diagrams
8504
