TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

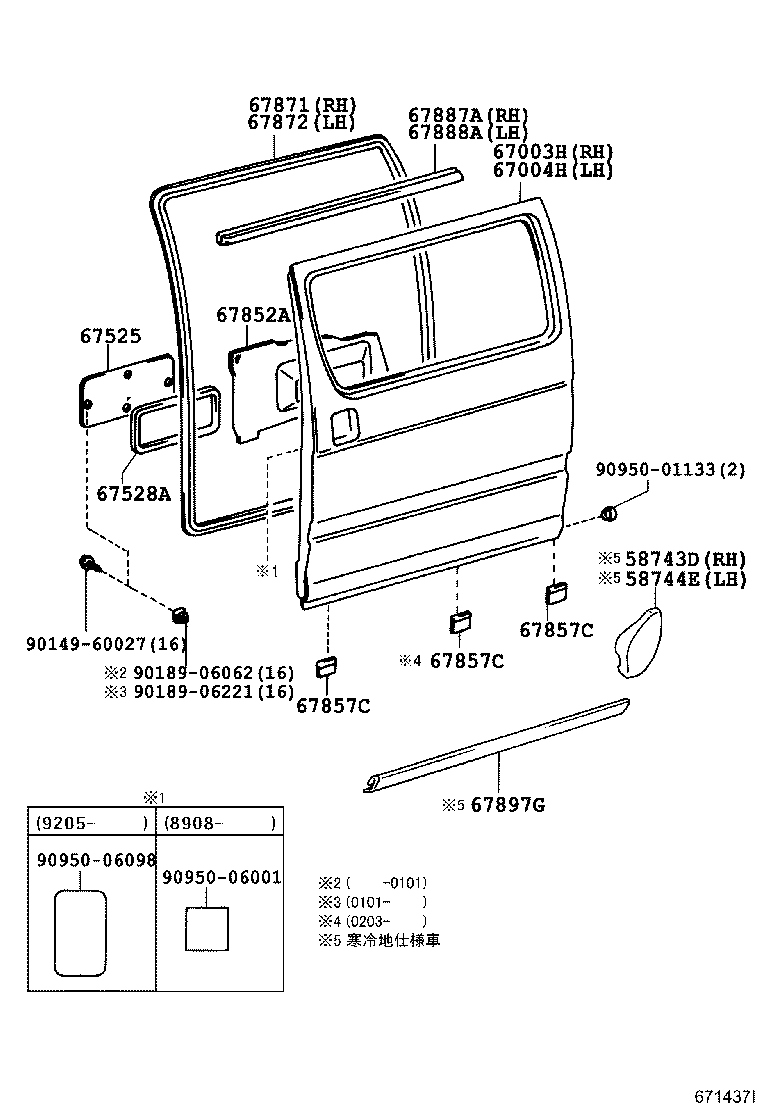

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 58743D 58744E 67003H 67004H 67525 67528A 67852A 67857C 67857C 67857C 67871 67872 67887A 67888A 67897G 9014960027 9018906062 9018906221 9095001133 9095006001 9095006098
Part # Description Qty Price
67004H - DOOR SUB-ASSY, SLIDE, LH
67004-95J45

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..SG..(CD,DX,SW)

 1
67004-95J41

LH100,110,115,117,125,RZH100,110,124..DX

ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ & ｲ-ｼﾞ-ｸﾛ-ｻﾞ-)

 1
67004-26020

TRH124..DX

ｱﾘ(ｲｰｼﾞｰｸﾛｰｻﾞ & ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ)

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95J00

KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67525-95J00

LH10#,11#,12#,140,RZH10#,11#,12#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-95J00

LH10#,11#,12#,140,RZH10#,11#,12#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
67528-95J00

KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-95J03

LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..4D..(CD,CTM,DX,GL,SGL,SW)

 1
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67857-95J00

TRH102,112,12#..4D

 3
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67857-95J00

TRH102,112,12#..4D

 3
67857C - SEAL, SLIDE DOOR PANEL HOLE
67857-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D

 2
67857-95J00

TRH102,112,12#..4D

 3
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-95J00

LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW

ﾌﾞﾗｯｸ

 1
67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH
67887-95J00

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
Common parts
90149-60027
90189-06062
90189-06221
90950-01133
90950-06001
90950-06098
