TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

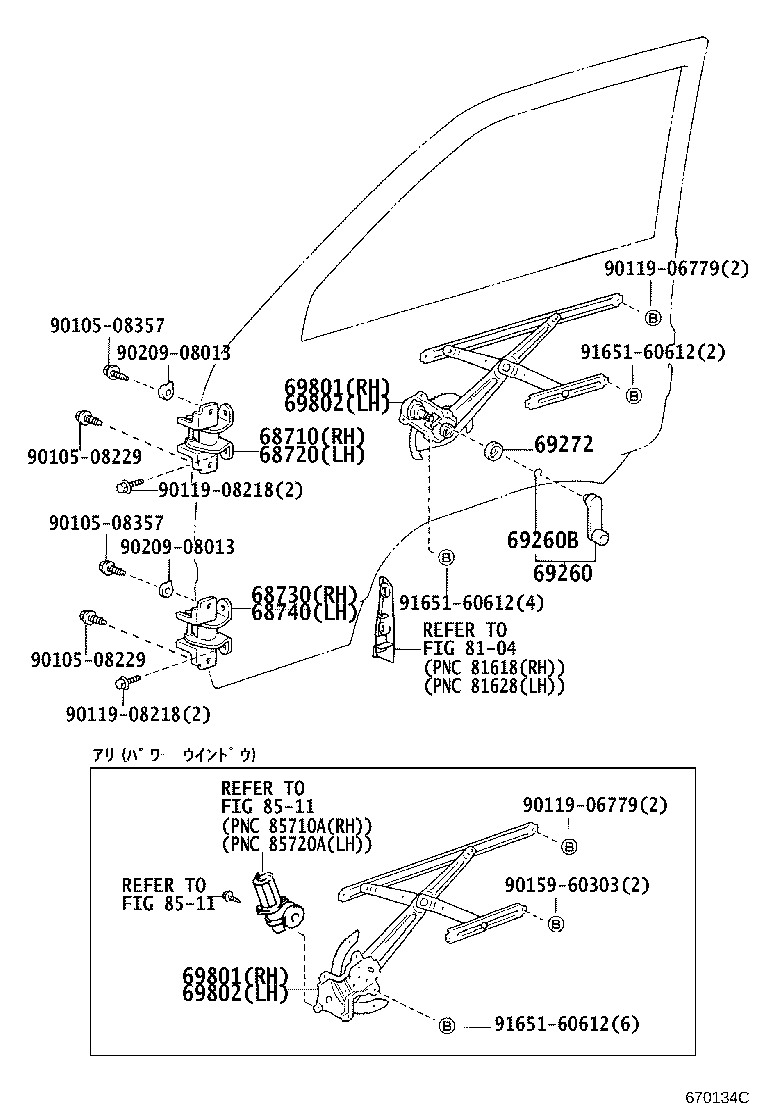

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 8104 8511 8511 9010508229 9010508229 9010508357 9010508357 9011906779 9011906779 9011908218 9011908218 9015960303 9020908013 9020908013 9165160612 9165160612 9165160612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1402022

LH100,110,115,117,120,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SW

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95J02

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SW

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-95J02

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95J02

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-95J02

LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SW

 1
Common parts
90105-08229
90105-08357
90119-06779
90119-08218
90159-60303
90209-08013
91651-60612
Linked diagrams
8104
8511
