TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

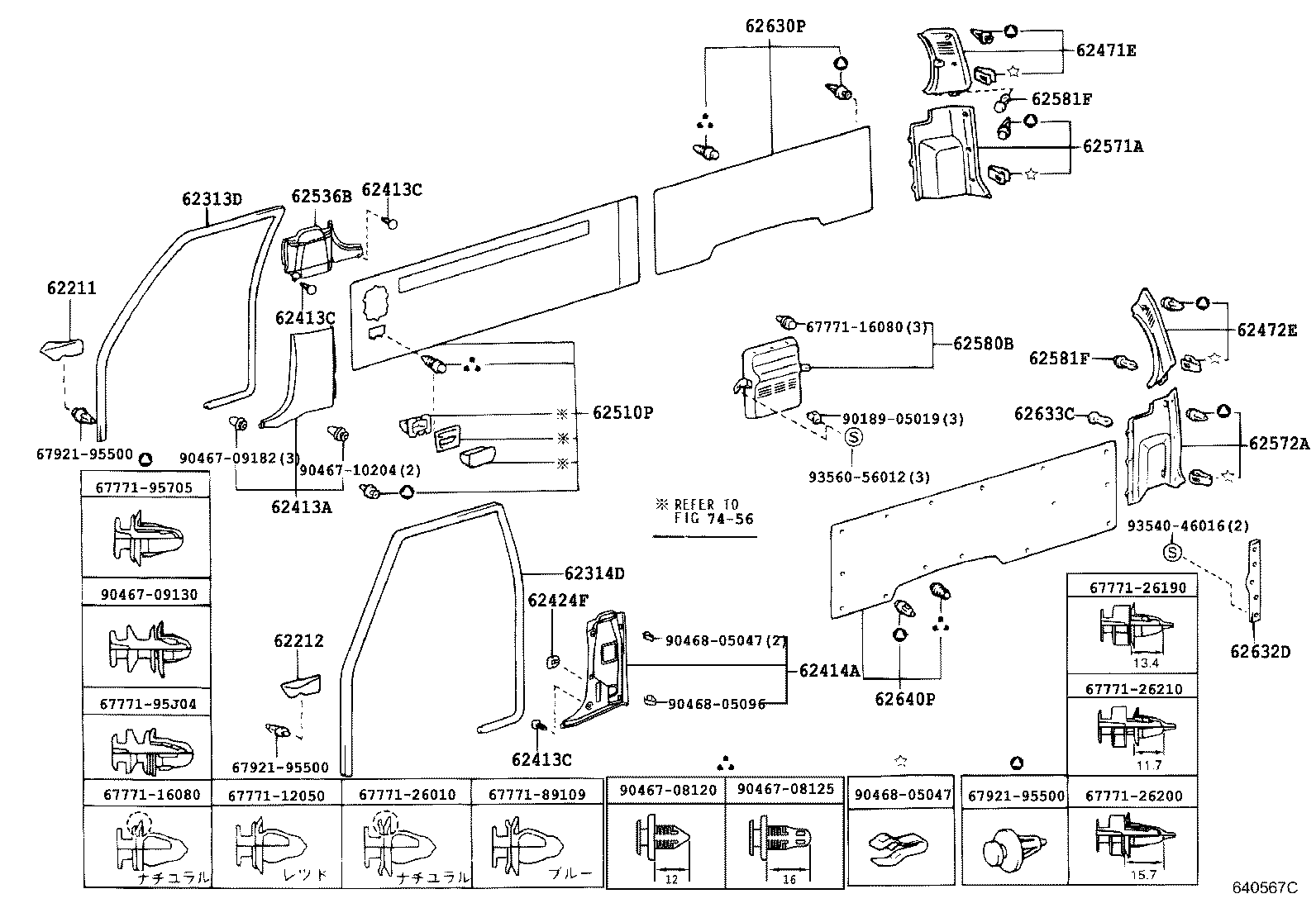

(8908- )LH115,125,RZH124,TRH124

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62413A 62413C 62413C 62413C 62414A 62424F 62471E 62472E 62510P 62536B 62571A 62572A 62580B 62581F 62581F 62630P 62632D 62633C 62640P 6777112050 6777116080 6777116080 6777126010 6777126190 6777126200 6777126210 6777189109 6777195705 6777195J04 6792195500 6792195500 6792195500 7456 9018905019 9046708120 9046708125 9046709130 9046709182 9046710204 9046805047 9046805047 9046805096 9354046016 9356056012
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0702

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0702

LH110,115,117,125,RZH110,124..DX,GL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NEW MAROON,TRIM3#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S

NEW MAROON,TRIM3#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S

NEW MAROON,TRIM3#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26140B0

TRH102,112,12#..4D..(CD,DX,SGLE)

BLUISH GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-95J43B1

TRH124..DX

ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ),BLUISH GRAY,TRIM1#

 1
Common parts
67771-12050
67771-16080
67771-26010
67771-26190
67771-26200
67771-26210
67771-89109
67771-95705
67771-95J04
67921-95500
90189-05019
90467-08120
90467-08125
90467-09130
90467-09182
90467-10204
90468-05047
90468-05096
93540-46016
93560-56012
Linked diagrams
7456

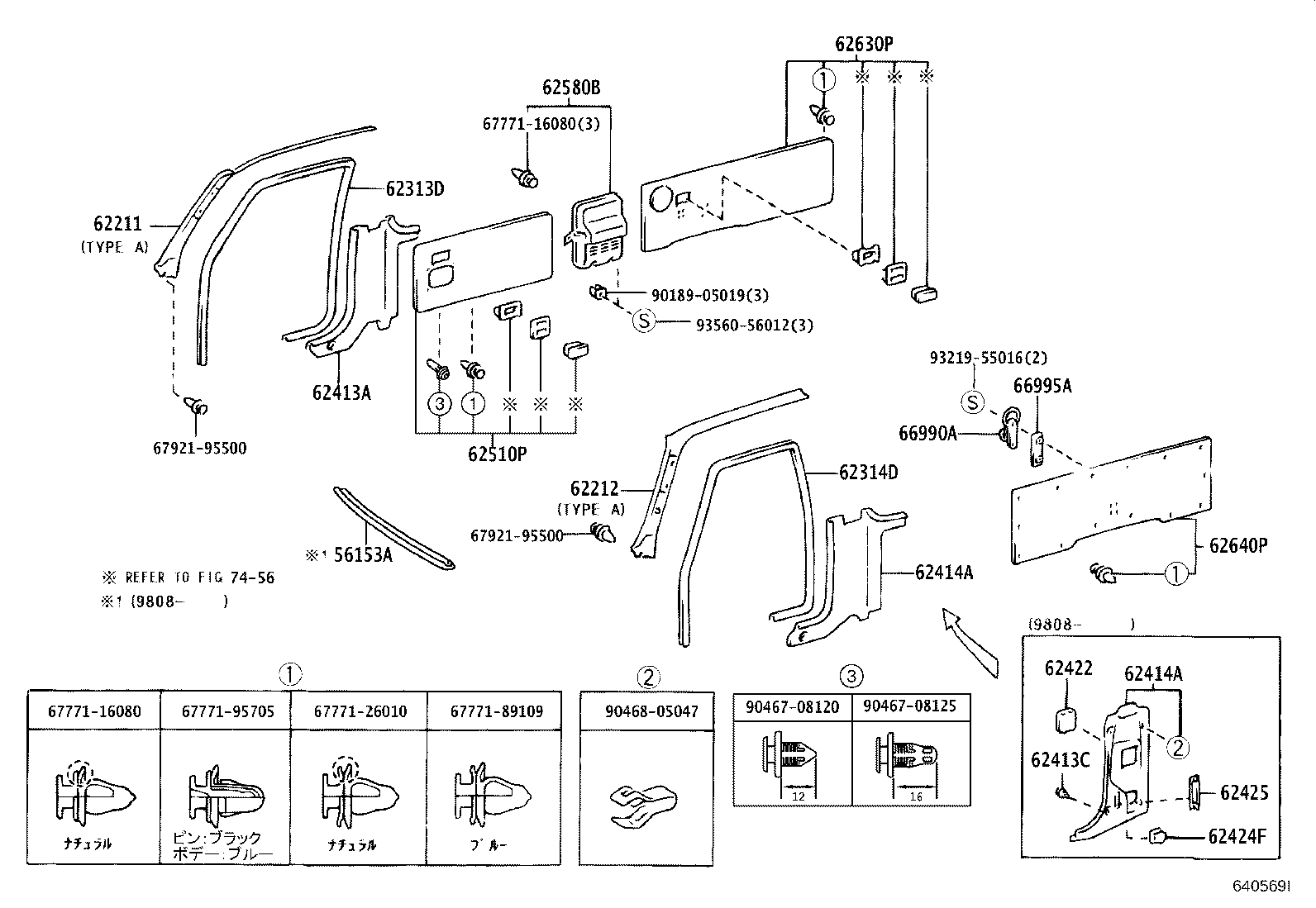

(8908- )KZH100,11#,13#,LH100,110,117,120,16#,17#,18#,RZH100,102,11#,12#,133,18#.

Click highlighted areas on diagram

diagram 56153A 62211 62212 62313D 62314D 62413A 62413C 62414A 62414A 62422 62424F 62425 62510P 62580B 62630P 62640P 66990A 66995A 6777116080 6777116080 6777126010 6777189109 6777195705 6792195500 6792195500 7456 9018905019 9046708120 9046708125 9046805047 9321955016 9356056012
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0702

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0702

LH110,115,117,125,RZH110,124..DX,GL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NEW MAROON,TRIM3#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S

NEW MAROON,TRIM3#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S

NEW MAROON,TRIM3#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26140B0

TRH102,112,12#..4D..(CD,DX,SGLE)

BLUISH GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-95J43B1

TRH124..DX

ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ),BLUISH GRAY,TRIM1#

 1
Common parts
67771-16080
67771-26010
67771-89109
67771-95705
67921-95500
90189-05019
90467-08120
90467-08125
90468-05047
93219-55016
93560-56012
Linked diagrams
7456

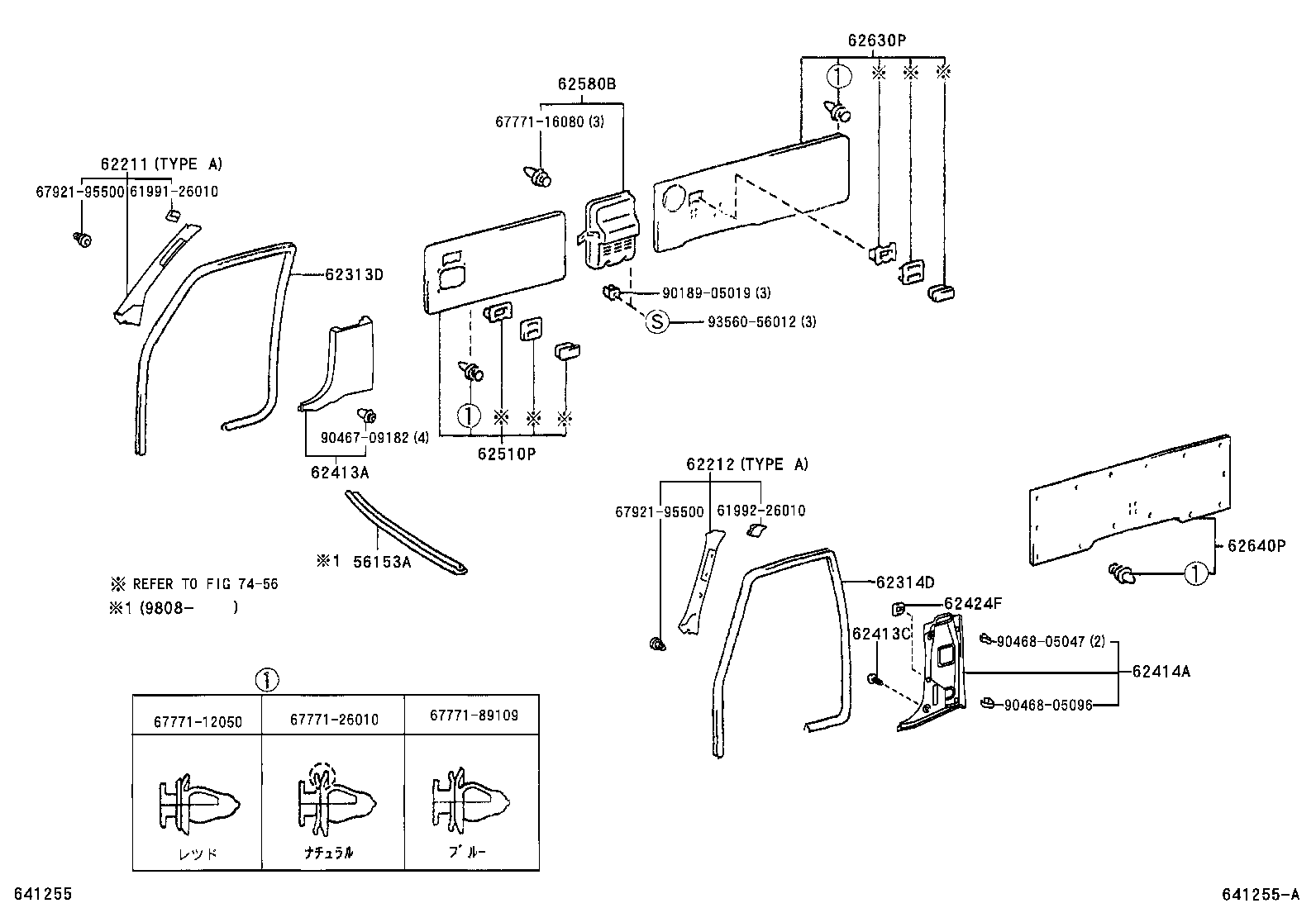

(0308- )TRH102,112,12#..CD,DX,SGLE

Click highlighted areas on diagram

diagram 56153A 6199126010 6199226010 62211 62212 62313D 62314D 62413A 62413C 62414A 62424F 62510P 62580B 62630P 62640P 6777112050 6777116080 6777126010 6777189109 6792195500 6792195500 7456 9018905019 9046709182 9046805047 9046805096 9356056012
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0702

LH110,115,117,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0702

LH110,115,117,125,RZH110,124..DX,GL

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,NEW MAROON,TRIM3#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S

NEW MAROON,TRIM3#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0102

LH100,107,110,115,117,120,125,RZH100,101,110,124..08S,10S,15S

NEW MAROON,TRIM3#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-26140B0

TRH102,112,12#..4D..(CD,DX,SGLE)

BLUISH GRAY,TRIM1#

 1
62510P - PANEL ASSY, QUARTER TRIM, FRONT RH
62510-95J43B1

TRH124..DX

ｱﾘ(ﾘﾔ ﾋ-ﾀ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ = ﾌﾛｱｾﾂﾄ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ),BLUISH GRAY,TRIM1#

 1
Common parts
61991-26010
61992-26010
67771-12050
67771-16080
67771-26010
67771-89109
67921-95500
90189-05019
90467-09182
90468-05047
90468-05096
93560-56012
Linked diagrams
7456
