TRH124B-ZRMDK (2003)
Toyota Hiace/Regiusace

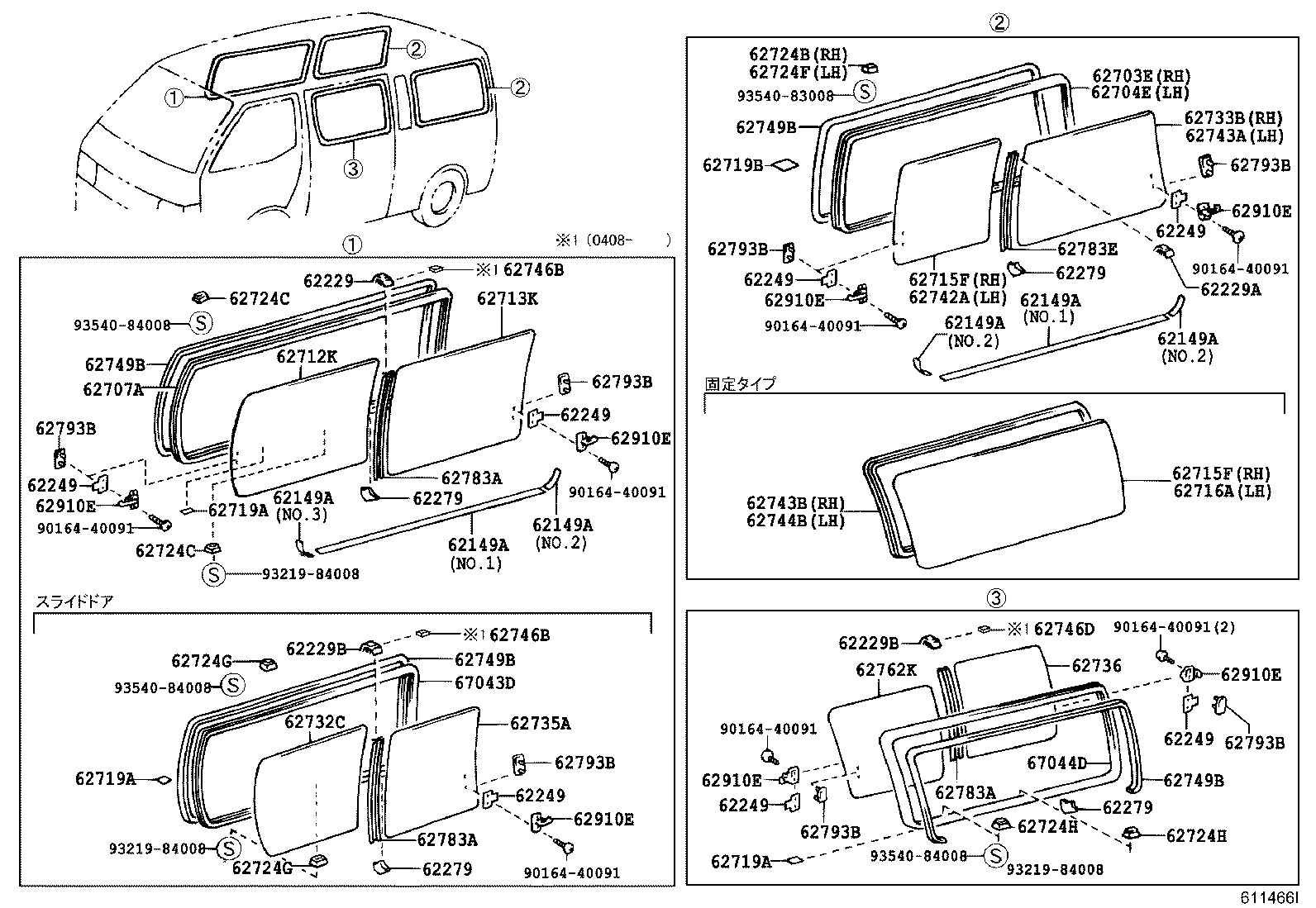

ILLUST NO. 2 OF 2(0308- )TRH102,112,12#..SG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62762K - GLASS, SIDE DOOR WINDOW, FRONT LH | ||||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90159-60587 | ||||
ILLUST NO. 2 OF 2(8908- )KZH11#,12#,13#,LH100,102,103,109,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62762K - GLASS, SIDE DOOR WINDOW, FRONT LH | ||||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| Common parts | ||||
| 90154-60043 | ||||
| 90159-60587 | ||||
ILLUST NO. 1 OF 2(0308- )TRH102,112,12#..SG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62229 - PACKING, SIDE WINDOW | ||||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229B - PACKING, SIDE WINDOW, NO.3 | ||||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229B - PACKING, SIDE WINDOW, NO.3 | ||||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62703E - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62705-95J07 |
LH110,115,117,120,125,RZH110,124..10S,15S |
1 | ||
| 62705-95J07 |
LH110,115,117,120,125,RZH110,124..10S,15S |
1 | ||
| 62705-95J07 |
LH110,115,117,120,125,RZH110,124..10S,15S |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719B - PACKING, SIDE REAR WINDOW, UPPER | ||||
| 62719-95J03 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL 30 X 16.5 |
1 | ||
| 62719-95J03 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL 30 X 16.5 |
1 | ||
| 62719-95J03 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL 30 X 16.5 |
1 | ||
| 62719-95J02 |
LH110,115,117,120,125,RZH110,124..10S,15S 50 X 16.5 |
5 | ||
| 62719-95J02 |
LH110,115,117,120,125,RZH110,124..10S,15S 50 X 16.5 |
5 | ||
| 62719-95J02 |
LH110,115,117,120,125,RZH110,124..10S,15S 50 X 16.5 |
5 | ||
| 62724C - STOP, SIDE FRONT WINDOW GLASS, RH | ||||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724C - STOP, SIDE FRONT WINDOW GLASS, RH | ||||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724H - STOP, SLIDE DOOR WINDOW GLASS, LH | ||||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724H - STOP, SLIDE DOOR WINDOW GLASS, LH | ||||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62733B - GLASS, SIDE REAR WINDOW, REAR RH | ||||
| 62717-95J07 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62717-95J07 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62717-95J07 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62736 - GLASS, SLIDE DOOR WINDOW, REAR LH | ||||
| 62736-95J11 |
LH140;LH100,11#,123,125,RZH100,11#,12#..(09S,10S,15S)..(DX,SW) |
1 | ||
| 62736-95J11 |
LH140;LH100,11#,123,125,RZH100,11#,12#..(09S,10S,15S)..(DX,SW) |
1 | ||
| 62736-95J11 |
LH140;LH100,11#,123,125,RZH100,11#,12#..(09S,10S,15S)..(DX,SW) |
1 | ||
| 62746B - PACKING, QUARTER WINDOW, RH | ||||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746B - PACKING, QUARTER WINDOW, RH | ||||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746D - PACKING, QUARTER WINDOW, LH | ||||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62762K - GLASS, SIDE DOOR WINDOW, FRONT LH | ||||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62783A - SASH, SIDE WINDOW, CENTER | ||||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783A - SASH, SIDE WINDOW, CENTER | ||||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783A - SASH, SIDE WINDOW, CENTER | ||||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783E - SASH, SIDE REAR WINDOW, CENTER | ||||
| 62783-95J00 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL |
2 | ||
| 62783-95J00 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL |
2 | ||
| 62783-95J00 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 67044D - FRAME SUB-ASSY, SLIDE DOOR WINDOW, LH | ||||
| 67044-95J02 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 67044-95J02 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 67044-95J02 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| Common parts | ||||
| 90164-40091 | ||||
| 93219-84008 | ||||
| 93540-83008 | ||||
| 93540-84008 | ||||
ILLUST NO. 1 OF 2(8908- )KZH11#,12#,13#,LH100,102,103,109,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62229 - PACKING, SIDE WINDOW | ||||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229B - PACKING, SIDE WINDOW, NO.3 | ||||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229B - PACKING, SIDE WINDOW, NO.3 | ||||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62229-26010 |
TRH12# |
1 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279 - SPACER, SIDE WINDOW FRAME, UPPER | ||||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62279-95J03 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
4 | ||
| 62703E - FRAME SUB-ASSY, SIDE REAR WINDOW, RH | ||||
| 62705-95J07 |
LH110,115,117,120,125,RZH110,124..10S,15S |
1 | ||
| 62705-95J07 |
LH110,115,117,120,125,RZH110,124..10S,15S |
1 | ||
| 62705-95J07 |
LH110,115,117,120,125,RZH110,124..10S,15S |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715F - GLASS, SIDE REAR WINDOW, RH | ||||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62715-95J17 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719A - PACKING, SIDE FRONT WINDOW, UPPER | ||||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719-95J03 |
RZH102,112..850K;LH100,102,109,11#,123,125,129,140,RZH10#,11#,12#..CTM,DX,GL,SGL,SW 30 X 16.5 |
1 | ||
| 62719B - PACKING, SIDE REAR WINDOW, UPPER | ||||
| 62719-95J03 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL 30 X 16.5 |
1 | ||
| 62719-95J03 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL 30 X 16.5 |
1 | ||
| 62719-95J03 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL 30 X 16.5 |
1 | ||
| 62719-95J02 |
LH110,115,117,120,125,RZH110,124..10S,15S 50 X 16.5 |
5 | ||
| 62719-95J02 |
LH110,115,117,120,125,RZH110,124..10S,15S 50 X 16.5 |
5 | ||
| 62719-95J02 |
LH110,115,117,120,125,RZH110,124..10S,15S 50 X 16.5 |
5 | ||
| 62724C - STOP, SIDE FRONT WINDOW GLASS, RH | ||||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724C - STOP, SIDE FRONT WINDOW GLASS, RH | ||||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724-95J04 |
LH140;LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL,SW) |
1 | ||
| 62724H - STOP, SLIDE DOOR WINDOW GLASS, LH | ||||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724H - STOP, SLIDE DOOR WINDOW GLASS, LH | ||||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62724-95J04 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 62733B - GLASS, SIDE REAR WINDOW, REAR RH | ||||
| 62717-95J07 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62717-95J07 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62717-95J07 |
LH110,115,117,125,RZH110,124..DX *TEM,厚さ=4.0 |
1 | ||
| 62736 - GLASS, SLIDE DOOR WINDOW, REAR LH | ||||
| 62736-95J11 |
LH140;LH100,11#,123,125,RZH100,11#,12#..(09S,10S,15S)..(DX,SW) |
1 | ||
| 62736-95J11 |
LH140;LH100,11#,123,125,RZH100,11#,12#..(09S,10S,15S)..(DX,SW) |
1 | ||
| 62736-95J11 |
LH140;LH100,11#,123,125,RZH100,11#,12#..(09S,10S,15S)..(DX,SW) |
1 | ||
| 62746B - PACKING, QUARTER WINDOW, RH | ||||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746B - PACKING, QUARTER WINDOW, RH | ||||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746D - PACKING, QUARTER WINDOW, LH | ||||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62746-26030 |
TRH12# |
2 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749B - SEAL, SIDE WINDOW FRAME | ||||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62749-95J01 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
3 | ||
| 62762K - GLASS, SIDE DOOR WINDOW, FRONT LH | ||||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62733-95J19 |
RZH102,112..850K;KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#..DX,SW *TEM,厚さ=4.0 |
1 | ||
| 62783A - SASH, SIDE WINDOW, CENTER | ||||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783A - SASH, SIDE WINDOW, CENTER | ||||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783A - SASH, SIDE WINDOW, CENTER | ||||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62784-26010 |
TRH12# ﾚﾌﾄ |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783-95J00 |
RZH102,112..850K;KZH10#,11#,12#,LH100,102,103,109,11#,12#,140,RZH10#,11#,12#..CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62783E - SASH, SIDE REAR WINDOW, CENTER | ||||
| 62783-95J00 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL |
2 | ||
| 62783-95J00 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL |
2 | ||
| 62783-95J00 |
LH100,110,115,117,120,125,RZH100,101,110,124..CTM,DX,GCGE,GCGN,GL |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793B - RETAINER, SIDE WINDOW LOCK, RH | ||||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62793-95J01 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910E - LOCK ASSY, SIDE WINDOW | ||||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
LH100,11#,120,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) ｱﾘ(ﾘﾖｳﾋﾞﾗｷ ｻｲﾄﾞｳｲﾝﾄﾞｳ) |
2 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 62910-95702 |
RZH102,112..850K;LH102,109,11#,123,125,129,RZH102,112,12#..05S,06S,10S,15S |
1 | ||
| 67044D - FRAME SUB-ASSY, SLIDE DOOR WINDOW, LH | ||||
| 67044-95J02 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 67044-95J02 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| 67044-95J02 |
LH100,11#,123,125,RZH100,101,11#,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SGL) |
1 | ||
| Common parts | ||||
| 90164-40091 | ||||
| 93219-84008 | ||||
| 93540-83008 | ||||
| 93540-84008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
