TRH124B-ZRMDK (2003)
Toyota Hiace/Regiusace
ILLUST NO. 2 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90034-80031 | ||||
| 90119-08821 | ||||
| 90183-06020 | ||||
| 90333-01009 | ||||
| 90333-20001 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01112 | ||||
| 90950-01181 | ||||
| 90950-01326 | ||||
| 90950-01421 | ||||
| 90950-01660 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
| 90950-01901 | ||||
| 90950-06013 | ||||
| 90950-06017 | ||||
| Linked diagrams | ||||
| 5554 | ||||
| 6155 | ||||
| 8202 | ||||

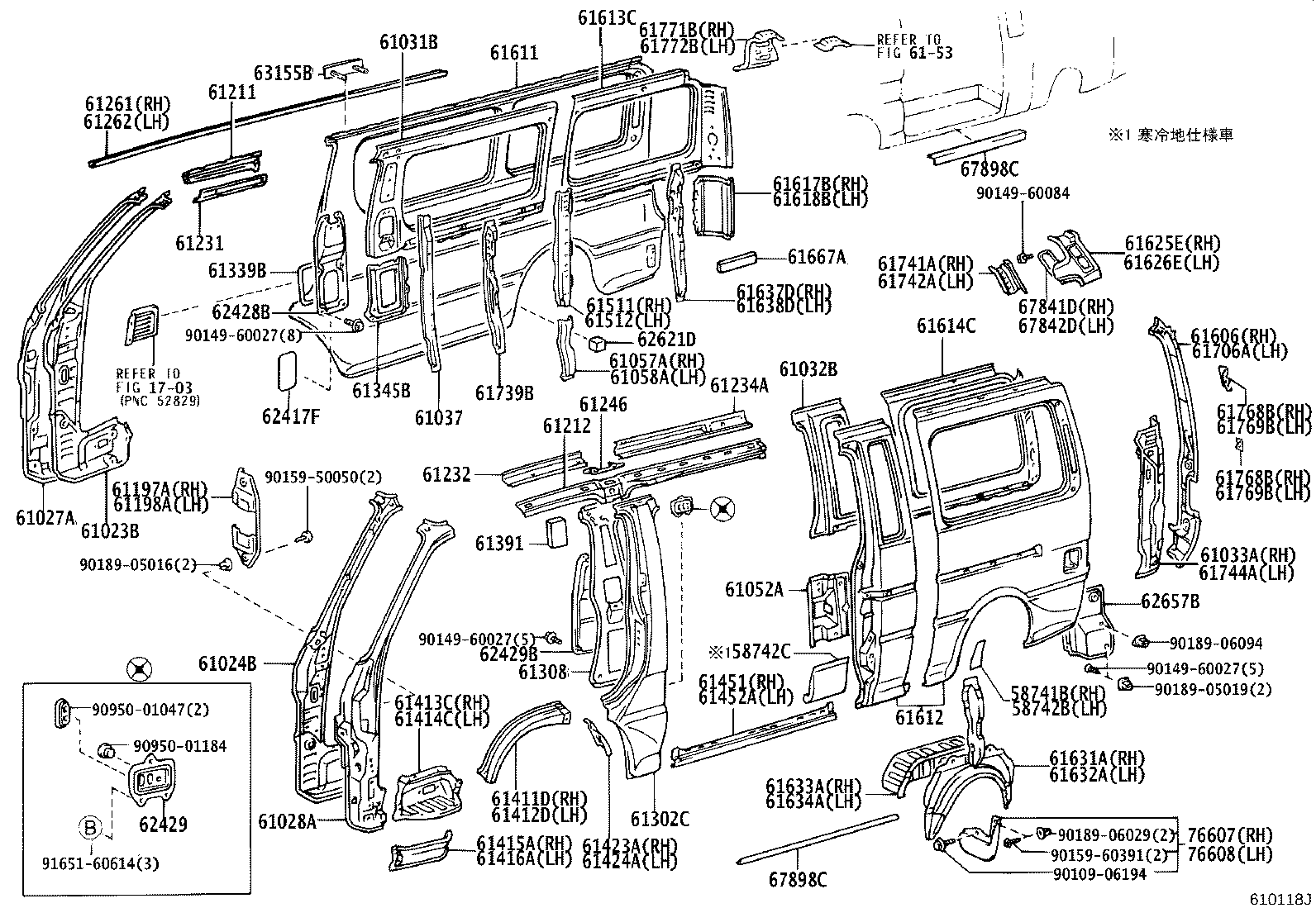

ILLUST NO. 1 OF 3(8908- )HRF..4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-95J15 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-95J11 |
KZH100,11#,LH100,102,103,109,11#,123,125,129,140,RZH100,102,11#,12#,133..HRF,SRF |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-95J17 |
RZH112..DX;RZH112..CD..EFI;LH102,103,109,110,113,115,119,123,125,129,140,RZH102,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-95J24 |
LH102,103,109,110,113,115,119,123,125,129,140,RZH102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 61037 - REINFORCE SUB-ASSY, FRONT BODY PILLAR, CENTER | ||||
| 61037-95J01 |
LH10#,11#,123,125,129,140,RZH10#,11#,12#..4D..(03S,05S,06S,08S,09S,10S,15S) |
1 | ||
| 61057A - EXTENSION SUB-ASSY, QUARTER LOCK PILLAR | ||||
| 61057-95J06 |
LH123,129,RZH122;LH113,RZH112..V2..4D..DX;LH11#,120,125,RZH11#,124..4D..(03S,08S,09S,10S,15S) |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61202-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-95J10 |
TRH124 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-95J09 |
TRH124 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61302C - PILLAR SUB-ASSY, CENTER BODY, OUTER LH | ||||
| 61302-95J23 |
LH100,110,115,117,125,RZH100,110,124..DX ｱﾘ(ﾃﾞﾝﾄﾞｳ ｽﾗｲﾄﾞﾄﾞｱ) |
1 | ||
| 61302-95J21 |
LH100,102,109,11#,123,125,129,140,RZH100,102,11#,12#..CD,DX,SW |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-95J67 |
LH125..GL;KZH11#,12#,LH120 ｱﾘ(ｱｼﾞﾔｽﾀﾌﾞﾙ ｼｰﾄﾍﾞﾙﾄ ｱﾝｶ & ﾙ-ﾌ ﾂﾘﾃﾝｼﾞﾖｳ) |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61339-26020 |
TRH102,112,122;LH162,17#,TRH124..(05S,15S)..(DX,GL,SGL) |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-26100 |
TRH102,112,122..4D;LH162,17#,TRH124..(05S,15S)..(DX,GL,SGL) |
1 | ||
| 61345-95J01 |
LH120..TD;LH10#,11#,123,125,129,140,RZH10#,11#,12#..4D |
1 | ||
| 61391 - SPACER, CENTER BODY PILLAR, INNER | ||||
| 61391-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61411D - PANEL, FENDER, OUTER RH | ||||
| 61411-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61412D - PANEL, FENDER, OUTER LH | ||||
| 61412-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61415A - PANEL, FRONT STEP, UNDER, RH | ||||
| 61415-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61416A - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61451 - PANEL, ROCKER, OUTER RH | ||||
| 61451-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61452A - PANEL, ROCKER OUTER, LH | ||||
| 61451-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61617B - PANEL, QUARTER INNER, LOWER RH | ||||
| 61617-95J00 |
LH125..DX;LH10#,11#,123,129,140,RZH10#,11#,12#..CD,DX,GL,SCM,SCMM,SW |
1 | ||
| 61618B - PANEL, QUARTER, INNER LOWER LH | ||||
| 61618-95J00 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 61625E - EXTENSION, QUARTER PANEL, INNER REAR RH | ||||
| 61625-95J00 |
LH113,123,125,129,RZH112,12#,133..HRF..DX |
1 | ||
| 61626E - EXTENSION, QUARTER PANEL, INNER REAR LH | ||||
| 61626-95J00 |
LH113,123,125,129,RZH112,12#,133..HRF..DX |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61605-95J03 |
LH10#,113,115,119,12#,140,RZH10#,112,12#..(COM,V1,WG)..SG |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61606-95J03 |
KZH10#,11#,LH140;KZH12#,13#,LH10#,11#,12#,16#,17#,18#,RZH10#,11#,12#,133..(COM,V1,WG)..SG..(CD,CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL) |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-95J00 |
LH10#,11#,123,125,129,140,RZH10#,11#,12# |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 61667A - SPACER QUARTER PANEL, NO.1 | ||||
| 61667-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61706A - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61706-95J10 |
LH113,12#,RZH112,122..HRF..DX ﾊｲﾙ-ﾌ & ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 61739B - REINFORCEMENT, EXTENSION QUARTER INNER PANEL | ||||
| 61739-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,123,125,129,140,16#,17#,18#,RZH10#,11#,12#,133..4D |
1 | ||
| 61741A - REINFORCEMENT, BACK DOOR OPENING, UPPER RH | ||||
| 61741-95J02 |
LH113,123,125,129,RZH112,12#..HRF |
1 | ||
| 61742A - REINFORCEMENT, BACK DOOR OPENING, UPPER LH | ||||
| 61742-95J02 |
KZH12#,13#,LH113,12#,172,18#,RZH112,12#,133..HRF |
1 | ||
| 62428B - COVER, CENTER PILLAR, RH | ||||
| 62428-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62428-26050 |
TRH102,112,12#..CD,DX,SGLE |
1 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 62429B - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J00 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GCGE,GCGN,GL,SGL,SW |
1 | ||
| 62657B - COVER, QUARTER PANEL INNER, LH | ||||
| 62657-95J01 |
LH125..DX;LH100,102,109,11#,123,129,140,RZH100,102,11#,12#..CD,DX,GL,SW |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-29245 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-29245 |
LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S 塗装不要 |
1 | ||
| Common parts | ||||
| 90109-06194 | ||||
| 90149-60027 | ||||
| 90149-60084 | ||||
| 90159-50050 | ||||
| 90159-60391 | ||||
| 90189-05016 | ||||
| 90189-05019 | ||||
| 90189-06029 | ||||
| 90189-06094 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
| 91651-60614 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 6153 | ||||

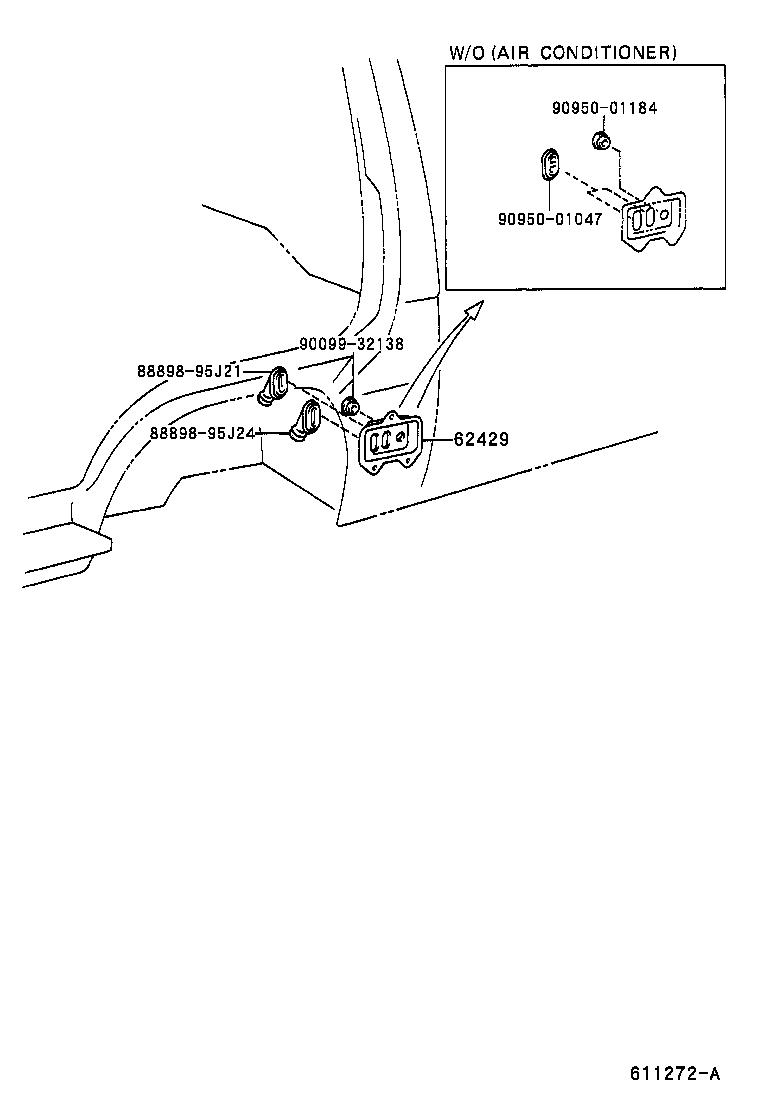

ILLUST NO. 3 OF 3(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 88898-95J21 | ||||
| 88898-95J24 | ||||
| 90099-32138 | ||||
| 90950-01047 | ||||
| 90950-01184 | ||||
