TRH124B-ZRMDK (2003)
Toyota Hiace/Regiusace

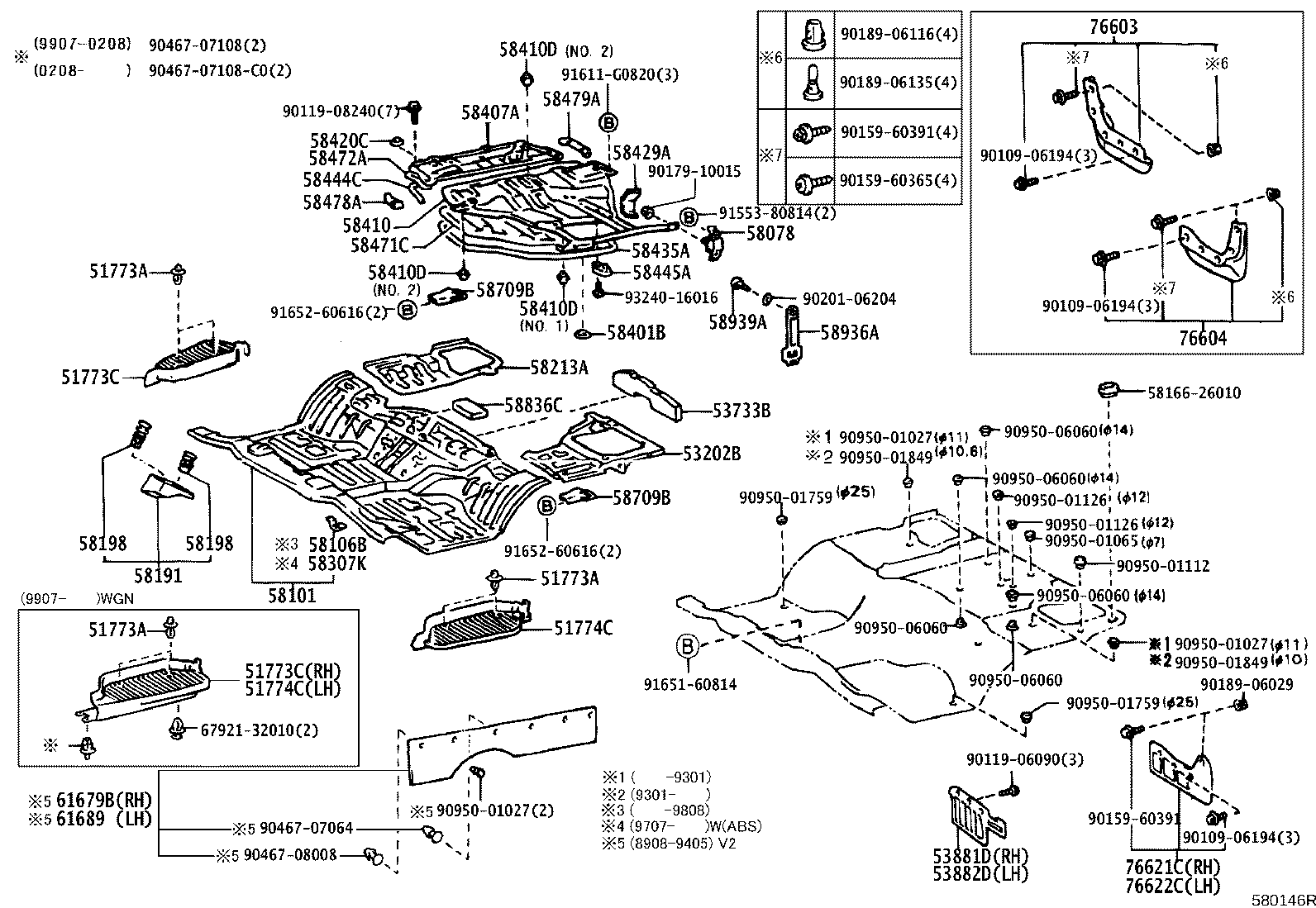

ILLUST NO. 1 OF 2(8908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-09013 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-09013 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-09013 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
4 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51774-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 塗装不要 |
1 | ||
| 53202B - PANEL SUB-ASSY, SEAT FLOOR, LH | ||||
| 58202-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133 製造工場NO.C11,C21−C26 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 58078 - BALANCER SUB-ASSY, ENGINE SERVICE HOLE COVER | ||||
| 58078-95J04 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95J49 |
LH100,102,110,113,115,123,125,140,RZH100,102,112,12#..(03S,06S,09S,15S)..(CD,DX,SW) |
1 | ||
| 58101-26A80 |
TRH112,12#..HRF..DX |
1 | ||
| 58101-26A30 |
TRH112,12#..HRF..DX ｱﾘ(ABS) |
1 | ||
| 58106B - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2 | ||||
| 58106-95A00 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-95J03 |
LH102..4D..(CD,DX);LH102,113..V2..5D..DX;LH113..V1..5D..5F..GL;LH113..4D..06S..5F..DX;LH102..5D..5F..(CD,GL);LH113..(03S,05S,09S)..(CD,DX,SGL);LH100,109,110,115,117,119,12#,140,RZH100,102,112,12#..CD,DX,SW |
1 | ||
| 58201-26110 |
TRH102,112,12# |
1 | ||
| 58401B - CLIP(FOR DECK BOARD NO.1) | ||||
| 90467-09103 |
LH10#,11#,12#,140,RZH10#,11#,12# |
5 | ||
| 90904-67033 |
TRH102,112,12# |
7 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-95J09 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 58407-26130 |
TRH102,112,12# |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95J20 |
LH100,102,109,113,115,119,123,125,129,RZH10#,112,12#..CD,CTM,DX,GL |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90541-09126 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.2 |
2 | ||
| 90541-09028 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90541-09126 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.2 |
2 | ||
| 90541-09028 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90541-09126 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.2 |
2 | ||
| 90541-09028 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 58420C - CLIP, ENGINE SERVICE HOLE COVER | ||||
| 90904-67033 |
TRH102,112,12# |
4 | ||
| 90904-67033 |
TRH102,112,12# |
4 | ||
| 58429A - PROTECTOR, ENGINE MAIN COVER HINGE | ||||
| 58429-95J0202 |
LH110,115,117,120,125,RZH110,124..10S,15S NEW MAROON,TRIM3# |
1 | ||
| 58435A - PACKING, ENGINE MAIN COVER | ||||
| 58435-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 58444C - PACKING, ENGINE SUB COVER, NO.1 | ||||
| 58444-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 58444-95J01 |
TRH102,112,12# |
2 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-95J09 |
LH10#,11#,12#,RZH10#,11#,12# |
1 | ||
| 58472A - SILENCER, ENGINE SUB COVER | ||||
| 58472-95J03 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 58472-26020 |
TRH102,112,12# |
2 | ||
| 58472-26030 |
TRH102,112,12# |
1 | ||
| 58478A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58478-95J01 |
TRH102,112,12# |
2 | ||
| 58478-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 58479A - PACKING, ENGINE SUB COVER, NO.3 | ||||
| 58479-95J02 |
TRH102,112,12# |
2 | ||
| 58479-95J02 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-95J01 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S 右側 |
1 | ||
| 71902-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側 |
1 | ||
| 58709B - CATCH SUB-ASSY, ENGINE SERVICE COVER | ||||
| 58709-95J01 |
LH100,102,109,110,113,115,119,123,125,129,140,RZH10#,112,12#..03S,06S,09S,15S 右側 |
1 | ||
| 71902-95J01 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 左側 |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-95J0102 |
LH109..5D;LH109..4D..DX;LH113,119,123..V1;LH100,107,110,115,117,120,125,129,RZH100,101,110,124..06S,07S,08S,10S,15S NEW MAROON,TRIM3# |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-29185 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-29185 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S |
1 | ||
| 76621C - MUDGUAD, FRONT FENDER, RH | ||||
| 76621-29085 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| 76622C - MUDGUARD, FRONT FENDER, LH | ||||
| 76622-29085 |
LH100,102,109,11#,12#,140,RZH10#,11#,12#..CD,CTM,DX,GL,SGL,SW |
1 | ||
| Common parts | ||||
| 58166-26010 | ||||
| 67921-32010 | ||||
| 90109-06194 | ||||
| 90119-06090 | ||||
| 90119-08240 | ||||
| 90159-60365 | ||||
| 90159-60391 | ||||
| 90179-10015 | ||||
| 90189-06029 | ||||
| 90189-06116 | ||||
| 90189-06135 | ||||
| 90201-06204 | ||||
| 90467-07064 | ||||
| 90467-07108 | ||||
| 90467-07108C0 | ||||
| 90467-08008 | ||||
| 90950-01027 | ||||
| 90950-01065 | ||||
| 90950-01112 | ||||
| 90950-01126 | ||||
| 90950-01759 | ||||
| 90950-01849 | ||||
| 90950-06060 | ||||
| 91553-80814 | ||||
| 91611-G0820 | ||||
| 91651-60814 | ||||
| 91652-60616 | ||||
| 93240-16016 | ||||
