TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )

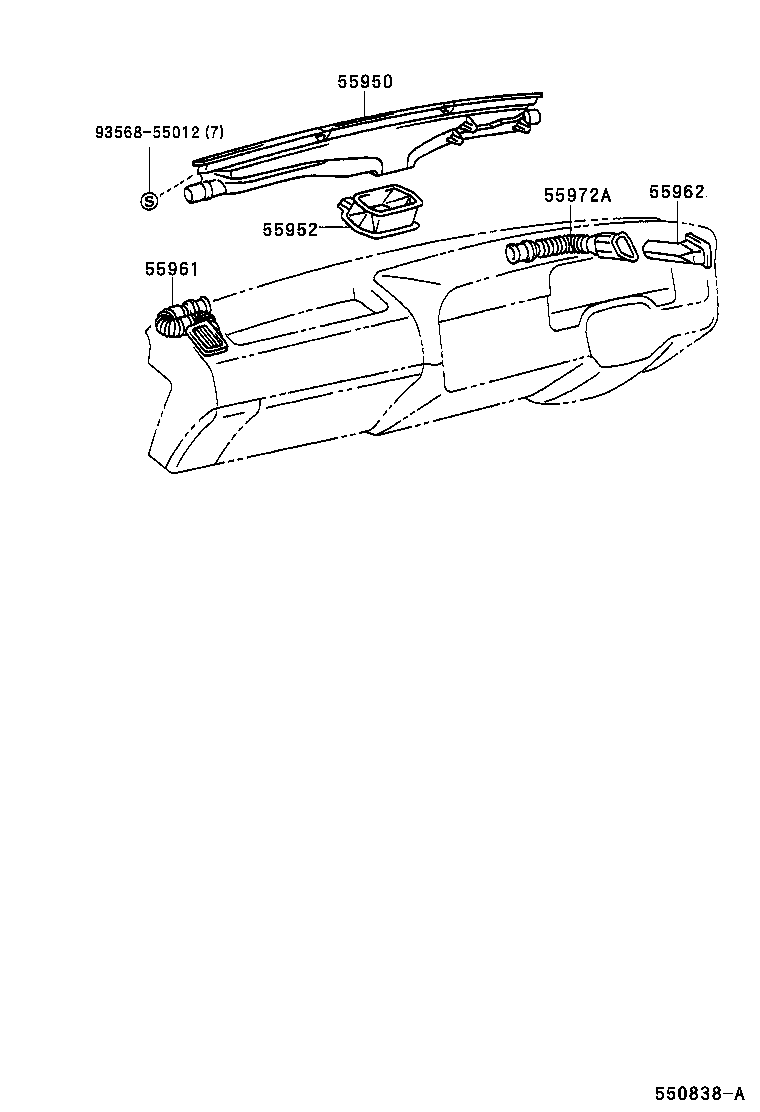

Click highlighted areas on diagram

diagram 55950 55952 55961 55962 55972A 9356855012
Part # Description Qty Price
55950 - NOZZLE ASSY, DEFROSTER
55950-95J03

LH10#,11#,12#,140,RZH10#,11#,12#

 1
55952 - NOZZLE, DEFROSTER, FRONT LH
55952-95J01

LH10#,11#,12#,140,RZH10#,11#,12#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55970-95J0302

LH100,107,110,120,125,RZH100,101,124..07S,08S,10S,15S

NEW MAROON,TRIM3#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55980-95J0302

LH110,115,117,120,125,RZH110,124..DX,GL

NEW MAROON,TRIM3#

 1
55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
Common parts
93568-55012
