TRH124B-ZRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Jan 2005
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )KZH10#,11#,126,13#,LH10#,110,115,117,120,125,129,140,RZH100,101,110,111,

Click highlighted areas on diagram

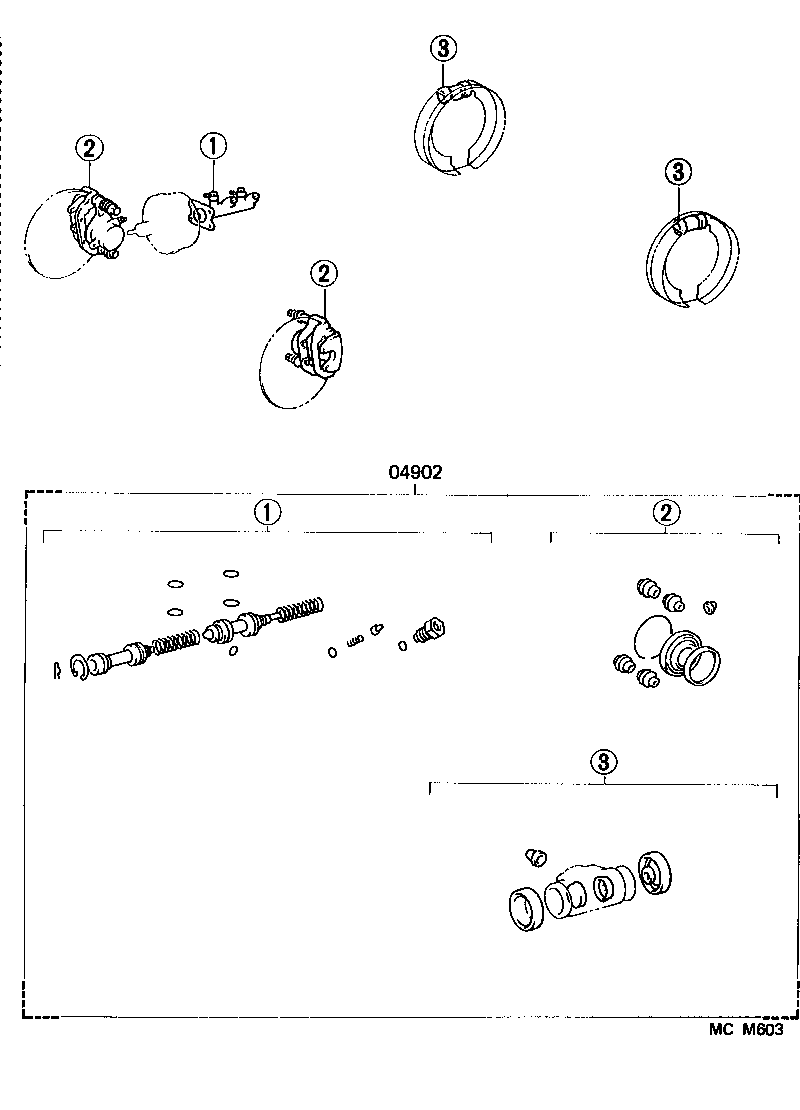

diagram 04902
Part # Description Qty Price
04902 - MAINTENACE KIT, BRAKE
04901-26270

LH113..09S..5F;LH113..03S,05S,06S;LH102,115,123,125,RZH102,112,12#

 1
04901-26270

LH113..09S..5F;LH113..03S,05S,06S;LH102,115,123,125,RZH102,112,12#

 1
04901-26270

LH113..09S..5F;LH113..03S,05S,06S;LH102,115,123,125,RZH102,112,12#

 1
04901-26270

LH113..09S..5F;LH113..03S,05S,06S;LH102,115,123,125,RZH102,112,12#

 1
04901-26270

LH113..09S..5F;LH113..03S,05S,06S;LH102,115,123,125,RZH102,112,12#

 1
