TRH124B-ZRMDK (2003)
Toyota Hiace/Regiusace
(8908- )KZH120,132,LH120,123,125,182,184,RZH12#,133,18#,TRH12#..2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

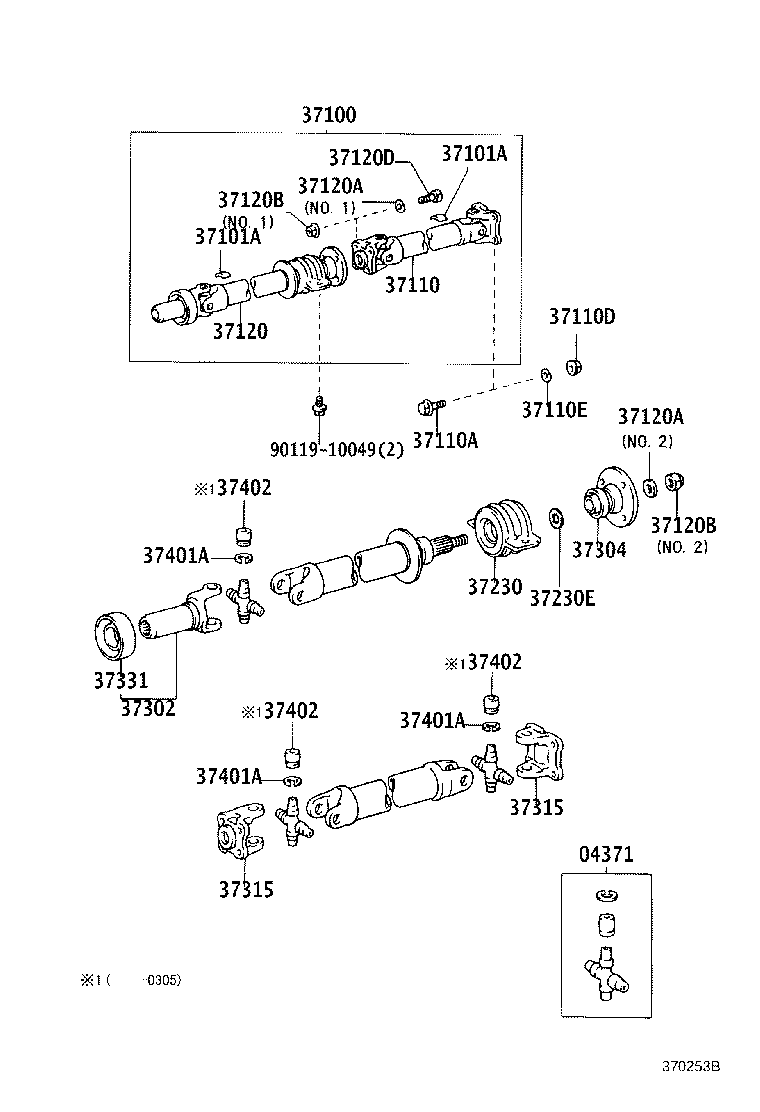

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-26060 |
LH123,125,182,184,RZH122,124..5F |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01150 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 4G,厚さ=2.0 |
1 | ||
| 90937-01149 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 6G,長さ=12.4 |
1 | ||
| 90937-01132 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 2G,厚さ=2.0 |
1 | ||
| 90937-01151 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 12G,長さ=24.9 |
1 | ||
| 90937-01152 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 14G,長さ=29.0 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-26490 |
LH123,125,182,184,RZH122,124..5F |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-10466 |
KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112,12# *10−1.00PX29−15 |
4 | ||
| 90105-10085 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 *10−1.00PX27−13 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-10059 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
4 | ||
| 90178-10007 |
KZH100,110,120,132,LH162,172,182,184,TRH102,112,12#..2WD |
4 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90204-10002 |
KZH100,110,120,132,LH100,102,103,110,113,115,120,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
4 | ||
| 90560-10102 |
KZH100,110,120,132,LH162,172,182,184,TRH102,112,12#..2WD |
4 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-26020 |
LH123,125,182,184,RZH122,124..5F |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-35030 |
LH100..4FC..SCMM..TD;LH100..(07S,09S)..(DSL,TD);LH102,110,115,125,140,RZH100,102,110,112,122..5F;LH103,113,123,162,172,182,184,RZH101,111,124,125,133 |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-30010 |
LH100..4FC..SCMM..TD;LH100..(07S,09S)..(DSL,TD);LH102,103,110,113,115,123,125,140,162,172,182,184,RZH10#,11#,12#,133 |
1 | ||
| Common parts | ||||
| 90119-10049 | ||||
