TRH112V-SRPDK (2003)
Toyota Hiace/Regiusace

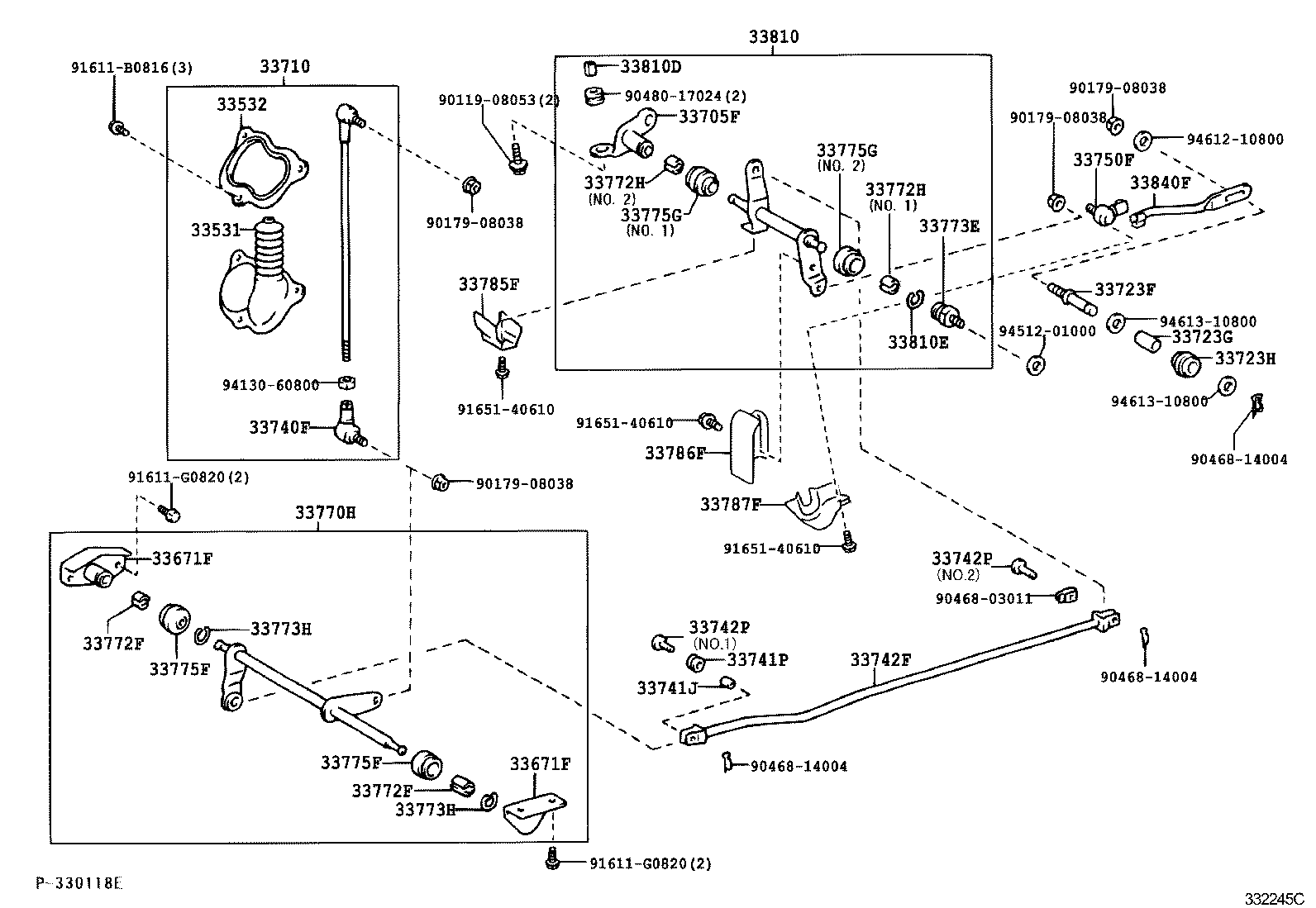

ILLUST NO. 2 OF 2(0308- )LH162,17#,18#,TRH102,112,12#..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-26030 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-26030 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26110 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC 右側 |
1 | ||
| 33671-26180 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC 左側 |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33673-26110 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC 右側 |
1 | ||
| 33671-26180 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC 左側 |
1 | ||
| 33705F - SUPPORT SUB-ASSY, CROSS SHAFT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33705-26100 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-26200 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
LH10#,11#,12#,140,RZH10#,11#,12# |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90480-17177 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-26200 |
LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 90240-08042 |
LH10#,11#,12#,RZH10#,11#,12# NO.2 |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 NO.1 |
1 | ||
| 90240-08042 |
LH10#,11#,12#,RZH10#,11#,12# NO.2 |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26140 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 |
2 | ||
| 33772H - BUSH, CROSS SHAFT SUPPORT, NO.2 (FOR FLOOR SHIFT) | ||||
| 33772-26010 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 |
2 | ||
| 33773E - SUPPORT, CROSS SHAFT, NO.1 | ||||
| 33773-20020 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 左側 |
1 | ||
| 33775-26050 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,125,133..4FC 右側 |
1 | ||
| 33775G - COVER, CROSS SHAFT DUST, NO.2 (FOR FLOOR SHIFT) | ||||
| 33775-20020 |
LH162,17#,18#..5F;KZH10#,11#,12#,13#,LH10#,11#,12#,140,168,RZH10#,11#,12#,133 左側 |
1 | ||
| 33775-26050 |
KZH10#,11#,120,13#,LH100,102,103,107,113,119,120,123,129,RZH10#,111,112,124,125,133..4FC 右側 |
1 | ||
| 33785F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.1 (FOR FLOOR SHIF | ||||
| 33785-26050 |
KZH10#,11#,120,13#..4FC;LH100,120..5F..(TD,TDE) 左側 |
1 | ||
| 33785-26050 |
LH100..07S,09S;LH100,120..(08S,10S)..4FC;LH102,103,107,109,11#,123,125,129,140,RZH10#,11#,12#,133 RH&LH |
2 | ||
| 33786F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.2 (FOR FLOOR SHIF | ||||
| 33785-26020 |
LH100,102,103,107,113,119,120,123,129,162,17#,18#,RZH10#,111,112,124,125,133..4FC |
1 | ||
| 33787F - INSULATOR, CROSS SHAFT LEVER HEAT, NO.3 | ||||
| 33786-26040 |
TRH102,112..4FC |
1 | ||
| 33810 - SHAFT ASSY, CROSS, NO.2 | ||||
| 33810-26080 |
RZH10#,112..4FC |
1 | ||
| 33810D - COLLAR (FOR CROSS SHAFT) | ||||
| 90387-09034 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
2 | ||
| 33810E - RING, SNAP (FOR CROSS SHAFT) | ||||
| 96151-01600 |
KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133 |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-26170 |
LH100,102,107,113,119,123,RZH10#,112..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| Common parts | ||||
| 90119-08053 | ||||
| 90179-08038 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 90480-17024 | ||||
| 91611-B0816 | ||||
| 91611-G0820 | ||||
| 91651-40610 | ||||
| 94130-60800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
