TRH112V-SRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(0308-0407)TRH122..06S ; (0308-0407)TRH102,112..CD,DX ; (0308- )TRH112,122..09S

Click highlighted areas on diagram

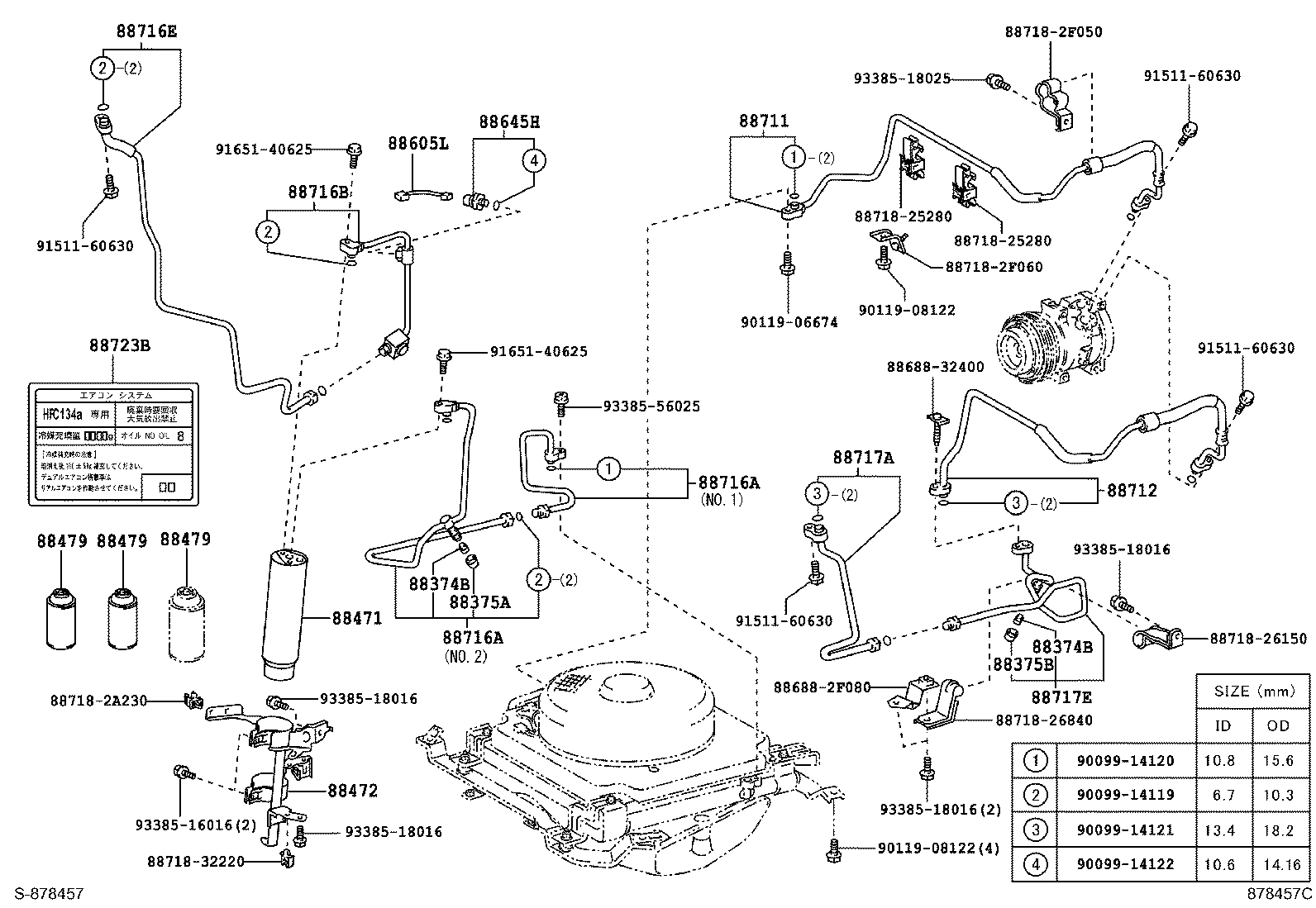

FRONT PIPING--SINGLE(DEALER OPT)

diagram 88374B 88374B 88375A 88375B 88471 88472 88479 88479 88479 88605L 88645H 886882F080 8868832400 88711 88712 88716A 88716A 88716B 88716E 88717A 88717E 8871825280 8871825280 8871826150 8871826840 887182A230 887182F050 887182F060 8871832220 88723B 9009914119 9009914120 9009914121 9009914122 9011906674 9011908122 9011908122 9151160630 9151160630 9151160630 9151160630 9165140625 9165140625 9338516016 9338518016 9338518016 9338518016 9338518016 9338518025 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-12020

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 2
88374B - VALVE, SERVICE, NO.1
88374-12020

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

吸入側

 1
88375-20010

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

ﾘｷｯﾄﾞ側

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95J02

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N33

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

ｼﾝｸﾞﾙ ｴｱｺﾝ,左側

 1
88605-95N22

RZH102,112,122

 1
88645H - SWITCH, PRESSURE NO.1
88645-10020

LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

NO.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95J35

RZH102,112,122

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95J22

RZH10#,11#,12#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95J82

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95N06

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

NO.3

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95J85

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95J40

LH10#,11#,12#,RZH10#,11#,12#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-95J42

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

 1
Common parts
88688-2F080
88688-32400
88718-25280
88718-26150
88718-26840
88718-2A230
88718-2F050
88718-2F060
88718-32220
90099-14119
90099-14120
90099-14121
90099-14122
90119-06674
90119-08122
91511-60630
91651-40625
93385-16016
93385-18016
93385-18025
93385-56025

ILLUST NO. 2 OF 5(0308- )TRH112..SRF..DX ; (0308- )TRH112..HRF..4D ; (0308- )TRH102,12#..DX

Click highlighted areas on diagram

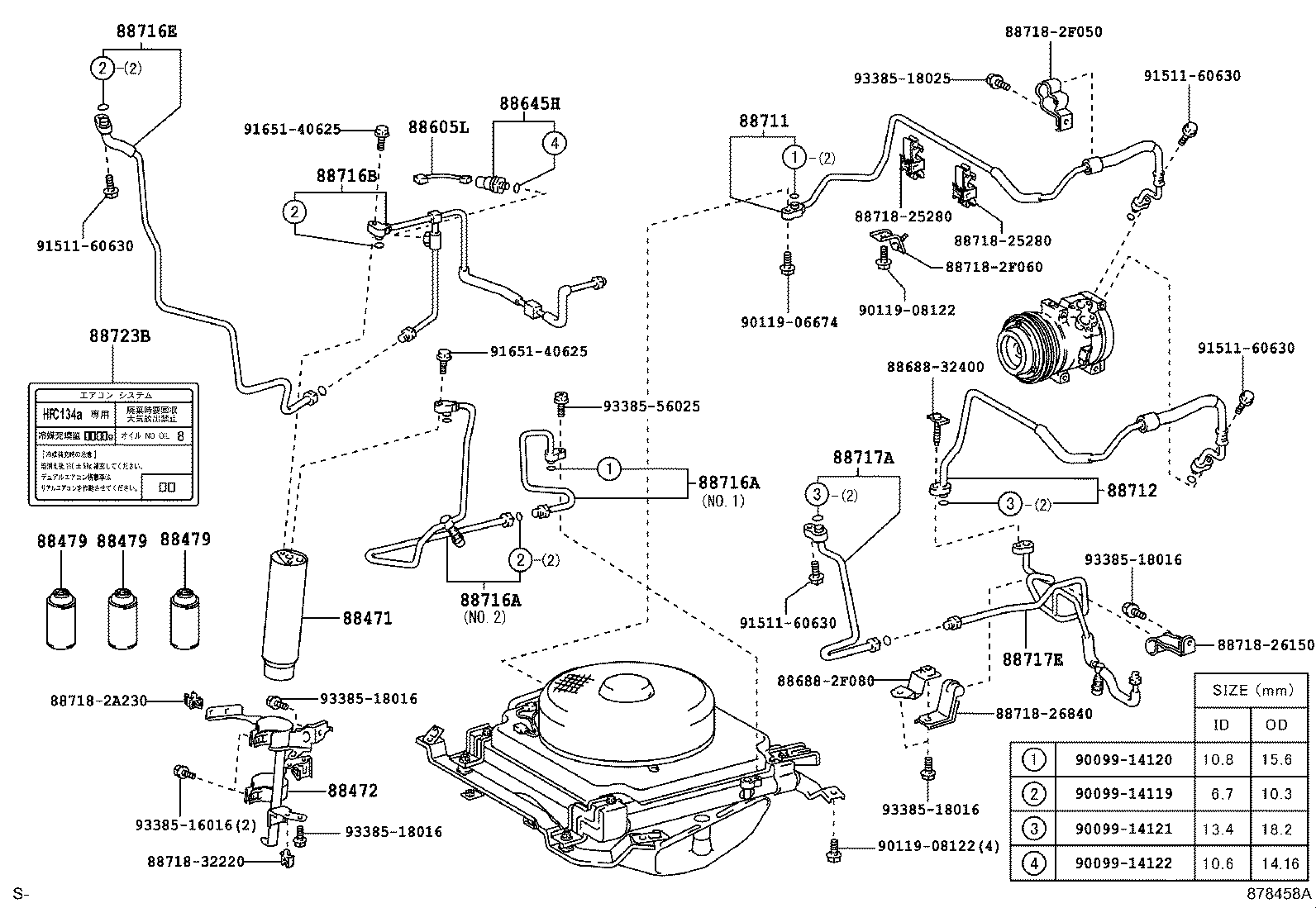

FRONT PIPING--DUAL(DEALER OPT)

diagram 88471 88472 88479 88479 88479 88605L 88645H 886882F080 8868832400 88711 88712 88716A 88716A 88716B 88716E 88717A 88717E 8871825280 8871825280 8871826150 8871826840 887182A230 887182F050 887182F060 8871832220 88723B 9009914119 9009914120 9009914121 9009914122 9011906674 9011908122 9011908122 9151160630 9151160630 9151160630 9151160630 9165140625 9165140625 9338516016 9338518016 9338518016 9338518016 9338518016 9338518025 9338556025
Part # Description Qty Price
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95J02

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N33

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

ｼﾝｸﾞﾙ ｴｱｺﾝ,左側

 1
88605-95N22

RZH102,112,122

 1
88645H - SWITCH, PRESSURE NO.1
88645-10020

LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

NO.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95J35

RZH102,112,122

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95J22

RZH10#,11#,12#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95J82

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95N06

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

NO.3

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95J85

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95J40

LH10#,11#,12#,RZH10#,11#,12#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-95J42

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

 1
Common parts
88688-2F080
88688-32400
88718-25280
88718-26150
88718-26840
88718-2A230
88718-2F050
88718-2F060
88718-32220
90099-14119
90099-14120
90099-14121
90099-14122
90119-06674
90119-08122
91511-60630
91651-40625
93385-16016
93385-18016
93385-18025
93385-56025

ILLUST NO. 3 OF 5(0308- )TRH112..SRF..DX ; (0308- )TRH112..HRF..4D ; (0308- )TRH102,12#..DX

Click highlighted areas on diagram

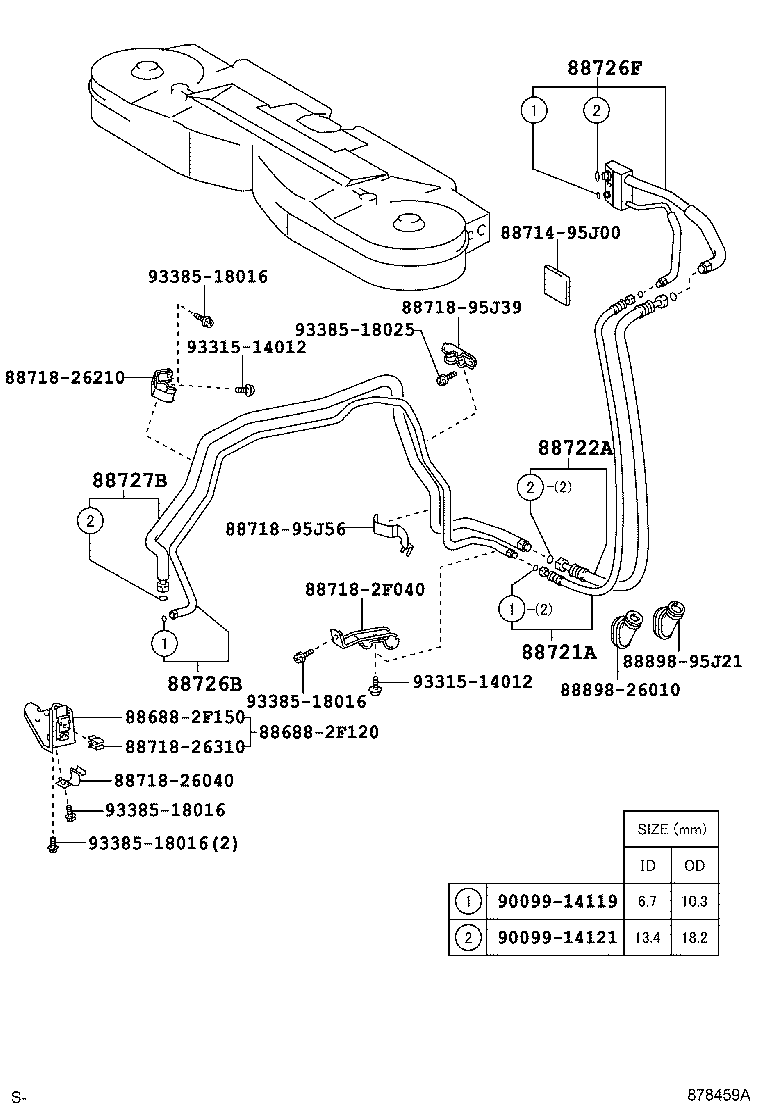

REAR PIPING(DEALER OPT)

diagram 886882F120 886882F150 8871495J00 8871826040 8871826210 8871826310 887182F040 8871895J39 8871895J56 88721A 88722A 88726B 88726F 88727B 8889826010 8889895J21 9009914119 9009914121 9331514012 9331514012 9338518016 9338518016 9338518016 9338518016 9338518025
Part # Description Qty Price
88722A - HOSE, SUCTION, A
88712-2F130

LH178..08S;TRH102,112..SRF..(DX,SGLE);KZH11#,LH162,17#..(05S,10S)..(DX,SGLE)

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2F460

KZH10#,11#,120,13#

 1
Common parts
88688-2F120
88688-2F150
88714-95J00
88718-26040
88718-26210
88718-26310
88718-2F040
88718-95J39
88718-95J56
88898-26010
88898-95J21
90099-14119
90099-14121
93315-14012
93385-18016
93385-18025

ILLUST NO. 2 OF 5(0407- )TRH102,112,122..03S,06S..CD,DX

Click highlighted areas on diagram

FRONT PIPING--SINGLE(DEALER OPT)

diagram 88374B 88374B 88375A 88375B 88471 88472 88479 88479 88479 88605L 88645H 886882F080 8868832400 88711 88712 88716A 88716A 88716B 88716E 88717A 88717E 8871825280 8871825280 8871826150 8871826840 887182A230 887182F050 887182F060 8871832220 88723B 9009120642 9009120816 9009120816 9009120816 9009120816 9009120817 9009914119 9009914120 9009914121 9009914122 9011906674 9011908122 9011908122 9151160630 9151160630 9151160630 9151160630 9165140625 9165140625 9338516016
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-12020

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 2
88374B - VALVE, SERVICE, NO.1
88374-12020

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

吸入側

 1
88375-20010

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

ﾘｷｯﾄﾞ側

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95J02

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N33

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

ｼﾝｸﾞﾙ ｴｱｺﾝ,左側

 1
88605-95N22

RZH102,112,122

 1
88645H - SWITCH, PRESSURE NO.1
88645-10020

LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

NO.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95J35

RZH102,112,122

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95J22

RZH10#,11#,12#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95J82

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95N06

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

NO.3

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95J85

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95J40

LH10#,11#,12#,RZH10#,11#,12#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-95J42

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

 1
Common parts
88688-2F080
88688-32400
88718-25280
88718-26150
88718-26840
88718-2A230
88718-2F050
88718-2F060
88718-32220
90091-20642
90091-20816
90091-20817
90099-14119
90099-14120
90099-14121
90099-14122
90119-06674
90119-08122
91511-60630
91651-40625
93385-16016
