TRH112V-SRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0308- )TRH102,112,12#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 8712 87208 87208 87208G 87208G 87209 87209 87240 87245A 87245A 87245C 87245E 87246A 87256E 9046722008 9046722008 9046722008 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J50

LH125..DX;LH100,102,109,11#,123,129,140..HRF,SRF

 1
87208-26A30

TRH102,112..DX,SGL,SGLE

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87208-95J49

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26A10

TRH102,112..CD,DX,SGLE

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95J50

LH125..DX;LH100,102,109,11#,123,129,140..HRF,SRF

 1
87208-26A30

TRH102,112..DX,SGL,SGLE

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87208-95J49

LH10#,11#,12#,140..05S,06S,07S,08S,09S,10S,15S

ｱﾘ(ﾘﾔﾋ-ﾀ)

 1
87208-26A10

TRH102,112..CD,DX,SGLE

 1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-26A00

TRH102,112..CD,DX,SGLE

 1
87208-26A20

TRH102,112..DX,SGL,SGLE

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87208G - PIPE SUB-ASSY, HEATER WATER, G
87208-26A00

TRH102,112..CD,DX,SGLE

 1
87208-26A20

TRH102,112..DX,SGL,SGLE

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209 - HOSE SUB-ASSY, WATER
87245-26A00

TRH102,112

 1
87209 - HOSE SUB-ASSY, WATER
87245-26A00

TRH102,112

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J08

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#,12#,140,16#,17#,18#

 1
87245-95J48

RZH10#,11#,12#,133

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J46

LH10#,11#,12#,140,16#,17#,18#

 1
87245-95J48

RZH10#,11#,12#,133

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-95J50

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J49

LH10#,11#,12#,140,RZH10#,11#,12#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J05

LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20200

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=140

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=180

 1
Common parts
90467-22008
91651-40816
96134-42100
Linked diagrams
1603
8712

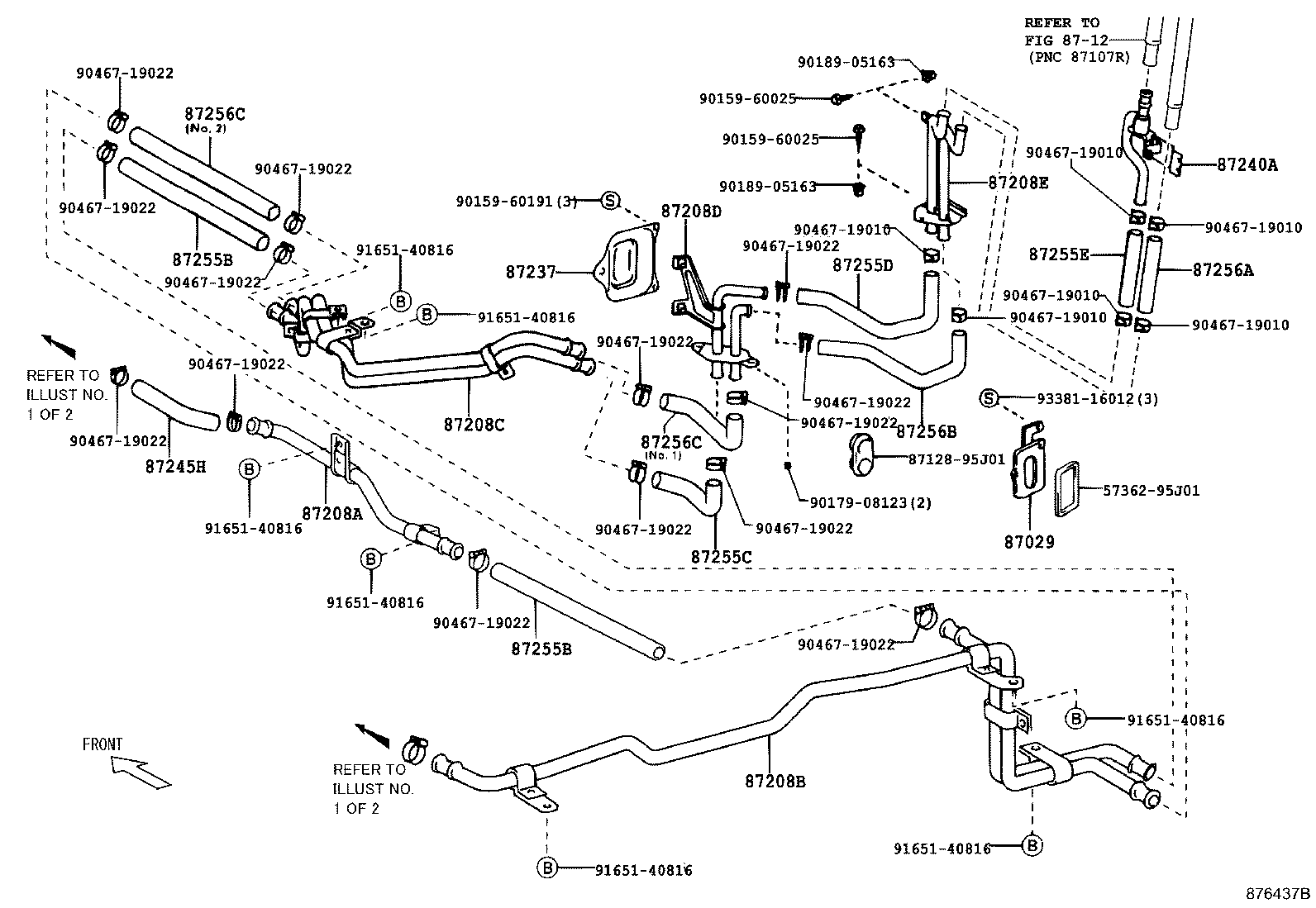

ILLUST NO. 2 OF 2(0308- )TRH102,112..V1..5D

Click highlighted areas on diagram

diagram 5736295J01 87029 8712 8712895J01 87208A 87208B 87208C 87208D 87208E 87237 87240A 87245H 87255B 87255B 87255C 87255D 87255E 87256A 87256B 87256C 87256C 9015960025 9015960025 9015960191 9017908123 9018905163 9018905163 9046719010 9046719010 9046719010 9046719010 9046719010 9046719010 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9165140816 9338116012
Part # Description Qty Price
87029 - COVER SUB-ASSY, HEATER INLET HOLE
87029-95J01

LH113,172,RZH112..V2..4D..DX;LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D..06S

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J59

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

 1
87208-26840

TRH102,112..DX,SGL,SGLE

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-95J55

RZH102,112..850K;RZH10#,11#,12#..(COM,V1,WG)..(CTM,DX,GL,SCL,SCM,SCMM)

 1
87208-95J57

LH10#,11#,123,125,129,140..(COM,V1,WG)..(05S,06S,07S,08S,09S,10S,15S)

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-95J66

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95J62

LH102,103,109,113,119,RZH102,112..5D..06S

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87208-95J63

LH102,103,109,113,119,RZH102,112..V1..5D..06S

 1
87237 - COVER, HEATER PIPING
87237-95J00

LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D..06S

 1
87245H - HOSE, HEATER WATER, INLET H
87245-26A20

TRH102,112..DX,SGL,SGLE

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20300

RZH102,112..850K;RZH10#,11#,12#..CTM,DX,GL,SCL,SCM,SCMM

*H,L=240

 1
99556-20200

LH10#,11#,123,125,129,140..05S,06S,07S,08S,09S,10S,15S

*H,L=130

 1
87255C - HOSE, REAR HEATER WATER INLET, C
87245-95J55

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87255D - HOSE, REAR HEATER WATER INLET, D
87245-95J53

LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200

RZH112..V2;LH113..V2..4D..DX;RZH102,112..V1..5D..06S;LH102,103,109,113,119..5D..06S

*H,L=140,ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋ-ﾀ)

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95J52

LH102,103,109,113,119,16#,17#,RZH102,112..V1..5D..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-95J54

LH102,103,109,113,119,16#,17#,RZH102,112..5D..06S

 1
Common parts
57362-95J01
87128-95J01
90159-60025
90159-60191
90179-08123
90189-05163
90467-19010
90467-19022
91651-40816
93381-16012
Linked diagrams
8712
