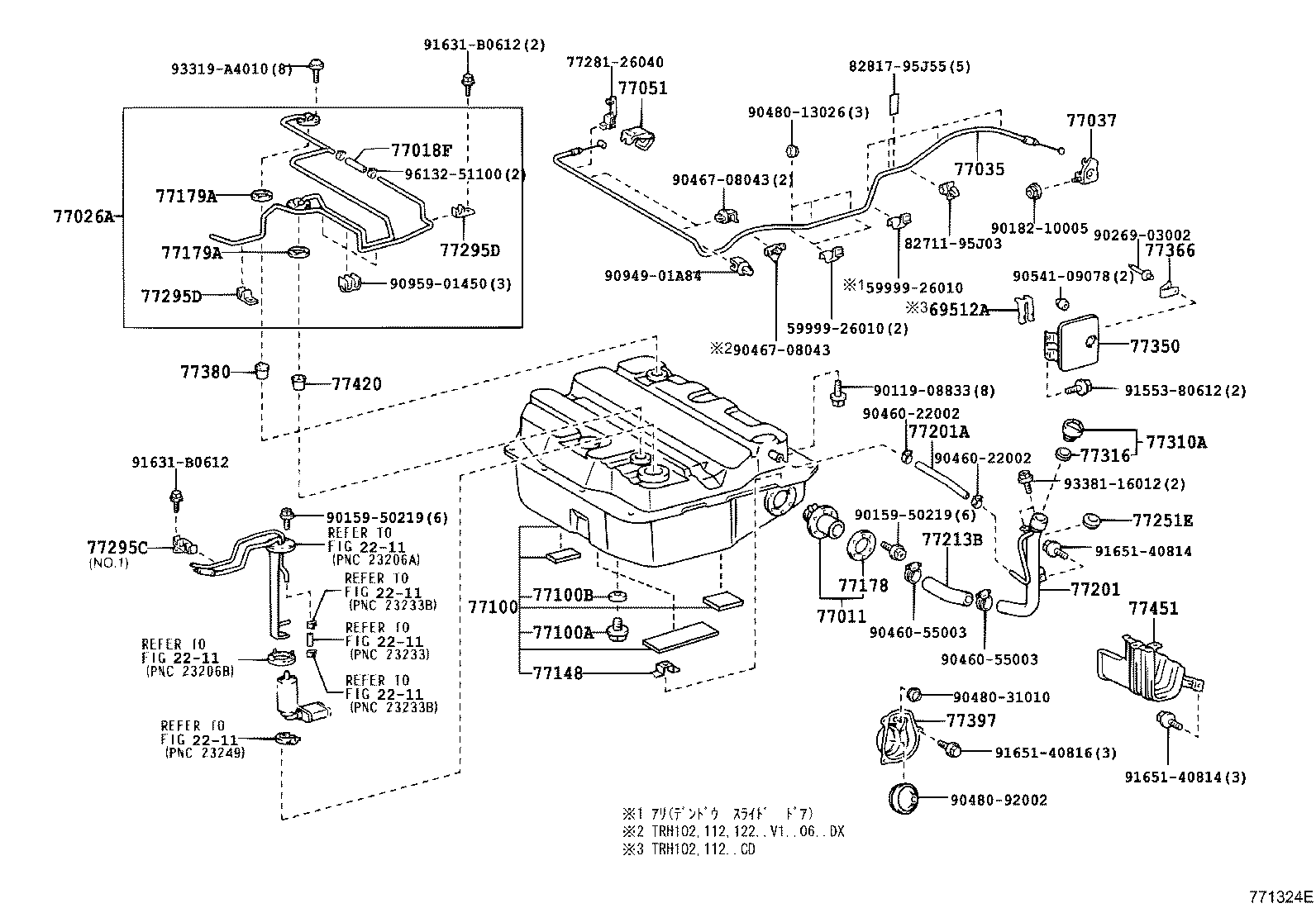

Toyota Hiace/regiusace TRH112 FUEL TANK & TUBE

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77018F - HOSE, FUEL TANK EVAPORATION VENT
95337-06007	TRH102,112..V1 長さ=70	08/2003 - 08/2004	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-26040	KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG	08/1989 - 04/1995	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-32010	LH113,119,RZH112;KZH10#,11#,12#,13#,LH10#,110,115,117,12#,140,RZH10#,110,111,12#,133..CTM,DX,GCGE,GCGN,GL,SCL,SCM,SCMM,SGL,SW	08/1989 - 08/1996	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-95J0103	LH10#,110,113,119,123,129,140,RZH10#,112,122..05S,06S,08S,09S GRAY,TRIM1#	08/1989 - 08/1993	1
77100 - TANK ASSY, FUEL
77001-26450	RZH102,112,12#..COM,V1	08/1989 - 08/1991	1
77001-26470	LH10#,11#,12#,140..COM,V1,WG	08/1989 - 08/1991	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 08/1996	1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	2
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26140	LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG	08/1989 - 05/1992	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95311-13032	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG 長さ=320	08/1989 - 07/1999	1
95312-13032	KZH10#,11#,120,13#,LH16#,17#,18#,TRH102,112..COM,V1,WG 長さ=320	08/2003 - 08/2004	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-26080	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77251E - SHIELD, FUEL TANK INLET PIPE
77251-10010	LH10#,11#,12#,140,RZH10#,11#,12#	08/1989 - 05/1992	1
77295C - GROMMET, FUEL TUBE
77295-35110	TRH112..V1 NO.2	08/2003 - 08/2004	1
77310A - CAP ASSY, FUEL TANK
77310-35061	LH10#,11#,12#,140	08/1989 - 05/1992	1
77310-12100	RZH10#,11#,12#	08/1989 - 05/1992	1
77316 - GASKET, FUEL TANK CAP
77316-12050	LH10#,11#,12#,140,RZH10#,11#,12#	08/1989 - 05/1992	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-95J01	LH10#,11#,12#,140,RZH10#,11#,12#..05S,06S,07S,08S,09S,10S,15S	08/1989 - 05/1992	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-95J01	KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133	08/1989 - 08/1996	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	LH10#,11#,12#,140,RZH10#,11#,12#..COM,V1,WG	08/1989 - 05/1992	1
77397 - PLATE, FUEL INLET PIPE SEAL
77397-95J01	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77420 - VALVE ASSY, FUEL CUT OFF, NO.2
77420-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
77451 - PROTECTOR, FUEL INLET HOSE
77451-26010	KZH10#,11#,12#,13#,LH10#,11#,12#,140,16#,17#,18#,RZH10#,11#,12#,133..COM,V1,WG	08/1989 - 07/1999	1
Common parts
59999-26010
77281-26040
82711-95J03
82817-95J55
90119-08833
90159-50219
90182-10005
90269-03002
90460-22002
90460-55003
90467-08043
90480-13026
90480-31010
90480-92002
90541-09078
90949-01A84
90959-01450
91553-80612
91631-B0612
91651-40814
91651-40816
93319-A4010
93381-16012
96132-51100
Linked diagrams
2211

TRH112V-SRMDK (2003)

ILLUST NO. 1 OF 2(0308- )TRH102,112,12#..COM,V1
