TRH112V-SRMDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )TRH112,122..V1

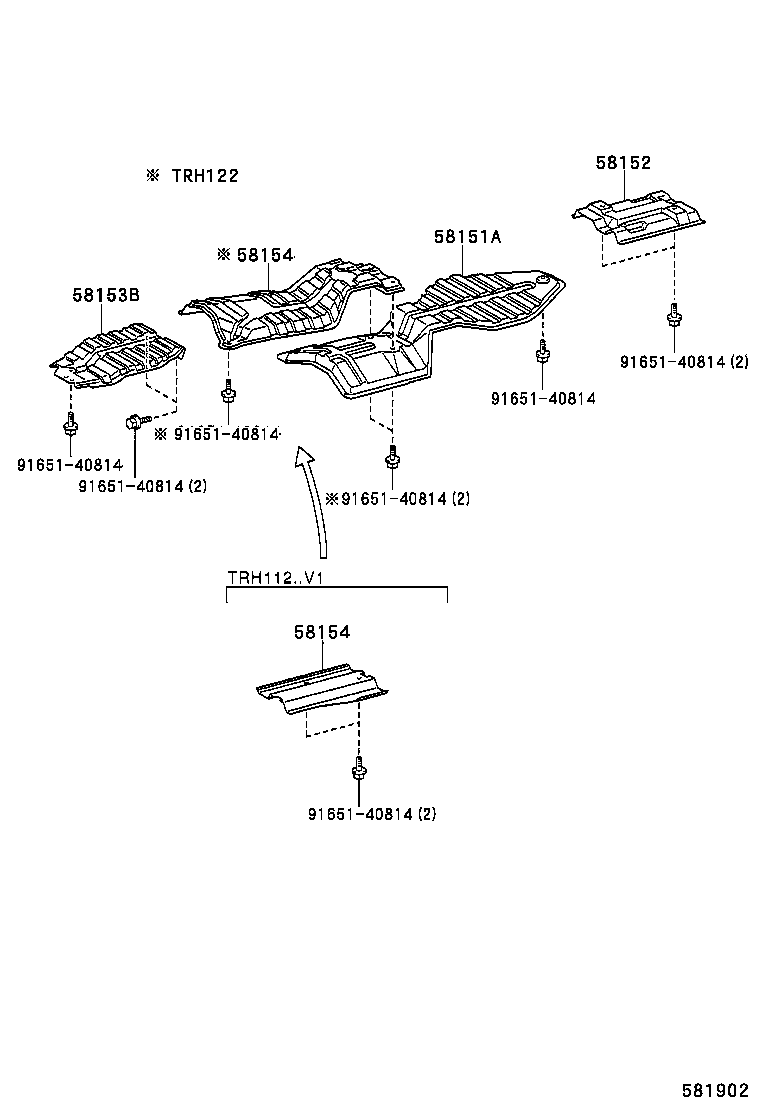

Click highlighted areas on diagram

diagram 58151A 58152 58153B 58154 58154 9165140814 9165140814 9165140814 9165140814 9165140814 9165140814 9165140814
Part # Description Qty Price
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-95J03

LH11#,12#,17#,18#,RZH110,112,12#..COM,V1,WG

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-95J04

LH140;LH102,103,109,11#,12#,16#,17#,18#,RZH102,110,112,12#..(COM,V1,WG)..(CD,DX,GCGE,GCGN,GL,SGL)

 1
58152-95J05

KZH10#,11#,12#,13#,LH100,107,RZH100,101,111,133

 1
58153B - INSULATOR, FLOOR HEAT, NO.3
58153-95J02

RZH10#,11#,12#,133

 1
58154 - INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER
58154-26010

TRH112..V1

 1
58154 - INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER
58154-26010

TRH112..V1

 1
Common parts
91651-40814
