TRH112V-SMPDK (2003)
Toyota Hiace/Regiusace
(0308- )TRH102,112,12#..4FC
A45DE

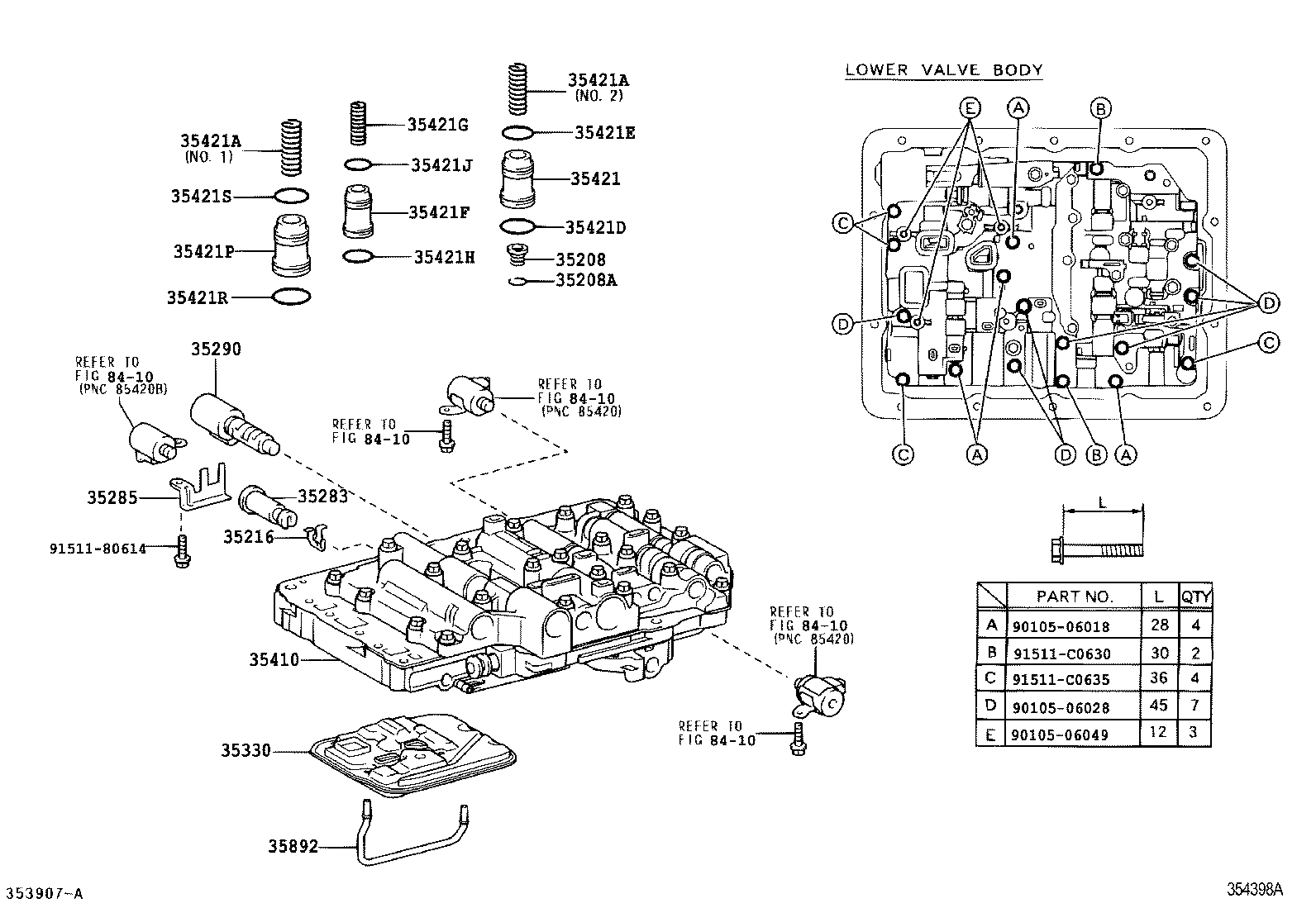

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-28010 |
TRH102,112..4FC |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
KZH10#,11#,120,13#,LH100,120,162,17#,18#,RZH100,101,111,125,133..4FC..(DSL,EFI,TDE) |
1 | ||
| 90521-22004 |
TRH102,112..4FC |
2 | ||
| 35216 - STOPPER, VALVE SLEEVE | ||||
| 35216-28010 |
TRH102,112..4FC |
1 | ||
| 35283 - SLEEVE, LOCK UP CONTROL SOLENOID | ||||
| 35283-28010 |
TRH102,112..4FC |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-28010 |
TRH102,112..4FC |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-25010 |
TRH102,112..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-22032 |
TRH102,112..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-25090 |
TRH102,112..4FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-24010 |
LH100,107,RZH102,112,124..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-13012 |
RZH102,112,124..4FC |
1 | ||
| 90501-20162 |
TRH102,112..4FC NO.1 |
1 | ||
| 90501-25037 |
TRH102,112..4FC NO.2 |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-13012 |
RZH102,112,124..4FC |
1 | ||
| 90501-20162 |
TRH102,112..4FC NO.1 |
1 | ||
| 90501-25037 |
TRH102,112..4FC NO.2 |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
LH102,103,113,119,123,129,RZH102,112..4FC |
1 | ||
| 35441-30010 |
TRH102,112..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-25002 |
RZH100,102,112..4FC 上側 |
1 | ||
| 90501-26050 |
RZH102,112,124..4FC 下側 |
1 | ||
| 90501-25061 |
TRH102,112..4FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,125,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
LH100,102,103,107,113,119,123,129,RZH10#,111,112,124,133..4FC..(CBR,DSL,EFI,TD) |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-14010 |
LH102,103,113,119,123,129,RZH102,112..4FC |
1 | ||
| 35892-22010 |
TRH102,112..4FC |
1 | ||
| Common parts | ||||
| 90105-06018 | ||||
| 90105-06028 | ||||
| 90105-06049 | ||||
| 91511-80614 | ||||
| 91511-C0630 | ||||
| 91511-C0635 | ||||
| Linked diagrams | ||||
| 8410 | ||||
