TRH112V-SMPDK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )1TRFE..TRH102,112..V2

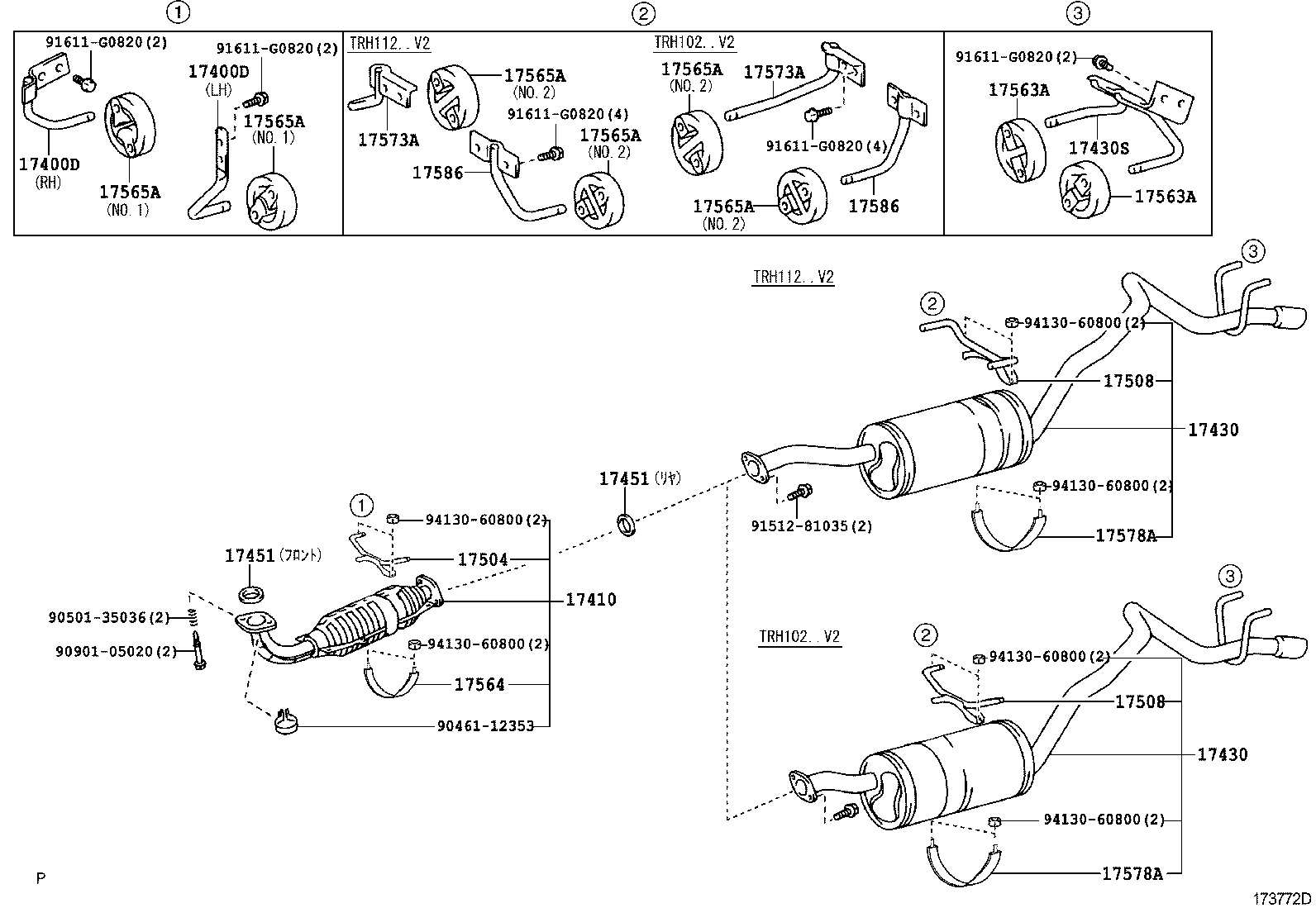

Click highlighted areas on diagram

diagram 17400D 17400D 17410 17430 17430 17430S 17451 17451 17504 17508 17508 17563A 17563A 17564 17565A 17565A 17565A 17565A 17565A 17565A 17573A 17573A 17578A 17578A 17586 17586 9046112353 9050135036 9090105020 9151281035 91611G0820 91611G0820 91611G0820 91611G0820 91611G0820 9413060800 9413060800 9413060800 9413060800 9413060800 9413060800
Part # Description Qty Price
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75690

1TRFE..TRH112..V2

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-75690

1TRFE..TRH112..V2

 1
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-75040

1TRFE..TRH102,112

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-75090

1TRFE..TRH112..V2

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-75090

1TRFE..TRH112..V2

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17564-75070

1TRFE..TRH102,112

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-75041

5L,1TRFE..LH172,TRH112..V2

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-75041

5L,1TRFE..LH172,TRH112..V2

 1
17578A - CLAMP, MUFFLER
17578-67020

1TRFE..TRH112..V2

 1
17578A - CLAMP, MUFFLER
17578-67020

1TRFE..TRH112..V2

 1
Common parts
90461-12353
90501-35036
90901-05020
91512-81035
91611-G0820
94130-60800
