TRH112V-RRPEK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(0308- )TRH124 ; (0308- )TRH102,112,122..SGL,SGLE

Click highlighted areas on diagram

FRONT PIPING

diagram 88374B 88374C 88375A 88375B 88471 88472 88605L 88645H 8868826140 886882F080 88711 88712 88716A 88716A 88716B 88716E 88717A 88717E 8871826150 8871826840 887182A230 887182F050 887182F230 8871832220 88723B 9009914119 9009914120 9009914121 9009914122 9011906088 9011906462 9011906462 9011906675 9017906274 9165140816 9165160635 9165160635 91651B0822 91651B0822 91651B0822 91651B0822 9338516016 9338516025 9338516025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-12020

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30270

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

吸入側

 1
88375-20010

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

ﾘｷｯﾄﾞ側

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95J02

LH10#,11#,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

 1
88605L - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N32

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,左側

 1
88605-26030

LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM)

右側

 1
88605-95N33

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

ｼﾝｸﾞﾙ ｴｱｺﾝ,左側

 1
88605-95N22

RZH102,112,122

 1
88645H - SWITCH, PRESSURE NO.1
88645-10020

LH119..09S;LH109,119..GL,SGL;LH100,102,107,110,113,115,12#,RZH10#,11#,12#..CD,CTM,DX,GL,SCM,SCMM,SGL

NO.2

 1
88645-95J02

LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)

NO.1

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95J12

RZH102,112..GL;RZH100,101,11#,12#..(07S,08S,09S,10S,15S)..(CTM,DX,SCL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88711-95J35

RZH102,112,122

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95J22

RZH10#,11#,12#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95N10

LH129;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1

 1
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716-26060

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95N10

LH129;LH113,RZH112..09S..DX;LH102,107,109,113,119,RZH10#,112..GL,SCL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1

 1
88716-95J75

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95J27

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.1

 1
88716-26060

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95J80

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.1

 1
88716-95N09

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.2

 1
88716-95N08

LH129,RZH100;LH113,RZH112..09S..DX;LH102,109,113,119,RZH101,102,112..CTM,GL,SCL,SCM,SCMM,SGL;LH100,107,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ,NO.3

 1
88716-95J82

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

NO.2

 1
88716-95N06

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

NO.3

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-26040

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ

 1
88716-95J85

LH123..06S;LH102,109,113,119,129,RZH102,112,122..03S,05S,06S,09S

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95J40

LH10#,11#,12#,RZH10#,11#,12#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-95J41

LH113,RZH112..09S..DX;LH129,RZH100..06S,08S,09S;LH102,107,109,113,119,RZH101,102,112..CTM,GL,SCM,SCMM,SGL;LH100,110,115,119,120,123,125,RZH110,12#..(08S,09S,10S,15S)..5F..(CTM,DX,GL,SCM,SCMM)

ﾃﾞﾕｱﾙ ｴｱｺﾝ(ﾃﾞｲ-ﾗ ｵﾌﾟｼﾖﾝ)

 1
88717-95J42

LH102,109,110,113,119,123,129,140,RZH102,112,122..03S,05S,06S,09S

 1
Common parts
88688-26140
88688-2F080
88718-26150
88718-26840
88718-2A230
88718-2F050
88718-2F230
88718-32220
90099-14119
90099-14120
90099-14121
90099-14122
90119-06088
90119-06462
90119-06675
90179-06274
91651-40816
91651-60635
91651-B0822
93385-16016
93385-16025

ILLUST NO. 3 OF 5(0308- )TRH102,112..SGL

Click highlighted areas on diagram

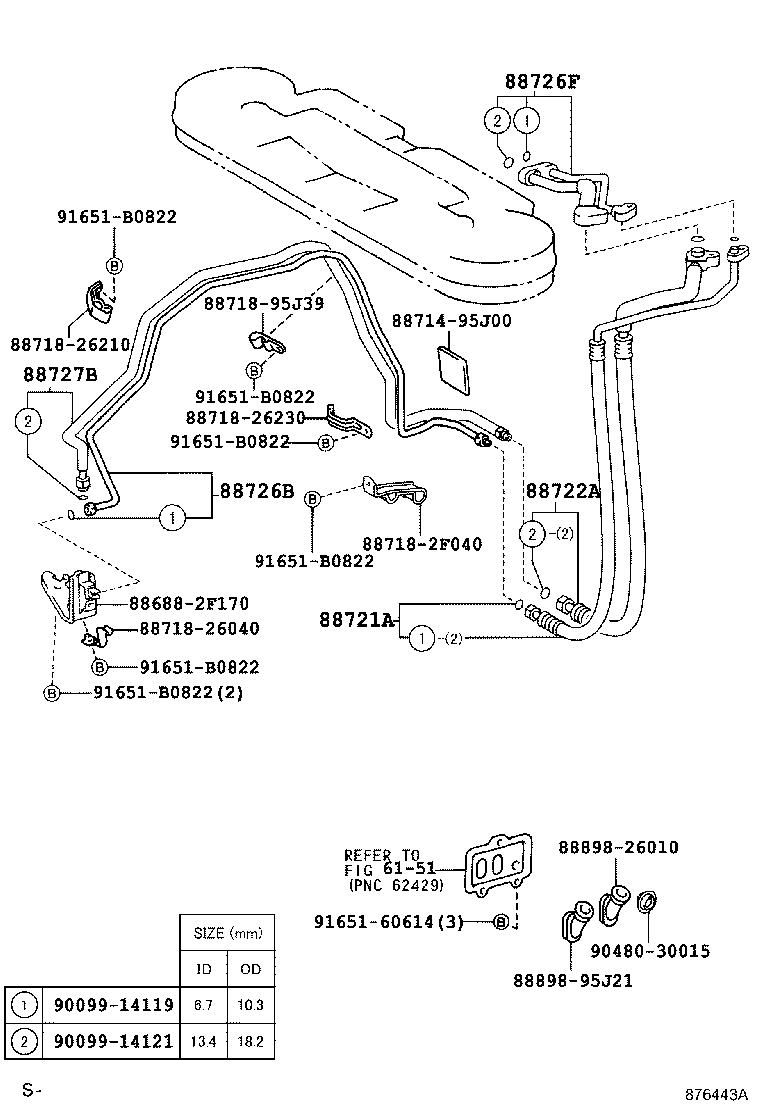

REAR PIPING

diagram 6151 886882F170 8871495J00 8871826040 8871826210 8871826230 887182F040 8871895J39 88721A 88722A 88726B 88726F 88727B 8889826010 8889895J21 9009914119 9009914121 9048030015 9165160614 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822 91651B0822
Part # Description Qty Price
88721A - HOSE, LIQUID, A
88721-95J05

LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF

 1
88722A - HOSE, SUCTION, A
88712-95J16

LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF

ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ

 1
88712-2F110

LH178..05S..SGL;KZH10#,LH162,172,TRH102,112..SCL,SCM,SCMM,SGL

 1
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95N00

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95J50

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(07S,08S,09S,10S,15S)..(CTM,DX,GL,SCL,SCM,SCMM)

 1
88717-2F460

KZH10#,11#,120,13#

 1
Common parts
88688-2F170
88714-95J00
88718-26040
88718-26210
88718-26230
88718-2F040
88718-95J39
88898-26010
88898-95J21
90099-14119
90099-14121
90480-30015
91651-60614
91651-B0822
Linked diagrams
6151
