TRH112V-RRPEK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

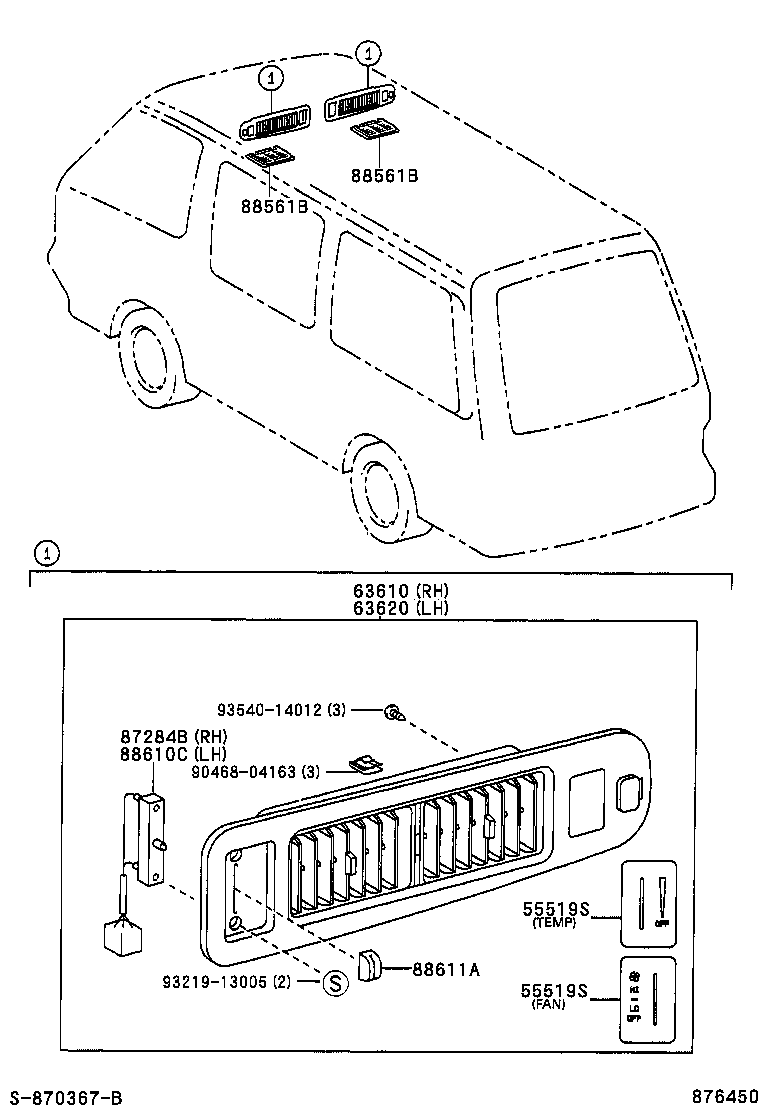

ILLUST NO. 5 OF 6(0308- )TRH102,112..SGL

Click highlighted areas on diagram

ﾘﾔｸ-ﾗ ﾀﾞｸﾄ

diagram 55519S 55519S 63610 63620 87284B 88561B 88561B 88610C 88611A 9046804163 9321913005 9354014012
Part # Description Qty Price
88561B - GRILLE, COOLER AIR INLET
88561-95J0508

LH129;LH102,109,113,119,RZH102,112..GL;LH100,113,119,123,RZH100,112,122..09S..DX

IVORY,TRIM1#

 2
88561B - GRILLE, COOLER AIR INLET
88561-95J0508

LH129;LH102,109,113,119,RZH102,112..GL;LH100,113,119,123,RZH100,112,122..09S..DX

IVORY,TRIM1#

 2
88610C - SWITCH ASSY, COOLER CONTROL
88610-95704

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,119,120,123,125,RZH100,110,12#..(09S,10S,15S)..(DX,GL)

ﾌﾞﾛﾜ

 1
88610-95J0208

LH129;LH102,109,113,119,RZH102,112..GL;LH100,113,119,123,RZH100,112,122..09S..DX

IVORY,TRIM1#

 1
88611A - KNOB, COOLER CONTROL SWITCH
88611-95A01

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,107,110,115,119,120,123,125,RZH100,101,110,12#..(08S,09S,10S,15S)..(CTM,DX,GL,SCM,SCMM)

 2
Common parts
90468-04163
93219-13005
93540-14012

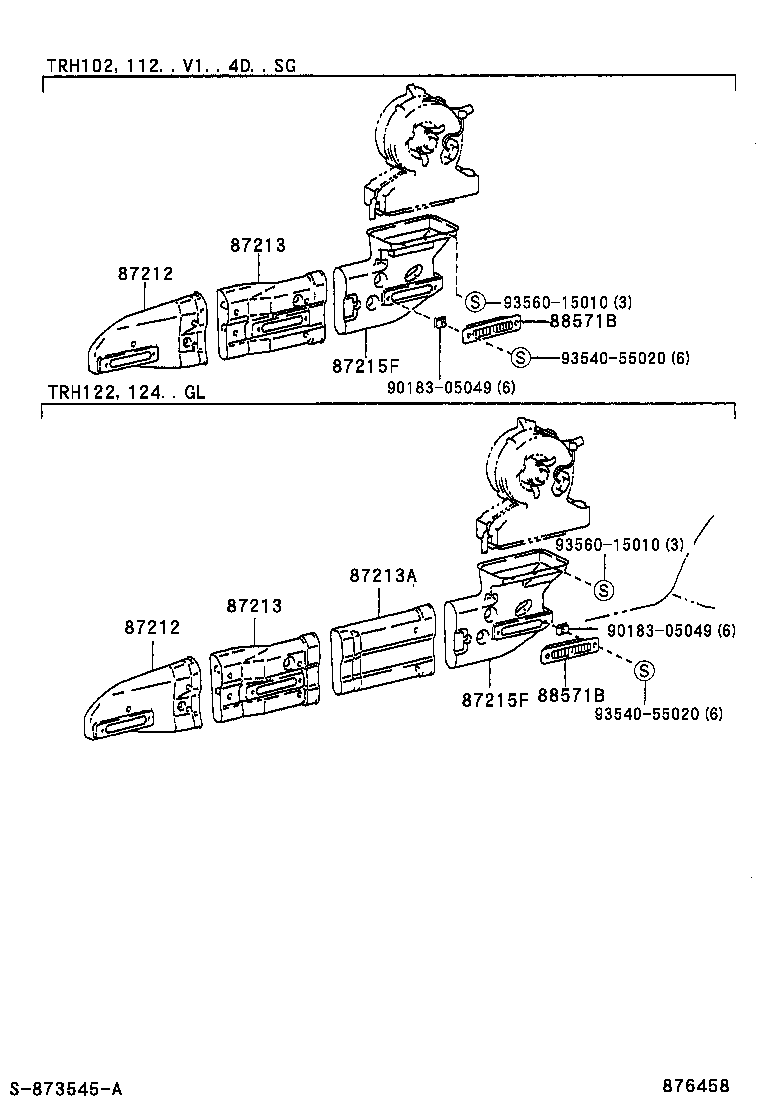

ILLUST NO. 4 OF 6(0308- )TRH124..GL ; (0308- )TRH102,112,122..V1..4D..SG

Click highlighted areas on diagram

ﾘﾔﾋ-ﾀ ﾀﾞｸﾄ

diagram 87212 87212 87213 87213 87213A 87215F 87215F 88571B 88571B 9018305049 9018305049 9354055020 9354055020 9356015010 9356015010
Part # Description Qty Price
87212 - DUCT, AIR, REAR NO.1
87212-95J02

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87212 - DUCT, AIR, REAR NO.1
87212-95J02

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87213 - DUCT, AIR, REAR NO.2
87213-95J03

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87213 - DUCT, AIR, REAR NO.2
87213-95J03

RZH102,112..850K;LH10#,110,113,119,123,125,129,RZH10#,11#,12#..(COM,V1,WG)..4D..(CTM,DX,GL,SCL,SCM,SCMM,SGL)

 1
87215F - DUCT, AIR, REAR NO.3
87215-95J02

RZH102,112..850K;LH10#,113,119,123,125,129,RZH10#,112,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,15S)

 1
87215F - DUCT, AIR, REAR NO.3
87215-95J02

RZH102,112..850K;LH10#,113,119,123,125,129,RZH10#,112,12#..(COM,V1,WG)..4D..(05S,06S,07S,08S,09S,15S)

 1
88571B - GRILLE, AIR OUTLET
87125-95J0803

RZH102,112..850K;LH100,102,109,113,119,123,129,RZH100,102,112,122..(V1,WG)..4D..(DX,GL)

GRAY,TRIM1#

 3
88571B - GRILLE, AIR OUTLET
87125-95J0803

RZH102,112..850K;LH100,102,109,113,119,123,129,RZH100,102,112,122..(V1,WG)..4D..(DX,GL)

GRAY,TRIM1#

 3
Common parts
90183-05049
93540-55020
93560-15010

ILLUST NO. 1 OF 6(0308- )TRH102,112..SGL

Click highlighted areas on diagram

ﾌﾛﾝﾄｺﾝﾄﾛ-ﾙ(ﾌﾟﾂｼﾕﾀｲﾌﾟ)

diagram 55900B 55900B 55902B 55905A 55905A 55907A 55909A 55910 55910C 55922 8401 9356015020 9356614512 9356855014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-22280

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S

MODE,内外気

 2
55905-22260

LH10#,11#,12#,140,RZH10#,11#,12#

ﾌﾞﾛﾜ,TEMP

 2
55905A - KNOB, HEATER CONTROL
55905-22280

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S

MODE,内外気

 2
55905-22260

LH10#,11#,12#,140,RZH10#,11#,12#

ﾌﾞﾛﾜ,TEMP

 2
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-95J09

KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

ﾌﾞﾗﾂｸ

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-95J01

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S

ﾌﾞﾙ-

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95J09

KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#..03S,05S,06S,08S,09S,10S,15S

 1
55910-26150

TRH102,112..SGL

 1
55910C - GROMMET(FOR HEATER CONTROL CABLE)
90480-13013

KZH10#,11#,12#,13#,LH10#,11#,12#,140,RZH10#,11#,12#,133..03S,05S,06S,08S,09S,10S,15S

 1
55922 - BRACKET, HEATER CONTROL BASE
55922-95J01

KZH10#,11#,12#,LH10#,11#,12#,140,RZH10#,11#,12#

 1
Common parts
93560-15020
93566-14512
93568-55014
Linked diagrams
8401
