TRH112V-RRPEK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(0308- )TRH102,112..SGL

Click highlighted areas on diagram

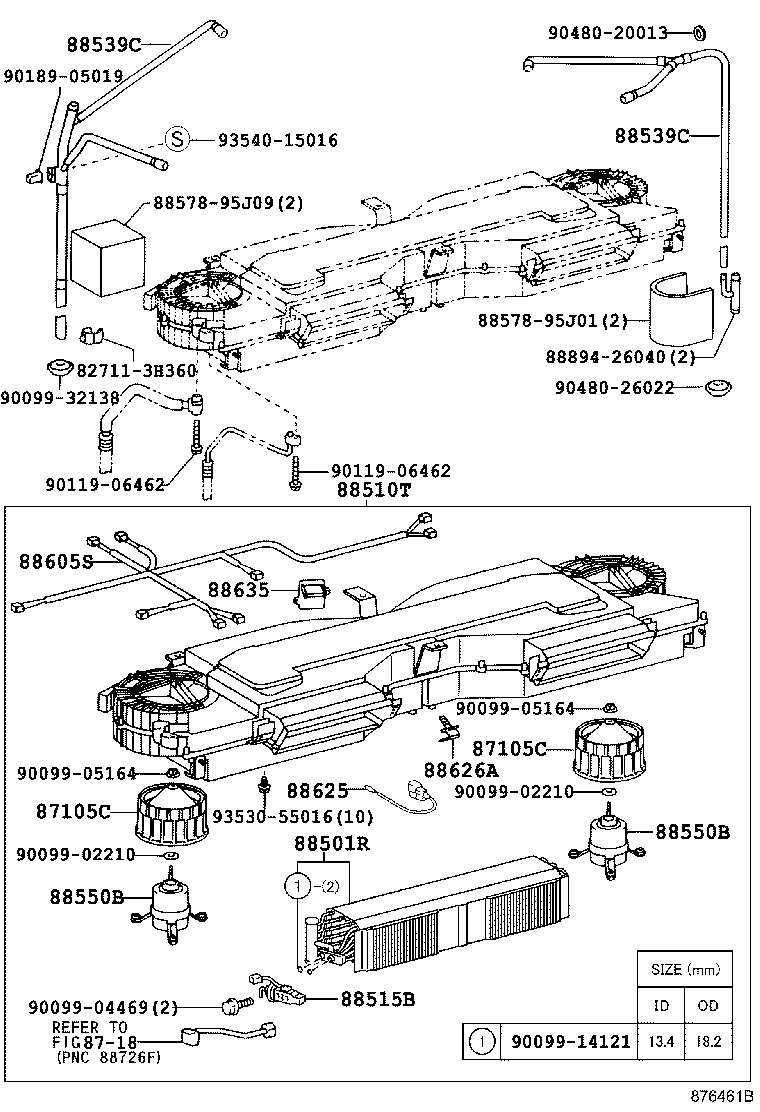

REAR UNIT

diagram 827113H360 87105C 87105C 8718 88501R 88510T 88515B 88539C 88539C 88550B 88550B 8857895J01 8857895J09 88605S 88625 88626A 88635 8889426040 9009902210 9009902210 9009904469 9009905164 9009905164 9009914121 9009932138 9011906462 9011906462 9018905019 9048020013 9048026022 9353055016 9354015016
Part # Description Qty Price
88510T - UNIT ASSY, COOLING (REAR)
88510-95N03

LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-95J02

LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF

 2
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-95J02

LH113,119,RZH112..09S..DX;LH102,109,113,119,RZH102,112..GL,SGL;LH100,110,115,117,140,RZH100,110..SRF

 2
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-95N17

LH129;LH113,RZH112..09S..DX;LH102,109,113,119,140,RZH102,112..GL,SGL,SW;LH100,110,115,117,119,120,123,125,RZH100,110,12#..(HRF,SRF)..(09S,10S,15S)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

LH10#,11#,12#,RZH10#,11#,12#

 1
88626A - HOLDER, THERMISTOR
88626-33010

LH10#,11#,12#,RZH10#,11#,12#

 1
Common parts
82711-3H360
88578-95J01
88578-95J09
88894-26040
90099-02210
90099-04469
90099-05164
90099-14121
90099-32138
90119-06462
90189-05019
90480-20013
90480-26022
93530-55016
93540-15016
Linked diagrams
8718
