TRH112V-RRPEK (2003)

Toyota Hiace/Regiusace

Production Aug 2003 - Aug 2004
Engine 1TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0308- )TRH102,112,12#..4FC

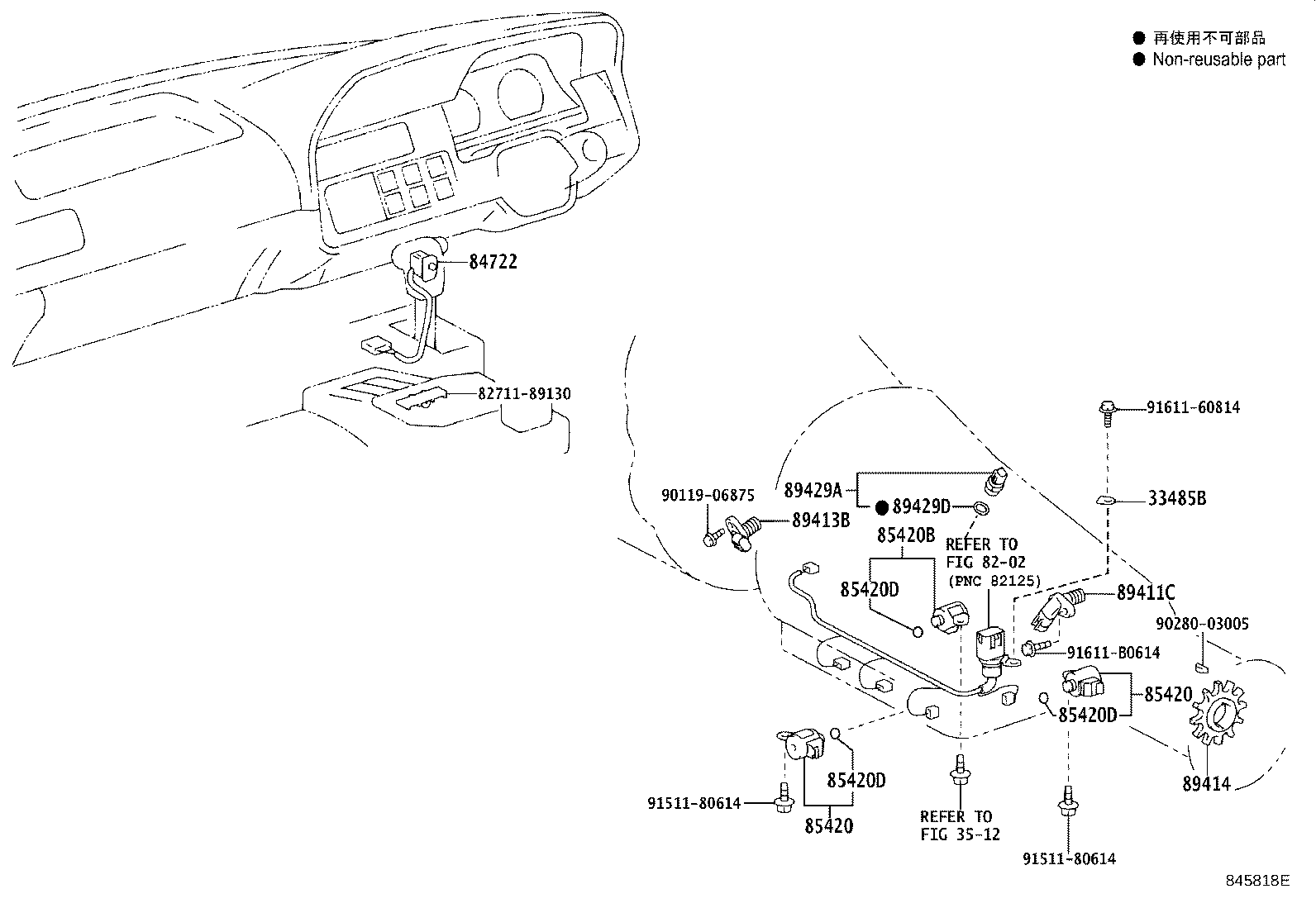

Click highlighted areas on diagram

diagram 33485B 3512 8202 8271189130 84722 85420 85420 85420B 85420D 85420D 85420D 89411C 89413B 89414 89429A 89429D 9011906875 9028003005 9151180614 9151180614 9161160814 91611B0614
Part # Description Qty Price
33485B - PLATE, TRANSMISSION WIRE
33485-28010

TRH102,112..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-2605003

LH100,102,107,113,119,123,RZH10#,112..(05S,06S,08S,09S)..4FC

GRAY,TRIM1#

 1
85420B - SOLENOID ASSY, TRANSMISSION
35250-28030

TRH102,112..4FC

 1
85420-26030

RZH102,112..4FC

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

外側

 1
90301-11001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

内側

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

外側

 1
90301-11001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

内側

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-23001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

外側

 1
90301-11001

LH123..06S..4FC;LH102,103,113,119,129,162,17#,18#,RZH102,112,124..4FC

内側

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-22010

TRH102,112..4FC

 1
Common parts
82711-89130
90119-06875
90280-03005
91511-80614
91611-60814
91611-B0614
Linked diagrams
3512
8202
